1-40 — FUEL TANK (#61842) — 34 parça

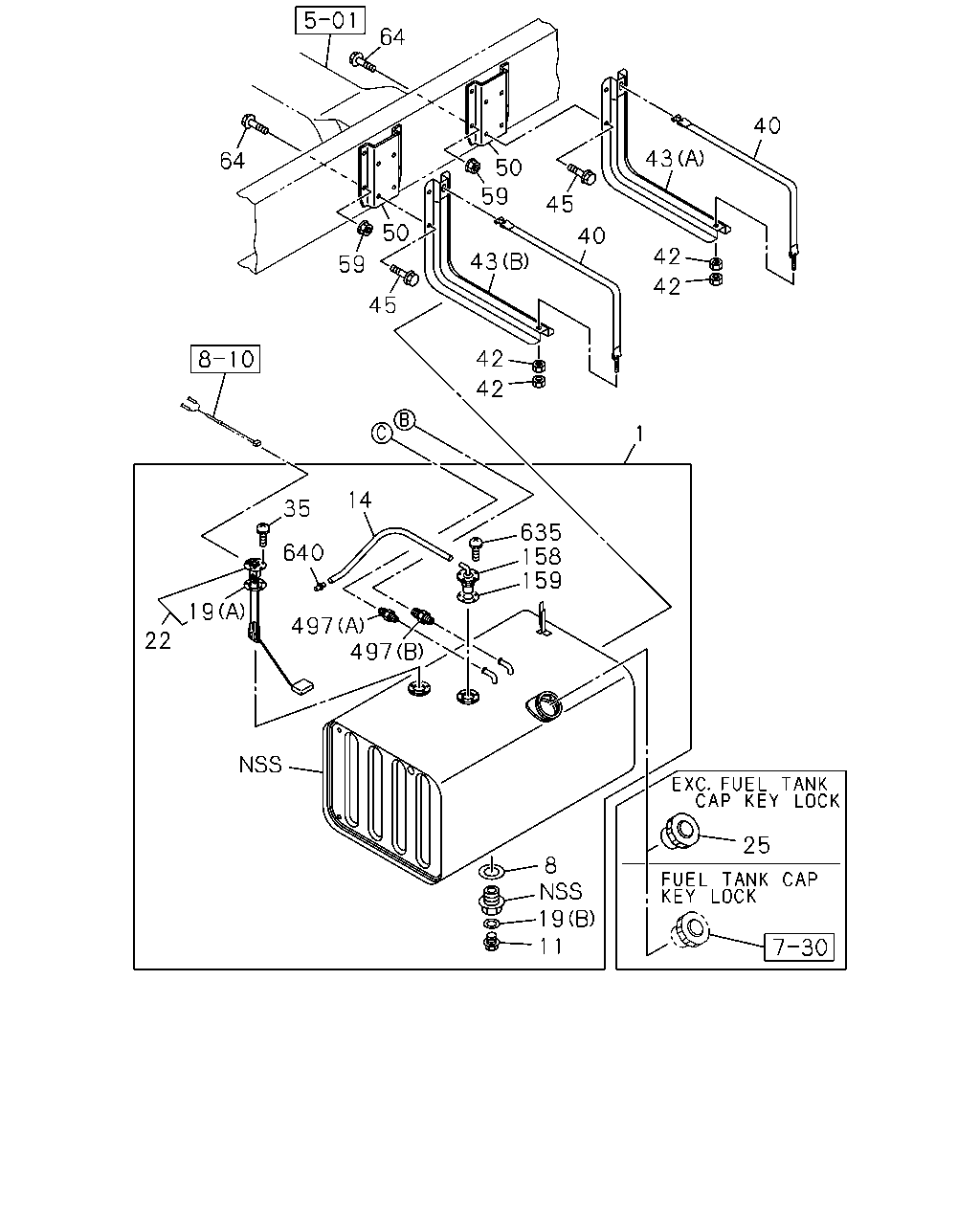

64 40 43 64 50 59 45 50 40 42 43 59 42 45 42 42 1 14 35 635 158 159 640 19 497 497 22 25 8 19 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL 820X500X400 140L	8-98067-087-3	01	1	1112-
8	GASKET; DRAIN PLUG,FUEL TANK ID=30	8-98067-041-0	01	1	1112-
11	PLUG; DRAIN,FUEL TANK M18	8-98068-006-0	01	1	1112-
14	HOSE; BREATHER,OUTLET L=460	8-98082-184-1	01	1	1112-
19	GASKET; FUEL TANK UNIT (A) ID=42 OD=71	5-83148-001-0	01	1	1112-
19	GASKET; FUEL TANK UNIT (B) ID=14.2 OD=23.0	9-09572-014-0	01	1	1112-1211
22	UNIT; FUEL TANK	8-98099-319-0	01	1	1112-
25	CAP; FILLER,FUEL TANK EXC. FUEL TANK CAP KEY LOCK<N05>	8-97387-179-0	01	1	1112-
35	SCREW; FUEL TANK UNIT M5X12 W/LK WASHER	0-36220-512-0	05	1	1112-
40	BELT; SUPPORT,FUEL TANK L=925	8-98049-769-1	02	1	1112-
42	NUT; SUPPORT BELT M10	0-91110-510-0	04	1	1112-
43	BRACKET; FUEL TANK (A)	8-98049-768-1	01	1	1112-
43	BRACKET; FUEL TANK (B)	8-98083-790-0	01	1	1112-1312
43	BRACKET; FUEL TANK (B)	8-98127-229-0	01	1	1401-
45	BOLT; BRKT,FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1112-
50	BRACKET; SUPPORT,FUEL BRKT	8-98097-206-0	02	1	1112-
59	NUT; FUEL TANK M10 FLANGE	0-91180-210-0	08	1	1112-
64	BOLT; FUEL TANK M10X35 FLANGE	0-28651-035-0	08	1	1112-
158	VALVE; ROLL OVER & FLOAT	8-98095-223-0	01	1	1112-
159	SEAL; ROLL OVER & FLOAT VALVE ID=45 OD=67	1-83149-003-0	01	1	1112-
497	NIPPLE; FUEL PIPE (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1112-
497	NIPPLE; FUEL PIPE (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1112-
635	SCREW; ROLL OVER & FLOAT VALVE M5X10 W/LK WASHER	0-36220-510-0	05	1	1112-
640	VENTILATOR; HOSE,BREATHER	8-98092-398-0	01	1	1112-

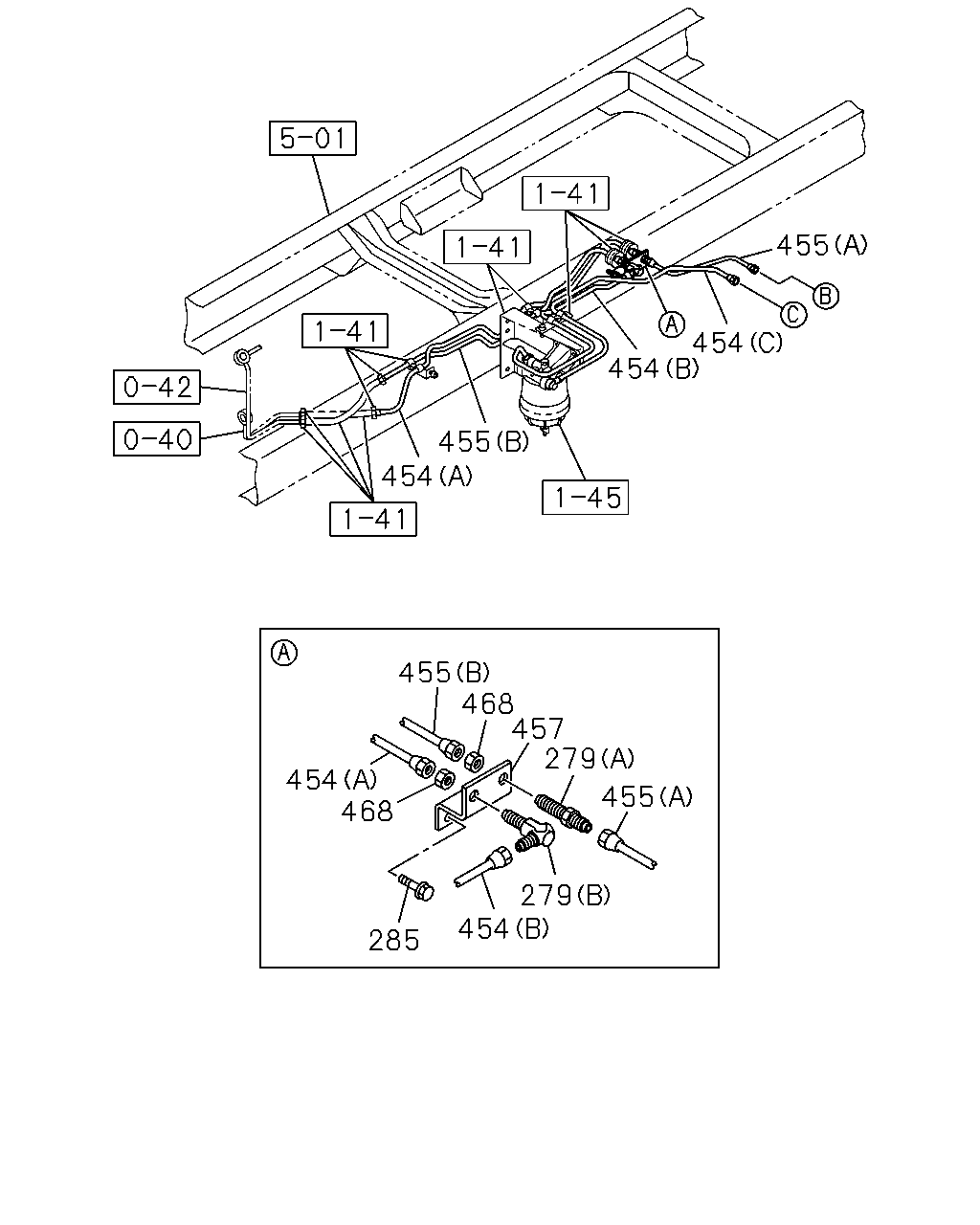

455 454 454 455 454 455 468 457 279 454 468 455 279 454 285

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
279	UNION; FUEL PIPE (B) M16 ELBOW	0-92135-010-0	01	1	1112-
279	UNION; FUEL PIPE (A) M14 & M16 STRAIGHT	1-09654-316-1	01	1	1112-
285	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1112-
454	PIPE; FUEL,DELIVERY (A)	8-98186-666-0	01	1	1112-
454	PIPE; FUEL,DELIVERY (B)	8-98191-933-0	01	1	1112-
454	PIPE; FUEL,DELIVERY (C)	8-98191-935-0	01	1	1112-
455	PIPE; FUEL,RETURN (A) L=308	8-98147-038-0	01	1	1112-
455	PIPE; FUEL,RETURN (B)	8-98186-667-0	01	1	1112-
457	BRACKET; UNION,FUEL PIPE	8-98147-485-0	01	1	1112-
468	NUT M16	0-91111-516-0	02	1	1112-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
