Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶

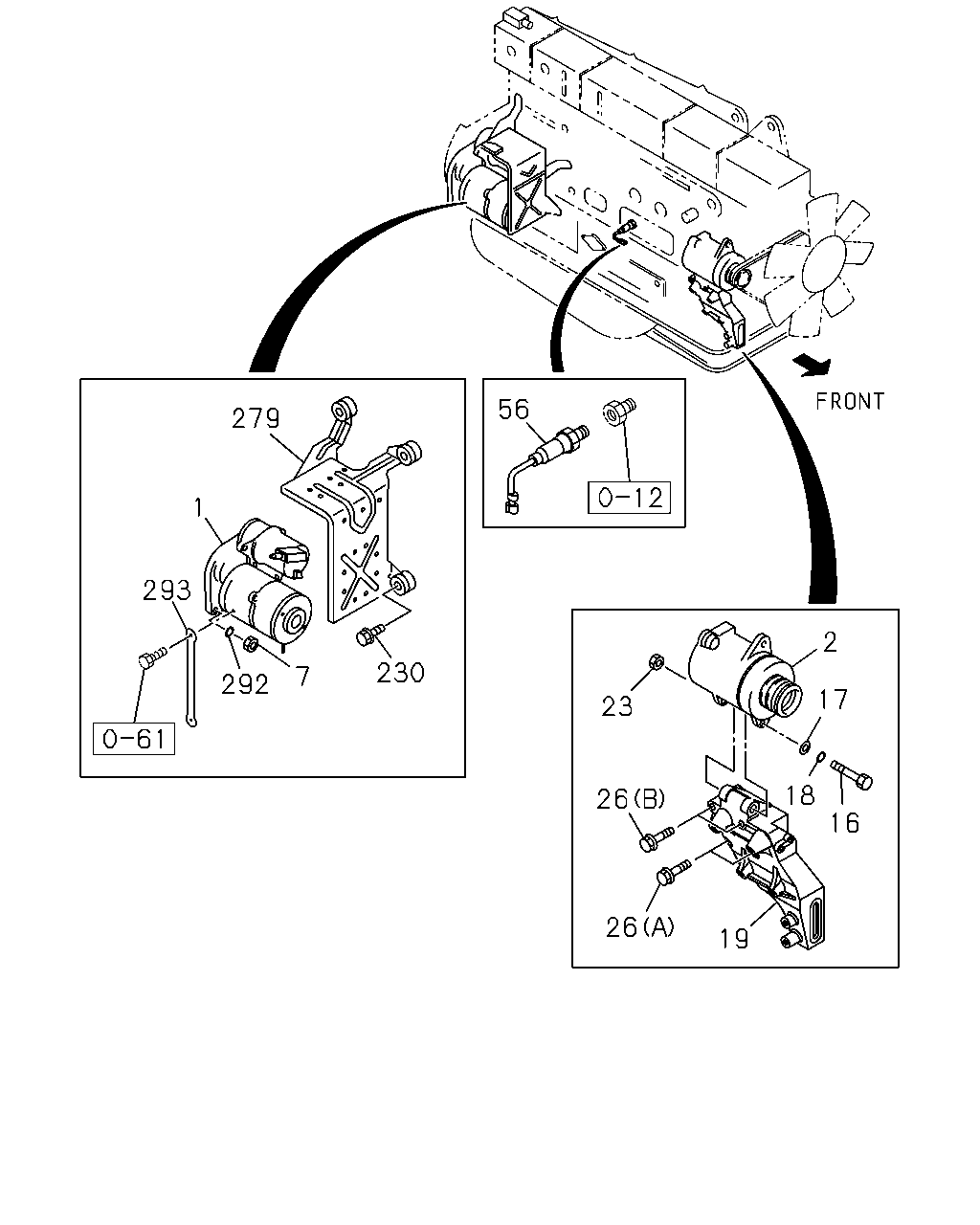

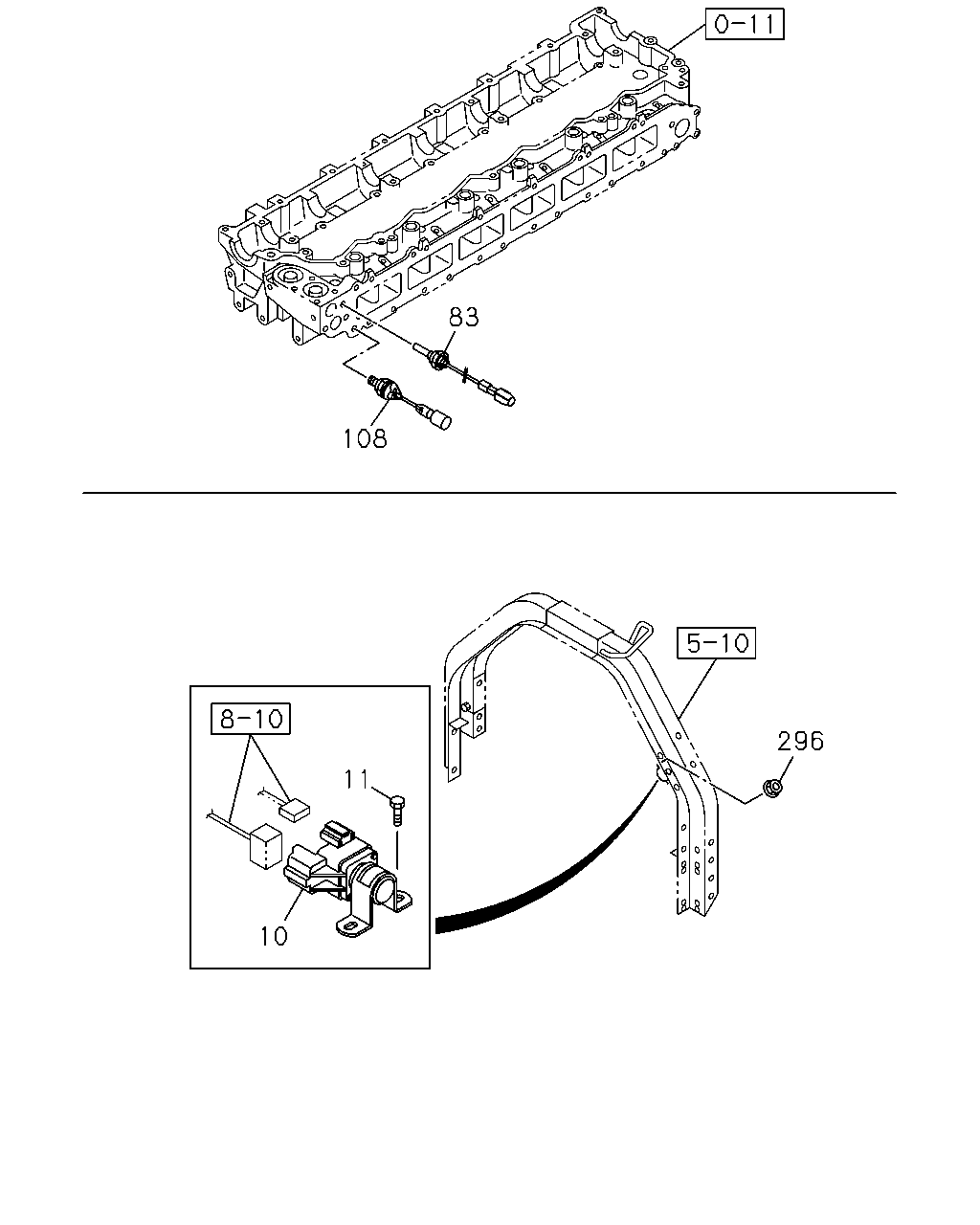

0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#61827) — 33 parça
◀
[060A] NO.2 (5 parça)
[060A] NO.1 (17 parça)
[060A] NO.3 (10 parça)
[060A] NO.4 (1 parça)
▶
83
108
296
11
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
24V NIKKO
8-98005-631-1
01
1
1112-
11
BOLT; RELAY STARTER
M8X20 FLANGE
0-28650-820-0
02
1
1112-
83
THERMOMETER UNIT
1-83161-031-1
01
1
1112-
108
SWITCH; THERMO
1-81535-046-0
01
1
1112-
296
NUT; RELAY,STARTER
M8 FLANGE
0-91180-108-0
02
1
1112-
56
279
1
293
292
230
7
2
17
16
18
26
23
26
19
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW NIKKO
1-81100-323-1
01
1
1112-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V40A(K78) 24V 40A NIKKO
1-81200-416-5
01
1
1112-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. GENERATOR 24V60A(KG2) 24V 60A NIKKO
1-81200-417-3
01
1
1112-
7
NUT; STARTER
M14
0-91110-514-0
02
1
1112-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
1112-
17
WASHER; PL,GEN
ID=15
0-91610-514-0
01
1
1112-
18
WASHER; LK,GEN
ID=14.2
0-91510-814-0
01
1
1112-
19
BRACKET; GEN
8-98082-615-1
01
1
1112-
23
NUT; GEN
M14
0-91110-514-0
01
1
1112-
26
BOLT; GEN BRKT
(A) M10X40 FLANGE
0-28151-040-0
02
1
1112-
26
BOLT; GEN BRKT
(B) M10X80 FLANGE
0-28151-080-0
02
1
1112-
56
SWITCH; OIL PRESSURE WARNING
1-82410-170-1
01
1
1112-
230
BOLT; HEAT PROTECTOR
M10X30 FLANGE
0-28151-030-0
01
1
1112-
230
BOLT; HEAT PROTECTOR
M8X28 FLANGE
8-97329-626-0
01
1
1112-
279
PROTECTOR; STARTER
8-94394-952-1
01
1
1112-
292
WASHER; LK,STARTER
ID=14.2
0-91510-814-0
02
1
1112-
293
CABLE; STARTER EARTH
8-98178-877-0
01
1
1112-
733
636
492
488
492
733
418
489
418
403
403
403

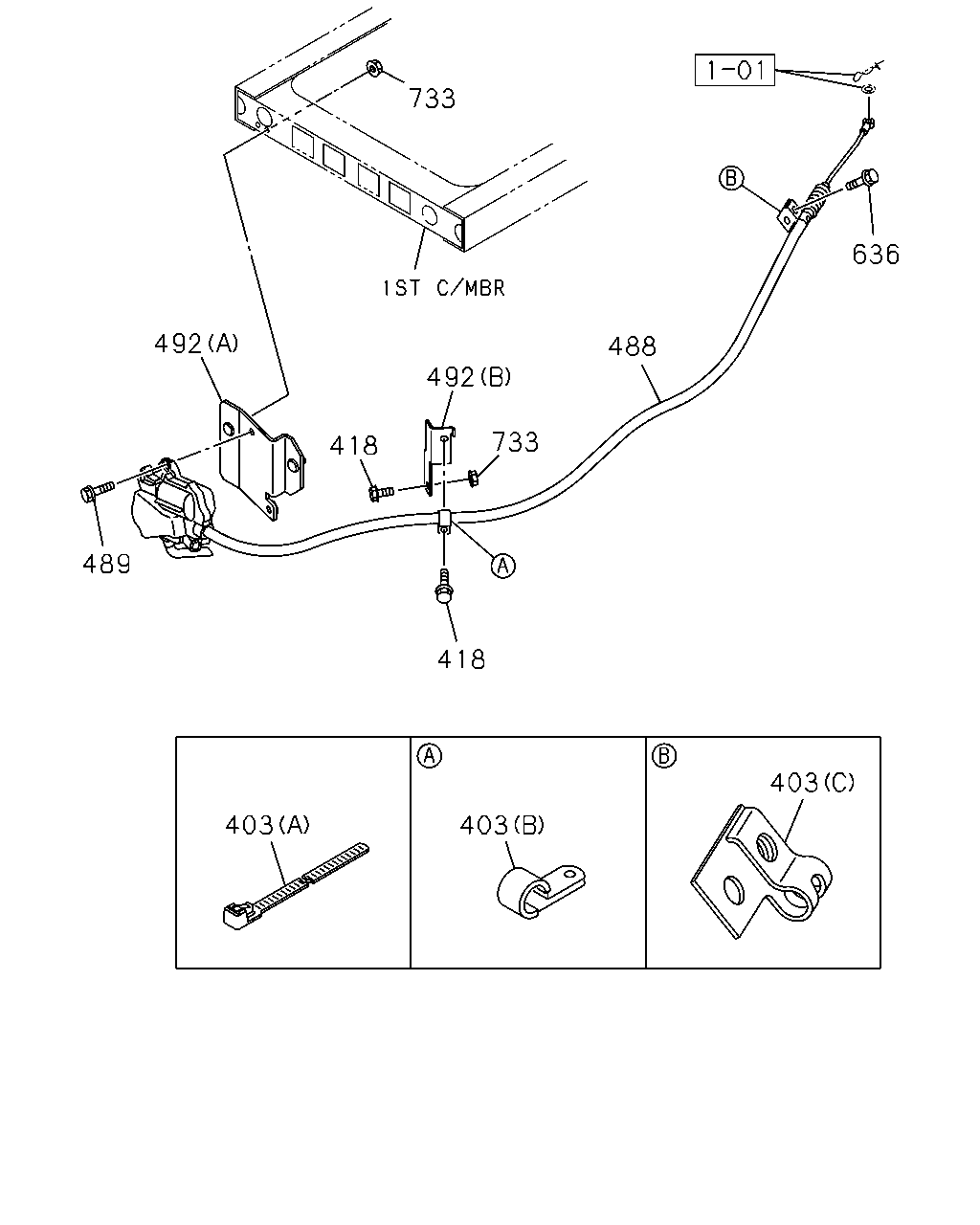

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
403
CLIP; CABLE
(B) ID=13 L=20
0-95235-235-0
01
1
1112-
403
CLIP; CABLE
(C)
1-09700-787-1
01
1
1112-
403
CLIP; CABLE
(A) L=250
5-09707-030-1
02
1
1112-
418
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
03
1
1112-
488
STOPPER; ENG
8-98136-373-1
01
1
1112-
489
BOLT; ENG STOPPER
M8X25 W/LK&PL WASHER
0-50640-825-0
02
1
1112-
492
BRACKET; ENG STOPPER
(B)
8-98140-140-1
01
1
1112-
492
BRACKET; ENG STOPPER
(A)
8-98141-428-1
01
1
1112-
636
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1112-
733
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
1112-
46

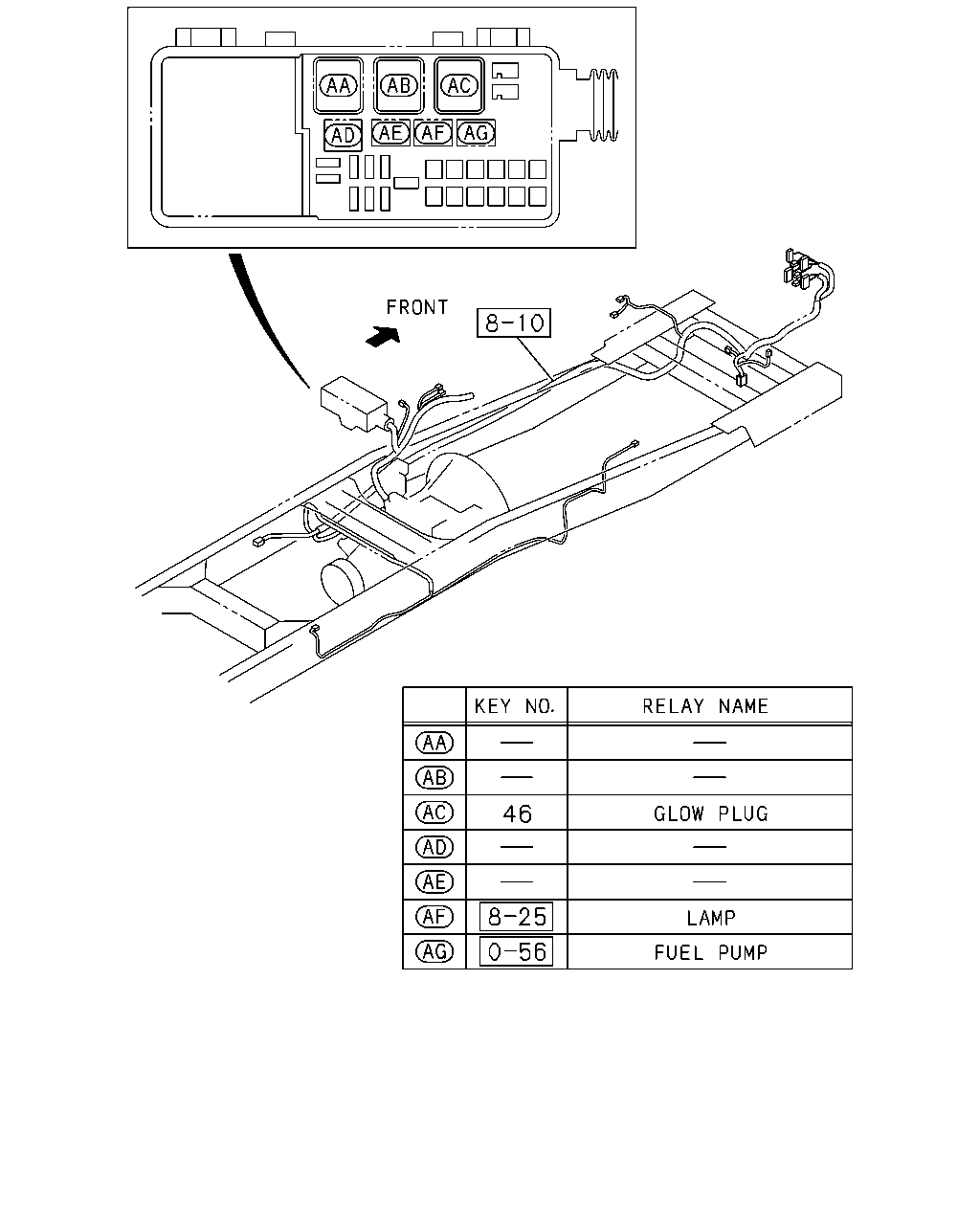

Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
46
RELAY; GLOW PLUG
24V 50A
8-97173-947-0
01
1
1112-
