Isuzu WW
▶
TRUCKS
▶
FSS
▶
11401 - FSS(RHD)EURO1
▶
0 - Engine, Emission, Engine Electrical
▶
0-22 - ENGINE MOUNTING
▶

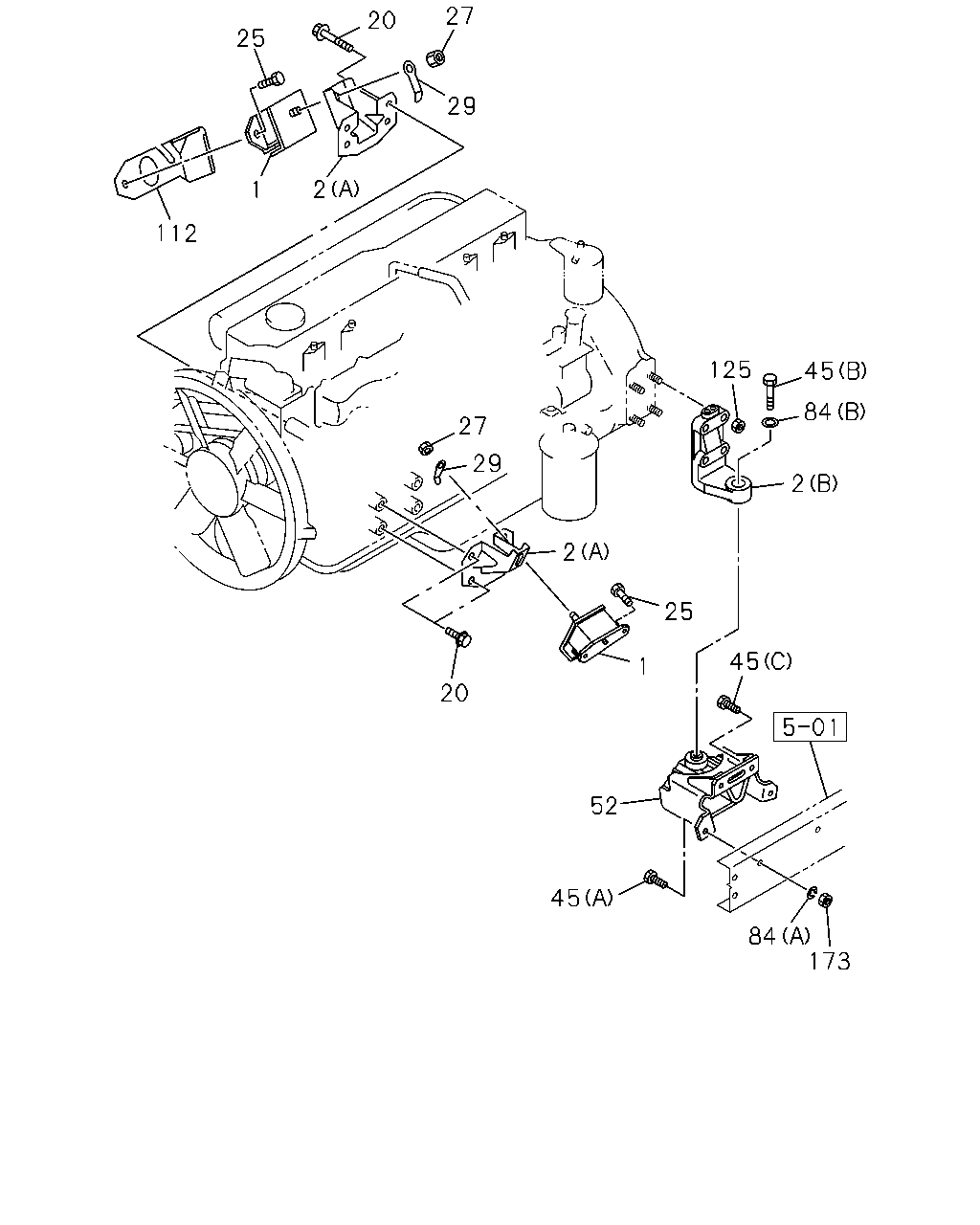

0-22 — ENGINE MOUNTING
(#61810) — 16 parça
20
25
27
29
2
1
112
27
29
125
45
84
2
45
25
2
1
20
52
45
84
173
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
RUBBER; ENG FOOT,FRT
1-53215-173-0
02
1
1112-
2
FOOT; ENG
(A)
8-94393-491-1
02
1
1112-
2
FOOT; ENG
(B)
8-94396-952-3
02
1
1112-
20
BOLT; ENG FOOT
M10X20 FLANGE
8-94395-721-0
08
1
1112-
25
BOLT; CUSHION RUBBER TO BRKT
M12X35 FLANGE
0-28651-235-0
04
1
1112-
27
NUT; CUSHION RUBBER TO ENG FOOT
M12 FLANGE
0-91180-212-0
02
1
1112-
29
PLATE; LK,CUSHION RUBBER,FRT
8-98010-312-0
02
1
1112-
45
BOLT; CUSHION RUBBER TO FRAME
(A) M12X35
0-20951-235-0
04
1
1112-
45
BOLT; CUSHION RUBBER TO FRAME
(C) M12X40
0-20951-240-0
04
1
1112-
45
BOLT; CUSHION RUBBER TO FRAME
(B) M18X65
8-94393-260-1
02
1
1112-
52
RUBBER; CUSHION,ENG MTG,RR
1-53225-228-2
02
1
1112-
84
WASHER; PL,ENG MTG RR TO FRAME
(A) ID=12.2
0-91510-612-0
08
1
1112-
84
WASHER; PL,ENG MTG RR TO FRAME
(B) ID=19 OD=36
0-91614-618-0
02
1
1112-
112
PROTECTOR; HEAT
1-53219-629-4
01
1
1112-
125
NUT; ENG FOOT
M12 FLANGE
8-94394-704-0
08
1
1112-
173
NUT; ENG MTG RR TO FRAME
M12
0-91110-512-0
08
1
1112-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
