◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#6180) — 66 parça

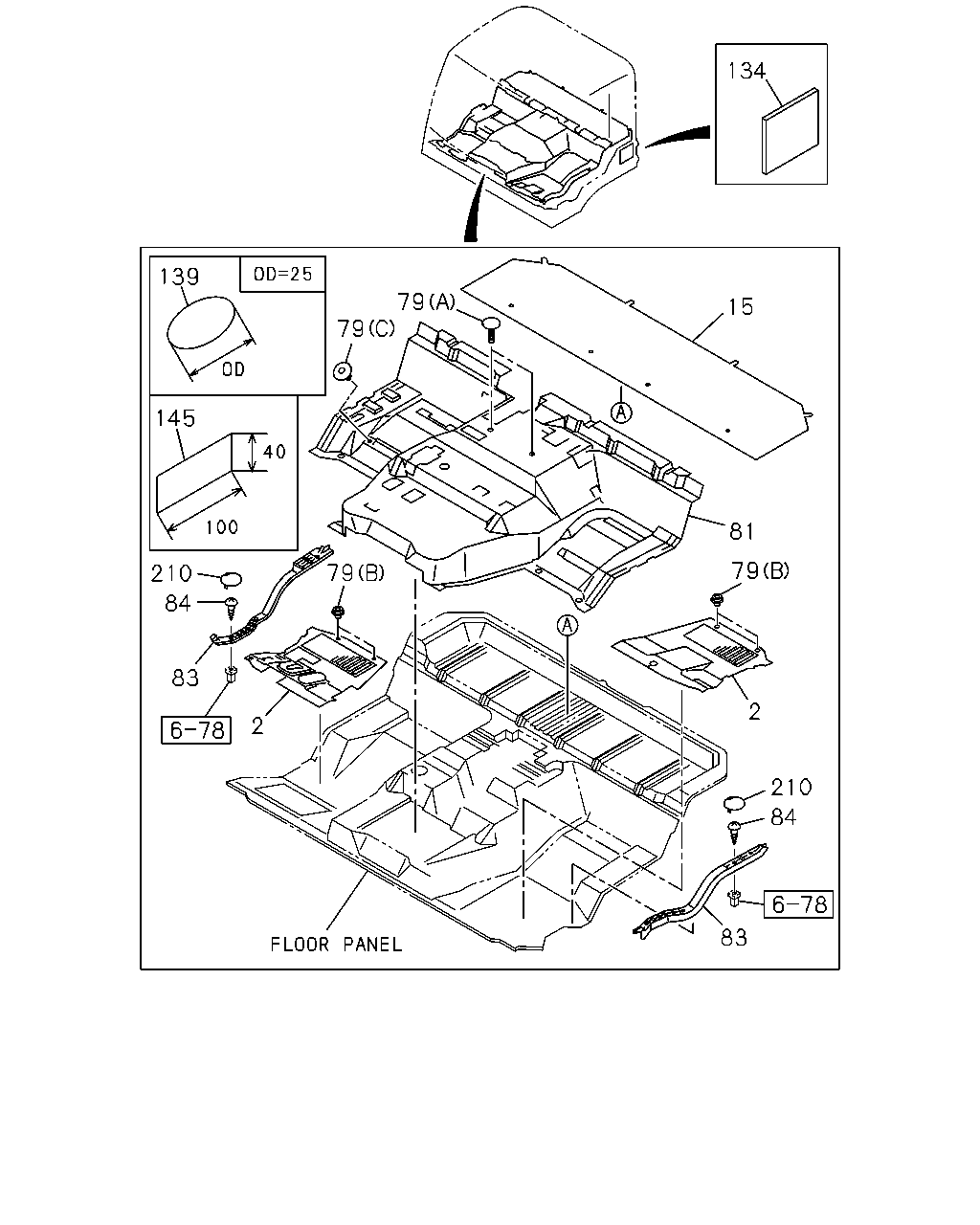

çizim 37989
134 139 79 79 15 145 81 79 79 210 84 83 2 2 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-536-3 01 1 9905-0104
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-574-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-786-1 01 1 0201-
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-535-2 01 1 9905-0006
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-675-0 01 1 0007-0104
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-676-0 01 1 0105-0112
2 MAT; FLOOR
EXC. DELUXE CARPET<BF2> 		1-73237-784-1 01 1 0201-
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-757-1 01 1 0105-0112
15 MAT; FLOOR REAR
EXC. DELUXE CARPET<BF2>,MATTRESS SLEEPER CAB<E40> 		1-73237-783-1 01 1 0201-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0712-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9905-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9905-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-625-2 01 1 9905-0104
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-745-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-803-1 01 1 0201-0301
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2> 		1-73237-803-5 01 1 0302-
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-721-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
CENTER SEAT DELETE(SP9) EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA) 		1-73237-800-0 01 1 0201-0301
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-626-2 01 1 9905-0104
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-746-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
ISRINGHAUSEN SEAT(SJA) EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-818-1 01 1 0201-0301
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,CENTER SEAT DELETE(SP9) 		1-73237-818-2 01 1 0302-
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA), CENTER SEAT DELETE(SP9) 		1-73237-722-0 01 1 0105-0112
81 MAT; FLOOR,CENTER
EXC. DELUXE CARPET<BF2>,ISRINGHAUSEN SEAT(SJA), CENTER SEAT DELETE(SP9) 		1-73237-815-0 01 1 0201-0301
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9905-0104
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9905-0104
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9905-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9905-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 9905-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9905-0104
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-

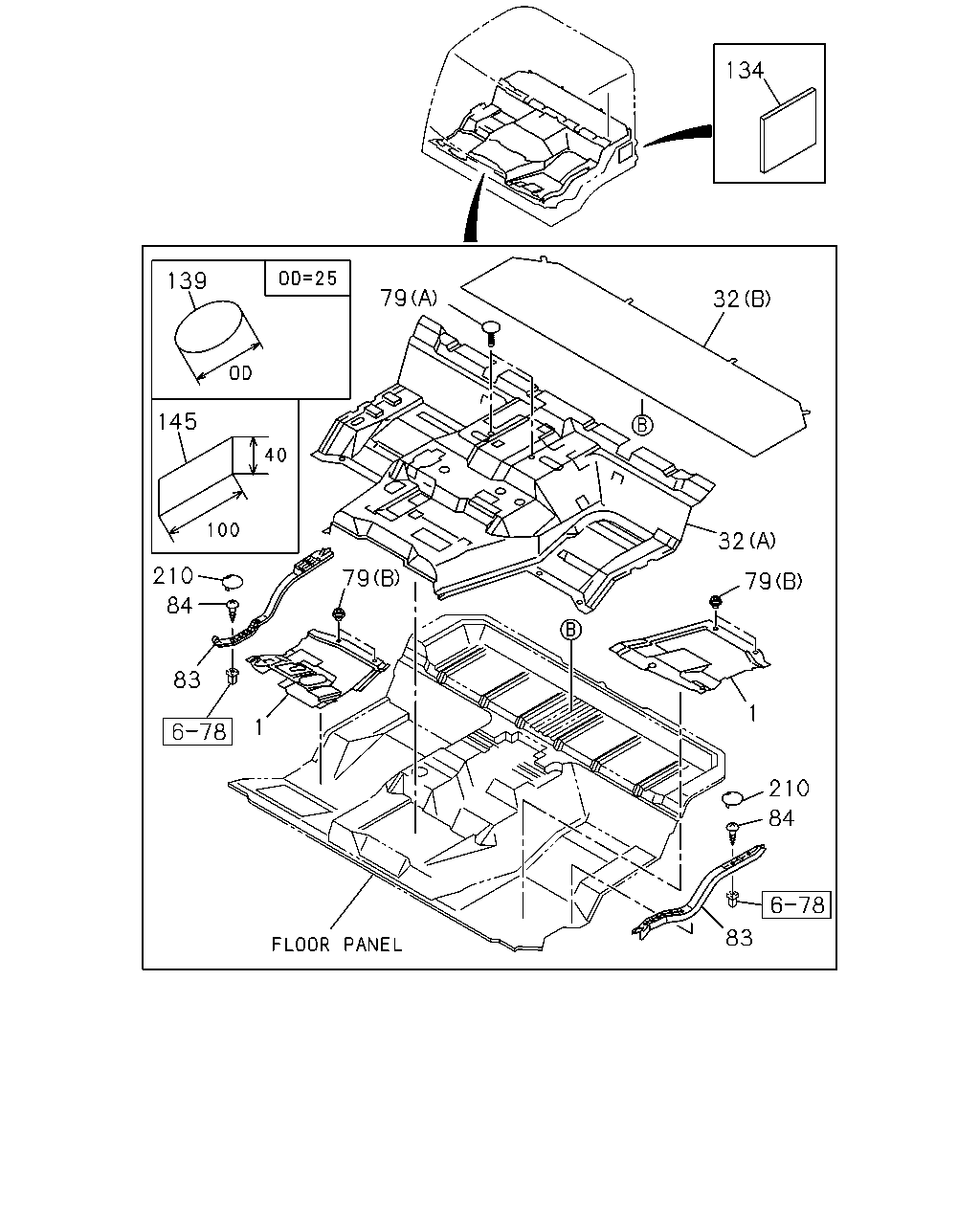

çizim 100195
134 139 79 32 145 32 210 79 79 84 83 1 1 210 84 83
BalonParca AdiParca NoAdetTipApplied Date
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-538-2 01 1 9905-0104
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-571-1 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-863-2 01 1 0405-
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-537-1 01 1 9905-0006
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-666-0 01 1 0007-0104
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-669-0 01 1 0105-0404
1 CARPET; FLOOR,FRT
DELUXE CARPET<BF2> 		1-73237-864-2 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-623-2 01 1 9905-0104
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) CENTER SEAT DELETE(SP9) (A) 		1-73237-741-2 01 1 0105-0301
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-741-2 01 1 0302-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) (A) 		1-73237-839-6 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> CENTER SEAT DELETE(SP9) EXC. ISRINGHAUSEN SEAT(SJA) (A) 		1-73237-717-1 01 1 0105-0301
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-624-2 01 1 9905-0104
32 CARPET; FLOOR
DELUXE CARPET<BF2> ISRINGHAUSEN SEAT(SJA) EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-742-2 01 1 0105-0301
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-742-2 01 1 0302-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. CENTER SEAT DELETE(SP9) (A) 		1-73237-840-6 01 1 0405-
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. ISRINGHAUSEN SEAT(SJA),CENTER SEAT DELETE(SP9) (A) 		1-73237-718-1 01 1 0105-0301
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-720-0 01 1 0105-0404
32 CARPET; FLOOR
DELUXE CARPET<BF2> EXC. MATTRESS SLEEPER CAB<E40> (B) 		1-73237-867-2 01 1 0405-
79 HOOK; MALE
EXC. DELUXE CARPET<BF2> (C) OD=16 L=11 		1-76378-155-0 01 1 0712-
79 HOOK; MALE
(A) D6X23 BLACK 		1-09987-114-0 02 1 9905-
79 HOOK; MALE
(B) BLACK 		8-94279-089-0 08 1 9905-
83 PLATE; KICKING,FLOOR MAT 1-76798-027-2 01 1 9905-0104
83 PLATE; KICKING,FLOOR MAT 1-76798-046-0 01 1 0105-
83 PLATE; KICKING,FLOOR MAT 1-76798-026-3 01 1 9905-0104
83 PLATE; KICKING,FLOOR MAT 1-76798-045-0 01 1 0105-
84 SCREW; PLATE TO FLOOR
M5X16 		8-94279-312-0 08 1 9905-
134 SILENCER; RR FLOOR,SIDE
EXC. BAGGAGE BOX CAB RR SIDE<TBM> 		1-73367-016-2 01 1 0105-
139 SEAL; FLOOR
OD=25 BLACK 		1-76798-019-0 04 1 9905-
145 SEAL; FLOOR PANEL
100X40 		1-72498-022-1 01 1 9905-
210 COVER; KICKING PLATE 1-72538-166-0 09 1 9905-0104
210 COVER; KICKING PLATE 1-76337-461-0 09 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
