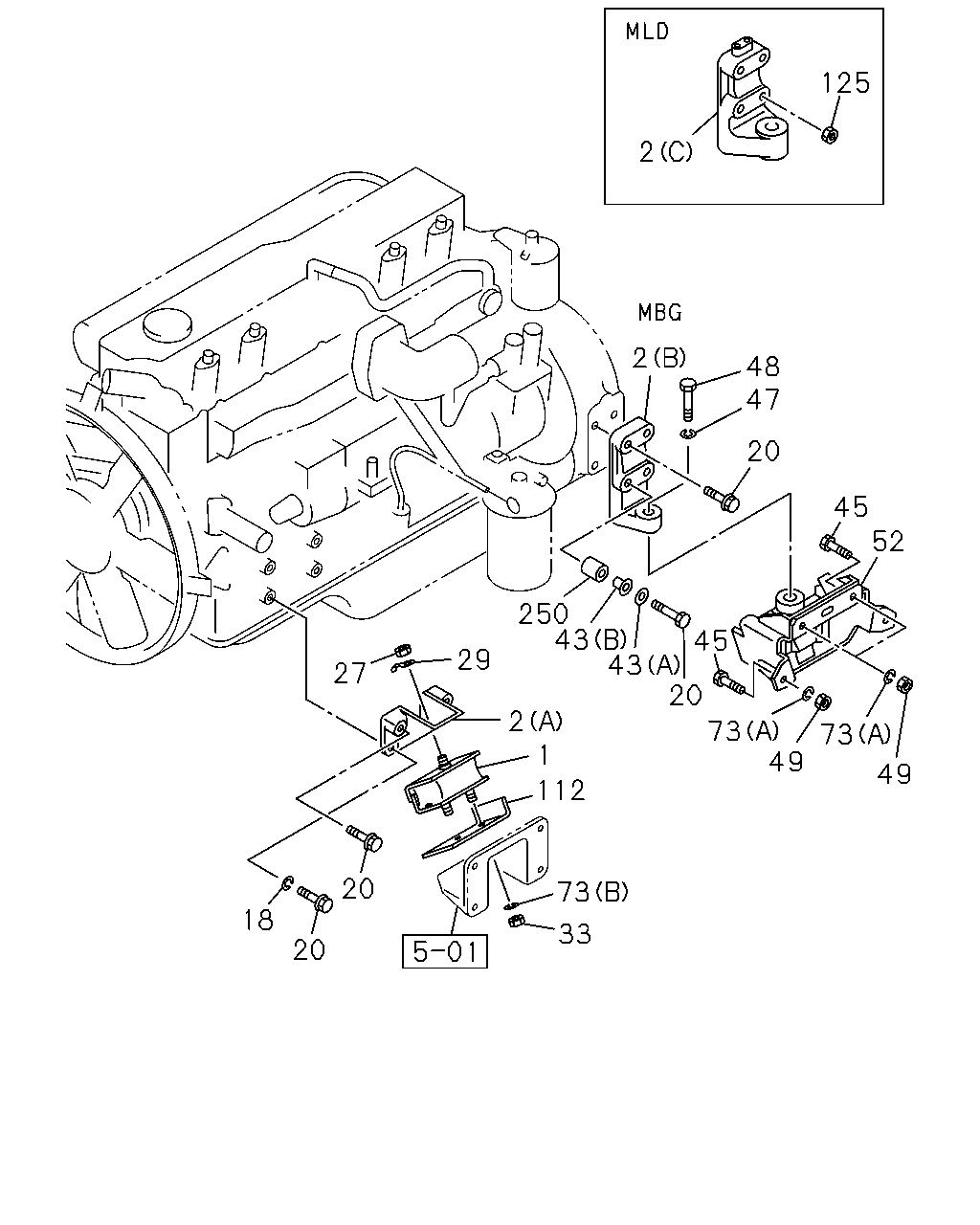

1 |
RUBBER; ENG FOOT,FRT
|
1-53215-176-0 |
02 |
1 |
9202- |
● |
● |
| |
2 |
FOOT; ENG
(A) FRONT
|
8-94393-147-0 |
01 |
1 |
9202- |
● |
● |
| |
2 |
FOOT; ENG
(A) FRONT
|
8-94393-146-0 |
01 |
1 |
9202- |
● |
● |
| |
2 |
FOOT; ENG
A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>
FRONT AXLE F049<FS4>
(B) REAR
|
8-94399-491-0 |
02 |
1 |
9202- |
● |
● |
| |
2 |
FOOT; ENG
A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>
EXC. FRONT AXLE F049<FS4>
(B) REAR
|
8-94399-490-0 |
02 |
1 |
9202- |
● |
● |
| |
2 |
FOOT; ENG
MLD6 M/T<X9Y>
(C) REAR
|
8-94396-953-3 |
02 |
1 |
9202- |
● |
● |
| |
18 |
WASHER; PL,ENG FOOT
OD=22 T=7
|
9-53319-024-0 |
04 |
1 |
9202-9410 |
● |
● |
| |
20 |
BOLT; ENG FOOT
M10X30
|
8-97011-732-0 |
04 |
1 |
9202-9410 |
● |
● |
| |
20 |
BOLT; ENG FOOT
M10X20 FLANGE
|
8-94395-721-0 |
08 |
1 |
9411- |
● |
● |
| |
20 |
BOLT; ENG FOOT
M10X70
|
8-97011-733-0 |
04 |
1 |
9202-9410 |
● |
● |
| |
20 |
BOLT; ENG FOOT
A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X>
M12X55
|
8-94399-884-1 |
08 |
1 |
9202- |
● |
● |
| |
27 |
NUT; CUSHION RUBBER TO ENG FOOT
M12
|
9-99110-512-0 |
02 |
1 |
9202- |
● |
● |
| |
29 |
PLATE; LK,CUSHION RUBBER,FRT
|
1-53229-052-1 |
02 |
1 |
9202- |
● |
● |
| |
33 |
NUT; CUSHION RUBBER TO BRKT
M14
|
9-99110-414-0 |
04 |
1 |
9202- |
● |
● |
| |
43 |
WASHER; ENG FOOT
(A)
|
1-09556-015-0 |
04 |
1 |
9202-9310 |
● |
● |
| |
43 |
WASHER; ENG FOOT
(B)
|
1-14149-042-0 |
04 |
1 |
9202-9410 |
● |
● |
| |
45 |
BOLT; CUSHION RUBBER TO FRAME
M12X35
|
9-92061-235-0 |
04 |
1 |
9202- |
● |
● |
| |
45 |
BOLT; CUSHION RUBBER TO FRAME
M12X40
|
9-92061-240-0 |
04 |
1 |
9202- |
● |
● |
| |
47 |
WASHER; LK,CUSHION RUBBER
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
ID=18.2
|
9-09150-518-0 |
02 |
1 |
9202- |
● |
● |
| |
47 |
WASHER; LK,CUSHION RUBBER
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
ID=18.2
|
9-09150-518-0 |
02 |
1 |
9202- |
● |
● |
| |
47 |
WASHER; LK,CUSHION RUBBER
HEAVY DUTY PACKAGE TRUCK<RD2>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
ID=22.5
|
9-09150-622-0 |
02 |
1 |
9202- |
● |
● |
| |
48 |
BOLT; CUSHION RUBBER TO ENG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M18X65
|
0-16806-865-0 |
02 |
1 |
9202-9209 |
● |
● |
| |
48 |
BOLT; CUSHION RUBBER TO ENG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M18X65
|
0-16806-865-0 |
02 |
1 |
9202-9209 |
● |
● |
| |
48 |
BOLT; CUSHION RUBBER TO ENG
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
M18X65
M18X65
|
8-94393-260-1 |
02 |
1 |
9210- |
● |
● |
| |
48 |
BOLT; CUSHION RUBBER TO ENG
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M18X65
M18X65
|
8-94393-260-1 |
02 |
1 |
9210- |
● |
● |
| |
48 |
BOLT; CUSHION RUBBER TO ENG
HEAVY DUTY PACKAGE TRUCK<RD2>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
M22X75
|
1-09020-087-2 |
02 |
1 |
9202- |
● |
● |
| |
49 |
NUT; CUSHION RUBBER TO FRAME
M12
|
9-99110-512-0 |
08 |
1 |
9202- |
● |
● |
| |
52 |
RUBBER; CUSHION,ENG MTG,RR
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
EXC. HEAVY DUTY PACKAGE TRUCK<RD2>
|
1-53225-173-2 |
02 |
1 |
9202- |
● |
● |
| |
52 |
RUBBER; CUSHION,ENG MTG,RR
EXC. BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
|
1-53225-173-2 |
02 |
1 |
9202- |
● |
● |
| |
52 |
RUBBER; CUSHION,ENG MTG,RR
HEAVY DUTY PACKAGE TRUCK<RD2>
BRAKE SYSTEM HEAVY DUTY VAR2(WG3)
|
1-53225-267-1 |
02 |
1 |
9202- |
● |
● |
| |
73 |
WASHER; LK,CUSHION RUBBER TO FRAME
(B)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9202- |
● |
● |
| |
73 |
WASHER; LK,CUSHION RUBBER TO FRAME
(A)
ID=12.2
|
9-09150-612-0 |
08 |
1 |
9202- |
● |
● |
| |
112 |
PROTECTOR; HEAT
|
1-53219-395-1 |
01 |
1 |
9202- |
● |
● |
| |
125 |
NUT; ENG FOOT
MLD6 M/T<X9Y>
M12 FLANGE
|
0-91150-212-0 |
08 |
1 |
9202-9206 |
● |
● |
| |
125 |
NUT; ENG FOOT
MLD6 M/T<X9Y>
M12 FLANGE
|
8-94394-704-0 |
08 |
1 |
9207- |
● |
● |
| |
250 |
SPACER; ENG FOOT
L=43
|
8-94396-406-0 |
04 |
1 |
9202-9410 |
● |
● |
