2-05 — CLUTCH PIPING (#61781) — 33 parça

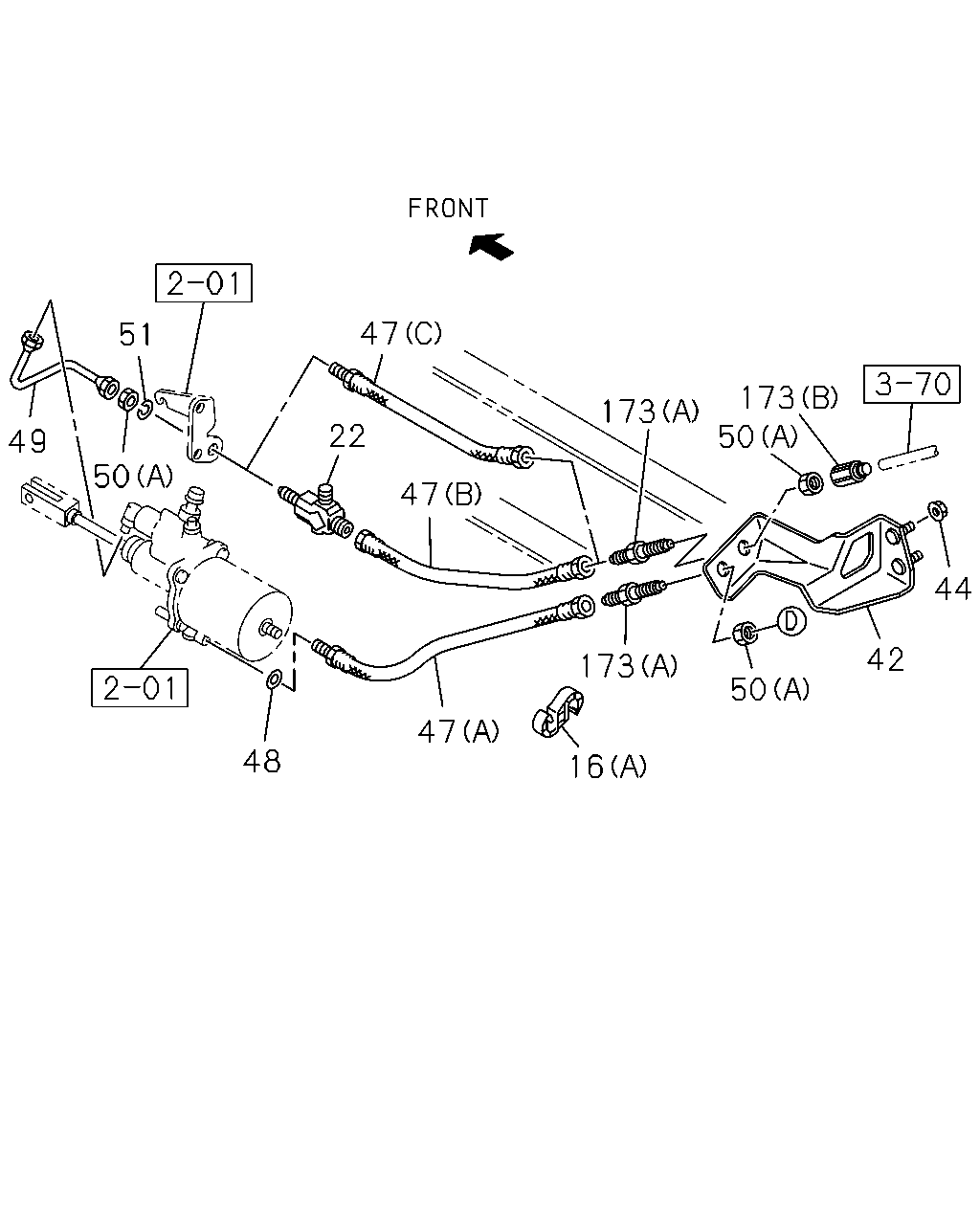

çizim 148534
47 51 173 50 173 22 49 50 47 44 42 173 50 47 48 16
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1110-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1110-
22 UNION; CLU PIPE
ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1110-
42 BRACKET; FLEX HOSE,CLU CONT 1-47477-360-0 01 1 1110-
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 1110-
47 HOSE; FLEX,CLU CONT
ASSISTOR SHIFT CONTROL<WX8> (B) L=310 		1-09363-713-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
(A) L=340 		8-98072-354-0 01 1 1110-
47 HOSE; FLEX,CLU CONT
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) L=370 		1-09363-621-0 01 1 1110-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1110-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=204 		1-49117-400-0 01 1 1110-
50 NUT; UNION
(A) M12 		9-09840-280-0 02 1 1110-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1110-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1110-
51 WASHER; LK
ID=12.2 		0-91510-812-0 01 1 1110-
173 CONNECTOR
(A) M12 L=66.5 		0-92113-306-0 02 1 1110-
173 CONNECTOR
(B) DIN8 & M12 STRAIGHT 		1-09660-873-0 01 1 1110-

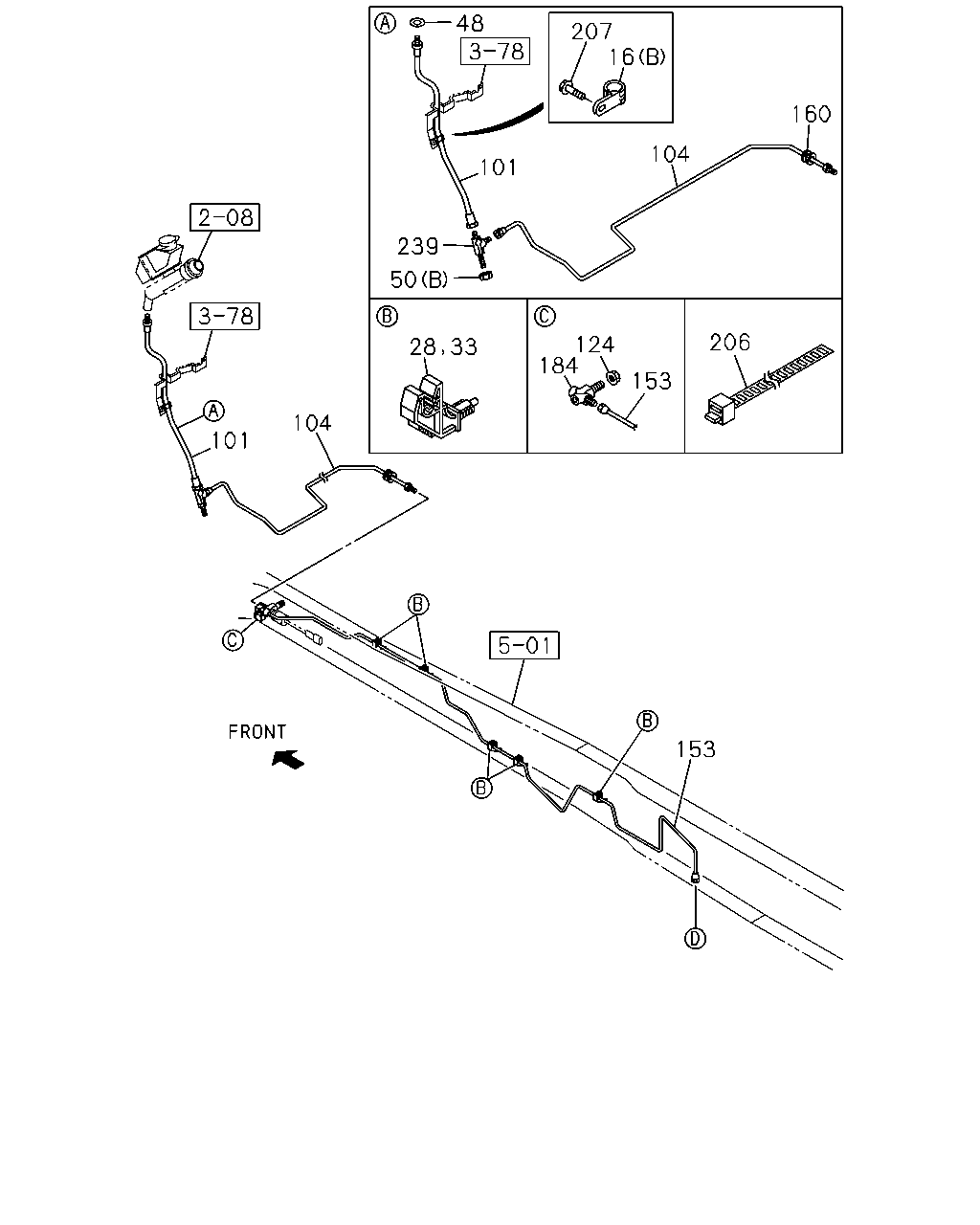

çizim 148567
48 207 16 160 104 101 239 50 206 124 184 153 104 101 153 28 33
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
(B) ID=18 L=28 		1-09701-067-0 01 1 1110-
16 CLIP; FLEX HOSE
(A) ID=10 & 12 		1-09709-278-1 01 1 1110-
28 CLIP; OIL PIPE
ID=6.35 		1-09701-247-1 01 1 1110-
33 CLIP; OIL PIPE
ID=6.35 		1-09701-247-1 03 1 1110-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1110-
50 NUT; UNION
(A) M12 		9-09840-280-0 02 1 1110-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1110-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1110-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=480 		8-98072-349-0 01 1 1110-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
L=1270 SERVICED BY L=1370 		1-47428-734-0 01 1 1110-
124 NUT; PIPE UNION
M12 		0-91111-512-0 01 1 1110-
153 PIPE ASM; CLU,UNION TO FLEX
L=2847 SERVICED BY L=2900 		1-47428-744-0 01 1 1110-
160 GROMMET; OIL PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1110-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1110-
206 CLIP; TUBE
L=350 		1-09707-183-0 02 1 1110-
207 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1110-
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 1110-
