0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#61760) — 87 parça

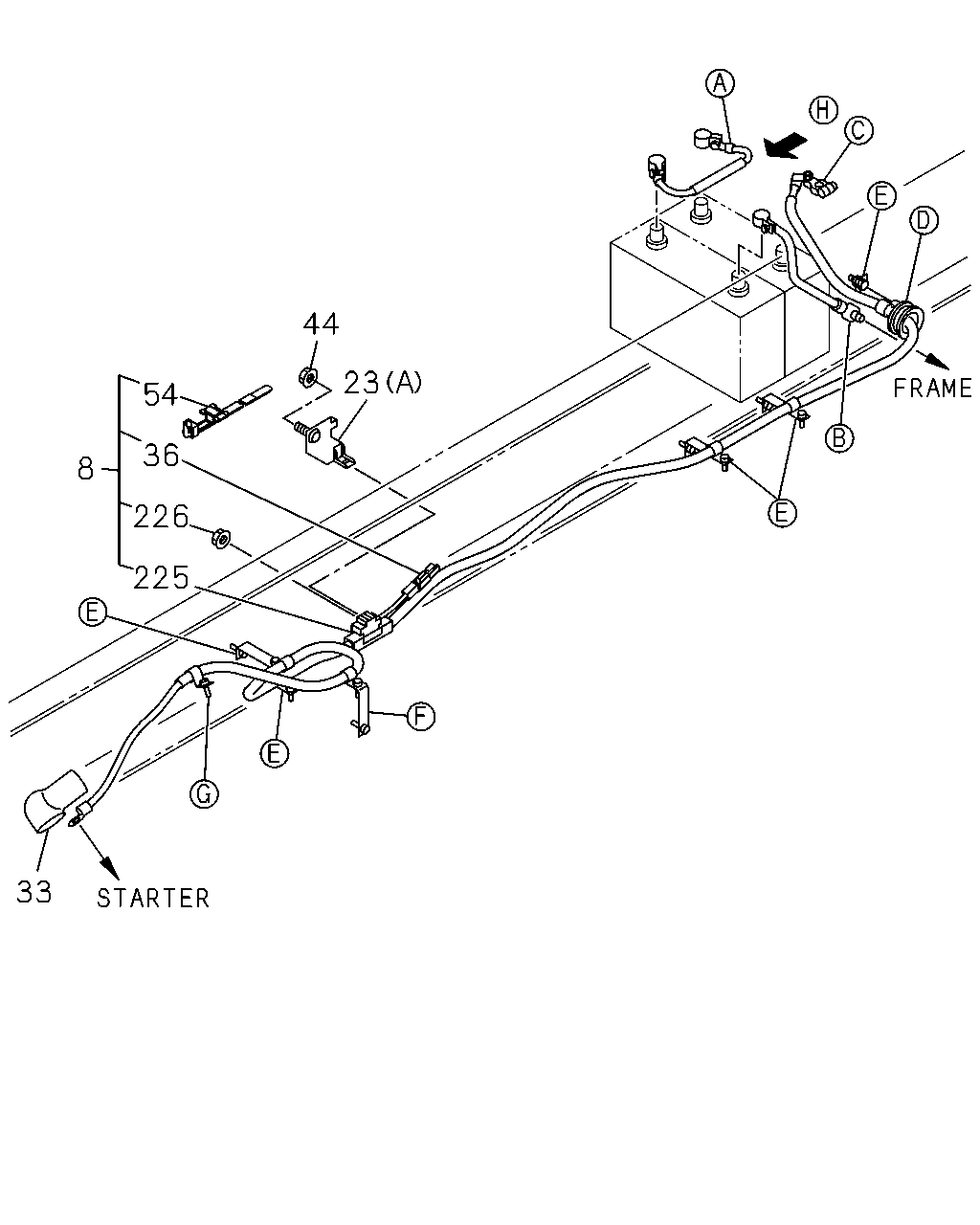

44 23 54 36 8 226 225 33

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98181-484-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98295-607-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-483-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-606-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98181-486-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98295-609-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-485-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-608-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98178-670-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-611-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-487-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-610-0	01	1	1503-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98209-864-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1110-1112
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (C) L=95	1-82699-085-0	02	1	1110-1112
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (C) L=95	1-82699-085-0	02	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1110-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (B) L=65	1-47479-064-1	01	1	1110-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4600MM(46W) (C) L=95	1-82699-085-0	03	1	1110-
33	CAP; INSULATOR	1-82699-431-0	01	1	1110-
36	FUSIBLE LINK; BATTERY	8-97615-498-1	01	1	1110-1502
36	FUSIBLE LINK; BATTERY	8-98295-762-0	01	1	1503-
44	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	1110-
54	CLIP; BAND,BATTERY CABLE L=175	1-09707-176-1	01	1	1110-1502
225	BLOCK; TERMINAL	8-98029-689-0	01	1	1110-1502
225	BLOCK; TERMINAL	8-98294-524-0	01	1	1503-
226	NUT; FUSIBLE LINK M6 W/LK WASHER	8-94424-179-0	01	1	1110-1502
226	NUT; FUSIBLE LINK M6 FLANGE STAINLESS	8-98297-112-0	01	1	1503-

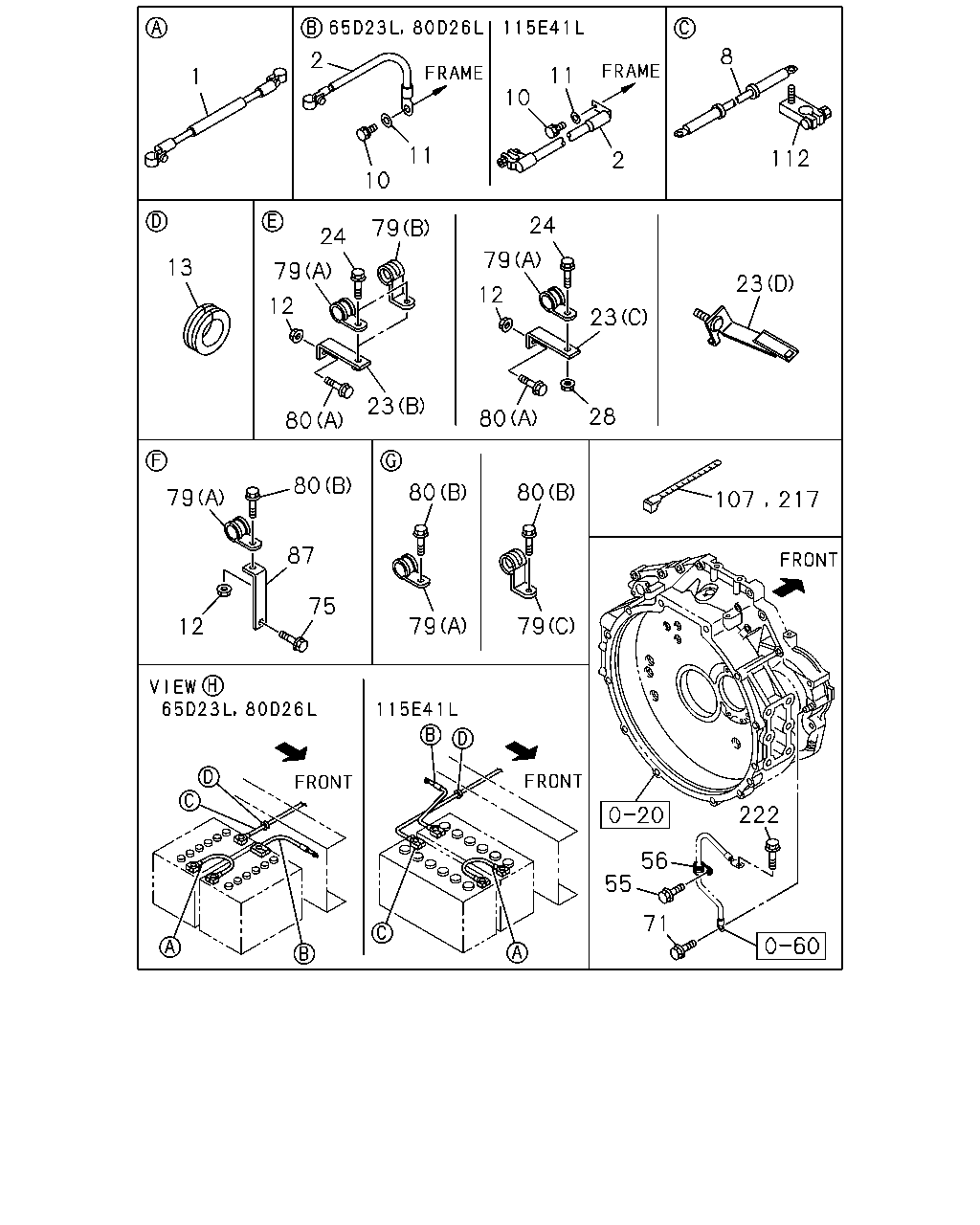

8 2 11 1 10 11 112 2 10 24 79 24 79 13 79 23 12 12 23 23 28 80 80 80 80 80 79 107 217 87 75 79 79 12 222 56 55 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	CABLE; BATTERY L=280	8-98025-412-3	01	1	1110-
2	CABLE; BATTERY BATTERY 115E41L<8MA> L=430	8-98073-179-1	01	1	1110-
2	CABLE; BATTERY BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ> L=250	8-97619-729-2	01	1	1110-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98181-484-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 115E41L<8MA>	8-98295-607-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-483-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 3900MM(39W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-606-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98181-486-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 115E41L<8MA>	8-98295-609-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-485-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-608-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98178-670-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 115E41L<8MA>	8-98295-611-0	01	1	1503-
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98181-487-2	01	1	1110-1502
8	CABLE; BATTERY,STARTER WHEEL BASE 5000MM(50W) BATTERY 80D26L<TM1>,BATTERY 65D23L<8EJ>	8-98295-610-0	01	1	1503-
10	BOLT; BATTERY CABLE CLIP M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1110-
11	WASHER; BATTERY CABLE EARTH ID=10.5 OD=22 T=2.0	1-09503-265-0	01	1	1110-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	01	1	1110-1112
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	02	1	1110-
12	NUT; BATTERY CABLE CLIP M8 FLANGE	0-91180-108-0	03	1	1110-
13	GROMMET; BATTERY CABLE ID=32 OD=40 T=23	1-09332-112-0	01	1	1110-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (D)	8-98209-864-0	01	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (C) L=95	1-82699-085-0	02	1	1110-1112
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (C) L=95	1-82699-085-0	02	1	1110-1112
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (C) L=95	1-82699-085-0	02	1	1201-
23	BRACKET; CABLE CLIP TO FRAME (A)	8-98044-882-0	01	1	1110-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) (B) L=65	1-47479-064-1	01	1	1110-
23	BRACKET; CABLE CLIP TO FRAME WHEEL BASE 4600MM(46W) (C) L=95	1-82699-085-0	03	1	1110-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	01	1	1201-
24	BOLT; BRKT TO FRAME M8X30 FLANGE	0-28650-830-0	02	1	1110-1112
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	02	1	1110-1112
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) M8X30 FLANGE	0-28650-830-0	02	1	1201-
24	BOLT; BRKT TO FRAME WHEEL BASE 3900MM(39W),WHEEL BASE 4200MM(42W), WHEELBASE 5000MM(50W) M8X25 FLANGE	0-28650-825-0	01	1	1110-
24	BOLT; BRKT TO FRAME WHEEL BASE 4600MM(46W) M8X30 FLANGE	0-28650-830-0	03	1	1110-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	02	1	1110-
28	NUT; BRKT TO FRAME M8 FLANGE	0-91180-108-0	03	1	1110-
55	BOLT; CLIP,BATTERY CABLE M8X16 FLANGE	0-28050-816-0	01	1	1110-
56	CLIP; BATTERY CABLE ID=12 L=70	1-09700-097-1	01	1	1110-
71	BOLT; BATTERY CABLE M10X20 FLANGE	0-28051-020-0	01	1	1110-
75	BOLT; BRKT M8X20 FLANGE	0-28650-820-0	01	1	1110-
79	CLIP; BATTERY CABLE (A) ID=19 L=28	0-95235-856-0	01	1	1110-1112
79	CLIP; BATTERY CABLE (A) ID=19 L=28	0-95235-856-0	02	1	1201-
79	CLIP; BATTERY CABLE (A) ID=19 L=28	0-95235-856-0	03	1	1110-1112
79	CLIP; BATTERY CABLE (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1201-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) (B) ID=19 L=24 H=21	1-09700-109-1	01	1	1110-
79	CLIP; BATTERY CABLE WHEEL BASE 3900MM(39W),WHEEL BASE 5000MM(50W) (A) ID=21 L=24	8-98019-191-0	02	1	1110-
79	CLIP; BATTERY CABLE WHEEL BASE 4200MM(42W),WHEEL BASE 4600MM(46W) (A) ID=21 L=24	8-98019-191-0	03	1	1110-
80	BOLT; BATTERY CABLE CLIP (B) M8X16 FLANGE	0-28050-816-0	02	1	1110-
80	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	02	1	1110-1112
80	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	01	1	1201-
80	BOLT; BATTERY CABLE CLIP (A) M8X25 FLANGE	0-28650-825-0	03	1	1110-
87	BRACKET; HARNESS	8-98182-964-0	01	1	1110-
107	CLIP; BAND L=140	5-09707-031-1	01	1	1110-
112	TERMINAL; BATTERY <+>	8-97365-771-0	01	1	1110-1408
112	TERMINAL; BATTERY <+>	8-98290-356-0	01	1	1409-
217	CLIP; BAND,CABLE L=250	5-09707-030-1	01	1	1110-
222	BOLT; EARTH CABLE M10X25 W/LK&PL WASHER	8-97087-205-0	01	1	1110-
