◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-47 - MUD GUARD AND INSULATOR ▶
6-47 — MUD GUARD AND INSULATOR (#6176) — 192 parça

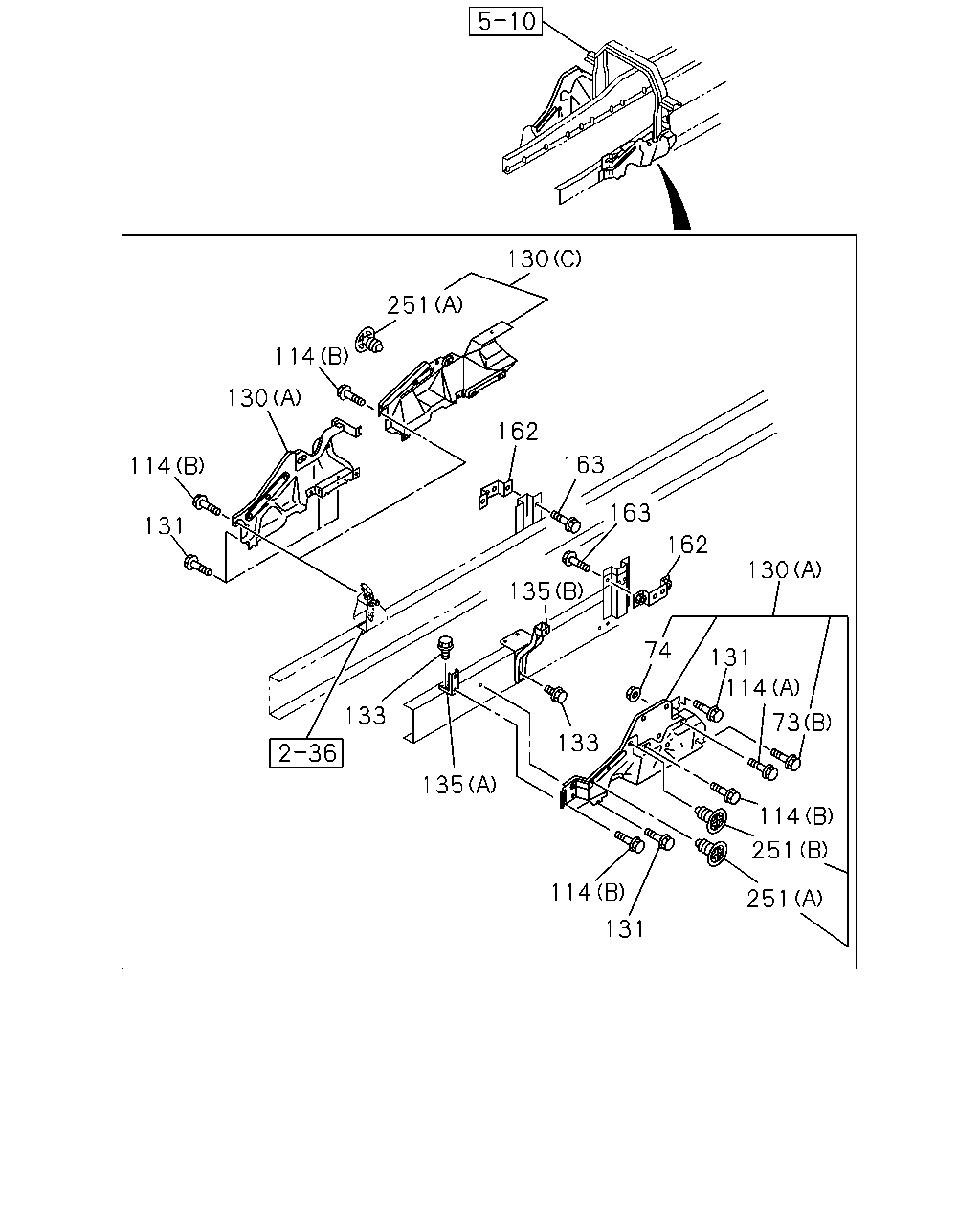

çizim 37970
130 251 114 130 162 163 114 163 131 162 130 135 74 131 114 133 73 133 135 114 251 114 251 131
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 9905-0301
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 9905-0301
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0302-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 9905-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 9905-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 9905-0301
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0302-0602
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0602
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0603-0603
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
114 BOLT
(A) M8X20 FLANGE 		0-28680-820-0 02 1 9905-0512
114 BOLT
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0601-
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 06 1 9905-0602
114 BOLT
(B) M8X22 W/LK&PL WASHER 		1-09030-042-0 09 1 0603-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 9905-0602
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0603-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-818-5 01 1 9905-0602
130 PANEL; SHUTTER NOISE
(C) 		1-53194-380-2 01 1 0603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 9905-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 9905-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 9905-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 9905-
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9905-0602
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-074-0 07 1 0603-0805
131 BOLT; PANEL
M8X25 W/LK&PL WASHER 		1-09030-093-0 07 1 0806-
133 BOLT; FRAME
M8X35 FLANGE 		0-28680-835-0 04 1 9905-0512
133 BOLT; FRAME
M8X35 FLANGE 		0-28650-835-0 04 1 0601-
135 BRACKET; SIDE PANEL
(A) 		1-53441-507-0 01 1 9905-
135 BRACKET; SIDE PANEL
(B) 		1-53441-509-0 01 1 9905-0012
135 BRACKET; SIDE PANEL
(B) 		1-53441-598-1 01 1 0101-
162 BRACKET 1-53441-520-0 02 1 9905-0602
162 BRACKET 1-53441-520-0 01 1 0603-
163 BOLT; BRKT
M8X20 FLANGE 		0-28680-820-0 04 1 9905-0512
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 04 1 0601-0602
163 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 0603-
251 CLIP; NOISE INSULATOR
(A) 		8-94165-394-0 09 1 0603-
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 10 1 9905-0602
251 CLIP; NOISE INSULATOR
(B) 		8-94279-048-0 05 1 0603-

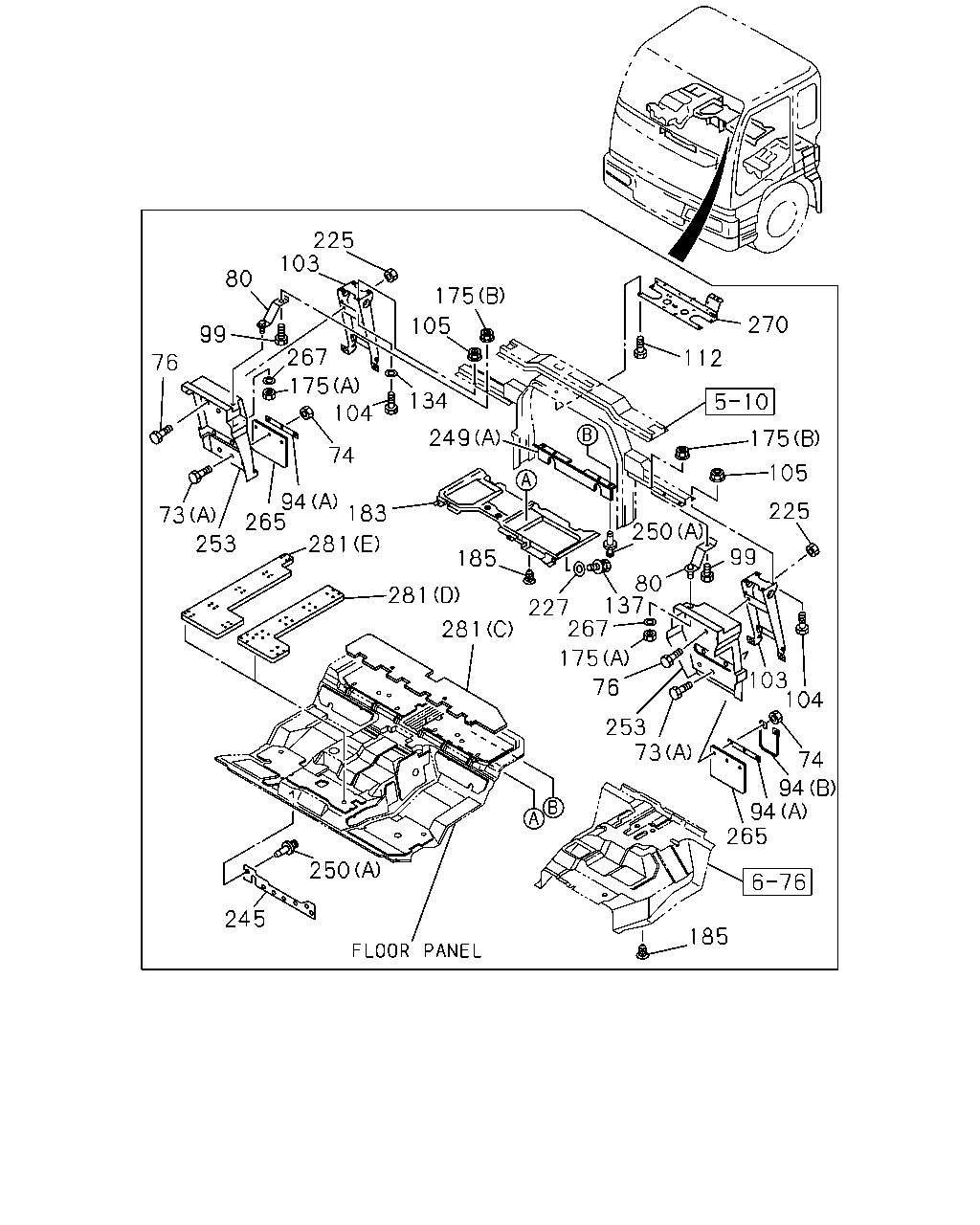

çizim 100132
225 103 80 175 270 105 99 267 112 76 134 175 104 249 175 74 105 94 265 253 225 183 73 250 281 99 185 80 227 137 267 281 281 175 103 104 76 253 73 74 94 94 265 250 245 185
BalonParca AdiParca NoAdetTipApplied Date
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 9905-0301
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 03 1 9905-0301
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-074-0 06 1 0302-0805
73 BOLT; MUD COVER BRKT
(A) M8X25 W/LK&PL WASHER 		1-09030-093-0 06 1 0806-
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28280-816-0 05 1 9905-0512
73 BOLT; MUD COVER BRKT
(B) M8X16 FLANGE 		0-28250-816-0 05 1 0601-
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 9905-0301
74 NUT
M8 FLANGE 		0-91150-108-0 03 1 9905-0301
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0302-0602
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 0603-0603
74 NUT
M8 FLANGE 		0-91180-108-0 01 1 0603-
74 NUT
M8 FLANGE 		0-91150-108-0 01 1 9905-0602
74 NUT
M8 FLANGE 		0-91150-108-0 06 1 0603-0603
74 NUT
M8 FLANGE 		0-91180-108-0 06 1 0603-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9905-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9905-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9905-
80 BRACKET; MUD GUARD STAY 1-79931-159-1 02 1 9905-
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 9905-0301
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 01 1 9905-0301
94 RETAINER; FLAP RUBBER
(A) 		1-79931-091-2 02 1 0302-
94 RETAINER; FLAP RUBBER
(B) 		1-79931-194-0 01 1 9905-
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28681-025-0 02 1 9905-0512
99 BOLT; STAY TO MUD GUARD
M10X25 FLANGE 		0-28651-025-0 02 1 0601-
103 BRACKET ASM; RR MUD FLAP 1-79931-307-1 01 1 9905-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-889-0 01 1 1503-
103 BRACKET ASM; RR MUD FLAP 1-79931-308-1 01 1 9905-1502
103 BRACKET ASM; RR MUD FLAP 8-98306-890-0 01 1 1503-
104 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 9905-0512
104 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601-
105 NUT; BRKT
M10 FLANGE 		0-91150-210-0 08 1 9905-0602
105 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0603-
112 BOLT; BRKT
M10X25 FLANGE 		0-28681-025-0 08 1 9905-0512
112 BOLT; BRKT
M10X25 FLANGE 		0-28651-025-0 08 1 0601-0602
134 WASHER; PL
ID=10.5 OD=26 		9-09160-710-0 02 1 9905-0602
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 01 1 9905-0904
137 BOLT
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 01 1 0905-
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-0602
175 NUT; STAY FIX
(A) M8 FLANGE 		0-91180-108-0 02 1 0603-
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91150-210-0 02 1 9905-0602
175 NUT; STAY FIX
(B) M10 FLANGE 		0-91180-210-0 02 1 0603-
183 INSULATOR; HEAT,BED PAN 1-71907-526-4 01 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0602
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0603-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-0602
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0603-
225 NUT; MUD GUARD
M8 FLANGE 		0-91150-108-0 08 1 9905-0602
225 NUT; MUD GUARD
M8 FLANGE 		0-91180-108-0 08 1 0603-
227 SEAL; MUD GUARD
T=2.0 		8-94279-641-0 01 1 9905-
245 RUBBER; SHUTTER,RAD 1-79937-982-1 01 1 9905-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 9905-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 9905-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 9905-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 9905-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 9905-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 9905-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9905-0301
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9905-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9905-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 9905-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9905-0301
253 GUARD; MUD 1-79931-067-7 01 1 9905-0901
253 GUARD; MUD 8-98134-764-0 01 1 0902-1010
253 GUARD; MUD 8-98123-038-1 01 1 1011-
253 GUARD; MUD 1-79931-065-7 01 1 9905-0901
253 GUARD; MUD 8-98134-760-0 01 1 0902-
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 9905-0301
265 RUBBER; FLAP,REAR 1-79930-978-0 01 1 9905-0301
265 RUBBER; FLAP,REAR 1-79930-978-0 02 1 0302-
267 WASHER; PL,STAY
ID=8.4 OD=26 		9-09164-808-0 02 1 9905-0605
267 WASHER; PL,STAY
ID=8.4 OD=26 		0-91614-808-0 02 1 0606-
270 BRACKET; RR PANEL 1-53441-591-1 01 1 9905-0301
281 INSULATOR; NOISE
(C) 		1-73237-445-3 01 1 9905-0104
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9905-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 9905-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9905-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9905-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-

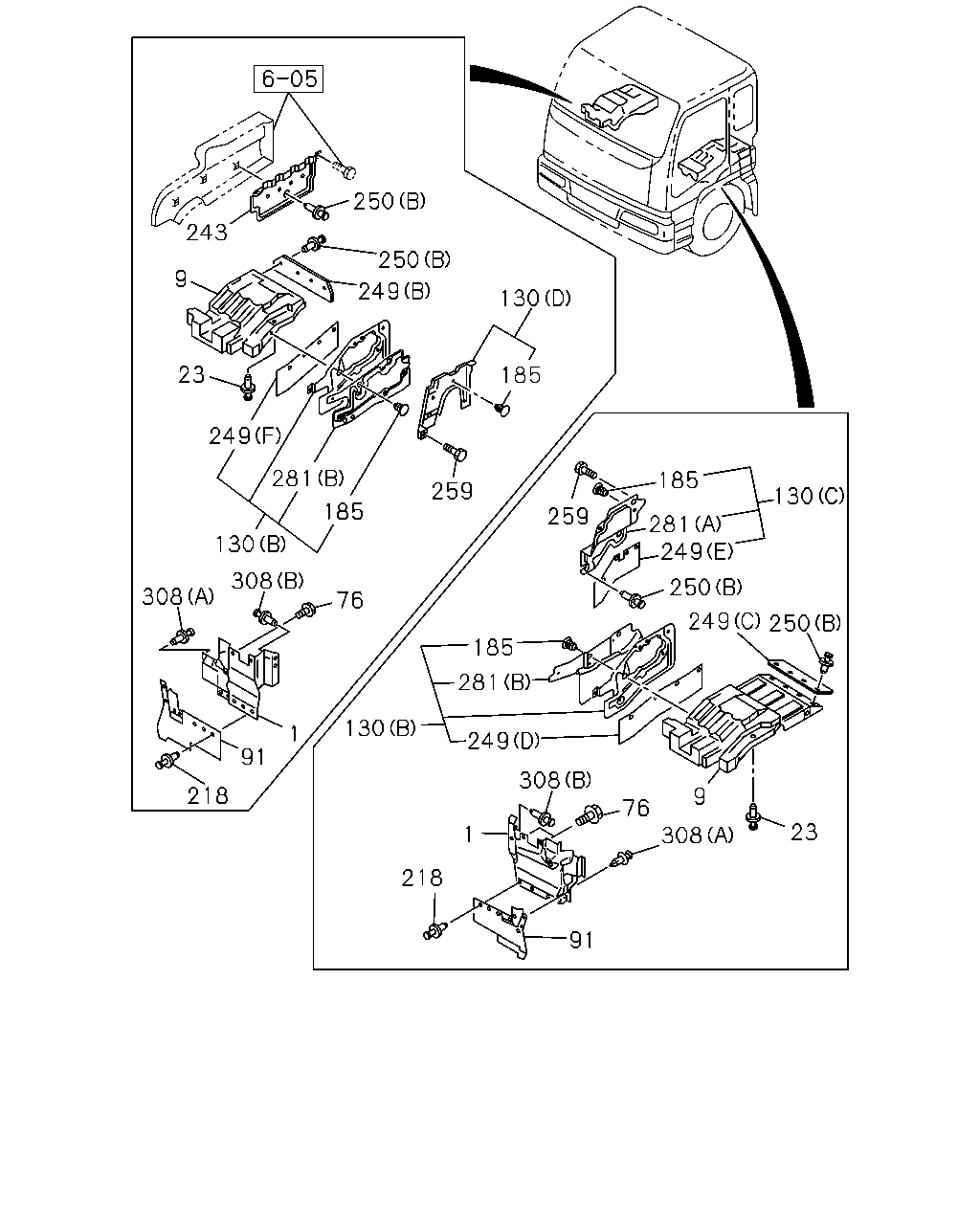

çizim 100194
243 250 250 9 249 130 23 185 249 281 185 259 130 185 259 281 249 130 308 250 308 76 249 250 185 281 130 1 249 91 308 218 9 76 23 1 308 218 91
BalonParca AdiParca NoAdetTipApplied Date
1 GUARD; MUD,FRT 1-79937-895-5 01 1 9905-
1 GUARD; MUD,FRT 1-79937-894-6 01 1 9905-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-908-4 01 1 9905-
9 GUARD; SPLASH,WHEEL HOUSE 1-79937-907-4 01 1 9905-
23 FASTENER; MUD COVER
D8X13.5 		1-09987-248-1 21 1 9905-
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-074-0 08 1 9905-0805
76 BOLT; MUD GUARD
M8X25 W/LK&PL WASHER 		1-09030-093-0 08 1 0806-
76 BOLT; MUD GUARD
M6X20 W/LK&PL WASHER 		8-94279-203-0 04 1 9905-
76 BOLT; MUD GUARD
M8X30 W/LK&PL WASHER 		8-94279-210-0 06 1 9905-
91 COVER; MUD,FRT 1-79931-204-1 01 1 9905-
91 COVER; MUD,FRT 1-79931-203-1 01 1 9905-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-790-5 01 1 9905-0602
130 PANEL; SHUTTER NOISE
(A) 		1-53194-376-0 01 1 0603-
130 PANEL; SHUTTER NOISE
(A) 		1-53192-818-5 01 1 9905-0602
130 PANEL; SHUTTER NOISE
(C) 		1-53194-380-2 01 1 0603-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-960-5 01 1 9905-
130 PANEL; SHUTTER NOISE
(B) 		1-79937-959-3 01 1 9905-
130 PANEL; SHUTTER NOISE
(C) 		1-79937-969-3 01 1 9905-
130 PANEL; SHUTTER NOISE
(D) 		1-79937-919-3 01 1 9905-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 06 1 9905-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 19 1 0105-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 12 1 0302-0312
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0401-0602
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0603-
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 9905-0104
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 09 1 0105-0202
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 10 1 0203-0301
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 29 1 0302-0602
185 CLIP; HEAT INSULATOR
ID=6.2 L=11.4 		8-97808-623-0 11 1 0603-
218 FASTENER; RUBBER
ID=6X6 OD=8 		1-09987-194-0 08 1 9905-0511
218 FASTENER; RUBBER
D8X13.5 		1-09987-248-1 08 1 0512-
243 PROTECTOR; NOISE SHUT PANEL 1-79937-906-2 01 1 9905-
249 RUBBER; SHUTTER
(A) 		1-79937-924-2 01 1 9905-
249 RUBBER; SHUTTER
(D) 		1-79937-966-2 01 1 9905-
249 RUBBER; SHUTTER
(E) 		1-79937-967-1 01 1 9905-
249 RUBBER; SHUTTER
(C) 		1-79937-981-1 01 1 9905-
249 RUBBER; SHUTTER
(F) 		1-79937-965-1 01 1 9905-
249 RUBBER; SHUTTER
(B) 		1-79937-979-1 01 1 9905-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 06 1 9905-0301
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 13 1 0302-
250 FASTENER; SHUTTER
(A) D6X16 PUSH RIVET 		1-09983-105-0 07 1 9905-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 01 1 9905-0301
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 04 1 9905-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 06 1 0302-
250 FASTENER; SHUTTER
(B) D8X13.5 		1-09987-248-1 05 1 9905-0301
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 12 1 9905-0904
259 BOLT; NOISE PANEL
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 12 1 0905-
281 INSULATOR; NOISE
(C) 		1-73237-445-3 01 1 9905-0104
281 INSULATOR; NOISE
MATTRESS SLEEPER CAB<E40> (C) 		1-73237-445-4 01 1 0105-
281 INSULATOR; NOISE
(B) 		1-71907-171-2 01 1 9905-
281 INSULATOR; NOISE
(A) 		1-71907-455-0 01 1 9905-
281 INSULATOR; NOISE
(B) 		1-71907-170-1 01 1 9905-
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (D) 		1-73237-541-3 01 1 9905-0408
281 INSULATOR; NOISE
EXC. CENTER SEAT DELETE(SP9) (E) 		1-73237-895-2 01 1 0409-
308 FASTENER; MUD GUARD
(A) 		1-09470-007-0 08 1 9905-
308 FASTENER; MUD GUARD
(B) ID=6X6 OD=8 		1-09987-194-0 02 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
