◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-43 - SIDE TRIM ▶
6-43 — SIDE TRIM (#6175) — 30 parça

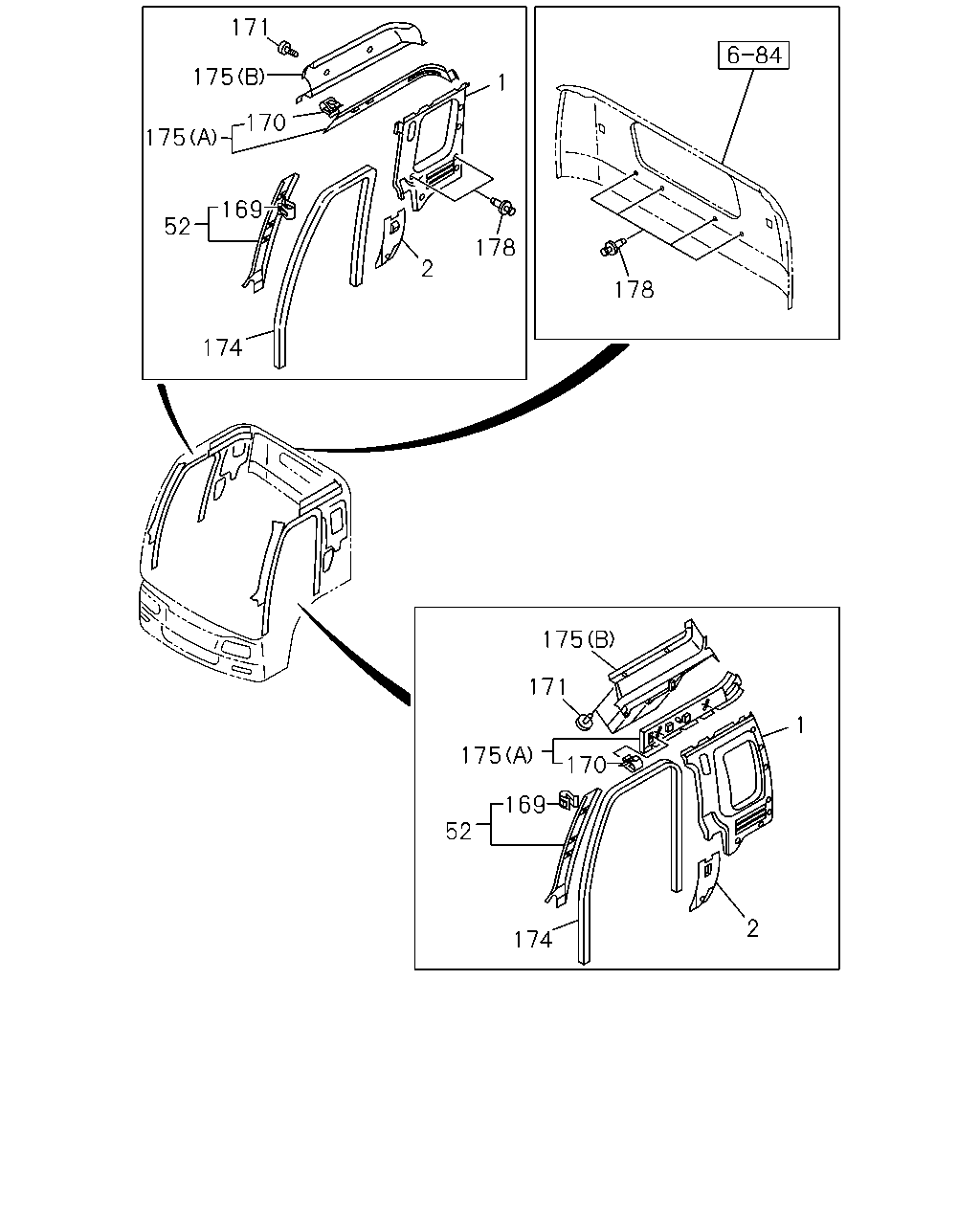

çizim 37724
171 175 1 170 175 169 52 178 2 178 174 175 171 1 175 170 169 52 2 174
BalonParca AdiParca NoAdetTipApplied Date
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-810-2 01 1 9905-0104
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-831-7 01 1 0105-0602
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-899-3 01 1 0603-
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-801-3 01 1 9905-0104
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-896-6 01 1 0105-0602
1 TRIM; ROOM,QUARTER WINDOW UPR 1-73347-903-4 01 1 0603-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-780-8 01 1 9905-0104
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-927-3 01 1 0105-0602
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-023-1 01 1 0603-
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73347-877-0 01 1 9905-0104
2 TRIM; ROOM,QUARTER WINDOW LWR
ISRINGHAUSEN SEAT(SJA) 		1-73348-980-0 01 1 0105-0301
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73348-980-1 01 1 0302-0602
2 TRIM; ROOM,QUARTER WINDOW LWR 1-73346-024-1 01 1 0603-
2 TRIM; ROOM,QUARTER WINDOW LWR
EXC. ISRINGHAUSEN SEAT(SJA) 		1-73348-926-2 01 1 0105-0301
52 COVER; TRIM,FRT PILLAR 1-73348-484-3 01 1 9905-0104
52 COVER; TRIM,FRT PILLAR 1-73347-833-0 01 1 0105-
52 COVER; TRIM,FRT PILLAR 1-73348-483-3 01 1 9905-0104
52 COVER; TRIM,FRT PILLAR 1-73348-939-0 01 1 0105-
169 CLIP; TRIM COVER,FRT PILLAR 8-94313-458-0 02 1 9905-
170 CLIP; HOLE
AUTO ROUND CURTAIN<TAR> 		8-94313-458-0 04 1 9905-0104
170 CLIP; HOLE 8-94313-458-0 04 1 9905-0104
171 CLIP; TRIM PAD
HIGH ROOF<S2F> D6X23 DARK GRAY 		1-09987-238-0 54 1 9905-0104
174 FINISHER; BODY SIDE 1-76718-175-4 02 1 9905-
175 COVER; TRIM,SIDE
(A) 		1-73347-761-3 01 1 9905-0104
175 COVER; TRIM,SIDE
AUTO ROUND CURTAIN<TAR> (A) 		1-73347-760-3 01 1 9905-0104
175 COVER; TRIM,SIDE
EXC. AUTO ROUND CURTAIN<TAR> (A) 		1-73347-797-1 01 1 9905-0104
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> (B) 		1-73347-745-1 01 1 9905-0104
175 COVER; TRIM,SIDE
HIGH ROOF<S2F> (B) 		1-73347-744-1 01 1 9905-0104
178 CLIP; TRIM COVER
OD=6.2 DARK GRAY 		1-09983-167-0 09 1 9905-0104
178 CLIP; TRIM COVER
OD=6.2 LIGHT GRAY 		1-09983-178-0 07 1 0105-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
