◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11390 - FRR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-07 - CLUTCH BOOSTER; MINIPACK ▶
2-07 — CLUTCH BOOSTER; MINIPACK (#61746) — 54 parça

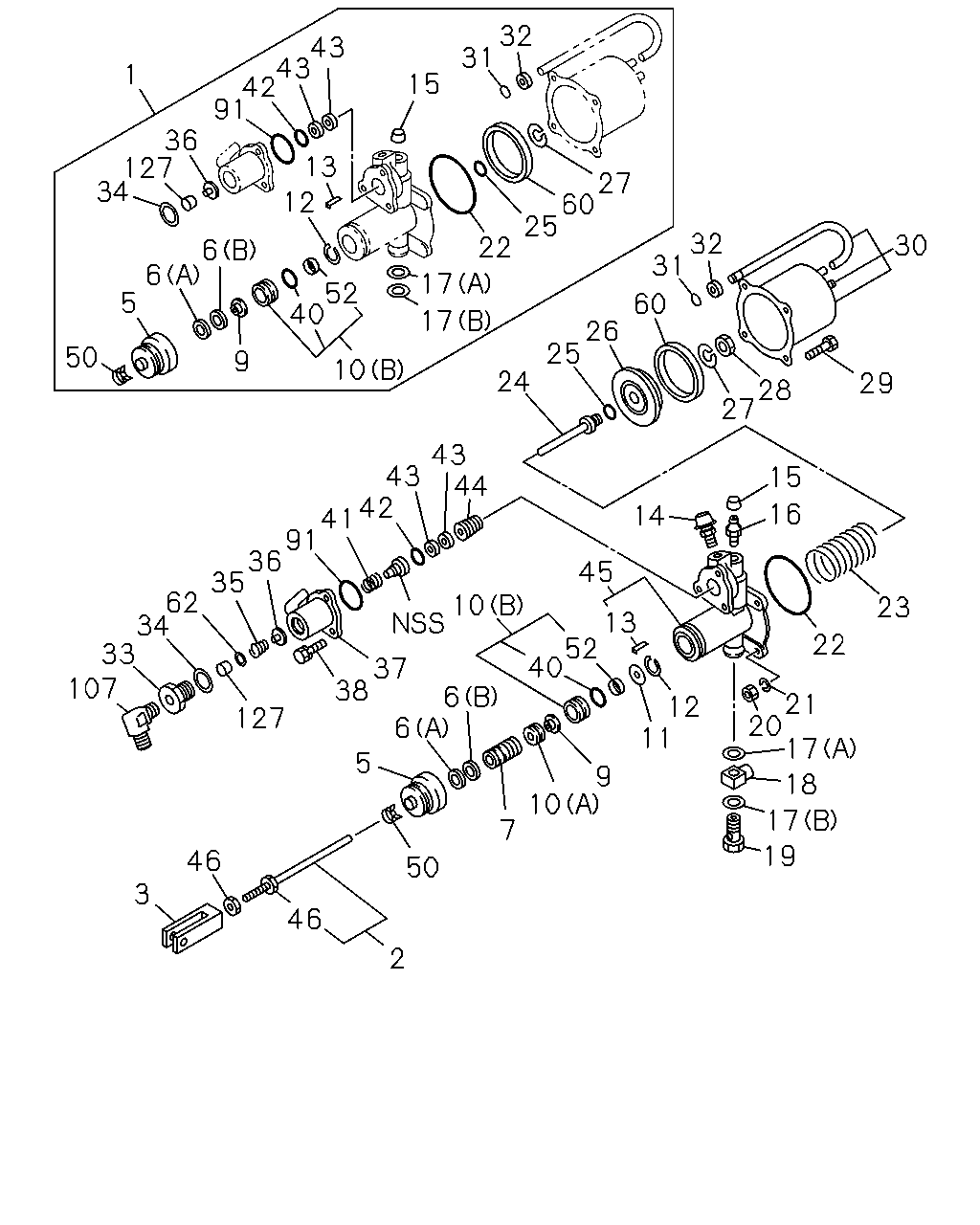

çizim 174523
32 31 43 43 42 91 1 15 36 127 34 13 27 60 25 12 32 31 30 22 6 6 5 17 52 40 60 17 26 25 50 9 10 24 29 28 27 43 43 44 42 41 91 36 35 62 34 33 107 15 16 14 45 10 23 13 52 40 22 37 38 6 21 20 17 12 11 127 6 5 9 18 10 17 7 19 46 50 3 46 2
BalonParca AdiParca NoAdetTipApplied Date
1 REPAIR KIT; CLU BOOSTER 1-31829-605-0 01 1 1103-
2 ROD; PUSH,CLU BOOSTER 1-31824-251-0 01 1 1103-
3 CLEVIS; PUSH ROD,CLU BOOSTER 1-31829-186-1 01 1 1103-
5 GUARD; PISTON,CLU BOOSTER 1-31829-503-0 01 1 1103-
6 GASKET; PISTON CUP,CLU BOOSTER
(B) 		1-31829-032-0 01 1 1103-
6 GASKET; PISTON CUP,CLU BOOSTER
(A) 		1-31829-033-0 01 1 1103-
7 PISTON; CLU BOOSTER 1-31821-064-0 01 1 1103-
9 GASKET; PISTON CUP,CLU BOOSTER 1-31829-003-0 01 1 1103-
10 RETAINER; PISTON,CLU BOOSTER
(B) 		1-31829-107-0 01 1 1103-
10 RETAINER; PISTON,CLU BOOSTER
(A) 		1-31829-108-0 01 1 1103-
11 WASHER; PISTON,CLU BOOSTER 1-31829-105-0 01 1 1103-
12 RING; RET,CLU BOOSTER 9-83315-315-0 01 1 1103-
13 PIN; SPR 1-31829-109-0 01 1 1103-
14 COVER; EXH,CLU BOOSTER 1-31829-564-0 01 1 1103-
15 PROTECTOR; END PLATE,CLU BOOSTER 9-83335-044-0 01 1 1103-
16 PLUG; END PLATE,CLU BOOSTER 9-83331-704-0 01 1 1103-
17 GASKET; CONN,CLU BOOSTER
(A) 		9-09920-267-0 01 1 1103-
17 GASKET; CONN,CLU BOOSTER
(B) 		9-09920-268-0 01 1 1103-
18 CONNECTOR; END PLATE,CLU BOOSTER 1-31829-248-0 01 1 1103-
19 BOLT; EYE,END PLATE,CLU BOOSTER 9-83315-047-0 01 1 1103-
20 NUT; END PLATE TO SHELL,CLU BOOSTER 9-83315-085-0 04 1 1103-
21 WASHER; END PLATE TO SHELL,CLU BOOSTER
ID=8.2 		9-09150-508-0 04 1 1103-
22 GASKET; END PLATE TO SHELL,CLU BOOSTER 1-09623-327-0 01 1 1103-
23 SPRING; SHELL,CLU BOOSTER 1-31829-358-0 01 1 1103-
24 ROD; PUSH,CLU BOOSTER 1-31829-112-0 01 1 1103-
25 GASKET; PUSH ROD,CLU BOOSTER 1-09623-321-0 01 1 1103-
26 PISTON; SHELL,CLU BOOSTER 1-31821-083-0 01 1 1103-
27 SPRING; CLU BOOSTER 1-31829-111-0 01 1 1103-
28 NUT; PUSH ROD,CLU BOOSTER 9-88510-365-0 01 1 1103-
29 BOLT; END PLATE TO SHELL,CLU BOOSTER 1-31829-015-0 04 1 1103-
30 SHELL; CYL,CLU BOOSTER 1-31811-123-0 01 1 1103-
31 GASKET; SHELL,CLU BOOSTER 1-31829-113-0 01 1 1103-
32 BUSHING; SHELL,CLU BOOSTER 1-31829-114-0 01 1 1103-
33 CONNECTOR; UPR,VLV,CLU BOOSTER 1-31829-212-0 01 1 1103-
34 GASKET; CONN,CLU BOOSTER 1-31829-053-0 01 1 1103-
35 SPRING; POPPET VLV,CLU BOOSTER 1-31829-537-0 01 1 1103-
36 VALVE; POPPET,CLU BOOSTER 1-31829-536-0 01 1 1103-
37 BODY; UPR,VLV,CLU BOOSTER 1-31811-146-0 01 1 1103-
38 SCREW; UPR VLV TO END PLATE,CLU BOOSTE 9-83315-113-0 03 1 1103-
40 GASKET; PISTON,CLU BOOSTER 1-31829-037-0 01 1 1103-1412
41 SPRING; DIAPH,CLU BOOSTER 1-31829-420-0 01 1 1103-
42 GASKET; FITTING,CLU BOOSTER 1-31829-143-0 01 1 1103-
43 GASKET; UPR VLV,CLU BOOSTER 1-31829-060-0 02 1 1103-
44 PISTON; UPR VLV,CLU BOOSTER 1-31821-087-0 01 1 1103-
45 PLATE; END,CLU BOOSTER 1-31811-144-0 01 1 1103-
46 NUT; PUSH ROD,CLU BOOSTER 1-31824-126-0 02 1 1103-
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-599-0 01 1 1103-1412
50 CLAMP; PISTON GUARD,CLU BOOSTER 1-31829-504-0 01 1 1501-
52 SEAL; OIL,END PLATE,CLU BOOSTER 9-83315-118-0 01 1 1103-1412
60 GASKET; SHELL,CLU BOOSTER 1-31829-535-0 01 1 1103-
62 RETAINER; POPPET 1-31829-489-0 01 1 1103-
91 GASKET; CLU BOOSTER 1-31829-103-0 01 1 1103-
107 CONNECTOR; ELBOW 1-09650-358-1 01 1 1103-
127 FILTER; POPPET 1-31829-495-0 01 1 1103-
