2-05 — CLUTCH PIPING (#61745) — 31 parça
çizim 174506
48 101 50 28 239 184 104 23 104 50 16 28
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1103-
23 GROMMET; CLU PIPE
ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1103-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1103-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1103-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1103-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1103-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 IDN 		8-98072-346-0 01 1 1103-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 IDN 		8-98067-058-0 01 1 1103-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 IDN 		8-98162-742-1 01 1 1103-
184 UNION; FLEX HOSE 8-98150-865-0 01 1 1103-
239 UNION; CLU HOSE
M12 L=66.5 		0-92113-306-0 01 1 1103-
çizim 174512

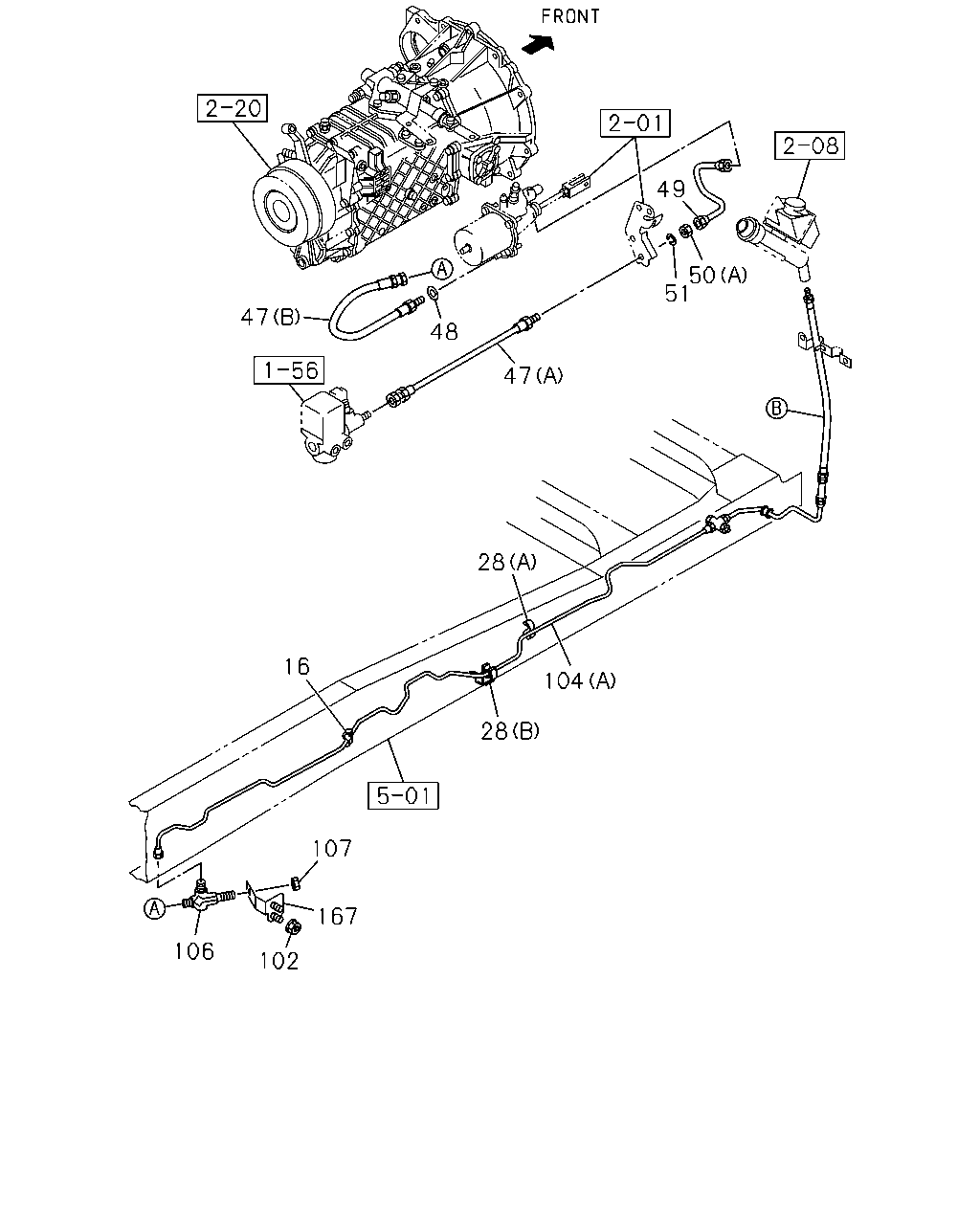

49 50 51 47 48 47 28 16 104 28 107 167 106 102
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 1103-
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 01 1 1103-
28 CLIP; OIL PIPE
(A) ID=6.35 & 10.0 		1-09709-274-1 03 1 1103-
47 HOSE; FLEX,CLU CONT
(A) L=720 		1-09363-801-0 01 1 1103-
47 HOSE; FLEX,CLU CONT
(B) L=440 IDN 		8-98072-346-0 01 1 1103-
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 1103-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
INDONESIA KD DELETION<35D> L=207 		1-49124-782-0 01 1 1210-1210
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=207 		1-49124-782-0 01 1 1103-
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 1103-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103-
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 1103-
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 1103-
102 NUT; FLEX HOSE,CLU CONT
M10 FLANGE 		0-91180-210-0 02 1 1103-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=336 IDN 		8-98067-058-0 01 1 1103-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2683 IDN 		8-98162-742-1 01 1 1103-
106 UNION; OIL PIPE
M12 2WAY 		1-09654-059-2 01 1 1103-
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 1103-
167 BRACKET; UNION 8-98086-811-1 01 1 1103-
