1-50 — EXHAUST PIPE AND SILENCER
(#61740) — 43 parça
◀

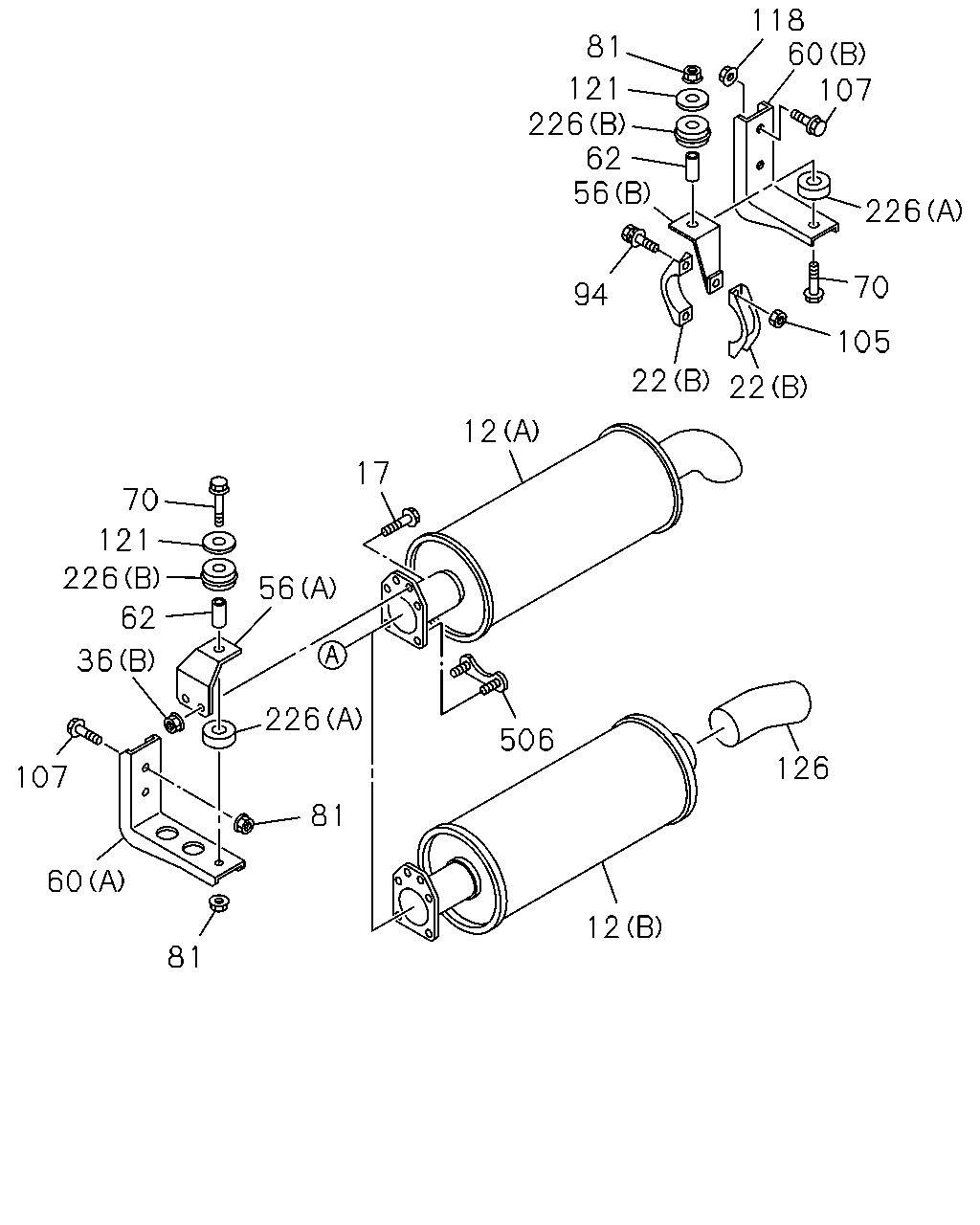

[150A] REAR (26 parça)
[150A] FRONT (17 parça)
▶
118
60
107
81
121
226
62
56
226
70
94
105
22
22
12
17
70
121
226
56
62
36
226
506
126
107
81
60
12
81
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
SILENCER ASM; EXH
(B) IDN
8-98090-389-2
01
1
1111-
12
SILENCER ASM; EXH
(A)
8-98180-140-0
01
1
1103-1110
17
BOLT; EXH PIPE
M10X35 FLANGE IDN
0-28651-035-0
02
1
1103-
22
CLAMP; EXH PIPE
(B) ID=80-84 IDN
1-22133-233-0
02
1
1103-
22
CLAMP; EXH PIPE
(A)
1-22133-295-0
01
1
1103-1309
22
CLAMP; EXH PIPE
(A)
8-97646-674-0
01
1
1310-
36
NUT; EXH PIPE
(B) M10 FLANGE
0-91180-210-0
02
1
1103-
36
NUT; EXH PIPE
(A) M10 FLANGE
8-97096-192-1
03
1
1103-
56
BRACKET; CLAMP,EXH PIPE
(A)
8-98074-824-1
01
1
1103-
56
BRACKET; CLAMP,EXH PIPE
(B)
8-98086-352-0
01
1
1103-
60
BRACKET; FRAME TO BRKT
(A)
1-22152-274-1
01
1
1103-
60
BRACKET; FRAME TO BRKT
(B)
8-98059-753-1
01
1
1103-1309
60
BRACKET; FRAME TO BRKT
(B)
8-98245-530-0
01
1
1310-
62
TUBE; DIST,BRKT
L=39
8-98060-852-0
02
1
1103-
70
BOLT; BRKT
M10X70 FLANGE IDN
0-28051-070-0
02
1
1103-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1103-
81
NUT; BRKT
M10 FLANGE
0-91180-210-0
02
1
1103-
94
BOLT; CLAMP
M10X40 FLANGE
0-28651-040-0
02
1
1103-
105
NUT; CLAMP
M10 FLANGE
0-91180-210-0
02
1
1103-
107
BOLT; BRKT
M10X35 FLANGE IDN
0-28651-035-0
04
1
1103-
118
NUT; SILENCER MTG BRKT
M10 FLANGE
0-91180-210-0
02
1
1103-
121
WASHER; PL,BRKT
ID=11 OD=54
1-09503-154-2
02
1
1103-
126
PIPE; EXH,RR
IDN
1-22126-108-1
01
1
1111-
226
RUBBER; CUSHION
(A) IDN
8-94457-277-1
02
1
1103-
226
RUBBER; CUSHION
(B) IDN
8-94457-278-1
02
1
1103-
506
BRACKET; STUD
M12X35
1-22131-963-0
02
1
1103-
1
505
318
571
49
22
571
52
236
2
36
1
6
5
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; EXH
(B)
8-98096-347-0
01
1
1103-
1
PIPE; EXH
(A) IDN
8-98082-498-0
01
1
1103-
2
GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97381-455-0
01
1
1103-
5
PROTECTOR; HEAT
8-98089-287-1
01
1
1103-
6
BOLT; HEAT PROTECTOR
M8X25 FLANGE IDN
0-28650-825-0
02
1
1103-
22
CLAMP; EXH PIPE
(B) ID=80-84 IDN
1-22133-233-0
02
1
1103-
22
CLAMP; EXH PIPE
(A)
1-22133-295-0
01
1
1103-1309
22
CLAMP; EXH PIPE
(A)
8-97646-674-0
01
1
1310-
36
NUT; EXH PIPE
(B) M10 FLANGE
0-91180-210-0
02
1
1103-
36
NUT; EXH PIPE
(A) M10 FLANGE
8-97096-192-1
03
1
1103-
49
BRACKET; EXH PIPE TO TRANS
8-98042-786-0
01
1
1103-1301
49
BRACKET; EXH PIPE TO TRANS
8-98234-530-0
01
1
1302-
52
NUT; BRKT
M12 FLANGE
0-91180-212-0
04
1
1103-
236
BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1103-
318
NUT; EXH PIPE,FRT
M8 W/LK WASHER IDN
8-97581-234-0
04
1
1103-
505
GASKET; CONV TO EXH PIPE
IDN
8-98096-305-0
01
1
1103-
571
GASKET
ID=64
8-97373-108-0
02
1
1103-
