1-41 — FUEL PIPING; CHASSIS (#61738) — 128 parça

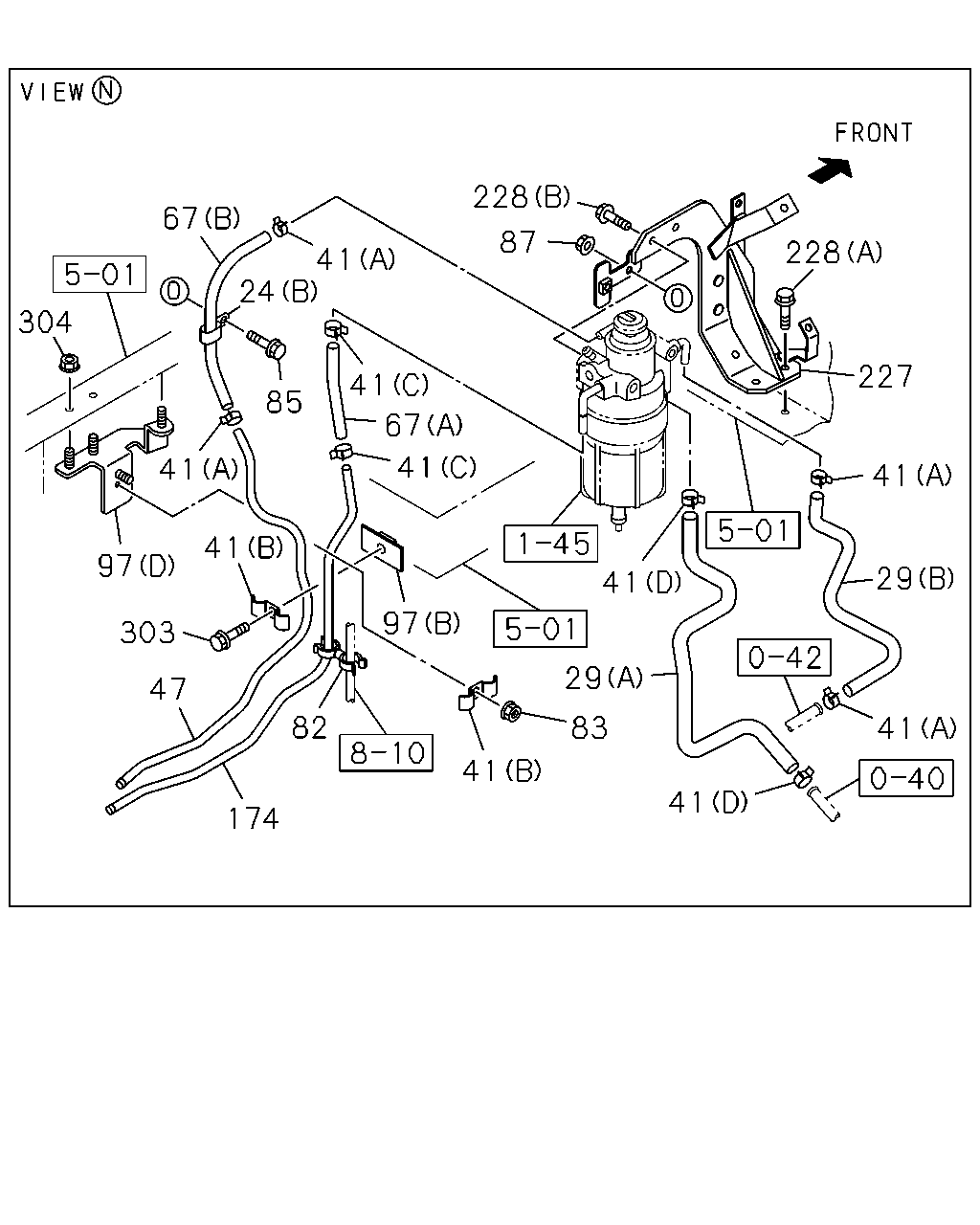

çizim 174500
67 304 41 85 24 41 87 228 228 227 41 29 41 41 83 29 41 41 97 82 174 47 303 97 41 41 67 41
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1103-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1103-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 1103-
29 HOSE; FUEL
INDONESIA KD DELETION<35D> (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1210-1210
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
29 HOSE; FUEL
(A) IDN 		8-98078-194-3 01 1 1103-
29 HOSE; FUEL
(B) IDN 		8-98078-195-1 01 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 08 1 1103-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 1103-
67 HOSE; FUEL,DELIVERY
(A) L=140 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
67 HOSE; FUEL,DELIVERY
(B) L=210 SERVICED BY L=3000 		0-01558-300-0 01 1 1103-
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1103-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 04 1 1103-
85 BOLT; CLIP,FUEL HOSE
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1103-
87 NUT; CLIP,FUEL HOSE
M8 FLANGE 		0-91180-108-0 01 1 1103-
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1103-
97 BRACKET; CLIP
(C) 		8-98078-201-0 01 1 1103-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1103-
97 BRACKET; CLIP
(D) 		8-98083-537-0 01 1 1103-
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 1103-
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1103-
174 PIPE; FUEL,FEED,FRT
L=1322 IDN 		8-98100-140-0 01 1 1103-
227 BRACKET; FUEL SEDIMENTER 8-98130-667-0 01 1 1103-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X35 FLANGE IDN 		0-28651-035-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-

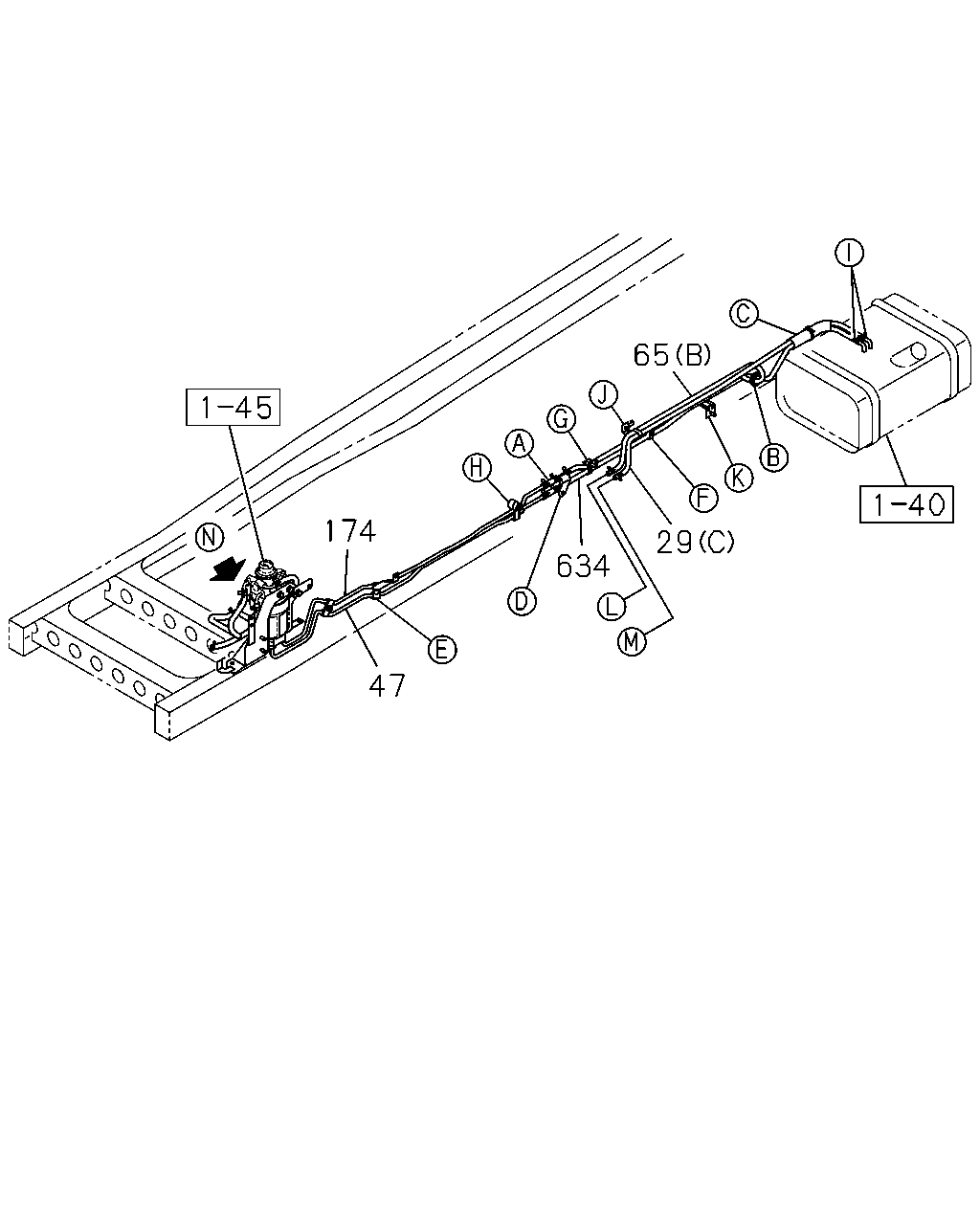

çizim 174504
174 47 634 29 65
BalonParca AdiParca NoAdetTipApplied Date
29 HOSE; FUEL
INDONESIA KD DELETION<35D> (C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1210-1210
29 HOSE; FUEL
(C) L=1350 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
29 HOSE; FUEL
(A) IDN 		8-98078-194-3 01 1 1103-
29 HOSE; FUEL
(B) IDN 		8-98078-195-1 01 1 1103-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 1103-
65 HOSE; FUEL,DELIVERY PIPE
(A) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
65 HOSE; FUEL,DELIVERY PIPE
(B) L=2900 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
174 PIPE; FUEL,FEED,FRT
L=1322 IDN 		8-98100-140-0 01 1 1103-
634 HOSE; RUBBER RETURN
L=2400 SERVICED BY L=3000 		0-01558-300-0 01 1 1103-1104
634 HOSE; RUBBER RETURN
L=2200 SERVICED BY L=3000 		0-01558-300-0 01 1 1105-

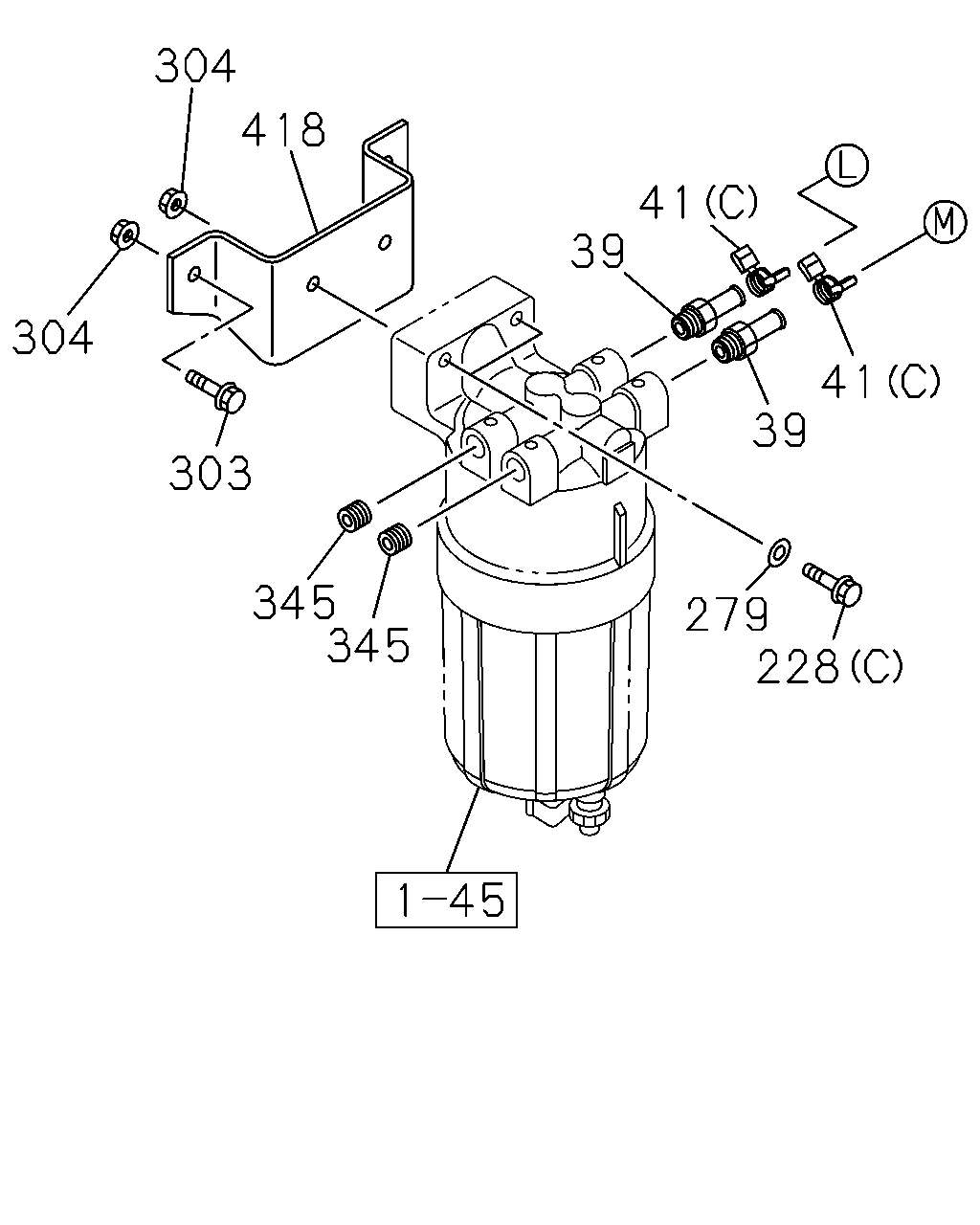

çizim 174508
304 418 41 39 304 41 39 303 345 345 279 228
BalonParca AdiParca NoAdetTipApplied Date
39 PIPE; FUEL
INDONESIA KD DELETION<35D> NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1210-1210
39 PIPE; FUEL
NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 08 1 1103-
228 BOLT; BRKT,SEDIMENTER
(A) M8X25 FLANGE 		0-28050-825-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
(C) M10X50 FLANGE 		0-28051-050-0 02 1 1103-
228 BOLT; BRKT,SEDIMENTER
(B) M8X20 FLANGE IDN 		0-28650-820-0 02 1 1103-
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X35 FLANGE IDN 		0-28651-035-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1103-
418 BRACKET; PRE FUEL FILTER 8-98114-787-0 01 1 1103-

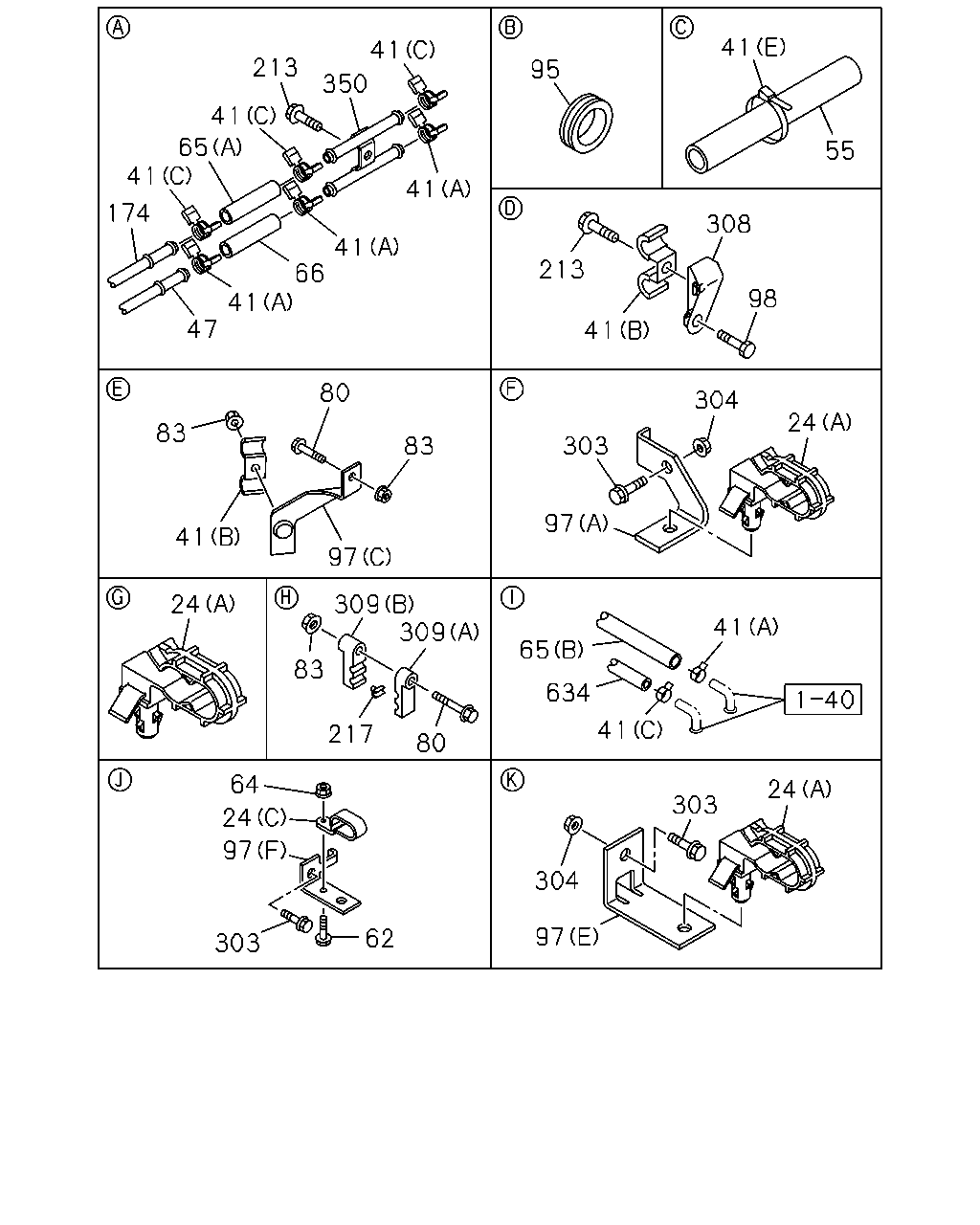

çizim 174510
41 41 213 95 350 41 65 41 55 41 174 308 41 66 213 98 41 47 41 80 304 24 83 303 83 97 41 97 24 309 309 41 65 83 634 41 217 80 64 24 303 24 97 304 97 62 303
BalonParca AdiParca NoAdetTipApplied Date
24 CLIP; FUEL HOSE
(B) ID=15 H=24 L=20 		1-09700-606-0 01 1 1103-
24 CLIP; FUEL HOSE
(C) ID=14X29 H=15 L=20 		1-09700-744-0 01 1 1103-
24 CLIP; FUEL HOSE
(A) ID=14.5 & 14.5 		1-09701-246-1 07 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=14 IDN 		1-09704-102-0 06 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(E) L=250 IDN 		5-09707-030-1 03 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(D) ID=16 IDN 		8-94238-568-0 02 1 1103-
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 IDN 		8-94238-571-0 08 1 1103-
47 PIPE; FUEL,RETURN
L=1496 SERVICED BY L=1550 		1-47428-851-0 01 1 1103-
55 COVER; PIPE,FUEL TANK
L=800 		1-09361-018-0 01 1 1103-
62 BOLT; CLIP FIX
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1103-
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1103-
65 HOSE; FUEL,DELIVERY PIPE
(A) L=60 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
65 HOSE; FUEL,DELIVERY PIPE
(B) L=2900 SERVICED BY L=3000 		0-01260-300-0 01 1 1103-
66 HOSE; FUEL,RETURN PIPE
L=60 SERVICED BY L=3000 		0-01558-300-0 01 1 1103-
80 BOLT; CLIP,FUEL TANK
M8X50 FLANGE 		0-28050-850-0 01 1 1103-
80 BOLT; CLIP,FUEL TANK
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1103-
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 04 1 1103-
95 BUSHING; PIPE,FUEL TANK
ID=28 OD=35 T=17 		9-09956-256-2 01 1 1103-
97 BRACKET; CLIP
(B) L=50 		1-47475-299-2 01 1 1103-
97 BRACKET; CLIP
(C) 		8-98078-201-0 01 1 1103-
97 BRACKET; CLIP
(A) 		8-98083-349-0 01 1 1103-
97 BRACKET; CLIP
(D) 		8-98083-537-0 01 1 1103-
97 BRACKET; CLIP
(F) 		8-98100-216-1 01 1 1103-
97 BRACKET; CLIP
(E) 		8-98109-768-0 01 1 1103-
98 BOLT; BRKT,FUEL PIPE
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
174 PIPE; FUEL,FEED,FRT
L=1322 IDN 		8-98100-140-0 01 1 1103-
213 BOLT; FUEL PIPE FIX
M8X20 FLANGE IDN 		0-28650-820-0 01 1 1103-
217 COLLAR; FUEL PIPE FIX
ID=8 		1-47459-011-0 01 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 01 1 1103-
303 BOLT; BRKT
M10X35 FLANGE IDN 		0-28651-035-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M8 FLANGE 		0-91180-108-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
308 BRACKET; FUEL PIPE 8-98117-691-0 01 1 1103-
309 CLIP; PIPE
(A) ID=10 & 10 		1-09709-241-0 01 1 1103-
309 CLIP; PIPE
(B) ID=10 & 10 		1-09709-243-0 01 1 1103-
350 PIPE; FUEL,DEL & RET
INDONESIA KD DELETION<35D> 		8-98084-131-0 01 1 1210-1210
350 PIPE; FUEL,DEL & RET 8-98084-131-0 01 1 1103-
634 HOSE; RUBBER RETURN
L=2400 SERVICED BY L=3000 		0-01558-300-0 01 1 1103-1104
634 HOSE; RUBBER RETURN
L=2200 SERVICED BY L=3000 		0-01558-300-0 01 1 1105-
