1 |

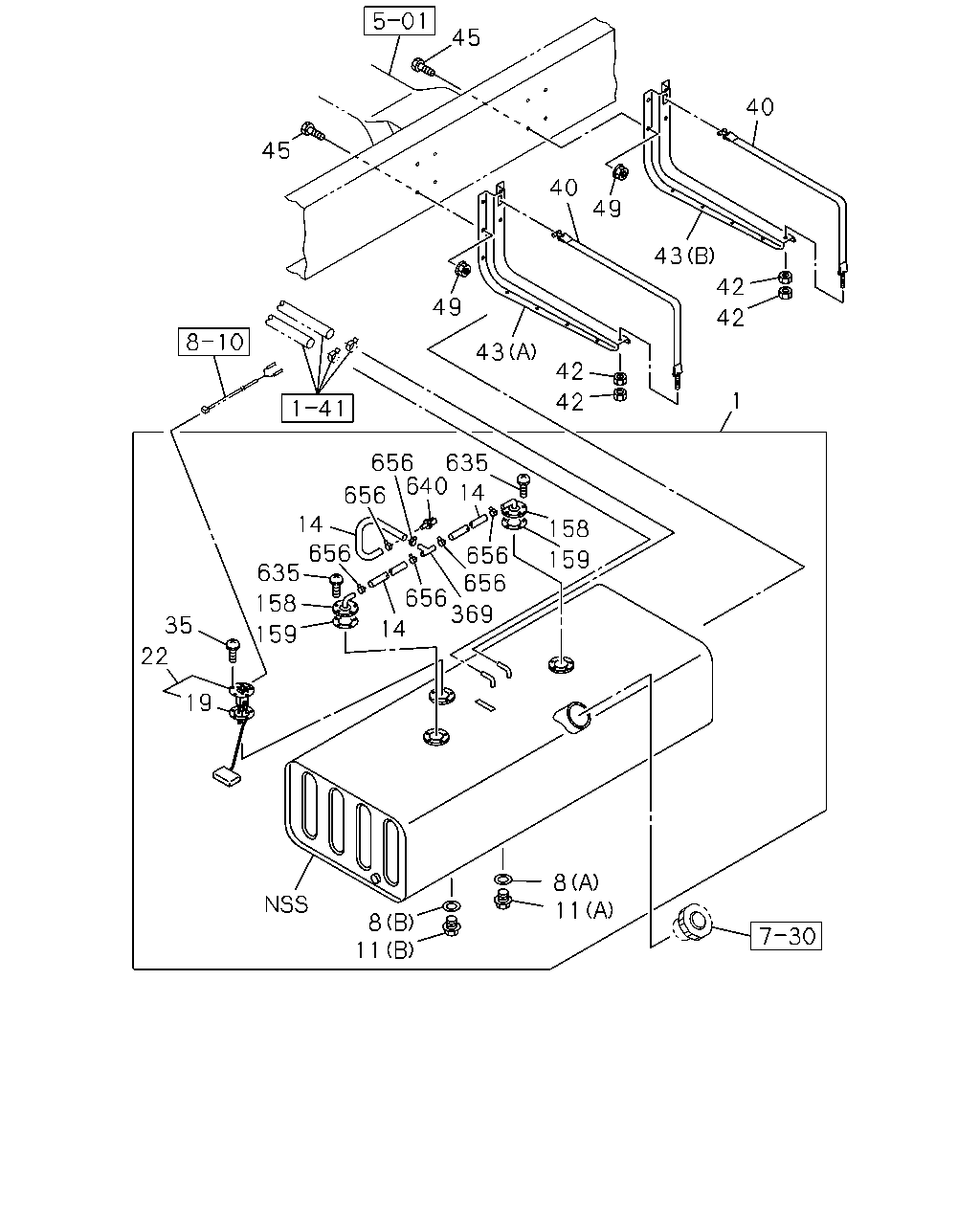

TANK; FUEL
1345X532X322 200L
IDN
|
8-98122-992-3 |
01 |
1 |
1103- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(B)
ID=30
IDN
|
8-98067-041-0 |
01 |
1 |
1103- |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
(A)
ID=18.2 OD=26.0
IDN
|
9-09571-418-0 |
01 |
1 |
1103- |
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M18X12
IDN
|
0-92002-418-0 |
01 |
1 |
1103-1504 |
| |
11 |
PLUG; DRAIN,FUEL TANK
(A)
M18
IDN
|
8-98068-006-0 |
01 |
1 |
1505- |
| |
11 |
PLUG; DRAIN,FUEL TANK
(B)
M30
IDN
|
8-98067-038-0 |
01 |
1 |
1103- |
| |
14 |
HOSE; BREATHER,OUTLET
L=90
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1103-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
L=430
IDN
|
8-98131-037-0 |
01 |
1 |
1505- |
| |
14 |
HOSE; BREATHER,OUTLET
L=440
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1103-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
L=460
IDN
|
8-98304-414-0 |
01 |
1 |
1505- |
| |
14 |
HOSE; BREATHER,OUTLET
L=450
SERVICED BY L=3000
|
0-01256-300-0 |
01 |
1 |
1103-1504 |
| |
14 |
HOSE; BREATHER,OUTLET
L=90
IDN
|
8-98304-415-0 |
01 |
1 |
1505- |
| |
19 |
GASKET; FUEL TANK UNIT
ID=42 OD=71
|
5-83148-001-0 |
01 |
1 |
1103- |
| |
22 |
UNIT; FUEL TANK
IDN
|
8-98099-320-0 |
01 |
1 |
1103- |
| |
35 |
SCREW; FUEL TANK UNIT
M5X12 W/LK WASHER
|
0-36220-512-0 |
05 |
1 |
1103- |
| |
40 |
BELT; SUPPORT,FUEL TANK
L=880
IDN
|
8-98042-715-1 |
02 |
1 |
1103- |
| |
42 |
NUT; SUPPORT BELT
M12
|
0-91110-512-0 |
04 |
1 |
1103- |
| |
43 |
BRACKET; FUEL TANK
(A)
IDN
|
8-98088-123-0 |
01 |
1 |
1103- |
| |
43 |
BRACKET; FUEL TANK
(B)
IDN
|
8-98122-883-0 |
01 |
1 |
1103- |
| |
45 |
BOLT; BRKT,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH>
M12X40 FLANGE
|
0-28651-240-0 |
08 |
1 |
1201-1203 |
| |
45 |
BOLT; BRKT,FUEL TANK
LOCALLY SUPPLIED PARTS<TKH>
M12X35 FLANGE
|
0-28651-235-0 |
08 |
1 |
1204- |
| |
45 |
BOLT; BRKT,FUEL TANK
M10X35 FLANGE
IDN
|
0-28651-035-0 |
12 |
1 |
1103-1112 |
| |
45 |
BOLT; BRKT,FUEL TANK
EXC. LOCALLY SUPPLIED PARTS<TKH>
M10X35 FLANGE
IDN
|
0-28651-035-0 |
12 |
1 |
1201- |
| |
49 |
NUT; BRKT
LOCALLY SUPPLIED PARTS<TKH>
M12 FLANGE
|
0-91180-212-0 |
08 |
1 |
1201- |
| |
49 |
NUT; BRKT
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1103-1112 |
| |
49 |
NUT; BRKT
EXC. LOCALLY SUPPLIED PARTS<TKH>
M10 FLANGE
|
0-91180-210-0 |
12 |
1 |
1201- |
| |
158 |
VALVE; ROLL OVER & FLOAT
IDN
|
8-98067-039-0 |
02 |
1 |
1103- |
| |
159 |
SEAL; ROLL OVER & FLOAT VALVE
ID=45 OD=67
IDN
|
1-83149-003-0 |
02 |
1 |
1103- |
| |
369 |
JOINT; HOSE
IDN
|
8-98067-080-0 |
01 |
1 |
1103- |
| |
635 |
SCREW; ROLL OVER & FLOAT VALVE
M5X12 W/LK WASHER
|
0-36220-512-0 |
10 |
1 |
1103- |
| |
640 |
VENTILATOR; HOSE,BREATHER
IDN
|
8-98092-398-0 |
01 |
1 |
1103- |
| |
656 |
CLAMP; FUEL TANK
IDN
|
8-98304-416-0 |
06 |
1 |
1505- |
