1-31 — AIR DUCT (#61735) — 59 parça

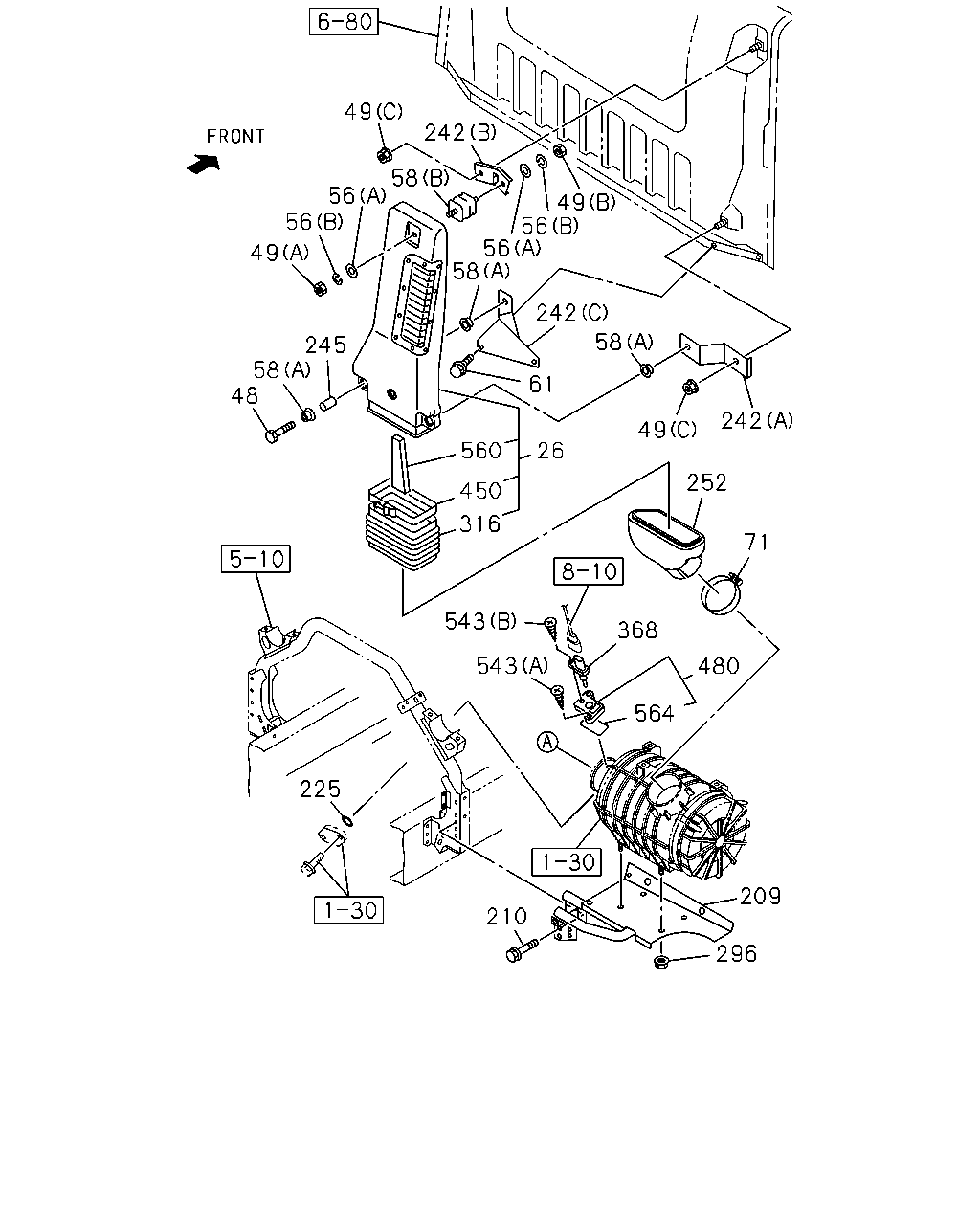

çizim 174517
49 242 58 56 56 49 56 56 58 49 242 58 245 61 58 48 242 49 26 560 252 450 316 71 543 368 543 480 564 225 209 210 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1103-
48 BOLT; AIR DUCT
M10X26 		1-09030-044-1 02 1 1103-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1103-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1103-
49 NUT; AIR DUCT
(C) M8 FLANGE IDN 		8-94279-517-0 02 1 1103-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1103-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1103-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1103-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1103-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1103-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1103-
209 BRACKET; ACL 8-98010-343-4 01 1 1103-
210 BOLT; ACL BRKT
M10X25 FLANGE IDN 		0-28651-025-0 04 1 1103-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 02 1 1103-1104
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1105-1105
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1105-1105
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1106-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1103-
242 BRACKET; AIR DUCT
(C) 		8-98019-302-1 01 1 1103-
242 BRACKET; AIR DUCT
(A) 		8-98019-303-1 01 1 1103-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1103-
252 DUCT; AIR INT 8-98010-639-1 01 1 1103-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1103-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1103-
368 SENSOR; TEMP 8-98065-377-0 01 1 1103-
450 CLAMP; HOSE 9-09915-504-1 01 1 1103-
480 ADAPTER 8-98086-417-0 01 1 1103-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1103-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1103-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1103-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1103-
564 GASKET; ADAPTER 8-98071-416-0 01 1 1103-

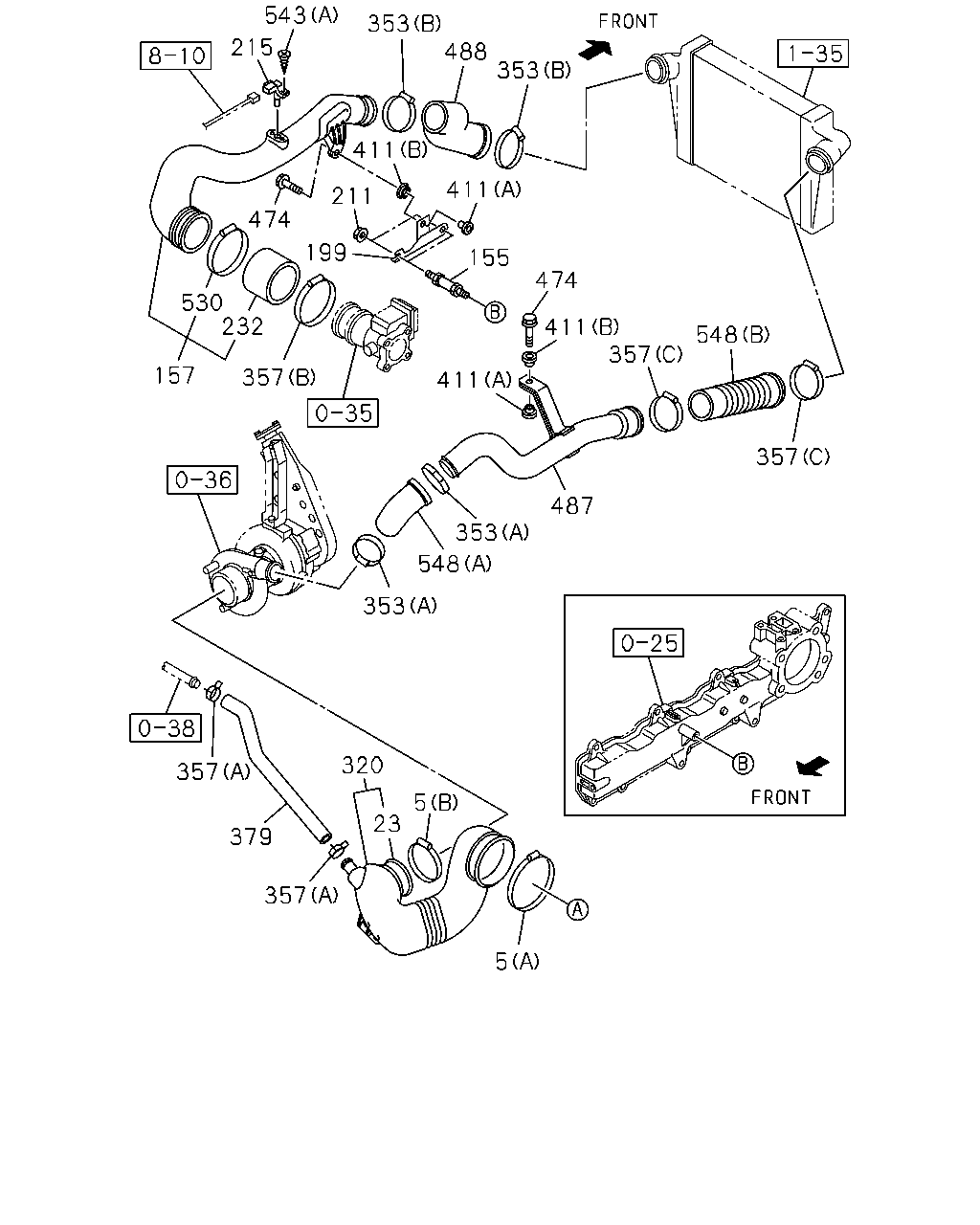

çizim 174528
543 353 488 353 215 411 411 211 474 199 155 474 530 232 411 548 357 411 157 357 357 487 353 548 353 357 379 320 5 23 5 357
BalonParca AdiParca NoAdetTipApplied Date
5 CLIP; AIR DUCT
(B) ID=55-75 		8-98133-349-0 01 1 1103-
5 CLIP; AIR DUCT
(A) ID=110-130 		8-98133-359-0 01 1 1103-
23 CLIP; HOSE
ID=87-116 		1-09707-144-0 01 1 1103-
155 BOLT; BRKT
M10X17,M10X30 L=105 		8-97233-428-0 02 1 1103-
157 PIPE; AIR 8-98010-719-3 01 1 1103-
199 BRACKET; PIPE 8-97385-293-1 01 1 1103-
211 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1103-
215 SENSOR; MAP 8-98009-418-0 01 1 1103-
232 HOSE; CONN 8-98067-929-0 01 1 1103-
320 HOSE; CONN,ACL 8-98073-539-3 01 1 1103-
353 CLIP; RUBBER HOSE
(A) ID=60-65 		8-98096-418-0 02 1 1103-
353 CLIP; RUBBER HOSE
(B) ID=55-75 		8-98133-349-0 02 1 1103-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1103-
357 CLIP; RUBBER HOSE
(C) ID=55-75 		8-98133-349-0 02 1 1103-
357 CLIP; RUBBER HOSE
(B) ID=75-95 		8-98133-357-0 01 1 1103-
379 HOSE; RUBBER 8-98075-713-1 01 1 1103-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1103-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1103-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1103-
487 PIPE; TURBO TO CHARGE AIR COOLER 8-98073-592-0 01 1 1103-
488 HOSE; RUBBER,PIPE
IDN 		8-98010-723-0 01 1 1103-
530 CLAMP; AIR DUCT
ID=75-95 		8-98133-357-0 01 1 1103-
543 SCREW; SENSOR
(B) M5X14 W/LK WASHER 		0-36220-514-0 01 1 1103-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1103-
543 SCREW; SENSOR
(A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 1103-
548 HOSE; RUBBER,TURBO TO INL PIPE
(A) IDN 		8-98181-971-1 01 1 1103-
548 HOSE; RUBBER,TURBO TO INL PIPE
(B) IDN 		8-98181-972-1 01 1 1103-
