6-35 — FRONT DOOR TRIM (#6173) — 85 parça

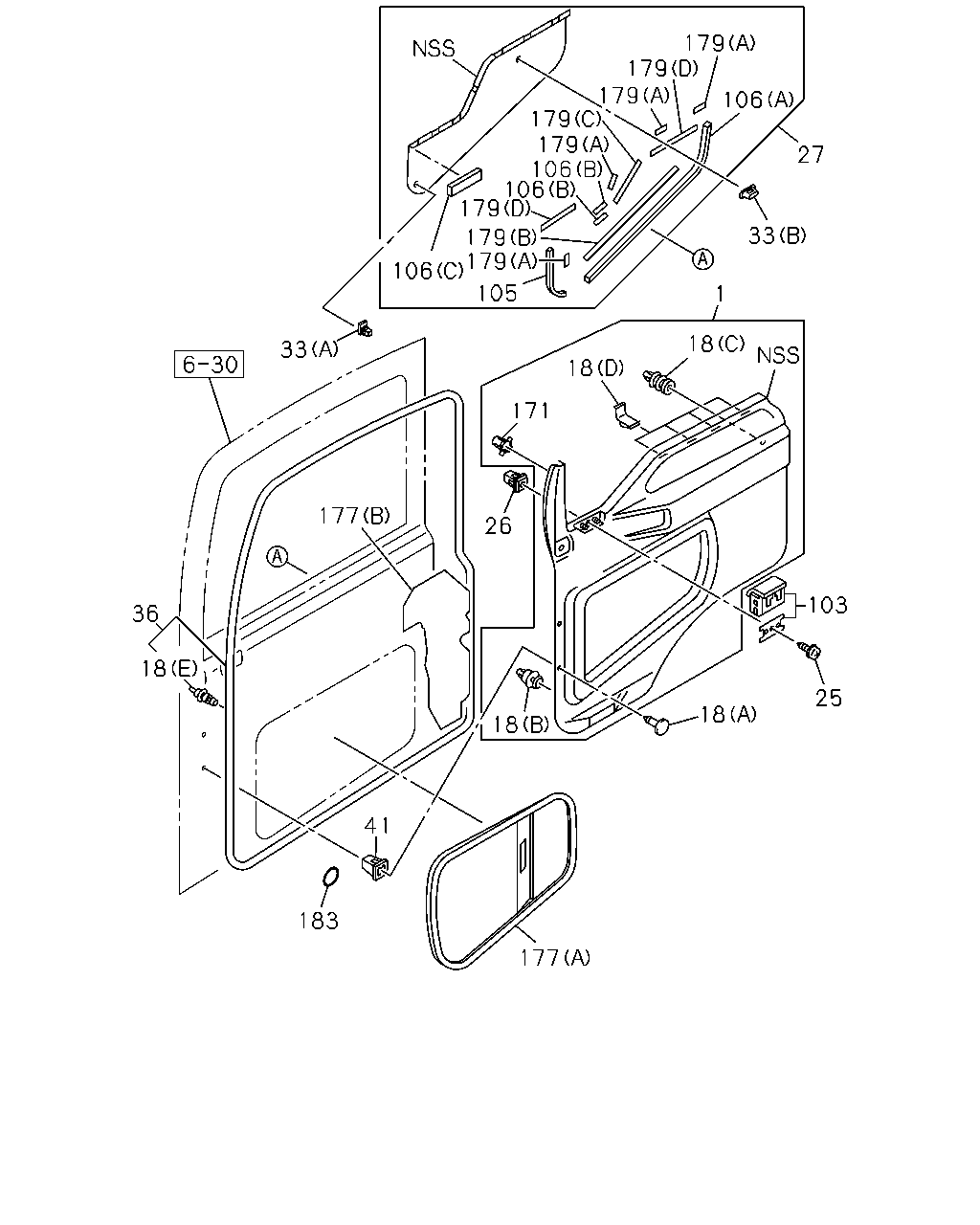

çizim 37969
177 41 183 36 18 177 33 106 26 18 18 25 103 18 33 27 106 179 179 179 179 106 179 106 179 179 179 105 171 18 1
BalonParca AdiParca NoAdetTipApplied Date
1 PAD; TRIM,FRT DOOR 1-73338-466-4 01 1 9905-0012
1 PAD; TRIM,FRT DOOR 1-73338-534-0 01 1 0101-0104
1 PAD; TRIM,FRT DOOR 1-73338-539-0 01 1 0105-0702
1 PAD; TRIM,FRT DOOR 1-73337-516-1 01 1 0703-
1 PAD; TRIM,FRT DOOR 1-73338-465-4 01 1 9905-0012
1 PAD; TRIM,FRT DOOR 1-73338-533-0 01 1 0101-0104
1 PAD; TRIM,FRT DOOR 1-73337-509-0 01 1 0105-0702
1 PAD; TRIM,FRT DOOR 1-73337-513-1 01 1 0703-
18 CLIP; DOOR PAD
(A) D4.2X19.9 DARK GRAY 		1-09987-242-0 04 1 9905-0104
18 CLIP; DOOR PAD
(A) D4.2X19.9 GRAY 		1-09987-272-0 04 1 0105-
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9905-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-94126-768-0 05 1 9905-0012
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-0301
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 05 1 0101-0301
18 CLIP; DOOR PAD
(B) OD=8.5 GRAY 		8-97893-482-0 10 1 0302-
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9905-0301
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 01 1 9905-0301
18 CLIP; DOOR PAD
(C) OD=7.9 BLACK 		8-94279-974-1 02 1 0302-
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9905-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 04 1 9905-0005
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006-0301
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 05 1 0006-0301
18 CLIP; DOOR PAD
(D) 		1-09987-262-0 10 1 0302-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905-
18 CLIP; DOOR PAD
(E) NATURAL 		1-09987-257-0 23 1 9905-
25 SCREW; ASH TRAY,DOOR
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 02 1 9905-
26 GROMMET; SCREW,ASH TRAY DOOR
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 9905-
27 PANEL; ORNAMENT,DOOR 1-76217-157-1 01 1 9905-0011
27 PANEL; ORNAMENT,DOOR
AUSTRALIA EQUIPMENT(RR3) 		1-76217-157-1 01 1 0012-0012
27 PANEL; ORNAMENT,DOOR 1-76217-157-1 01 1 0101-0301
27 PANEL; ORNAMENT,DOOR 1-76217-157-3 01 1 0302-
27 PANEL; ORNAMENT,DOOR 1-76217-149-1 01 1 9905-0011
27 PANEL; ORNAMENT,DOOR
AUSTRALIA EQUIPMENT(RR3) 		1-76217-149-1 01 1 0012-0012
27 PANEL; ORNAMENT,DOOR 1-76217-149-1 01 1 0101-0301
27 PANEL; ORNAMENT,DOOR 1-76217-149-3 01 1 0302-1210
27 PANEL; ORNAMENT,DOOR 8-98229-330-0 01 1 1211-
27 PANEL; ORNAMENT,DOOR
NEW ZEALAND EQUIPMENT(PK5) 		1-76218-096-5 01 1 0012-0012
27 PANEL; ORNAMENT,DOOR
NEW ZEALAND EQUIPMENT(PK5) 		1-76218-095-5 01 1 0012-0012
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 9905-0301
33 GROMMET; DOOR ORNAMENT
(A) 		1-09983-149-1 02 1 0302-0802
33 GROMMET; DOOR ORNAMENT
(A) OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 02 1 0803-
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 9905-0301
33 GROMMET; DOOR ORNAMENT
(B) 		1-74998-111-0 02 1 0302-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-177-9 01 1 9905-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-764-0 01 1 1011-
36 SEAL; DOOR,MAIN,CAB SIDE 1-76718-176-9 01 1 9905-1010
36 SEAL; DOOR,MAIN,CAB SIDE 8-98177-763-0 01 1 1011-
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 9905-0301
41 GROMMET; SCREW,DOOR PAD
OD=7.9X7.9 ID=4.2X4.2 		1-09983-151-1 04 1 0302-
103 TRAY ASM; ASH,DOOR 1-76458-078-2 01 1 9905-0104
103 TRAY ASM; ASH,DOOR 1-76457-054-0 01 1 0105-0111
103 TRAY ASM; ASH,DOOR 1-76458-086-1 01 1 0112-
103 TRAY ASM; ASH,DOOR 1-76458-077-2 01 1 9905-0104
103 TRAY ASM; ASH,DOOR 1-76457-053-0 01 1 0105-0111
103 TRAY ASM; ASH,DOOR 1-76458-085-1 01 1 0112-
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9905-0012
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 01 1 9905-0012
105 SEAL; DOOR ORNAMENT,FRT 1-76218-082-2 02 1 0101-
106 SEAL; DOOR ORNAMENT
(C) 		8-98226-642-0 01 1 1211-
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9905-0012
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 01 1 9905-0012
106 SEAL; DOOR ORNAMENT
(A) 		1-76218-083-2 02 1 0101-
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9905-0012
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 02 1 9905-0012
106 SEAL; DOOR ORNAMENT
(B) 		1-76218-104-0 04 1 0101-
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9905-0301
171 RETAINER; DOOR PAD 1-09987-264-0 01 1 9905-0301
171 RETAINER; DOOR PAD 1-09987-264-0 02 1 0302-
177 SEAL; WATER,DOOR
(A) 		1-76778-052-2 01 1 9905-
177 SEAL; WATER,DOOR
(A) 		1-76778-035-4 01 1 9905-0301
177 SEAL; WATER,DOOR
(A) 		1-76778-035-6 01 1 0302-
177 SEAL; WATER,DOOR
(B) 		1-76778-055-2 02 1 9905-
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9905-0012
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-1 04 1 9905-0012
179 TAPE; ORNAMENT
(A) L=45 		1-76218-063-2 08 1 0101-
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-1 01 1 9905-0012
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-1 01 1 9905-0012
179 TAPE; ORNAMENT
(B) L=770 		1-76218-091-2 02 1 0101-
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-0 01 1 9905-0012
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-0 01 1 9905-0012
179 TAPE; ORNAMENT
(C) L=160 		1-76218-094-1 02 1 0101-
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-0 02 1 9905-0012
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-0 02 1 9905-0012
179 TAPE; ORNAMENT
(D) L=235 		1-76218-127-1 04 1 0101-
183 SEAL; LOCATION HOLE
OD=20 T=0.05 BLACK 		5-76777-036-0 04 1 9905-0104
