Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-60 - ENGINE ELECTRICAL CONTROL PARTS
▶
0-60 — ENGINE ELECTRICAL CONTROL PARTS
(#61725) — 29 parça
◀

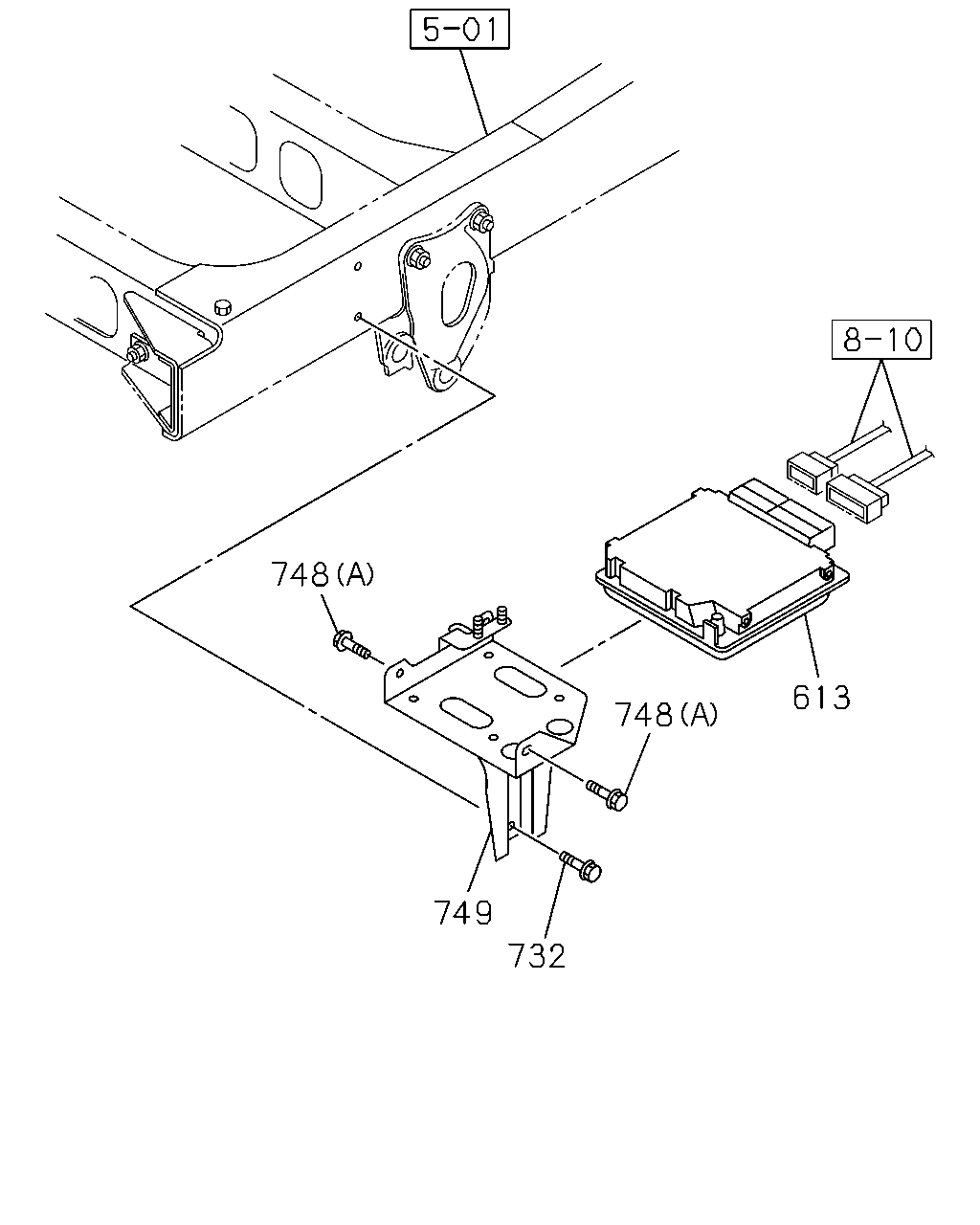

[060A] FIXING;ENG CONTROL UNIT (5 parça)

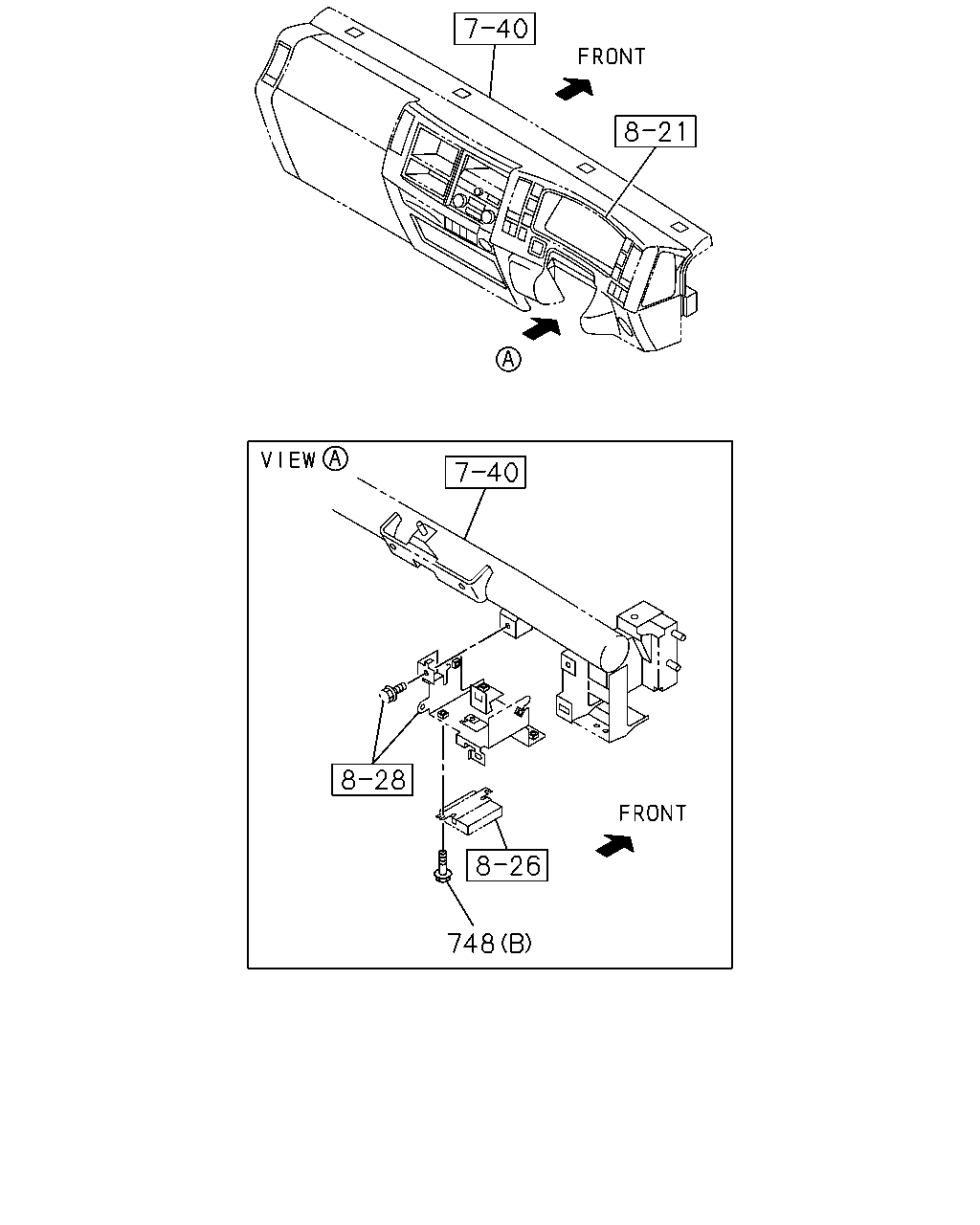

[060A] DRM (2 parça)

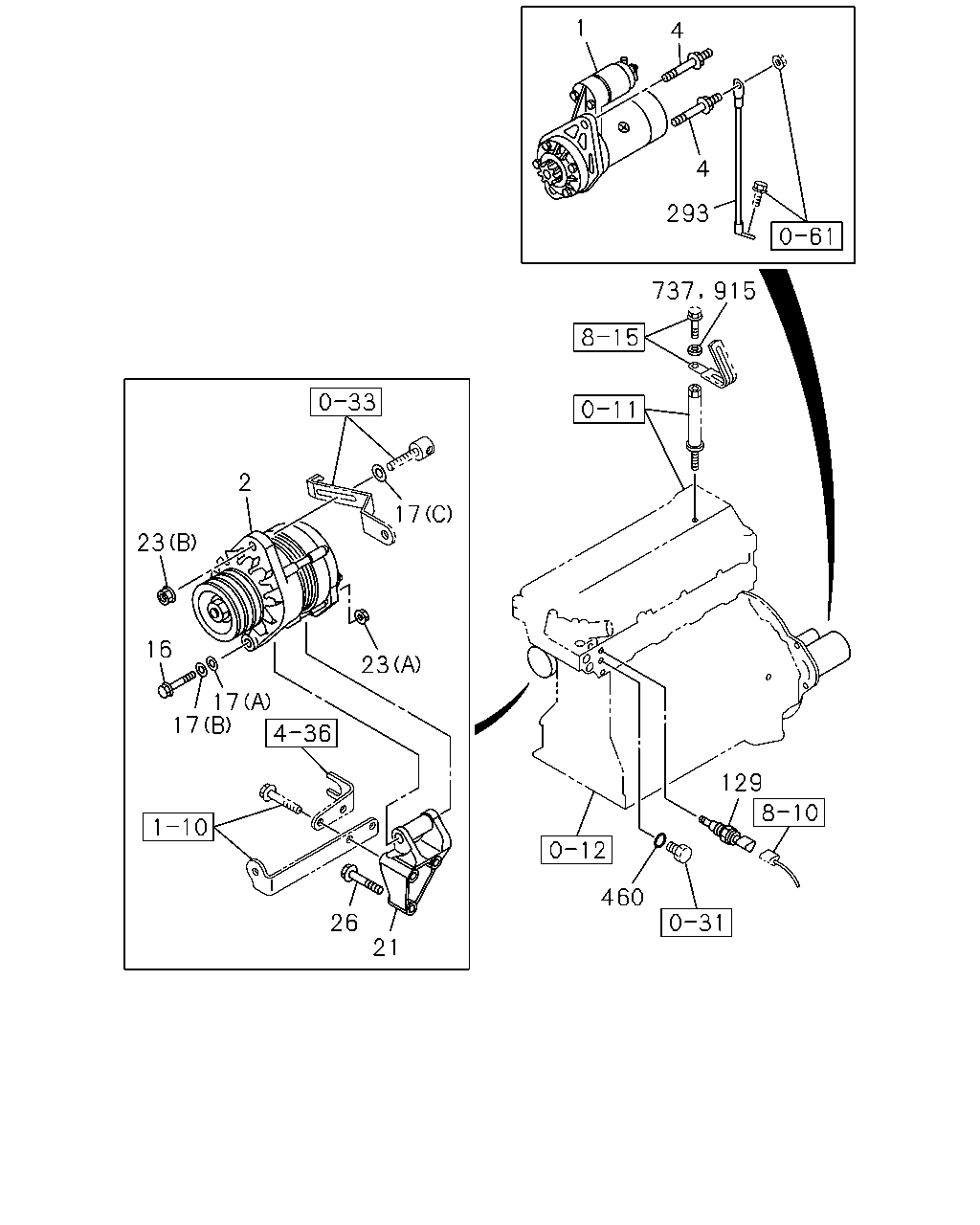

[060A] STARTER AND GENERATOR (20 parça)

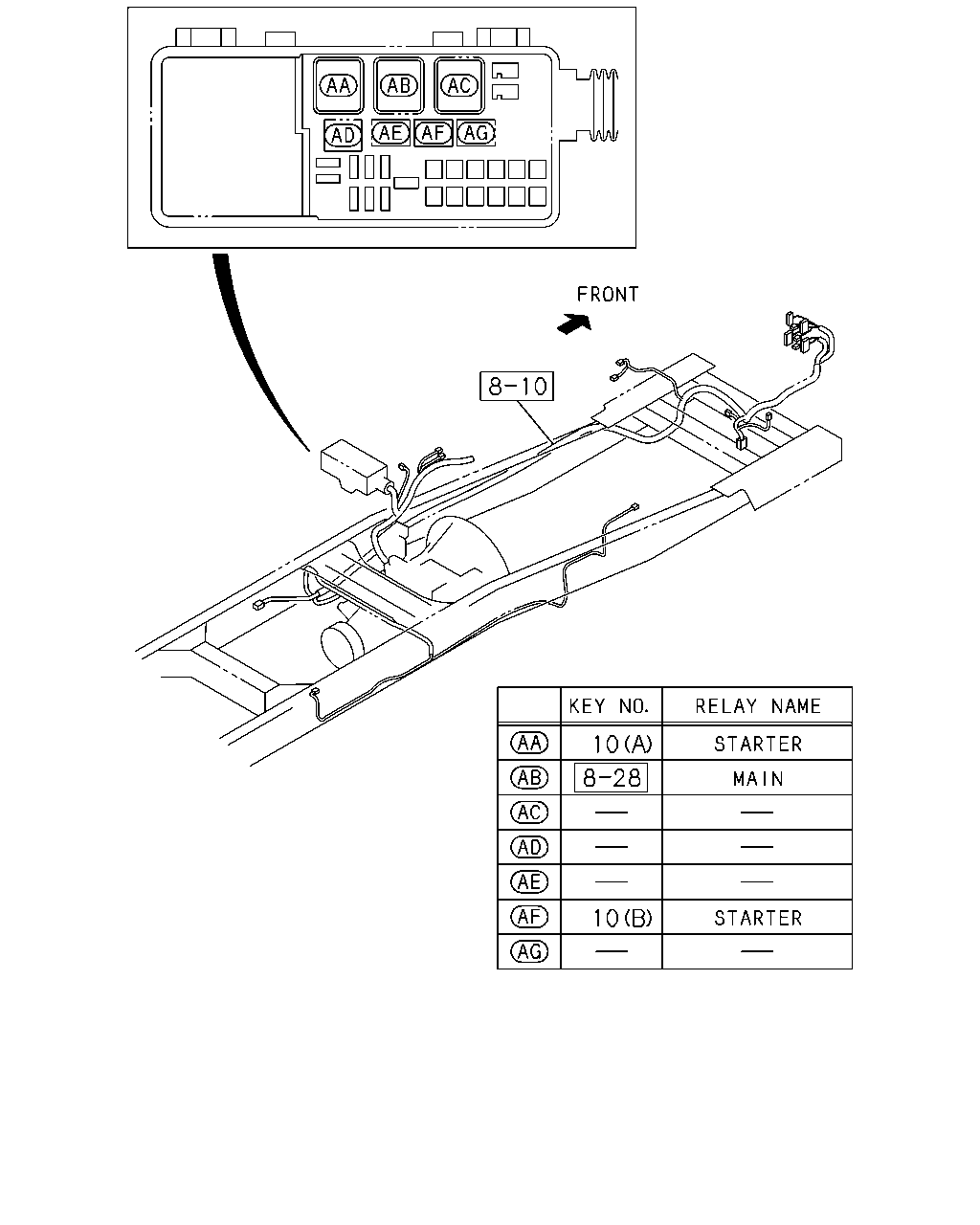

[060A] RELAY;FRAME HARNESS (2 parça)
▶
748
613
748
749
732
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
613
CONTROL UNIT; ENG
8-98182-780-1
01
1
1103-
732
BOLT; BRKT
M10X30 FLANGE
0-28651-030-0
02
1
1103-
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1103-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1103-
749
STAY; CONT UNIT
1-53194-594-1
01
1
1103-
748
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
748
BOLT; CONT UNIT
(A) M6X12 FLANGE
0-28050-612-0
03
1
1103-
748
BOLT; CONT UNIT
(B) M6X16 FLANGE
0-28650-616-0
02
1
1103-
1
4
4
293
2
23
16
17
17
23
17
26
21
737
915
460
129
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98009-043-2
01
1
1103-1207
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98222-023-0
01
1
1208-1311
1
STARTER ASM
SEE FIG-NO 0-65 FOR COMPONENT. 24V 4.5KW HITACHI
8-98245-260-0
01
1
1312-
2
GENERATOR ASM
SEE FIG-NO 0-66 FOR COMPONENT. 24V 50A NIKKO IDN
8-98013-455-4
01
1
1103-
4
BOLT; STARTER
M10X15,M14X82 L=110
8-98029-095-0
02
1
1103-
16
BOLT; GEN
M14X135
1-09000-133-1
01
1
1103-
17
WASHER; PL,GEN
(A) ID=14.2
0-91510-514-0
01
1
1103-
17
WASHER; PL,GEN
(B) ID=15
0-91610-514-0
01
1
1103-
17
WASHER; PL,GEN
(C) ID=12.5 OD=32
9-09160-712-0
01
1
1103-
21
BRACKET; GEN
8-97381-404-0
01
1
1103-
23
NUT; GEN
(A) M14
0-91110-514-0
01
1
1103-
23
NUT; GEN
(B) M12 FLANGE IDN
0-91180-112-0
01
1
1103-
26
BOLT; GEN BRKT
M10X50 FLANGE
0-28151-050-0
01
1
1103-
129
SENSOR; GLOW PLUG,THERMO
MITSUBISHI
8-98023-883-0
01
1
1103-1503
129
SENSOR; GLOW PLUG,THERMO
NISHIDA
8-98260-257-0
01
1
1504-
293
CABLE; STARTER EARTH
L=410 IDN
8-97620-375-0
01
1
1103-
460
GASKET; PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=16.2
1-09630-086-0
01
1
1103-
737
WASHER; PL
ID=9 OD=18 T=5
9-14149-173-0
01
1
1404-
737
WASHER; PL
ID=6.4 OD=18
0-91610-706-0
02
1
1401-
915
SPACER; HARNESS
ID=8.4 OD=19
5-11779-001-0
01
1
1103-1105
10
10
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
RELAY; STARTER
(B) 24V 50A
8-97264-947-0
01
1
1103-
10
RELAY; STARTER
(A) 24V 10A PANASONIC
8-98167-173-0
01
1
1103-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
