◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-31 - FRONT DOOR GLASS AND REGULATOR ▶
6-31 — FRONT DOOR GLASS AND REGULATOR (#6171) — 118 parça

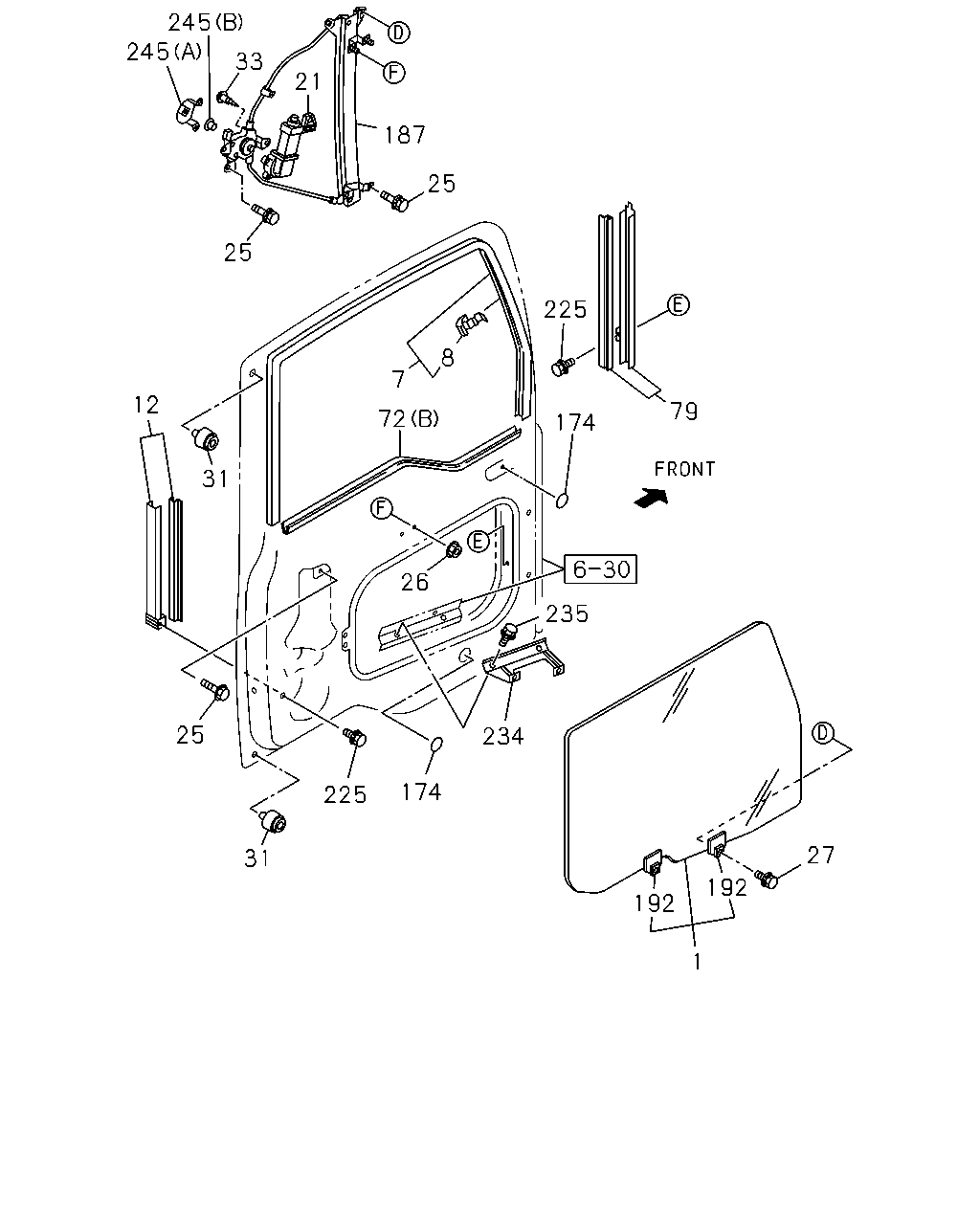

çizim 37599
245 245 33 21 187 25 25 225 8 7 12 79 72 174 31 26 235 25 234 174 225 27 31 192 192 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 1-76148-095-2 01 1 9905-
1 GLASS; FRT DOOR 1-76167-172-0 01 1 9905-9905
1 GLASS; FRT DOOR 1-76167-177-2 01 1 9906-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 9905-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 9905-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9905-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 9905-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 9905-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9905-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9905-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004-
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9905-0405
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 9905-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9905-
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1204-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9905-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9905-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9905-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9905-
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9905-0212
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0301-0301
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 13 1 0301-0301
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0302-
187 REGULATOR ASM; DOOR 1-74418-167-1 01 1 9905-0003
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0004-
187 REGULATOR ASM; DOOR 1-74418-165-1 01 1 9905-0003
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0004-0602
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0603-
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 9905-0301
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 9905-0301
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0302-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0512
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9905-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9905-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 01 1 0210-0301
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 01 1 0210-0301
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0004-0104
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0105-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0302-

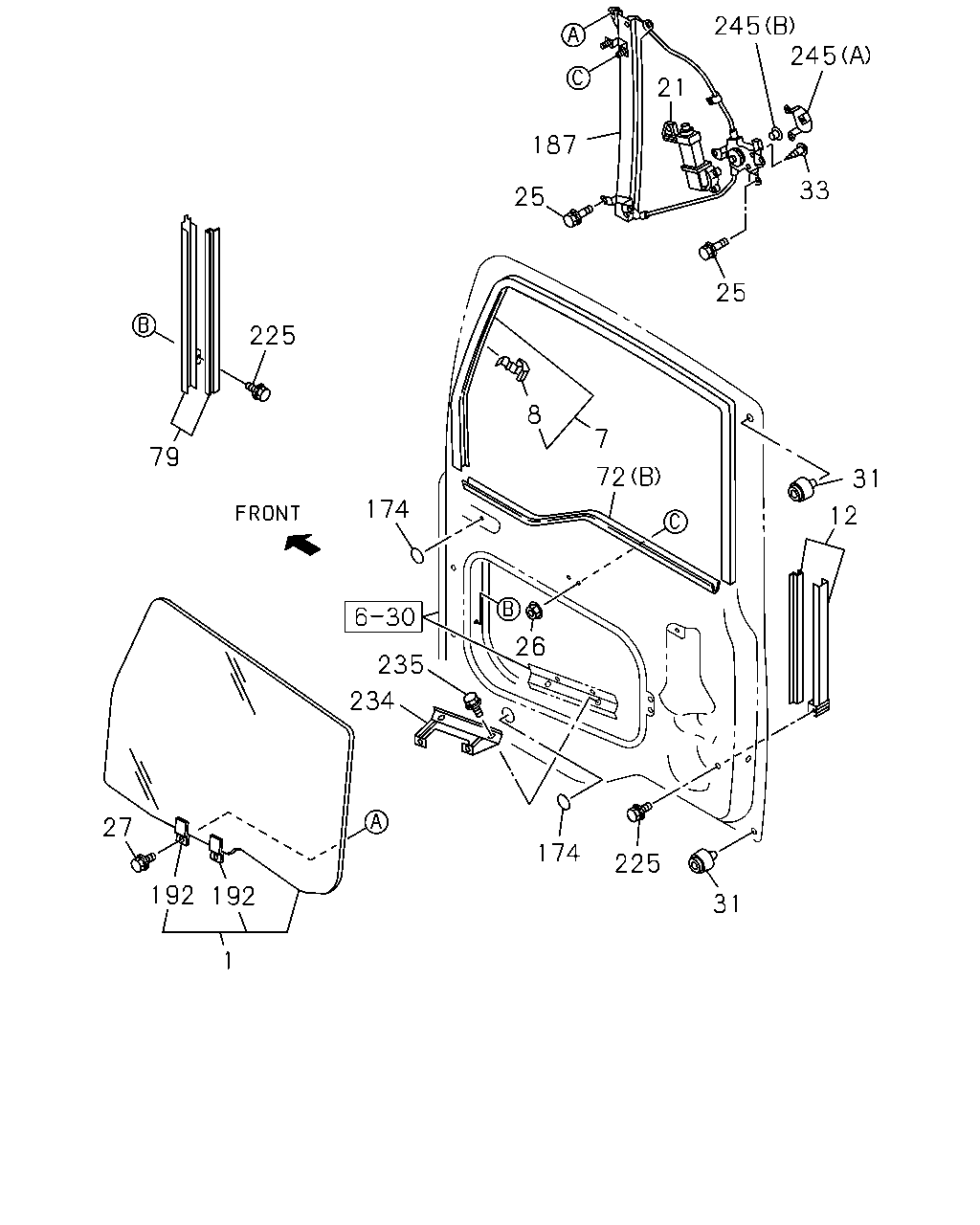

çizim 37967
245 245 21 187 33 25 25 225 8 7 79 72 31 174 12 26 235 234 27 174 225 192 12 31 1
BalonParca AdiParca NoAdetTipApplied Date
1 GLASS; FRT DOOR 1-76148-095-2 01 1 9905-
1 GLASS; FRT DOOR 1-76167-172-0 01 1 9905-9905
1 GLASS; FRT DOOR 1-76167-177-2 01 1 9906-
7 GLASS RUN; FRT DOOR 1-74318-022-8 01 1 9905-
7 GLASS RUN; FRT DOOR 1-74318-021-8 01 1 9905-
8 CLIP; GLASS GUIDE 1-74318-029-1 02 1 9905-
12 CHANNEL; GLASS RUN,FRT 1-74338-071-3 01 1 9905-
12 CHANNEL; GLASS RUN,FRT 1-74338-070-3 01 1 9905-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-164-0 01 1 9905-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-177-0 01 1 0004-
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-161-0 01 1 9905-0003
21 MOTOR; POWER WINDOW REG,FRT DOOR 1-74418-176-0 01 1 0004-
25 BOLT; WINDOW REG
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 10 1 9905-0405
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28080-616-0 10 1 0406-0512
25 BOLT; WINDOW REG
M6X16 FLANGE 		0-28050-616-0 10 1 0601-0710
25 BOLT; WINDOW REG
M6X10 FLANGE 		0-28050-610-0 10 1 0711-
26 NUT; FLANGE,WINDOW REG
M6 FLANGE 		1-09984-141-0 06 1 9905-
27 BOLT; GLASS FIX
M6X12 W/LK&PL WASHER 		8-94279-200-0 04 1 9905-
31 STOPPER; RUBBER,DOOR INNER 1-09983-169-0 04 1 9905-
33 SCREW; REG MOTOR 8-98099-646-0 06 1 1204-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9905-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9905-
79 CHANNEL; DOOR GLASS,FRT 1-74338-069-3 01 1 9905-
79 CHANNEL; DOOR GLASS,FRT 1-74338-068-3 01 1 9905-
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 14 1 9905-0212
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0301-0301
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 13 1 0301-0301
174 SEAL; LOCATION HOLE
OD=25 BLACK 		1-76798-019-0 16 1 0302-
187 REGULATOR ASM; DOOR 1-74418-167-1 01 1 9905-0003
187 REGULATOR ASM; DOOR 1-74418-179-3 01 1 0004-
187 REGULATOR ASM; DOOR 1-74418-165-1 01 1 9905-0003
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0004-0602
187 REGULATOR ASM; DOOR 1-74418-178-3 01 1 0603-
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 9905-0301
192 HOLDER; DOOR GLASS 1-74427-170-0 02 1 9905-0301
192 HOLDER; DOOR GLASS 1-74427-170-0 04 1 0302-
225 BOLT; FRT CHANNEL
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 04 1 9905-0003
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28080-610-0 04 1 0004-0512
225 BOLT; FRT CHANNEL
M6X10 FLANGE 		0-28050-610-0 04 1 0601-
234 BRACKET; OK WINDOW 1-74998-057-4 01 1 9905-
234 BRACKET; OK WINDOW 1-74998-062-4 01 1 9905-
235 BOLT; BRKT
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 01 1 0210-0301
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 01 1 0210-0301
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-146-0 01 1 9905-0003
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0004-0104
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-180-0 01 1 0105-
245 DAMPER; WINDOW REGULATOR
(A) 		1-74418-181-0 01 1 0004-
245 DAMPER; WINDOW REGULATOR
(B) 		1-74417-074-0 02 1 0302-

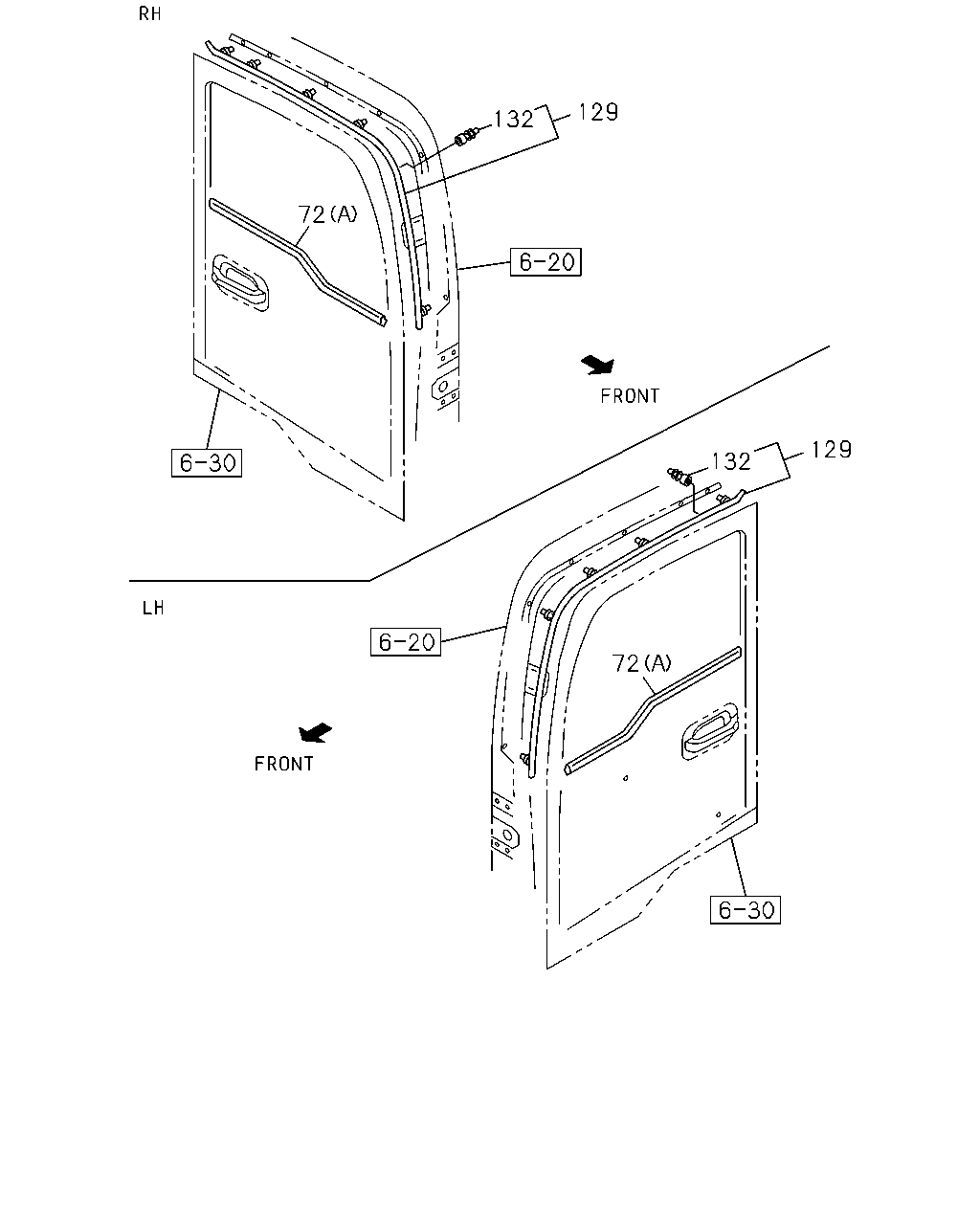

çizim 100439
129 132 72 129 132 72
BalonParca AdiParca NoAdetTipApplied Date
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-089-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-040-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-092-6 01 1 9905-
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		1-76738-088-9 01 1 9905-1207
72 SEAL; WAIST,FRT DOOR
(A) OUTER 		8-98219-039-0 01 1 1208-
72 SEAL; WAIST,FRT DOOR
(B) INNER 		1-76738-091-6 01 1 9905-
129 SEAL; DOOR,SUB UPR 1-76718-199-0 01 1 9905-
129 SEAL; DOOR,SUB UPR 1-76718-198-0 01 1 9905-
132 CLIP; SEAL,DOOR
YELLOW 		1-09987-254-1 06 1 9911-
132 CLIP; SEAL,DOOR
NATURAL 		1-09987-253-1 06 1 9911-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
