Isuzu WW
▶
TRUCKS
▶
FRR
▶
11390 - FRR(INDONESIA)
▶
0 - Engine, Emission, Engine Electrical
▶
0-15 - CRANKSHAFT,PISTON AND FLYWHEEL
▶

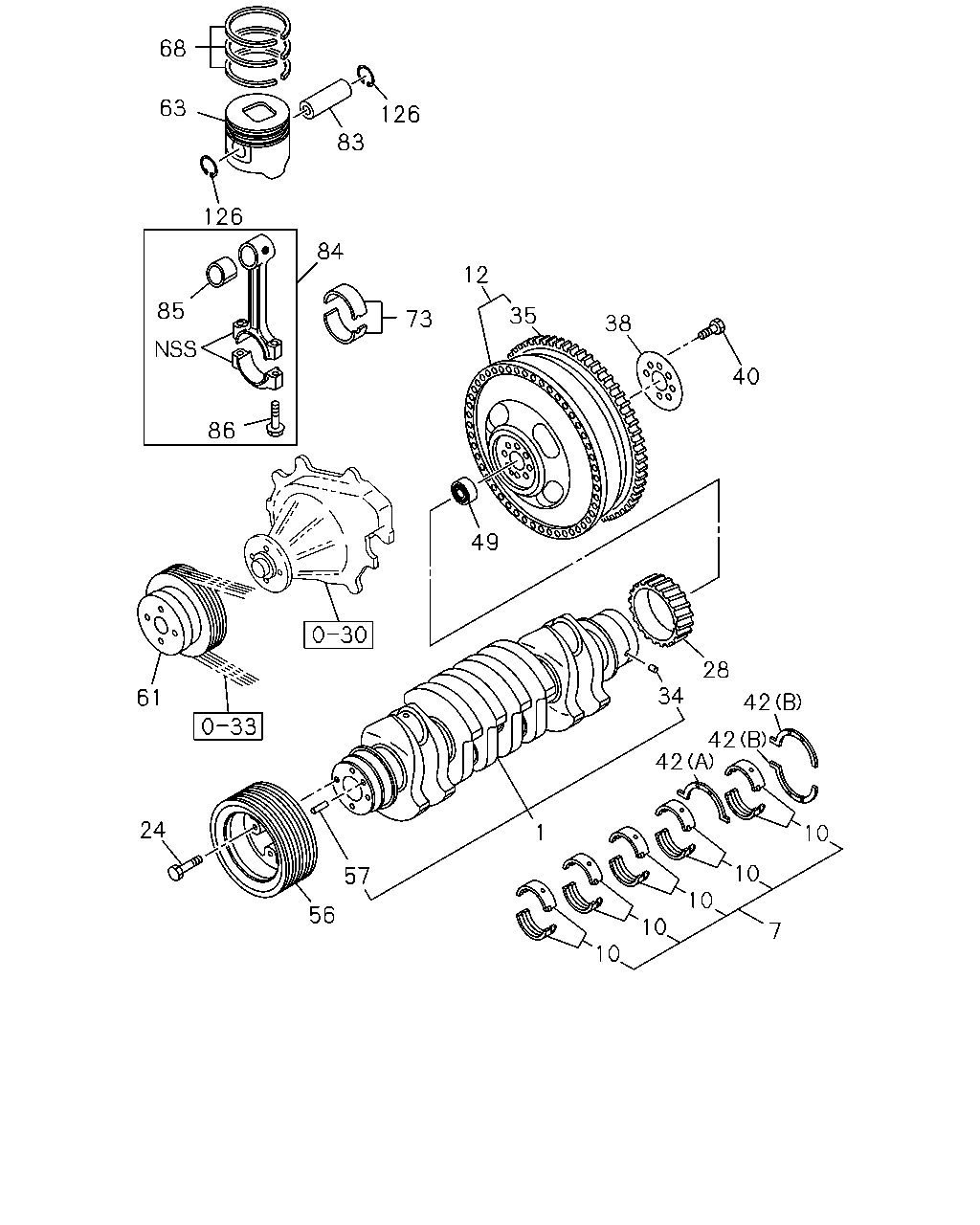

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#61704) — 30 parça
68
126
83
63
126
84
85
86
73
12
38
40
35
49
61
24
56
57
1
34
28
42
42
42
10
10
10
10
10
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98029-270-0
01
1
1103-
7
METAL KIT; CRANKSHAFT,STANDARD
5-87311-137-0
01
1
1103-
7
METAL KIT; CRANKSHAFT,STANDARD
5-87311-138-0
01
1
1103-
7
METAL KIT; CRANKSHAFT,STANDARD
5-87311-139-0
01
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BLUE
8-97372-076-1
05
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BLACK
8-97372-077-1
05
1
1103-
10
METAL SET; CRANKSHAFT,STANDARD
BROWN
8-97372-078-1
05
1
1103-
12
FLYWHEEL
8-98056-355-2
01
1
1103-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1103-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1103-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1103-
35
GEAR; RING
Z=143
8-97375-675-1
01
1
1103-
38
WASHER; FLYWHEEL
ID=55 OD=110
8-94397-496-1
01
1
1103-
40
BOLT; FLYWHEEL
M16X51
8-94334-870-1
08
1
1103-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1103-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1103-
49
BEARING; PILOT
8-97258-239-0
01
1
1103-
49
BEARING; PILOT
BEST VALUE PARTS
5-87610-164-0
01
1
1103-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98004-024-3
01
1
1103-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
1103-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98003-384-1
01
1
1103-
63
PISTON
ALSO INCLUDED IN LINER SET. NON GRADE
8-98041-141-2
04
1
1103-
68
RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET.
8-98040-125-0
04
1
1103-
73
METAL SET; CONN ROD,STANDARD
YELLOW
8-98055-479-0
04
1
1103-
73
METAL SET; CONN ROD,STANDARD
GREEN
8-98055-480-0
04
1
1103-
83
PIN; PISTON
ALSO INCLUDED IN LINER SET.
8-98018-863-1
04
1
1103-
84
ROD ASM; CONN
8-98018-425-3
04
1
1103-
85
BUSHING; CONNROD
ALSO INCLUDED IN LINER SET.
8-94391-794-1
04
1
1103-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1103-
126
RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. OD=43.7
8-98006-828-0
08
1
1103-
