0-13 — OIL PAN AND LEVEL GAUGE
(#61702) — 31 parça
◀

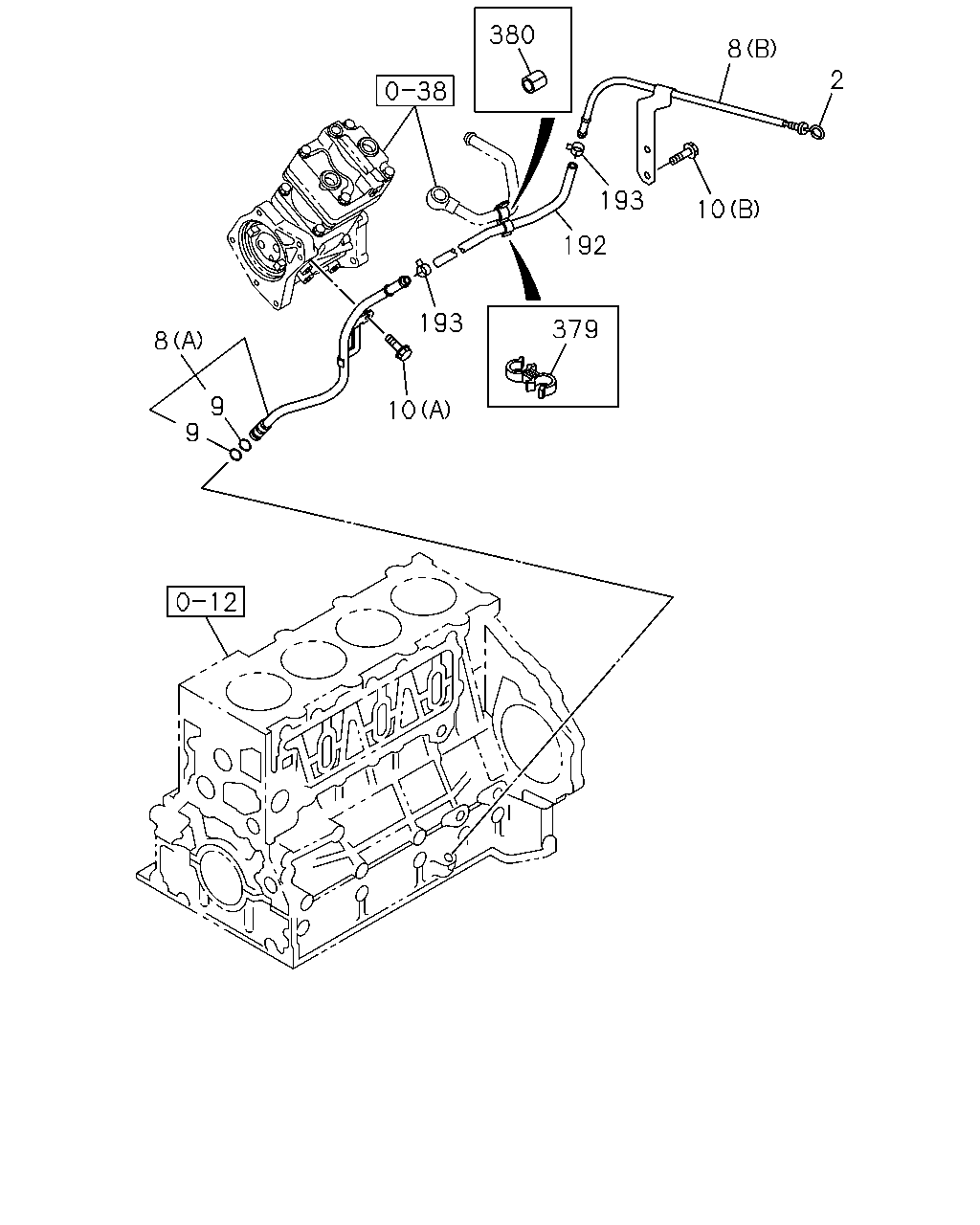

[013A] OIL GAUGE (11 parça)

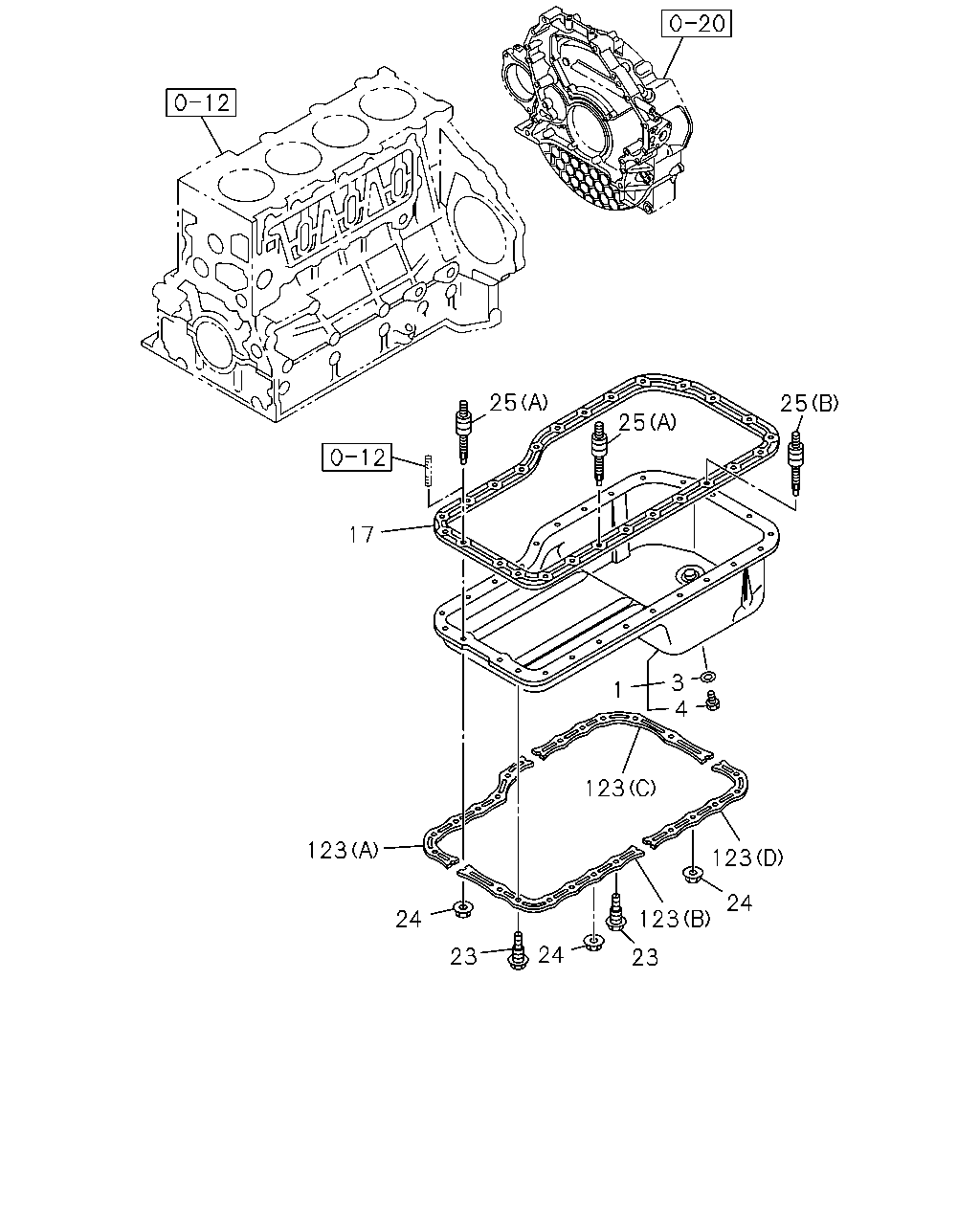

[013A] OIL PAN (20 parça)
▶
380
8
2
193
10
192
193
379
8
9
10
9
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
GAUGE; OIL LEVEL
8-98085-153-0
01
1
1103-1406
2
GAUGE; OIL LEVEL
8-98245-514-0
01
1
1407-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(A)
8-98009-115-1
01
1
1103-
8
TUBE; GUIDE,OIL LEVEL GAUGE
(B)
8-98010-328-1
01
1
1103-
9
GASKET; GUIDE TUBE,OIL LEVEL GAUGE
ID=11
1-09623-469-0
02
1
1103-
10
BOLT; GUIDE TUBE
(A) M6X12 FLANGE
0-28050-612-0
01
1
1103-
10
BOLT; GUIDE TUBE
(B) M8X20 FLANGE IDN
0-28650-820-0
02
1
1103-
192
HOSE; GUIDE TUBE
L=300 IDN
1-09360-978-0
01
1
1103-
193
CLIP; HOSE,GUIDE TUBE
ID=17
1-09707-158-0
02
1
1103-
379
CLIP; PIPE TO HOSE
ID=18 & 18
8-94323-068-0
01
1
1103-
380
PROTECTOR; PIPE
ID=18 L=40
8-98070-445-0
01
1
1103-
25
25
25
17
3
4
1
123
123
123
24
123
24
24
23
23
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PAN ASM; OIL
8-98124-513-0
01
1
1103-1107
1
PAN ASM; OIL
8-97149-314-0
01
1
1108-1109
1
PAN ASM; OIL
8-98191-050-0
01
1
1110-
3
GASKET; DRAIN PLUG
ALSO INCLUDED IN GASKET SET(ENGINE). ID=14.2 OD=24
8-94158-328-0
01
1
1103-
4
PLUG; DRAIN,OIL
M14X14 IDN
8-94152-613-0
01
1
1103-
17
GASKET; OIL PAN
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97364-386-0
01
1
1103-1107
23
BOLT; OIL PAN
M8X12.8 W/PL WASHER,RUBBER TUBE
8-97190-390-0
13
1
1103-1107
23
BOLT; OIL PAN
M8X14 W/SCOTCH GRIP
8-97047-004-1
18
1
1108-1109
23
BOLT; OIL PAN
M8X14 W/SCOTCH GRIP
8-97047-004-1
01
1
1110-
23
BOLT; OIL PAN
M8X14
8-97047-005-0
01
1
1108-1109
23
BOLT; OIL PAN
M8X14
8-97047-005-0
18
1
1110-
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
13
1
1103-1107
24
NUT; OIL PAN
M8 FLANGE
0-91180-108-0
07
1
1108-1109
24
NUT; OIL PAN
M8 W/LK WASHER IDN
8-97581-234-0
07
1
1110-
25
STUD; OIL PAN
(A) M8X16,M8X17 L=37 W/PL WASHER,RUBBER TUBE
8-97190-391-0
01
1
1103-1107
25
STUD; OIL PAN
(B) M8X16,M8X19 L=39 W/PL WASHER,RUBBER TUBE
8-97190-392-0
09
1
1103-1107
123
RUBBER; SEAL OIL
(A)
8-97186-988-0
01
1
1103-1107
123
RUBBER; SEAL OIL
(B)
8-97186-994-0
01
1
1103-1107
123
RUBBER; SEAL OIL
(C)
8-97186-998-0
01
1
1103-1107
123
RUBBER; SEAL OIL
(D)
8-97187-000-0
01
1
1103-1107
