8-60 — HEATER UNIT; FRONT (#61692) — 42 parça

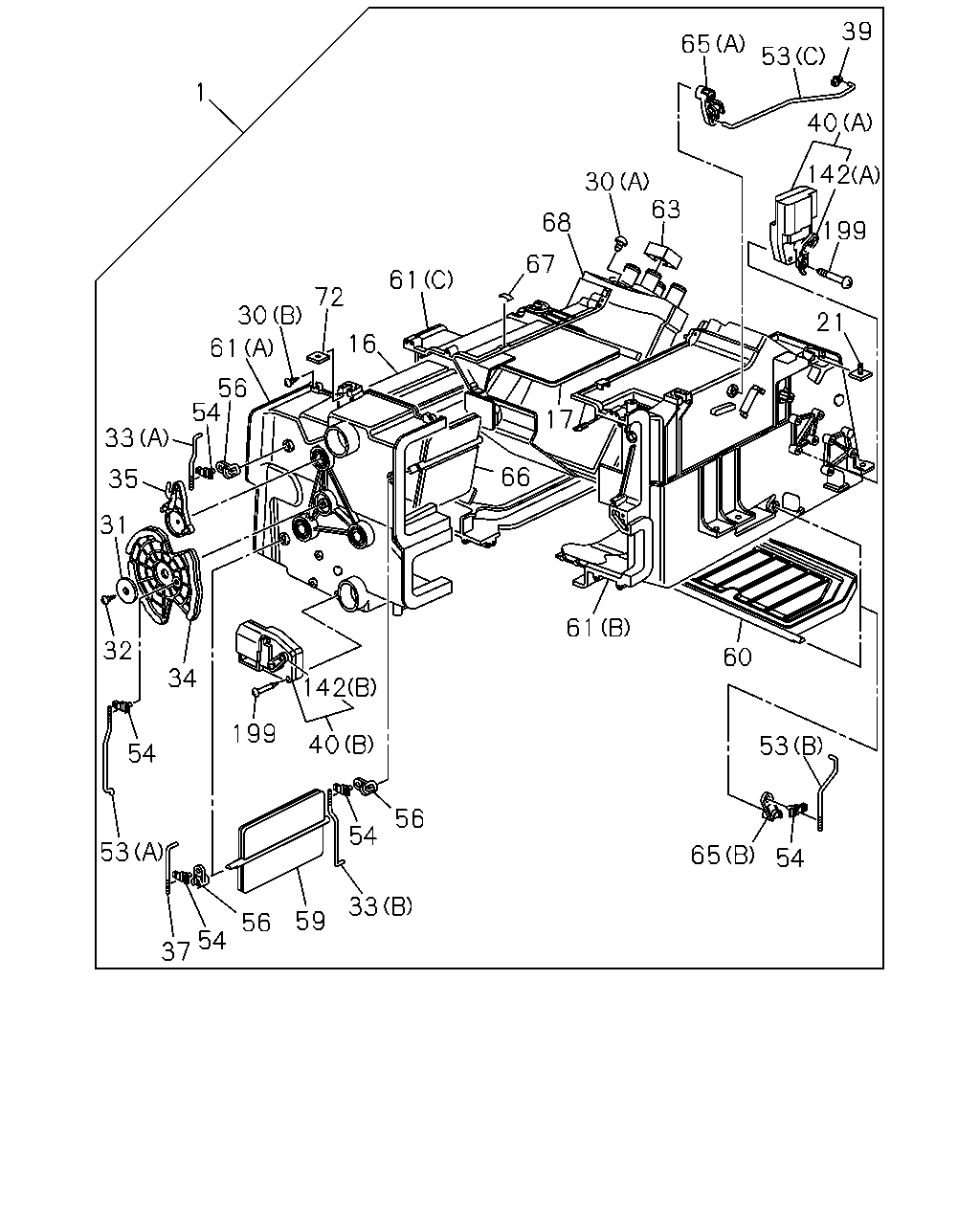

çizim 174288
39 65 53 1 40 30 63 68 199 67 61 72 30 21 16 61 56 54 17 33 66 35 31 61 32 60 34 142 199 40 53 54 56 54 53 65 54 33 59 56 54 37 142
BalonParca AdiParca NoAdetTipApplied Date
1 HEATER UNIT 1-83511-175-1 01 1 0310-1409
1 HEATER UNIT 8-98238-476-0 01 1 1410-
16 SHUTTER; HTR UNIT,CENTER UPR 1-83579-625-1 01 1 0310-
17 SHUTTER; HTR UNIT,CENTER 1-83579-628-1 01 1 0310-
21 BOLT; CASE,HTR UNIT 1-83579-657-2 02 1 0310-
30 SCREW; HTR UNIT
(B) M4X16 MAL 		8-94324-850-0 12 1 0310-
30 SCREW; HTR UNIT
(A) M5X20 MAL 		9-09829-324-1 01 1 0310-1409
30 SCREW; HTR UNIT
(A) M5X16 		8-94248-820-0 01 1 1410-
31 WASHER; HTR UNIT
MAL 		8-94129-950-0 01 1 0310-
32 SCREW; HTR UNIT
M5X20 MAL 		9-09829-324-1 01 1 0310-1409
32 SCREW; HTR UNIT
M5X16 		8-94248-820-0 01 1 1410-
33 ROD; SHUTTER LEVER
(A) 		1-83579-619-0 01 1 0310-
33 ROD; SHUTTER LEVER
(B) 		1-83579-621-0 01 1 0310-
34 LEVER; SHUTTER,HTR UNIT 1-83564-326-0 01 1 0310-
35 LEVER; SHUTTER,HTR UNIT 8-94389-502-1 03 1 0310-
37 ROD; LEVER 1-83579-620-1 01 1 0310-
39 CLIP; HTR UNIT
MAL 		1-83574-136-0 01 1 0310-
40 ACTUATOR; HTR UNIT
(B) 		1-83579-649-1 01 1 0310-
40 ACTUATOR; HTR UNIT
(A) 		1-83579-650-1 01 1 0310-
53 ROD; SHUTTER LEVER
(A) 		1-83579-622-0 01 1 0310-
53 ROD; SHUTTER LEVER
(B) 		1-83579-623-0 01 1 0310-
53 ROD; SHUTTER LEVER
(C) 		1-83579-624-0 01 1 0310-
54 CLIP; SHUTTER LEVER 8-94248-794-0 05 1 0310-
56 LEVER; SHUTTER,HTR UNIT 1-83564-325-0 03 1 0310-
59 SHUTTER; HTR UNIT,SIDE 1-83579-626-2 01 1 0310-
60 DOOR; MIX,HTR UNIT 1-83578-084-0 01 1 0310-
61 CASE; HTR UNIT
(C) 		1-83564-346-3 01 1 0310-
61 CASE; HTR UNIT
(B) 		1-83564-401-0 01 1 0310-1409
61 CASE; HTR UNIT
(B) 		8-98299-713-0 01 1 1410-
61 CASE; HTR UNIT
(A) 		1-83564-402-0 01 1 0310-1409
61 CASE; HTR UNIT
(A) 		8-98299-715-0 01 1 1410-
63 LINING; HTR UNIT 1-83579-557-0 02 1 0310-
65 LEVER; MIX,DOOR
(A) 		1-83564-327-0 01 1 0310-
65 LEVER; MIX,DOOR
(B) 		1-83564-328-1 01 1 0310-
66 SHUTTER; HTR UNIT,CENTER LWR 1-83579-627-0 01 1 0310-
67 CLIP; HTR UNIT 1-83574-148-0 01 1 0310-
68 CORE; HTR UNIT 1-83562-078-1 01 1 0310-1409
68 CORE; HTR UNIT 8-98238-475-0 01 1 1410-
72 NUT; CASE,HTR UNIT 1-83579-659-4 02 1 0310-
142 LEVER; ACTUATOR
(B) 		1-83564-345-1 01 1 0310-
142 LEVER; ACTUATOR
(A) 		1-83564-414-0 01 1 0310-
199 SCREW; ACTUATOR 8-94348-809-0 04 1 0310-
