Sayfa 6-20 - Isuzu EPC

6-20 — SIDE PANEL AND STEP (#6169) — 277 parça

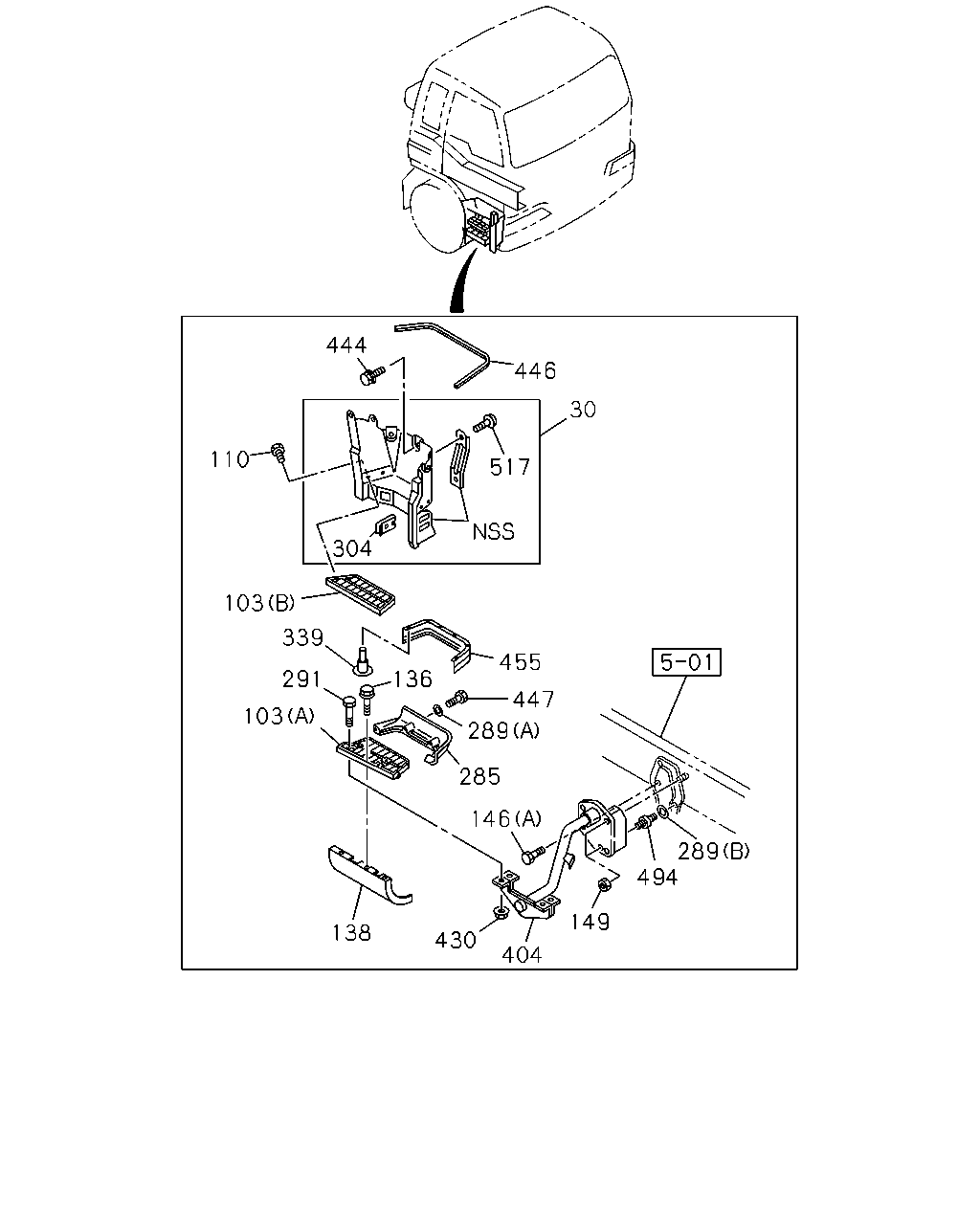

444 446 30 110 517 304 103 339 455 136 291 447 103 289 285 149 146 138 146 404 430

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-824-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-823-0	01	1	0911-
103	PLATE; STEP (A)	1-53414-181-0	01	1	9905-
103	PLATE; STEP (A)	1-53414-180-0	01	1	9905-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9905-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9905-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9905-0204
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	9905-
138	FENDER; OVER	1-79931-264-0	01	1	9905-0602
138	FENDER; OVER	1-79931-263-0	01	1	9905-0602
138	FENDER; OVER WHITE	1-79931-448-1	01	1	0603-
138	FENDER; OVER WHITE	1-79931-447-1	01	1	0603-
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28081-270-0	04	1	9905-0512
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28051-270-0	04	1	0601-
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9905-0512
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
149	NUT; STEP BRKT M12 FLANGE	0-91150-212-0	03	1	9905-0602
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	03	1	0603-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	9905-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	9905-
289	WASHER; PL,STEP (B) ID=15	8-98010-627-1	01	1	0708-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9905-0605
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	08	1	0606-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	01	1	9905-0602
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-0112
291	BOLT; STEP PLATE M8X35 FLANGE	0-28080-835-0	08	1	0201-0512
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	0601-0602
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0603-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9905-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9905-
404	BRACKET	8-97611-686-2	01	1	0603-
404	BRACKET	8-97611-689-2	01	1	0603-
404	BRACKET	1-53414-172-2	01	1	9905-0104
404	BRACKET	1-53414-226-2	01	1	0105-0602
404	BRACKET	1-53414-168-3	01	1	9905-0104
404	BRACKET	1-53414-224-0	01	1	0105-0602
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9905-0602
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0603-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9905-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9905-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9905-0512
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0601-
455	PROTECTOR; STEP	1-71907-187-2	01	1	9905-
455	PROTECTOR; STEP	1-71907-186-2	01	1	9905-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9905-0604
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0605-

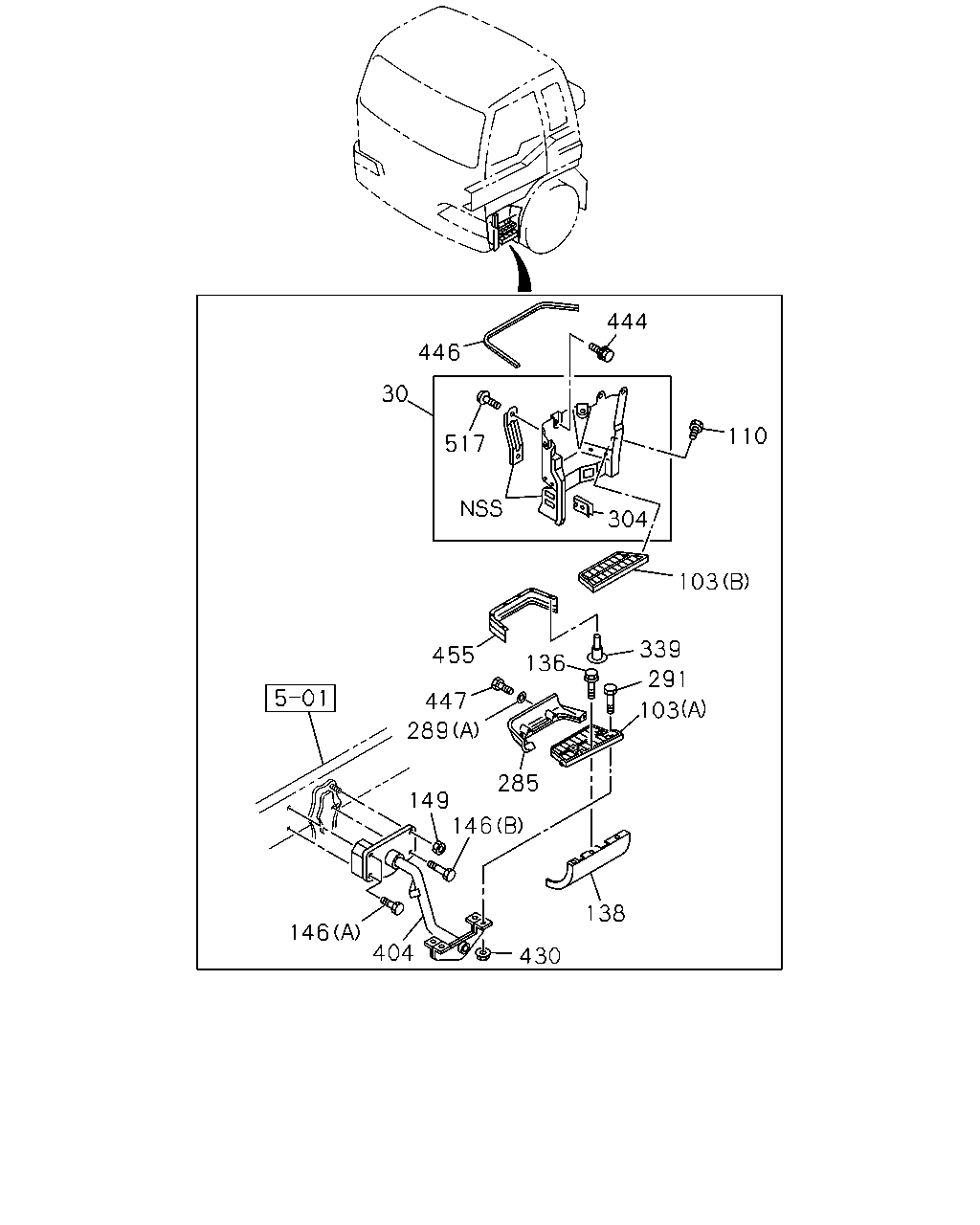

444 446 30 110 517 304 103 339 455 291 136 447 103 289 285 146 289 494 149 138 430 404

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-824-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-823-0	01	1	0911-
103	PLATE; STEP (A)	1-53414-181-0	01	1	9905-
103	PLATE; STEP (A)	1-53414-180-0	01	1	9905-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9905-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9905-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9905-0204
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	9905-
138	FENDER; OVER	1-79931-264-0	01	1	9905-0602
138	FENDER; OVER	1-79931-263-0	01	1	9905-0602
138	FENDER; OVER WHITE	1-79931-448-1	01	1	0603-
138	FENDER; OVER WHITE	1-79931-447-1	01	1	0603-
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28081-270-0	04	1	9905-0512
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28051-270-0	04	1	0601-
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9905-0512
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
149	NUT; STEP BRKT M12 FLANGE	0-91150-212-0	03	1	9905-0602
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	03	1	0603-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	9905-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	9905-
289	WASHER; PL,STEP (B) ID=15	8-98010-627-1	01	1	0708-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9905-0605
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	08	1	0606-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	01	1	9905-0602
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-0112
291	BOLT; STEP PLATE M8X35 FLANGE	0-28080-835-0	08	1	0201-0512
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	0601-0602
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0603-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9905-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9905-
404	BRACKET	8-97611-686-2	01	1	0603-
404	BRACKET	8-97611-689-2	01	1	0603-
404	BRACKET	1-53414-172-2	01	1	9905-0104
404	BRACKET	1-53414-226-2	01	1	0105-0602
404	BRACKET	1-53414-168-3	01	1	9905-0104
404	BRACKET	1-53414-224-0	01	1	0105-0602
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9905-0602
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0603-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9905-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9905-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9905-0512
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0601-
455	PROTECTOR; STEP	1-71907-187-2	01	1	9905-
455	PROTECTOR; STEP	1-71907-186-2	01	1	9905-
494	STUD; BRKT M12X35,M14X45 L=100	1-09029-075-0	01	1	0708-
494	STUD; BRKT M12X35,M14X45 L=100	1-09029-075-0	01	1	9905-0602
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9905-0604
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0605-

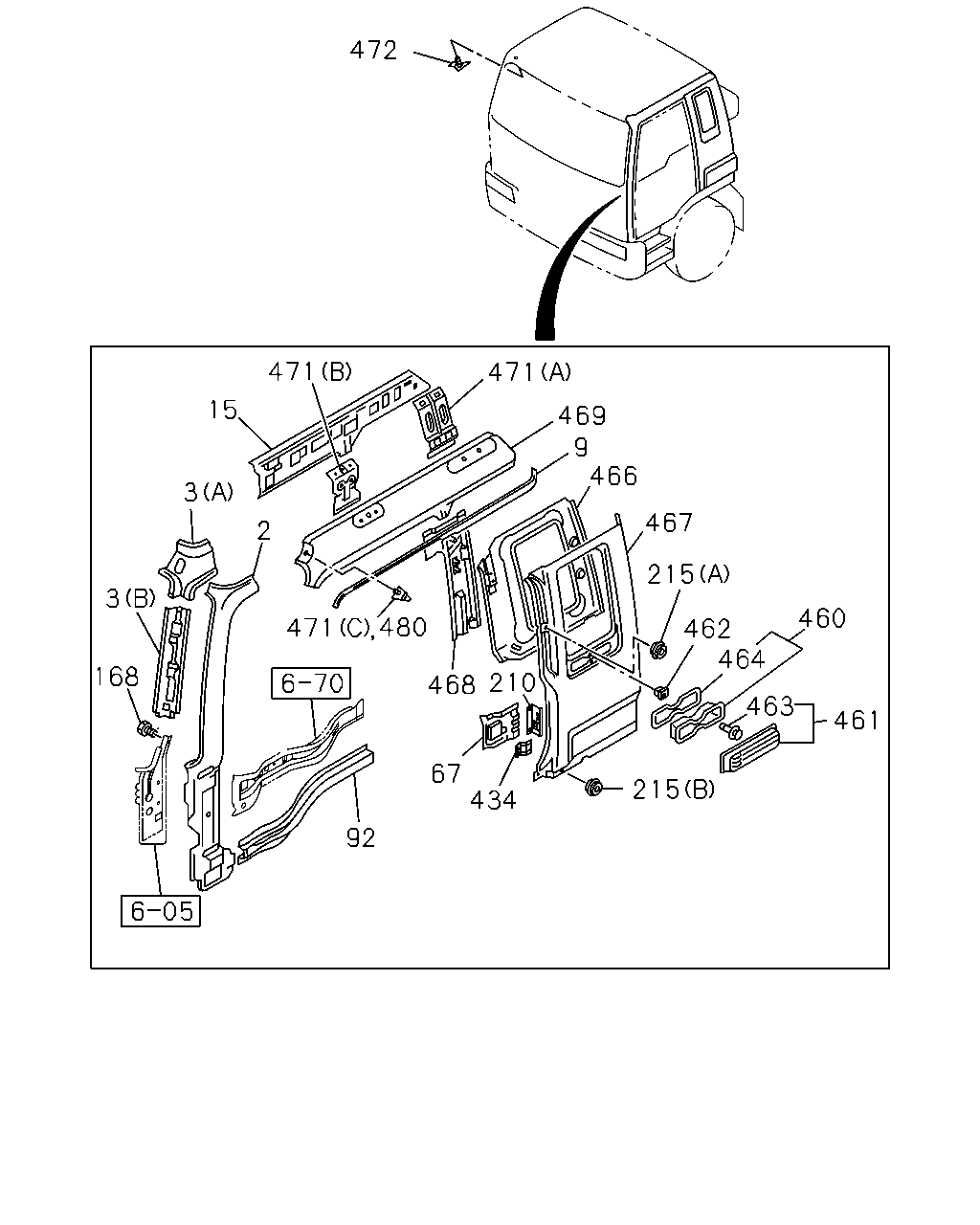

472 471 469 9 466 467 215 460 462 464 463 461 215 434 67 210 468 92 480 471 471 2 15 3 3 168

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	PILLAR; FRT	1-61281-156-4	01	1	9905-
2	PILLAR; FRT	1-61281-155-4	01	1	9905-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-170-5	01	1	9905-
3	PANEL; CLOSING,FRT PILLAR (A)	1-61281-169-5	01	1	9905-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-344-5	01	1	9905-
3	PANEL; CLOSING,FRT PILLAR (B)	1-61281-343-5	01	1	9905-
9	MOLDING; DRIP,CAB SIDE HIGH ROOF<S2F>	1-61270-792-4	01	1	9905-
9	MOLDING; DRIP,CAB SIDE HIGH ROOF<S2F>	1-61270-791-4	01	1	9905-
9	MOLDING; DRIP,CAB SIDE EXC. HIGH ROOF<S2F>	1-61281-281-5	01	1	9905-
9	MOLDING; DRIP,CAB SIDE EXC. HIGH ROOF<S2F>	1-61281-280-5	01	1	9905-
15	PANEL; CANT RAIL SIDE	1-61281-178-8	01	1	9905-
15	PANEL; CANT RAIL SIDE	1-61281-177-8	01	1	9905-
67	PANEL; INNER,RR PILLAR LWR	1-61281-195-5	01	1	9905-
67	PANEL; INNER,RR PILLAR LWR	1-61281-194-5	01	1	9905-
92	PANEL; SIDE SILL,CAB	1-61281-212-8	01	1	9905-
92	PANEL; SIDE SILL,CAB	1-61281-211-9	01	1	9905-
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28080-610-0	04	1	9905-0512
168	BOLT; BODY SIDE PANEL M6X10 FLANGE	0-28050-610-0	04	1	0601-
210	PANEL; DOOR STRIKER REINF	8-97851-446-1	01	1	0603-
215	GROMMET; RR PILLAR (A) OD=23.5	1-09983-101-0	02	1	9905-
215	GROMMET; RR PILLAR (B) OD=28.5	8-94279-711-0	02	1	9905-
434	PATCH; ASSIST GRIP	1-61270-763-1	02	1	9905-0602
434	PATCH; ASSIST GRIP	1-61270-763-1	01	1	0603-
460	VENTILATOR; BODY SIDE	1-76378-292-4	02	1	9905-
461	ORNAMENT; VENTILATOR	1-76378-303-6	01	1	9905-
461	ORNAMENT; VENTILATOR	1-76378-302-6	01	1	9905-
462	GROMMET; VENTILATOR OD=7.9X7.9 ID=4.2X4.2	1-09983-151-1	08	1	9905-
463	PIN; ORNAMENT D4.2X13	1-09983-161-0	08	1	9905-
464	SEAL; VENTILATOR	1-76378-299-0	02	1	9905-
466	PANEL; INNER,BACK CORNER	1-61281-416-1	01	1	9905-
466	PANEL; INNER,BACK CORNER	1-61281-415-1	01	1	9905-
467	PANEL; OUTER,BACK CORNER EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-478-5	01	1	0603-
467	PANEL; OUTER,BACK CORNER	1-61270-939-0	01	1	9905-0004
467	PANEL; OUTER,BACK CORNER AUSTRALIA EQUIPMENT(RR3)	1-61270-939-0	01	1	0005-0104
467	PANEL; OUTER,BACK CORNER AUSTRALIA EQUIPMENT(RR3) BAGGAGE BOX CAB RR SIDE<TBM>	1-61270-939-0	01	1	0105-0301
467	PANEL; OUTER,BACK CORNER BAGGAGE BOX CAB RR SIDE<TBM>	1-61270-939-2	01	1	0302-
467	PANEL; OUTER,BACK CORNER	1-61281-477-1	01	1	9905-0004
467	PANEL; OUTER,BACK CORNER AUSTRALIA EQUIPMENT(RR3)	1-61281-477-1	01	1	0005-0301
467	PANEL; OUTER,BACK CORNER	1-61281-477-3	01	1	0302-
467	PANEL; OUTER,BACK CORNER AUSTRALIA EQUIPMENT(RR3) EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-476-1	01	1	0105-0301
467	PANEL; OUTER,BACK CORNER EXC. BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-476-2	01	1	0302-0602
467	PANEL; OUTER,BACK CORNER EXC. AUSTRALIA EQUIPMENT(RR3)	1-61270-773-1	01	1	0005-0104
467	PANEL; OUTER,BACK CORNER BAGGAGE BOX CAB RR SIDE<TBM> EXC. AUSTRALIA EQUIPMENT(RR3)	1-61270-773-1	01	1	0105-0301
467	PANEL; OUTER,BACK CORNER EXC. AUSTRALIA EQUIPMENT(RR3)	1-61281-203-2	01	1	0005-0301
467	PANEL; OUTER,BACK CORNER EXC. AUSTRALIA EQUIPMENT(RR3),BAGGAGE BOX CAB RR SIDE<TBM>	1-61281-204-2	01	1	0105-0301
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-418-2	01	1	9905-
468	REINFORCEMENT; SEAT BELT ANCHOR	1-61281-417-2	01	1	9905-
469	ROOF; SIDE	1-61281-199-8	01	1	9905-
469	ROOF; SIDE	1-61281-198-8	01	1	9905-
471	PATCH; AIR DEFLECTOR (A)	1-61281-202-3	02	1	9905-0602
471	PATCH; AIR DEFLECTOR (A)	1-61281-202-3	01	1	0603-
471	PATCH; AIR DEFLECTOR (B)	1-61281-201-3	01	1	9905-
471	PATCH; AIR DEFLECTOR (B)	1-61281-200-3	01	1	9905-
471	PATCH; AIR DEFLECTOR (C)	1-61281-233-3	01	1	9905-0004
471	PATCH; AIR DEFLECTOR AUSTRALIA EQUIPMENT(RR3) (C)	1-61281-233-3	01	1	0005-0104
471	PATCH; AIR DEFLECTOR AUSTRALIA EQUIPMENT(RR3) BAGGAGE BOX CAB RR SIDE<TBM> (C)	1-61281-233-4	01	1	0105-0301
471	PATCH; AIR DEFLECTOR EXC. BAGGAGE BOX CAB RR SIDE<TBM> (C)	1-61281-233-4	01	1	0105-0301
471	PATCH; AIR DEFLECTOR (C)	1-61281-233-4	01	1	0302-0812
471	PATCH; AIR DEFLECTOR (C)	8-98132-463-0	01	1	0901-
472	PATCH; STAY,ROOF	1-61281-232-3	01	1	9905-9910
472	PATCH; STAY,ROOF	1-61270-943-1	01	1	9911-
480	REINFORCEMENT ASM; STAY ROOF EXC. AUSTRALIA EQUIPMENT(RR3)	1-61281-233-3	01	1	0005-0104
480	REINFORCEMENT ASM; STAY ROOF BAGGAGE BOX CAB RR SIDE<TBM> EXC. AUSTRALIA EQUIPMENT(RR3)	1-61281-233-4	01	1	0105-0301

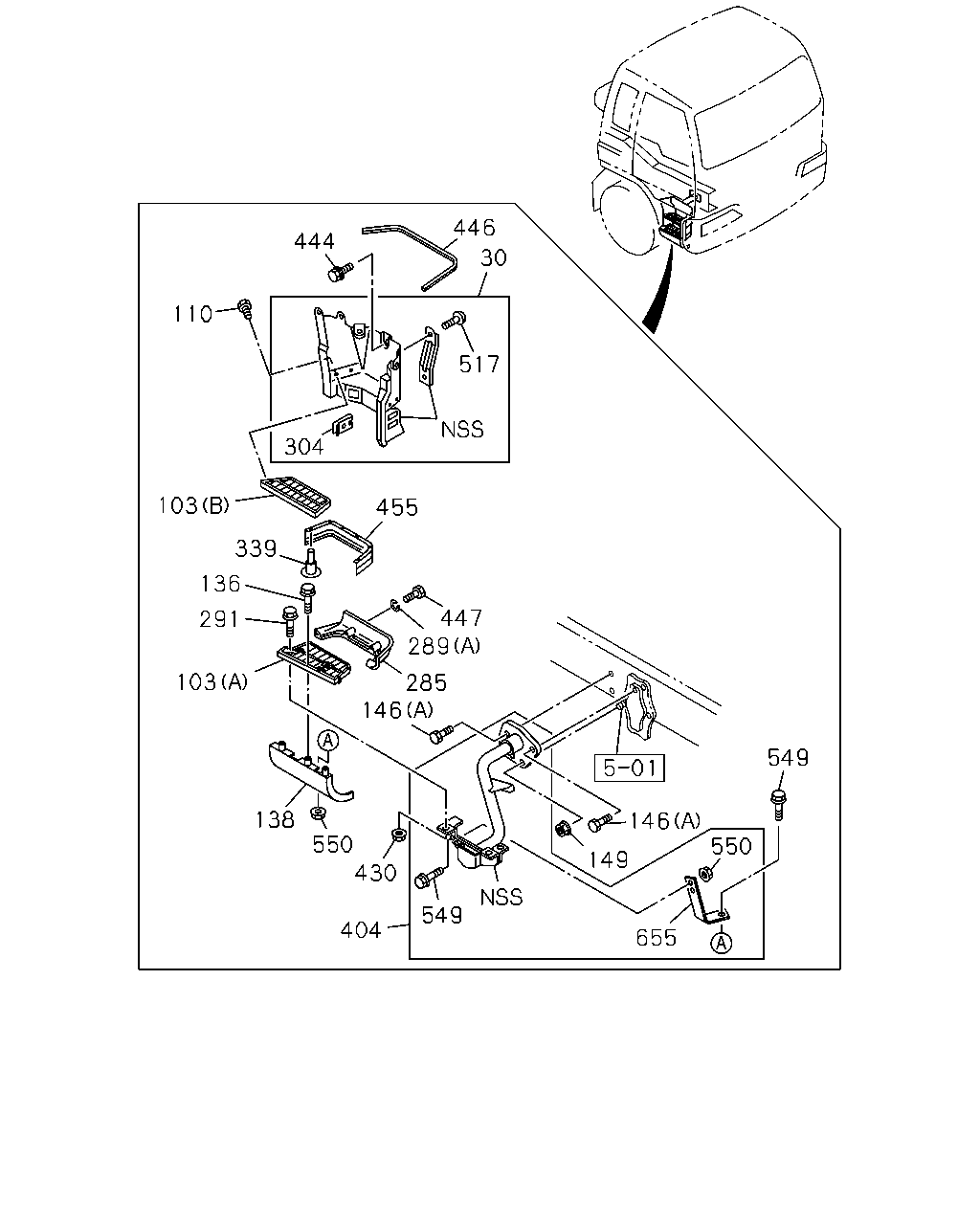

446 444 30 110 517 304 103 455 339 136 447 289 291 103 285 146 549 138 146 550 550 149 430 549 404 655

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-824-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-823-0	01	1	0911-
103	PLATE; STEP (A)	1-53414-181-0	01	1	9905-
103	PLATE; STEP (A)	1-53414-180-0	01	1	9905-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9905-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9905-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9905-0204
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	9905-
138	FENDER; OVER	1-79931-264-0	01	1	9905-0602
138	FENDER; OVER	1-79931-263-0	01	1	9905-0602
138	FENDER; OVER WHITE	1-79931-448-1	01	1	0603-
138	FENDER; OVER WHITE	1-79931-447-1	01	1	0603-
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28081-270-0	04	1	9905-0512
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28051-270-0	04	1	0601-
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9905-0512
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
149	NUT; STEP BRKT M12 FLANGE	0-91150-212-0	03	1	9905-0602
149	NUT; STEP BRKT M12 FLANGE	0-91180-212-0	03	1	0603-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	9905-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	9905-
289	WASHER; PL,STEP (B) ID=15	8-98010-627-1	01	1	0708-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9905-0605
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	08	1	0606-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	01	1	9905-0602
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-0112
291	BOLT; STEP PLATE M8X35 FLANGE	0-28080-835-0	08	1	0201-0512
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	0601-0602
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0603-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9905-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9905-
404	BRACKET	8-97611-686-2	01	1	0603-
404	BRACKET	8-97611-689-2	01	1	0603-
404	BRACKET	1-53414-172-2	01	1	9905-0104
404	BRACKET	1-53414-226-2	01	1	0105-0602
404	BRACKET	1-53414-168-3	01	1	9905-0104
404	BRACKET	1-53414-224-0	01	1	0105-0602
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9905-0602
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0603-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9905-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9905-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9905-0512
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0601-
455	PROTECTOR; STEP	1-71907-187-2	01	1	9905-
455	PROTECTOR; STEP	1-71907-186-2	01	1	9905-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9905-0604
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0605-
549	BOLT; STAY M6X20 FLANGE	0-28650-620-0	04	1	0603-
549	BOLT; STAY M5X16 W/LK&PL WASHER	8-94198-538-0	02	1	0603-
550	NUT; STAY M6 FLANGE	0-91150-206-0	04	1	0603-0603
550	NUT; STAY M6 FLANGE	0-91180-206-0	04	1	0603-
550	NUT; STAY M5 FLANGE	1-09984-170-0	02	1	0603-
655	STAY; MUD GUARD	8-97608-965-1	01	1	0603-
655	STAY; MUD GUARD	8-97608-966-1	01	1	0603-

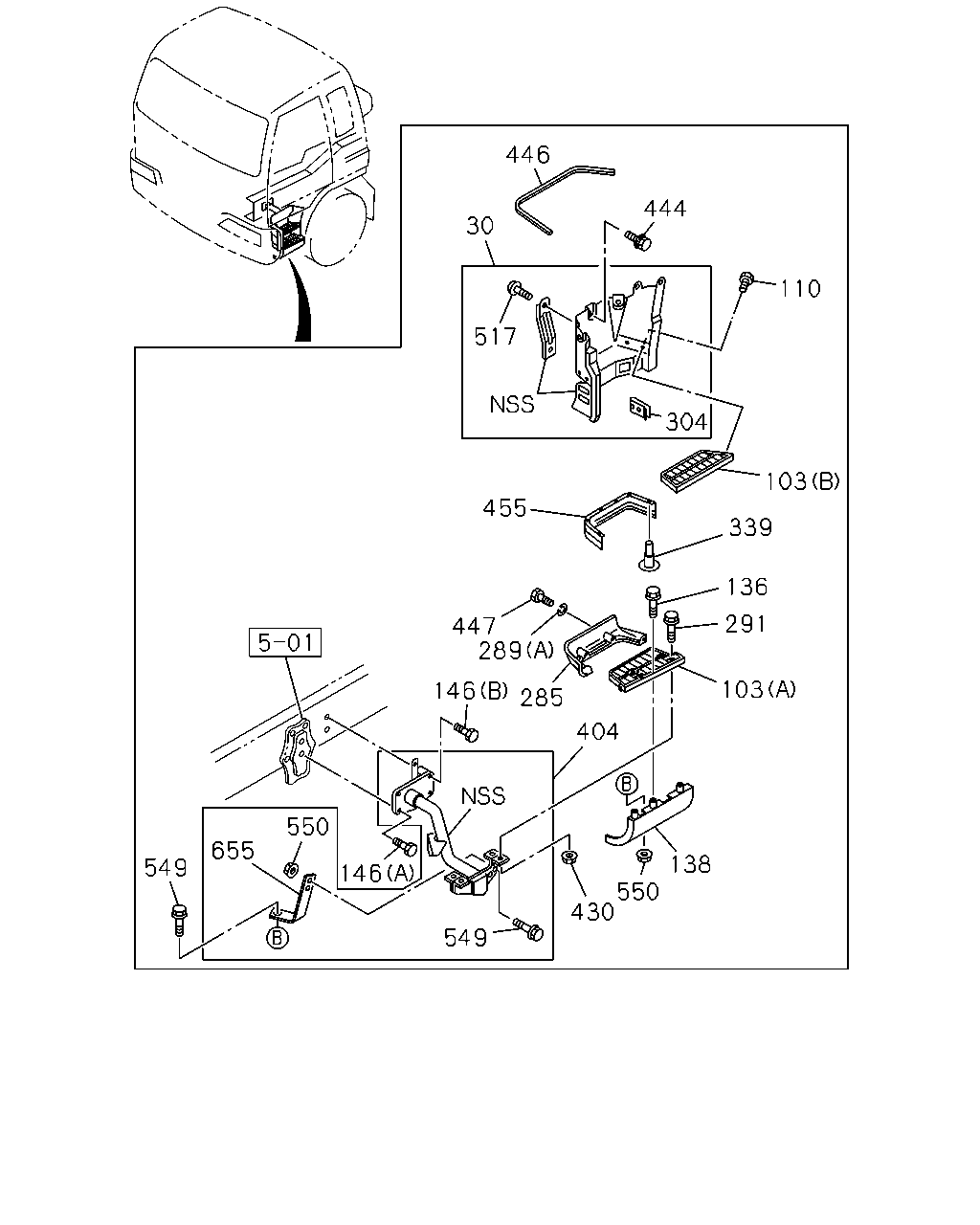

446 444 30 110 517 304 103 455 339 136 291 447 289 103 146 285 404 550 655 138 549 146 550 430 549

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	CLOSING; SIDE STEP	1-71907-465-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-824-0	01	1	0911-
30	CLOSING; SIDE STEP	1-71907-464-0	01	1	9905-0910
30	CLOSING; SIDE STEP	8-98156-823-0	01	1	0911-
103	PLATE; STEP (A)	1-53414-181-0	01	1	9905-
103	PLATE; STEP (A)	1-53414-180-0	01	1	9905-
103	PLATE; STEP (B)	1-71907-249-1	01	1	9905-
103	PLATE; STEP (B)	1-71907-174-1	01	1	9905-
110	BOLT; 1ST STEP PLATE M8X20 W/LK&PL WASHER	8-94279-216-0	08	1	9905-0204
110	BOLT; 1ST STEP PLATE M8X29.5 W/LK+PL WASHER	8-94279-218-0	08	1	0205-
136	BOLT; OVER FENDER M5X22	8-97029-303-1	06	1	9905-
138	FENDER; OVER	1-79931-264-0	01	1	9905-0602
138	FENDER; OVER	1-79931-263-0	01	1	9905-0602
138	FENDER; OVER WHITE	1-79931-448-1	01	1	0603-
138	FENDER; OVER WHITE	1-79931-447-1	01	1	0603-
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28081-270-0	04	1	9905-0512
146	BOLT; STEP BRKT (A) M12X70 FLANGE	0-28051-270-0	04	1	0601-
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28081-230-0	01	1	9905-0512
146	BOLT; STEP BRKT (B) M12X30 FLANGE	0-28051-230-0	01	1	0601-
285	PLATE; STEP,1ST STEP	1-53414-182-0	01	1	9905-
285	PLATE; STEP,1ST STEP	1-53414-047-2	01	1	9905-
289	WASHER; PL,STEP (B) ID=15	8-98010-627-1	01	1	0708-
289	WASHER; PL,STEP (A) ID=6.4 OD=18	9-09160-706-0	08	1	9905-0605
289	WASHER; PL,STEP (A) ID=6.4 OD=18	0-91610-706-0	08	1	0606-
289	WASHER; PL,STEP (B) ID=15	9-09651-069-0	01	1	9905-0602
291	BOLT; STEP PLATE M8X30 FLANGE	0-28680-830-0	08	1	9905-0112
291	BOLT; STEP PLATE M8X35 FLANGE	0-28080-835-0	08	1	0201-0512
291	BOLT; STEP PLATE M8X35 FLANGE	0-28050-835-0	08	1	0601-0602
291	BOLT; STEP PLATE M8X40 FLANGE	0-28050-840-0	08	1	0603-
304	NUT; SPIRE M6	1-09984-182-0	04	1	9905-
339	FASTENER; SIDE ID=6X6 OD=8	1-09987-194-0	12	1	9905-
404	BRACKET	8-97611-686-2	01	1	0603-
404	BRACKET	8-97611-689-2	01	1	0603-
404	BRACKET	1-53414-172-2	01	1	9905-0104
404	BRACKET	1-53414-226-2	01	1	0105-0602
404	BRACKET	1-53414-168-3	01	1	9905-0104
404	BRACKET	1-53414-224-0	01	1	0105-0602
430	NUT; PANEL M8 FLANGE	0-91150-108-0	08	1	9905-0602
430	NUT; PANEL M8 FLANGE	0-91180-108-0	08	1	0603-
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-94279-208-0	06	1	9905-0904
444	BOLT; CLOSING M8X24.5 W/LK&PL WASHER	8-98059-720-0	06	1	0905-
446	FINISHER; STEP ID=18 L=80	1-71996-051-0	02	1	9905-
447	BOLT; PANEL M6X12 FLANGE	0-28080-612-0	08	1	9905-0512
447	BOLT; PANEL M6X12 FLANGE	0-28050-612-0	08	1	0601-
455	PROTECTOR; STEP	1-71907-187-2	01	1	9905-
455	PROTECTOR; STEP	1-71907-186-2	01	1	9905-
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74100-510-0	04	1	9905-0604
517	SCREW; TAP M5X10 TAPPING W/PL WASHER	0-74160-510-0	04	1	0605-
549	BOLT; STAY M6X20 FLANGE	0-28650-620-0	04	1	0603-
549	BOLT; STAY M5X16 W/LK&PL WASHER	8-94198-538-0	02	1	0603-
550	NUT; STAY M6 FLANGE	0-91150-206-0	04	1	0603-0603
550	NUT; STAY M6 FLANGE	0-91180-206-0	04	1	0603-
550	NUT; STAY M5 FLANGE	1-09984-170-0	02	1	0603-
655	STAY; MUD GUARD	8-97608-965-1	01	1	0603-
655	STAY; MUD GUARD	8-97608-966-1	01	1	0603-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
