8-21 — METER ASM (#61685) — 28 parça

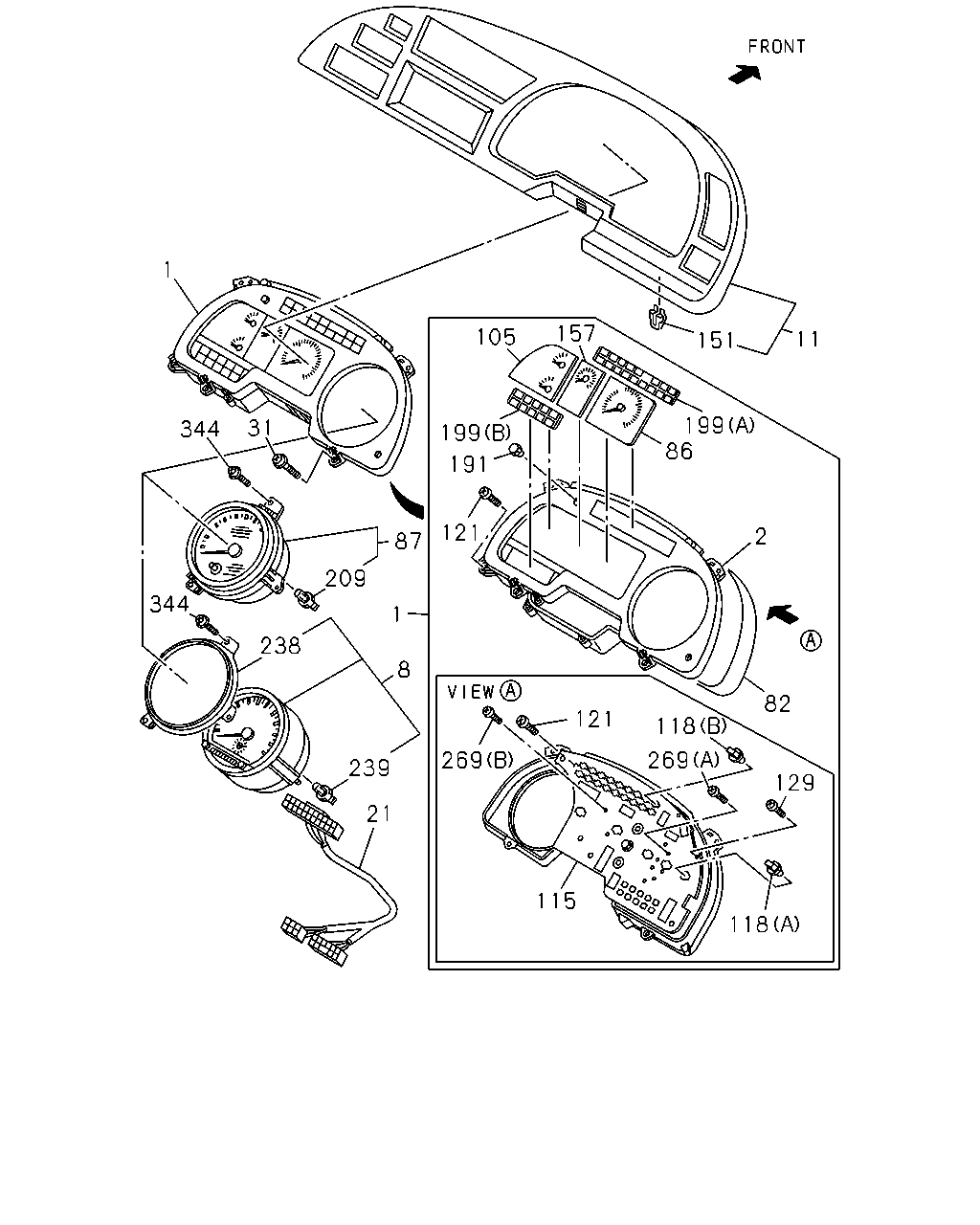

çizim 174318
1 157 105 11 151 31 199 86 344 199 191 121 2 87 209 344 1 238 8 82 121 118 269 269 239 129 21 115 118
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-83114-964-0 01 1 0310-
2 PANEL; CLUSTER 1-83119-499-0 01 1 0310-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-935-0 01 1 0310-
11 CLUSTER ASM; METER 1-72418-012-9 01 1 0310-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-82624-665-1 01 1 0310-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0310-0604
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-
82 CASE ASM; CLUSTER METER 1-83119-432-0 01 1 0310-
86 TACHOMETER; CLUSTER METER 1-83120-566-0 01 1 0310-
87 SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83120-490-1 01 1 0310-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-274-0 01 1 0310-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-304-0 01 1 0310-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0310-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 15 1 0310-
121 SCREW; PANEL FIX,CLUSTER METER
M4 TAPPING 		1-83119-442-0 08 1 0310-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
M3 TAPPING 		1-83119-052-0 10 1 0310-
151 CLIP; METER CLUSTER
MAL 		8-97217-066-0 10 1 0310-
157 METER; AIR PRESSURE,CLUSTER METER 1-83150-178-0 01 1 0310-
191 KNOB; BULB CHECK 1-83119-500-0 01 1 0310-
199 LENS; WARNING LAMP
(B) 		1-83119-435-0 01 1 0310-
199 LENS; WARNING LAMP
(A) 		1-83119-526-0 01 1 0310-
209 BULB; SPEEDOMETER
EXC. TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 3W GREEN SOCKET 		1-82194-061-0 02 1 0310-
238 PANEL; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 		1-83129-311-0 01 1 0310-
239 BULB; TACHOGRAPH
TACHOGRAPH 140KM/H 7DAYS<WC7> 24V 1.4W 		1-82194-101-0 03 1 0310-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-439-0 03 1 0310-
269 SCREW; METER CLUSTER
(A) M3 TAPPING 		1-83119-441-0 06 1 0310-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 03 1 0310-0604
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0605-
