8-15 — FIXING PARTS; WIRING HARNESS (#61684) — 125 parça

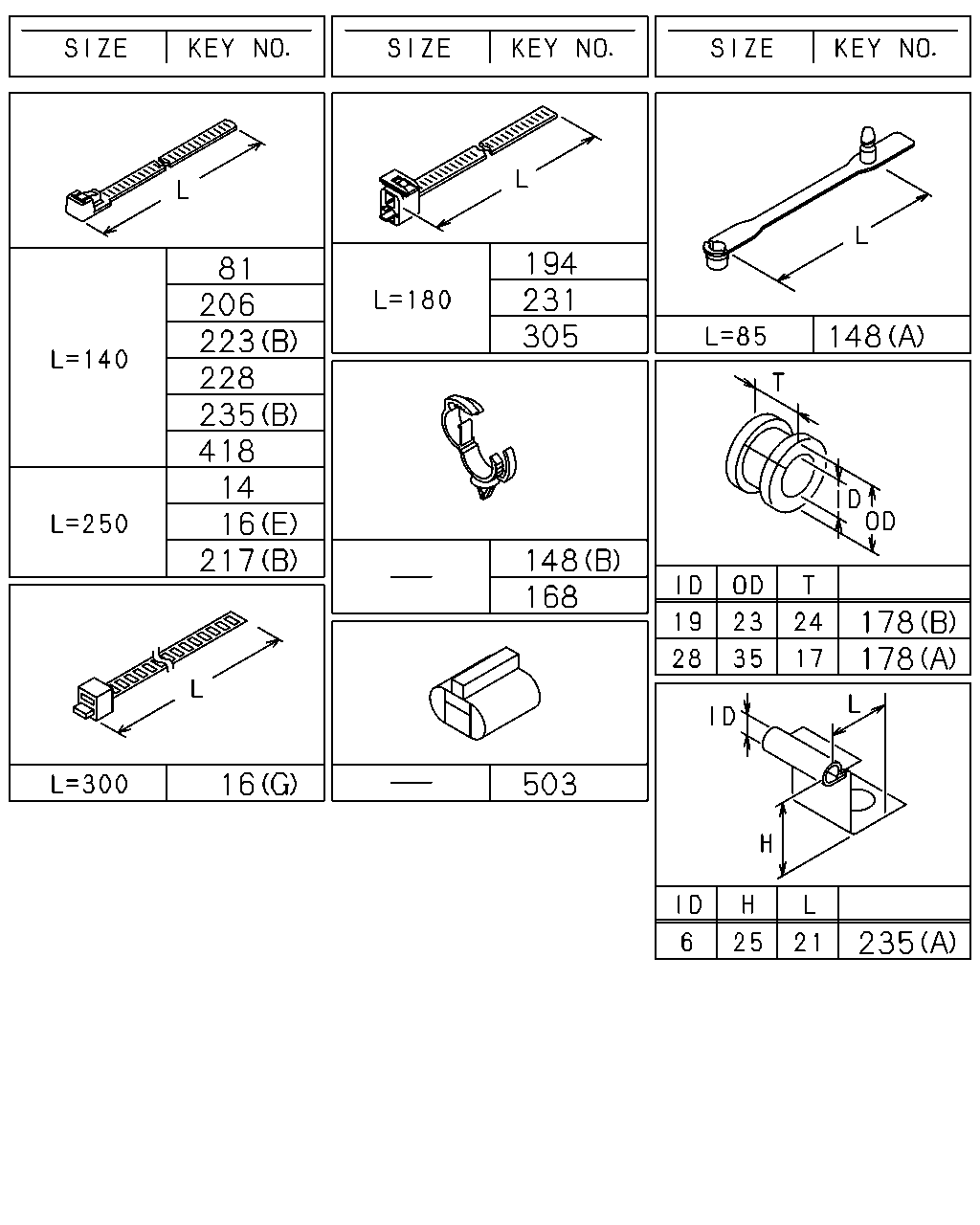

çizim 174272
194 231 305 81 206 223 228 235 418 14 16 217 148 148 168 178 178 16 503 235
BalonParca AdiParca NoAdetTipApplied Date
14 CLIP; BAND,HARNESS
L=250 		5-09707-030-1 01 1 0310-1205
14 CLIP; BAND,HARNESS
L=250 		8-98216-430-0 01 1 1206-
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0310-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0310-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0310-
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0310-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0310-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0310-
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 0310-0606
16 CLIP; HARNESS
(H) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=14 L=44 		9-09917-427-0 03 1 0310-
81 CLIP; HARNESS
L=140 MAL 		5-09707-031-1 02 1 0310-
148 CLIP; BAND,HEADLAMP HARNESS
(A) L=85 		8-94232-611-0 01 1 0310-
148 CLIP; BAND,HEADLAMP HARNESS
(B) ID=6 & 10-13 MAL 		8-97069-515-0 01 1 0310-
168 CLIP; DASH HARNESS
ID=6 & 10-13 MAL 		8-97069-515-0 05 1 0310-
178 GROMMET; HARNESS
(B) ID=19 OD=23 T=24 		1-09332-103-0 01 1 0310-
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0310-
194 CLIP; BAND
L=180 		1-09707-162-1 01 1 0310-
206 CLIP; FUEL TANK HARNESS
L=140 MAL 		5-09707-031-1 02 1 0310-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0310-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0310-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0310-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0310-
223 CLIP; AIR TANK HARNESS
(B) L=140 MAL 		5-09707-031-1 01 1 0310-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0310-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0310-
228 CLIP; COOLER HARNESS
L=140 MAL 		5-09707-031-1 01 1 0310-
231 CLIP; BAND,OIL PRESS
L=180 		1-09707-162-1 01 1 0310-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(A) ID=6 H=25 L=21 		1-09700-432-0 01 1 0310-
235 CLIP; HARNESS,SPD SENSOR,SSPS
(B) L=250 		5-09707-030-1 01 1 0310-
305 CLIP; ENG HARNESS
L=180 		1-09707-162-1 01 1 0310-
418 CLIP; LAMP HARNESS
RADIO CLARION(SK2) L=140 MAL 		5-09707-031-1 01 1 0703-
503 CONNECTOR 1-82690-668-0 01 1 0310-
503 CONNECTOR 1-82690-668-0 01 1 0310-

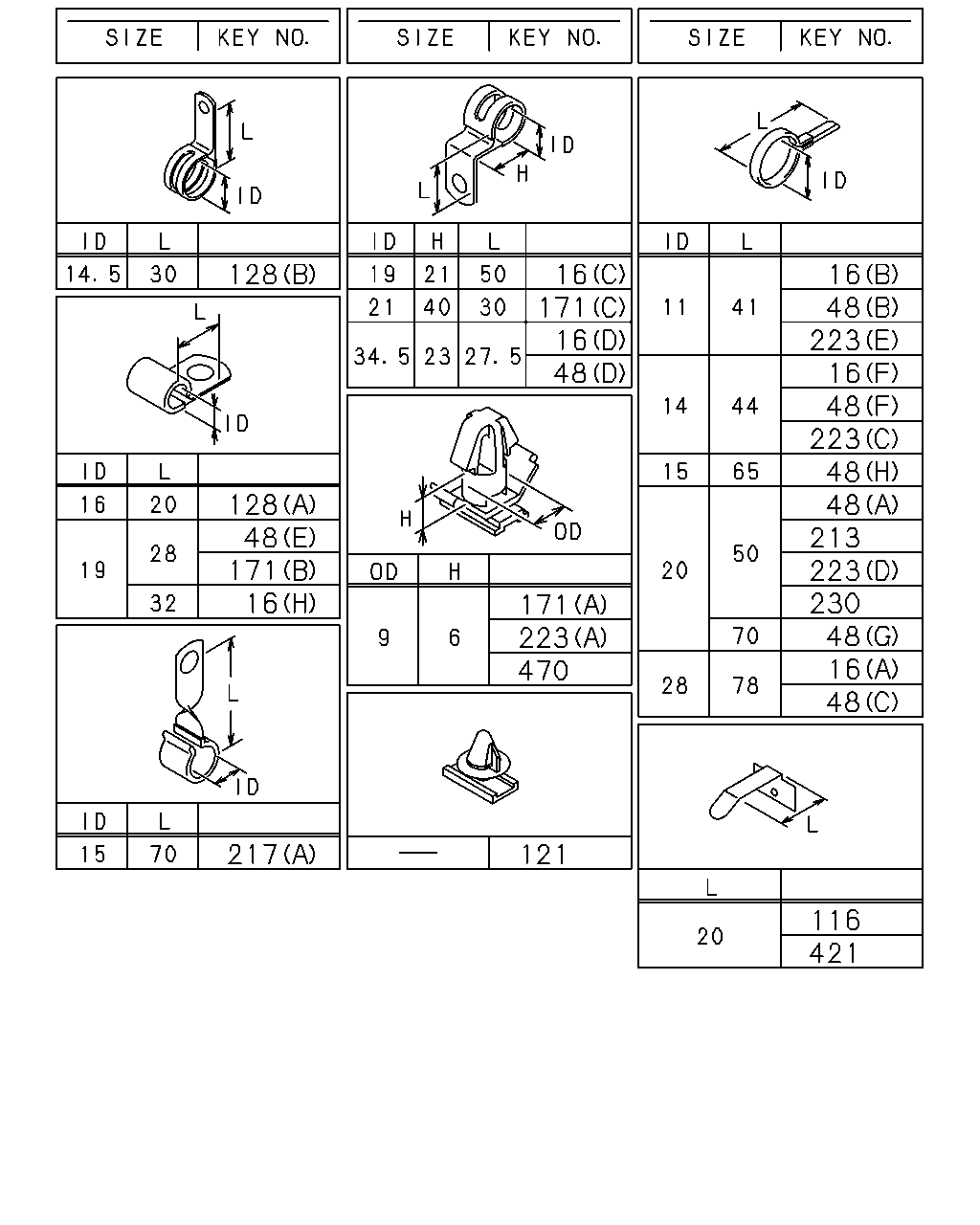

çizim 174273
128 16 171 16 48 16 48 223 16 48 223 48 48 213 223 230 48 16 48 128 48 171 16 171 223 470 217 121 116 421
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0310-
16 CLIP; HARNESS
(A) ID=28 L=78 		1-09700-858-0 01 1 0310-
16 CLIP; HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0310-
16 CLIP; HARNESS
(C) ID=19 H=21 L=50 		1-09700-910-1 01 1 0310-
16 CLIP; HARNESS
(G) L=300 		1-09707-001-1 01 1 0310-
16 CLIP; HARNESS
(E) L=250 		5-09707-030-1 01 1 0310-
16 CLIP; HARNESS
(H) ID=19 L=32 		9-09525-866-0 01 1 0310-0606
16 CLIP; HARNESS
(H) ID=19 L=32 		0-95235-866-0 01 1 0607-
16 CLIP; HARNESS
(F) ID=14 L=44 		9-09917-427-0 03 1 0310-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 01 1 0310-
48 CLIP; FRAME HARNESS
(B) ID=11 L=41 		1-09700-403-0 03 1 0310-
48 CLIP; FRAME HARNESS
(H) ID=15 L=65 		1-09700-466-0 02 1 0310-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 01 1 0310-
48 CLIP; FRAME HARNESS
(G) ID=20 L=70 		1-09700-485-0 03 1 0310-
48 CLIP; FRAME HARNESS
(C) ID=28 L=78 		1-09700-858-0 04 1 0310-
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		9-09525-856-0 01 1 0310-0606
48 CLIP; FRAME HARNESS
(E) ID=19 L=28 		0-95235-856-0 01 1 0607-
48 CLIP; FRAME HARNESS
(F) ID=14 L=44 		9-09917-427-0 02 1 0310-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 01 1 0310-
48 CLIP; FRAME HARNESS
(A) ID=20 L=50 		9-09917-430-0 13 1 0310-
48 CLIP; FRAME HARNESS
(D) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0310-
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 03 1 0310-1409
116 CLIP; ROOF HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 04 1 1410-
121 CLIP; FACIA HARNESS
OD=7 H=1.2 		8-94364-750-0 02 1 0310-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		9-09525-535-0 01 1 0310-0606
128 CLIP; COMB SW HARNESS,STRG COLUMN
(A) ID=16 L=20 		0-95235-535-0 01 1 0607-
128 CLIP; COMB SW HARNESS,STRG COLUMN
(B) ID=14.5 L=30 		9-09916-893-1 01 1 0310-
171 CLIP; STARTER HARNESS
(C) ID=21 L=30 H=40 		1-09700-991-1 01 1 0310-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0310-
171 CLIP; STARTER HARNESS
(A) OD=9 H=6 		1-09709-178-0 01 1 0310-
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		9-09525-856-0 03 1 0310-0606
171 CLIP; STARTER HARNESS
(B) ID=19 L=28 		0-95235-856-0 03 1 0607-
213 CLIP; END CROSS HARNESS
ID=20 L=50 		9-09917-430-0 03 1 0310-
217 CLIP; RR BODY HARNESS
(A) ID=15 L=70 		1-09700-980-0 02 1 0310-
217 CLIP; RR BODY HARNESS
(B) L=250 		5-09707-030-1 02 1 0310-
223 CLIP; AIR TANK HARNESS
(E) ID=11 L=41 		1-09700-403-0 01 1 0310-
223 CLIP; AIR TANK HARNESS
(A) OD=9 H=6 		1-09709-178-0 03 1 0310-
223 CLIP; AIR TANK HARNESS
(B) L=140 MAL 		5-09707-031-1 01 1 0310-
223 CLIP; AIR TANK HARNESS
(C) ID=14 L=44 		9-09917-427-0 02 1 0310-
223 CLIP; AIR TANK HARNESS
(D) ID=20 L=50 		9-09917-430-0 03 1 0310-
230 CLIP; C/MBR HARNESS
ID=20 L=50 		9-09917-430-0 02 1 0310-
421 CLIP; FLOOR HARNESS
L=20 SET=10 PIECE 		1-09987-246-2 07 1 0310-
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0310-

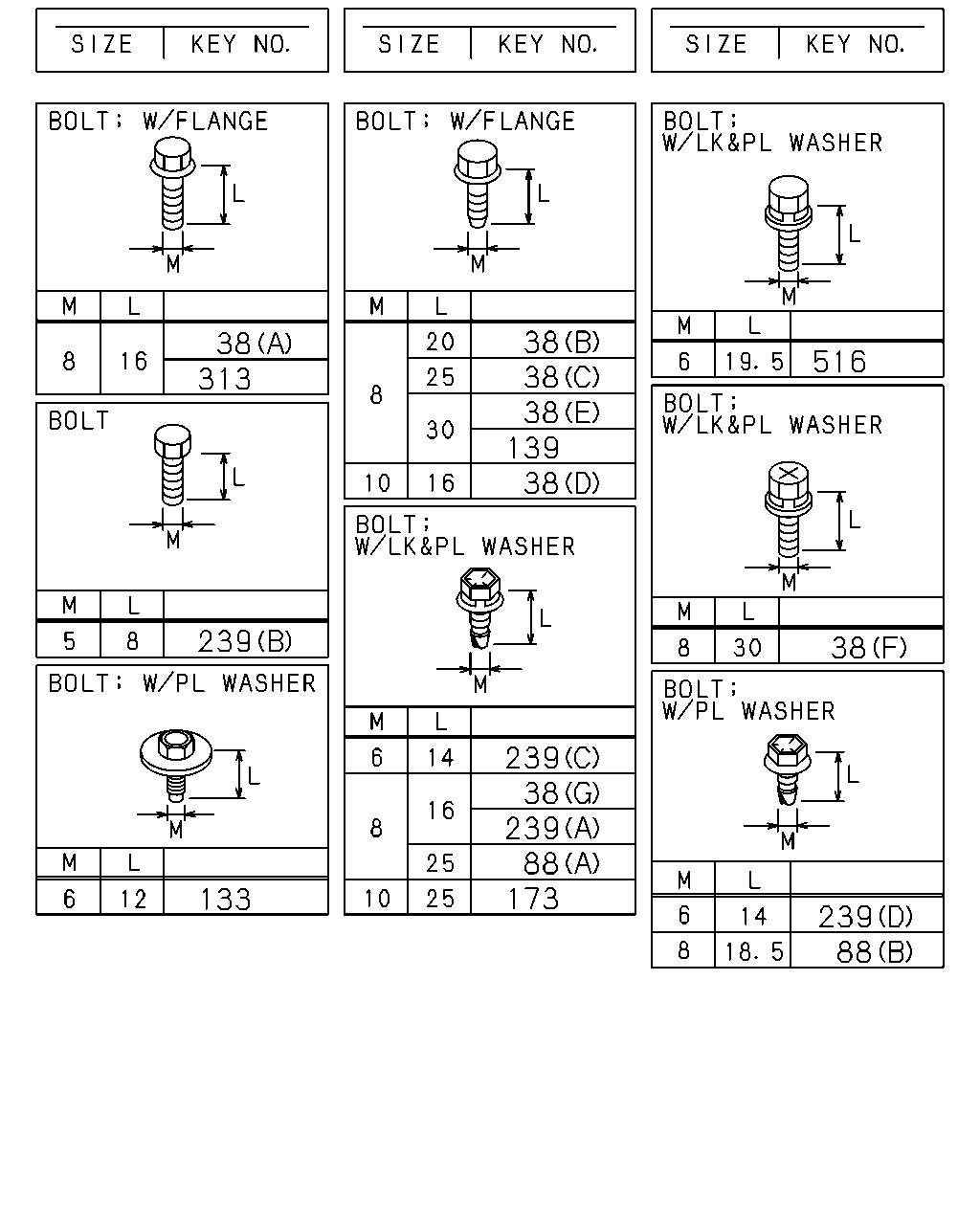

çizim 174314
38 38 38 139 38 38 313 516 239 38 239 38 239 88 173 133 239 38 239 88
BalonParca AdiParca NoAdetTipApplied Date
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE 		0-28080-816-0 04 1 0310-0512
38 BOLT; CLIP,HARNESS
(A) M8X16 FLANGE MAL 		0-28050-816-0 04 1 0601-
38 BOLT; CLIP,HARNESS
(D) M10X16 FLANGE 		0-28181-016-0 01 1 0310-0512
38 BOLT; CLIP,HARNESS
(D) M10X16 FLANGE 		0-28151-016-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28680-820-0 02 1 0310-0512
38 BOLT; CLIP,HARNESS
(B) M8X20 FLANGE MAL 		0-28650-820-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28680-825-0 01 1 0310-0512
38 BOLT; CLIP,HARNESS
(C) M8X25 FLANGE MAL 		0-28650-825-0 01 1 0601-
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28680-830-0 02 1 0310-0512
38 BOLT; CLIP,HARNESS
(E) M8X30 FLANGE 		0-28650-830-0 02 1 0601-
38 BOLT; CLIP,HARNESS
(G) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0310-1201
38 BOLT; CLIP,HARNESS
(H) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50140-830-0 02 1 0310-0512
38 BOLT; CLIP,HARNESS
(F) M8X30 W/LK&PL WASHER 		0-50640-830-0 02 1 0601-
88 BOLT; DOOR HARNESS EARTH
(A) M8X25 W/LK&PL WASHER 		8-97087-203-0 01 1 0310-1007
88 BOLT; DOOR HARNESS EARTH
(B) M8X18.5 W/PL WASHER MAL 		8-98141-255-0 01 1 1008-
133 SCREW; HARNESS CLIP,STRG COLUMN
M6X12 W/PL WASHER 		8-97806-950-0 01 1 0310-
139 BOLT; BRKT
M8X30 FLANGE 		0-28680-830-0 02 1 0310-0512
139 BOLT; BRKT
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
173 BOLT; STARTER EARTH
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0310-
239 BOLT; GRAND
(B) M5X8 		0-20800-508-0 01 1 0310-
239 BOLT; GRAND
(C) M6X14 W/LK&PL WASHER 		8-97086-822-0 02 1 0310-1007
239 BOLT; GRAND
(D) M6X14 W/PL WASHER 		8-98164-836-0 02 1 1008-
239 BOLT; GRAND
(A) M8X16 W/LK&PL WASHER 		8-97087-055-0 01 1 0310-1201
239 BOLT; GRAND
(E) M8X14 W/PL WASHER 		8-98164-837-0 01 1 1202-
313 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 01 1 0310-0512
313 BOLT; BRKT
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0601-
516 BOLT; HARNESS
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0310-
çizim 174315
524 219 294 210 423 520 184 209
BalonParca AdiParca NoAdetTipApplied Date
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0310-
209 WASHER; LK,GEN,EARTH
ID=5.1 		9-09150-505-0 01 1 0310-0603
209 WASHER; LK,GEN,EARTH
ID=5.1 		0-91510-505-0 01 1 0604-
210 WASHER; PL,GEN
ID=8.4 		1-09503-264-0 01 1 0310-
219 NUT
M8 FLANGE 		0-91150-108-0 01 1 0310-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
219 NUT
M8 FLANGE 		0-91150-108-0 04 1 0310-0602
219 NUT
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
294 NUT
M8 FLANGE 		0-91150-108-0 01 1 0310-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-1006
294 NUT
M8 FLANGE 		0-91150-108-0 02 1 0310-0602
294 NUT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
423 WASHER; HARNESS,EARTH
ID=8.4 		1-09503-264-0 01 1 0310-
520 WASHER; PL,EARTH CABLE
ID=8.4 		1-09503-264-0 01 1 0310-
524 NUT; HARNESS
M6 FLANGE 		0-91150-106-0 01 1 0310-0602
524 NUT; HARNESS
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
çizim 174316
154 312 59 335
BalonParca AdiParca NoAdetTipApplied Date
59 BRACKET; FRAME HARNESS
L=95 		1-82699-085-0 01 1 0310-
154 BRACKET; STARTER EARTH CABLE 1-47465-518-0 01 1 0310-
312 BRACKET; CLIP HARNESS 1-47478-981-0 01 1 0310-
335 BRACKET; CONNECTOR 1-82698-167-0 01 1 0310-
