7-70 — SEPARATER AND BED (#61679) — 42 parça

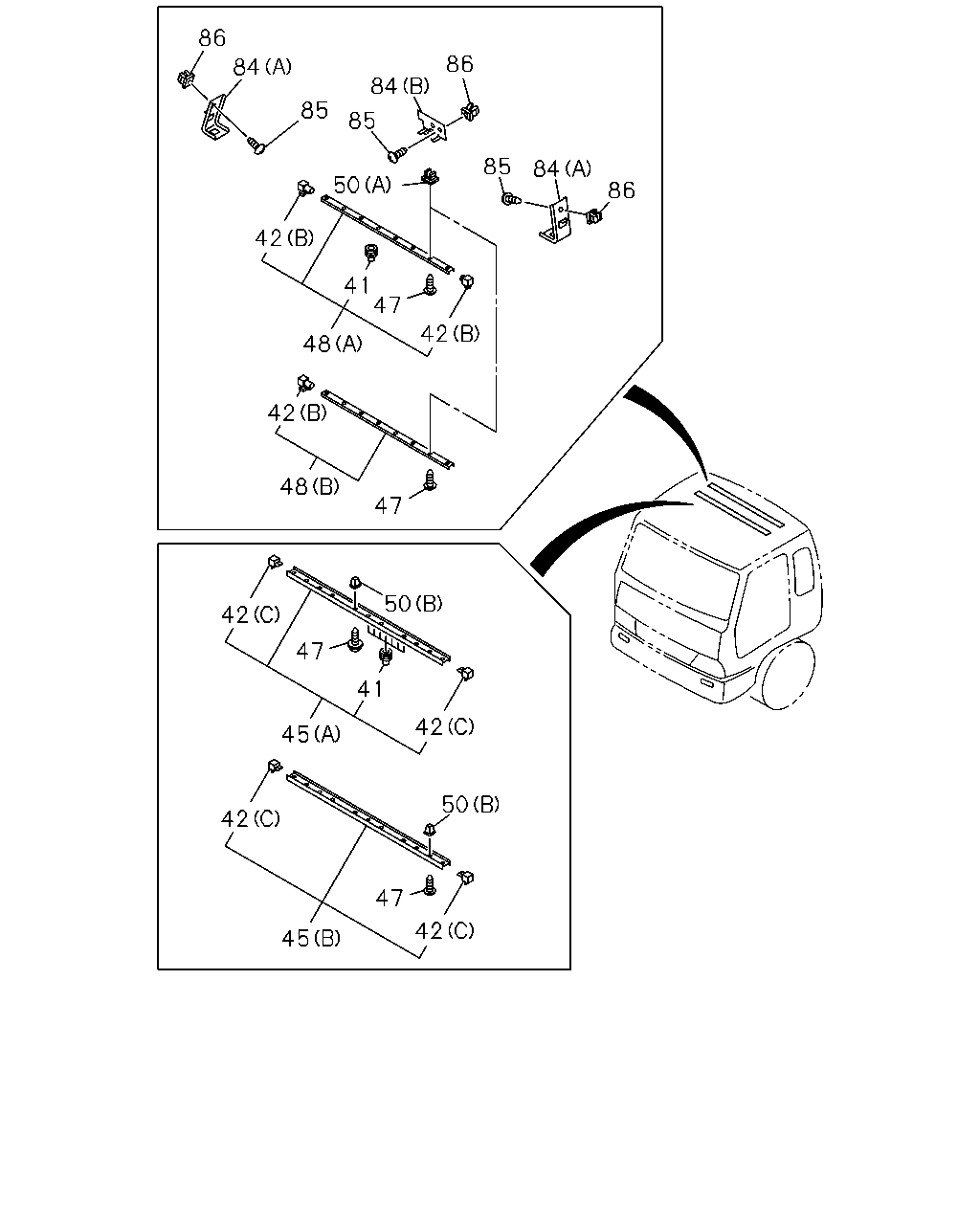

86 86 84 84 85 85 85 84 50 86 42 41 47 42 48 42 48 47 50 42 47 41 42 45 50 42 47 42 45

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	0310-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	32	1	0310-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	12	1	0310-
42	STOPPER; CURTAIN RAIL (C)	1-73907-279-2	02	1	0310-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	04	1	0310-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	0310-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	0310-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	0310-
45	RAIL; CURTAIN,FRT WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (A)	1-73996-101-5	01	1	0310-
45	RAIL; CURTAIN,FRT EXC. WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> (B)	1-73908-110-1	01	1	0310-
47	SCREW; CURTAIN RAIL M5X20 MAL	5-09981-059-0	30	1	0310-
48	RAIL; CURTAIN,BACK WINDOW CURTAIN ROUND<BW4> (A)	1-73996-106-4	01	1	0310-
48	RAIL; CURTAIN,BACK EXC. WINDOW CURTAIN ROUND<BW4> (B)	8-94265-811-1	01	1	0310-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	09	1	0310-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5 MAL	8-94279-078-0	21	1	0310-
84	BRACKET; CURTAIN RAIL (A)	1-73998-986-2	02	1	0310-
84	BRACKET; CURTAIN RAIL (B)	1-73998-987-4	02	1	0310-
85	SCREW; BRKT M5X20 MAL	5-09981-059-0	04	1	0310-
86	GROMMET; SCREW,BRKT D=8.6X7.7 L=7.5 MAL	8-94279-078-0	04	1	0310-

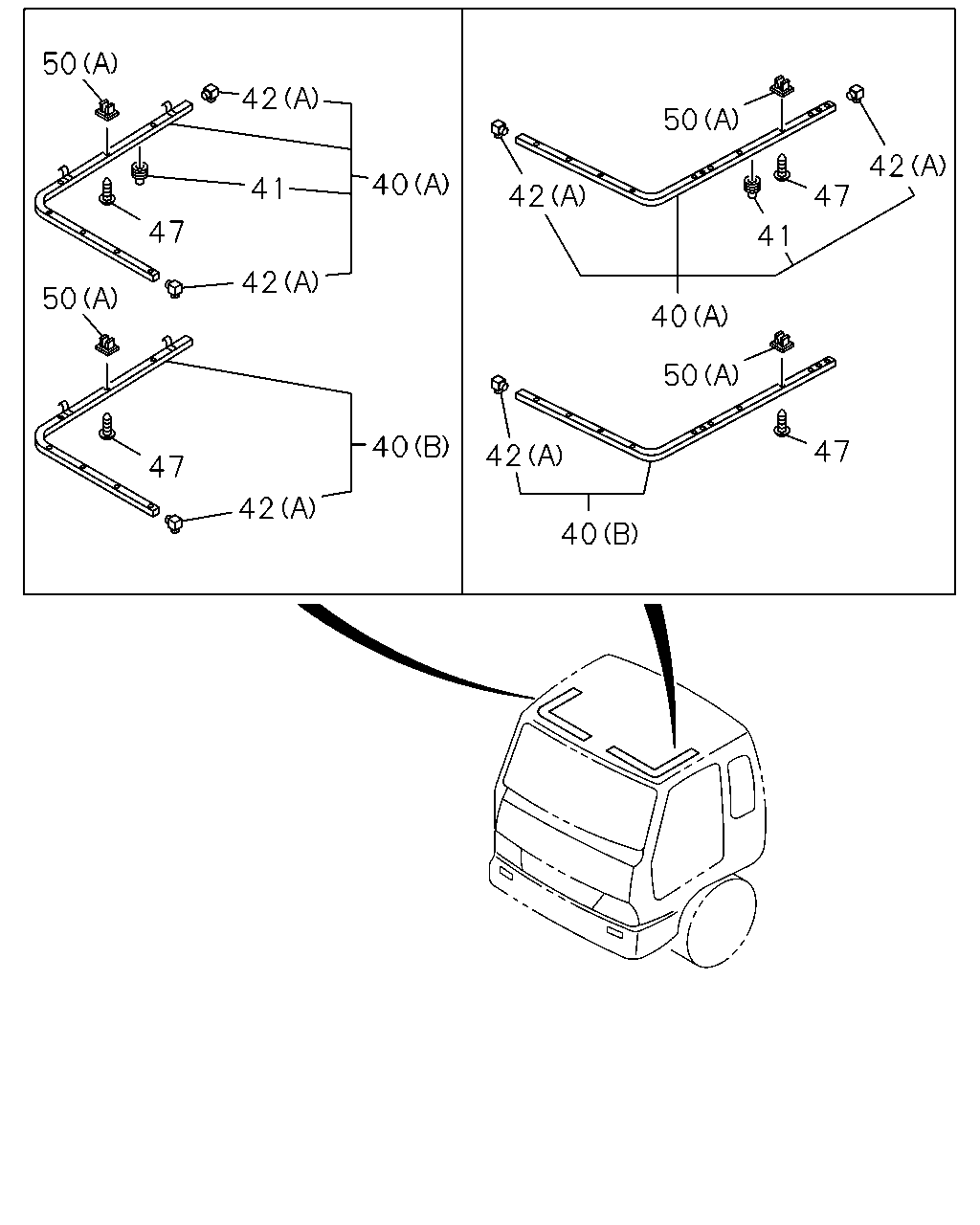

50 42 50 42 40 41 42 47 47 41 42 50 40 50 40 47 42 47 42 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73908-154-2	01	1	0310-
40	RAIL; CURTAIN,SIDE WINDOW CURTAIN ROUND<BW4> (A)	1-73908-153-2	01	1	0310-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-109-2	01	1	0310-
40	RAIL; CURTAIN,SIDE EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73908-108-2	01	1	0310-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	08	1	0310-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> H=14.5 DARK GRAY	1-73996-105-0	32	1	0310-
41	HOOK; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25> H=14.5 DARK GRAY	1-73996-105-0	12	1	0310-
42	STOPPER; CURTAIN RAIL (C)	1-73907-279-2	02	1	0310-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	04	1	0310-
42	STOPPER; CURTAIN RAIL WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	02	1	0310-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (A)	1-73908-193-0	02	1	0310-
42	STOPPER; CURTAIN RAIL EXC. WINDOW CURTAIN ROUND<BW4> (B)	1-73996-146-2	01	1	0310-
47	SCREW; CURTAIN RAIL M5X20 MAL	5-09981-059-0	30	1	0310-
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8X8 L=13 M5	1-09983-159-0	09	1	0310-
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.6X7.7 L=7.5 MAL	8-94279-078-0	21	1	0310-

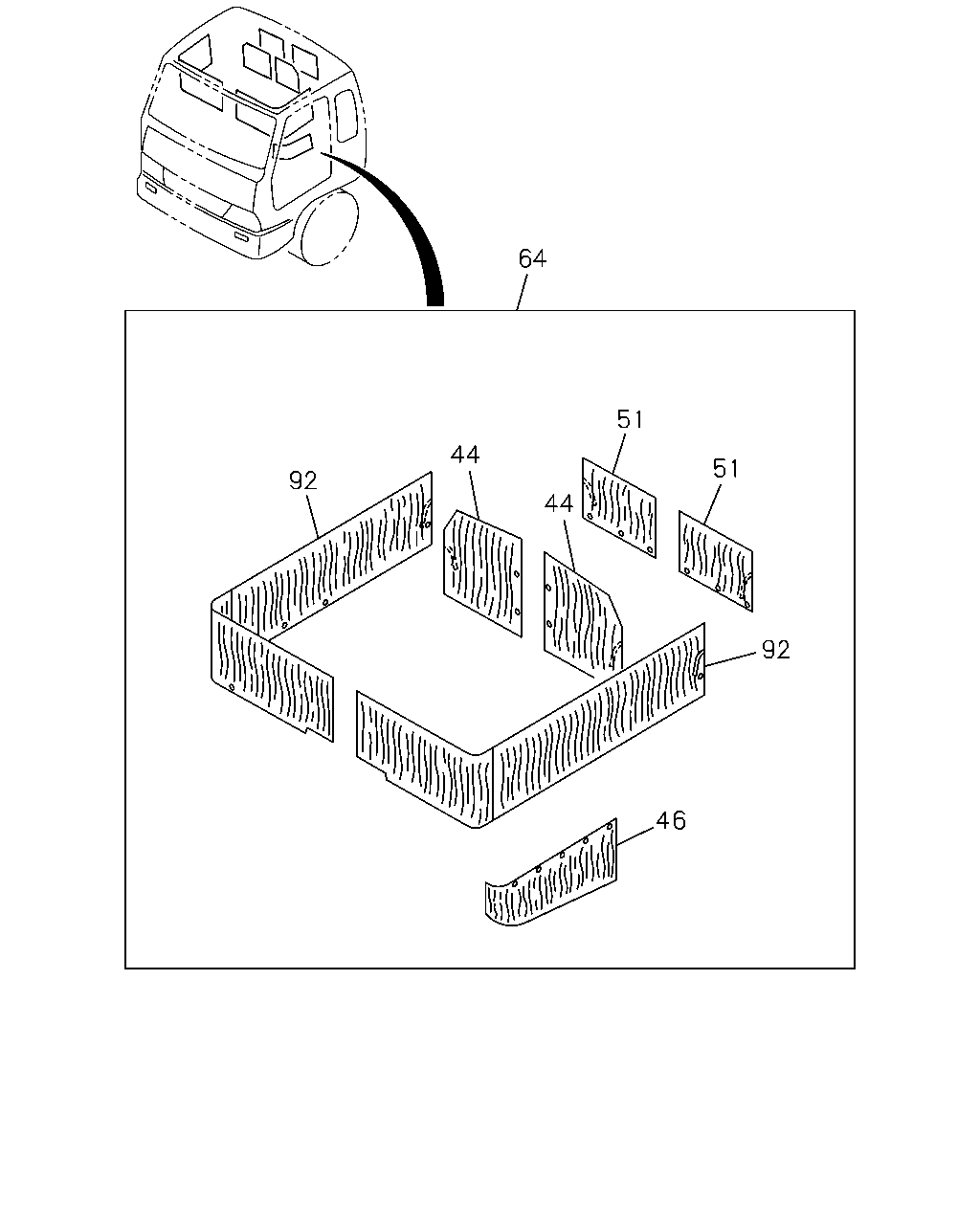

64 51 44 51 92 44 92 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-207-1	01	1	0310-
44	CURTAIN ASM; CABIN CENTER WINDOW CURTAIN ROUND<BW4>,CURTAIN SLEEPER COMPARTMENT<E25>	1-73908-208-1	01	1	0310-
46	CURTAIN ASM; DOOR WINDOW CURTAIN ROUND<BW4>	1-73907-303-0	01	1	0310-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-211-1	01	1	0310-
51	CURTAIN; BACK WINDOW CURTAIN ROUND<BW4>	1-73908-212-1	01	1	0310-
64	CURTAIN KIT WINDOW CURTAIN ROUND<BW4>	1-73908-205-1	01	1	0310-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-215-1	01	1	0310-
92	CURTAIN ASM; ROUND WINDOW CURTAIN ROUND<BW4>	1-73908-216-1	01	1	0310-
