◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11366 - FTR(MALAYSIA)W/B4600 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-60 - SEAT BELT ▶
7-60 — SEAT BELT (#61678) — 13 parça
çizim 174247
169 35 88 88
BalonParca AdiParca NoAdetTipApplied Date
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=22 MAL 		9-61168-535-0 03 1 0310-1005
35 GROMMET; SEAT BELT ANCHOR
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=22 MAL 		9-61168-535-0 02 1 1006-
88 PLUG; HOLE
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=31.6 		8-94198-177-0 02 1 0310-
169 SEAL
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> OD=25 BLACK MAL 		1-76798-019-0 03 1 1006-

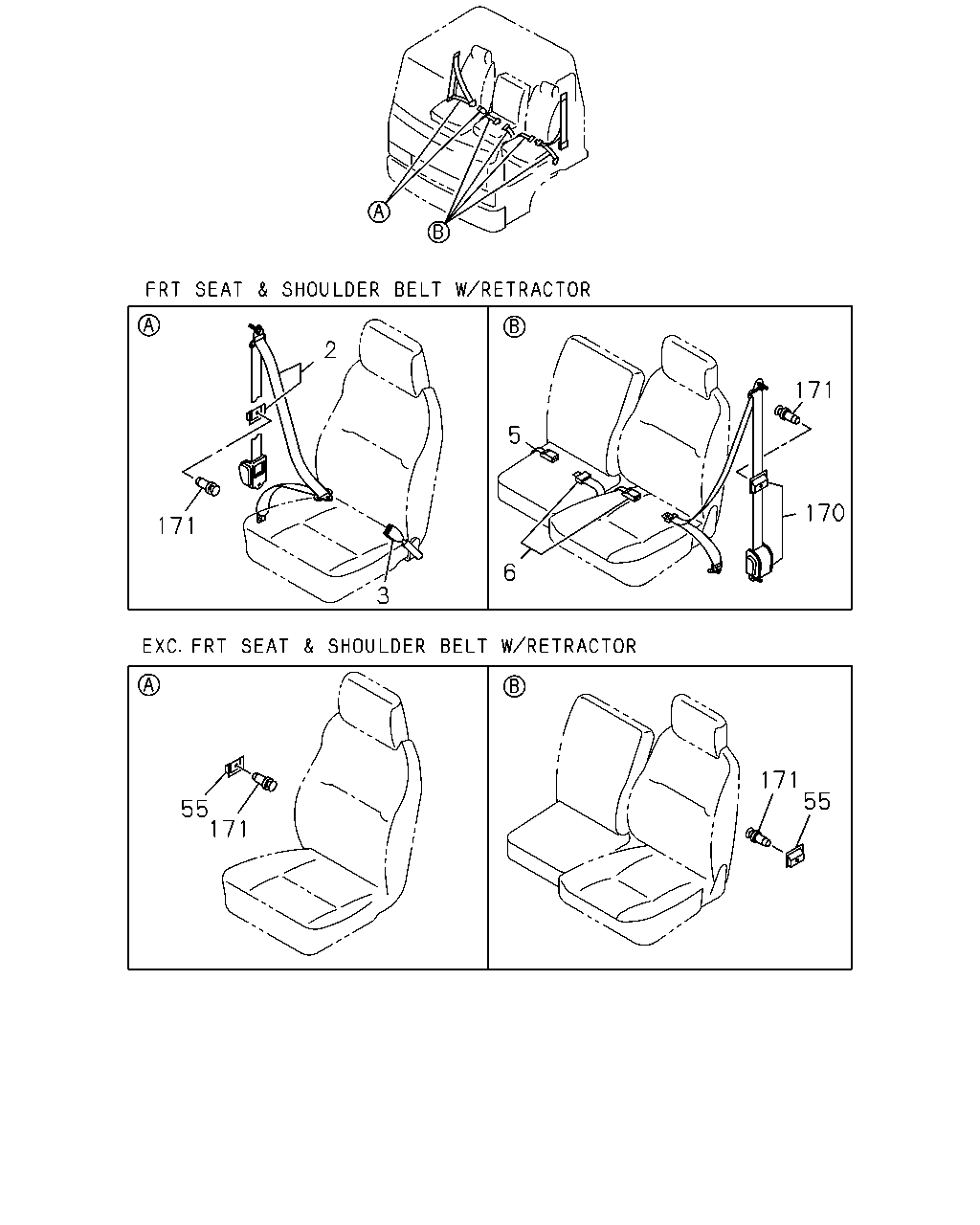

çizim 174480
2 171 5 170 171 6 3 171 55 55 171
BalonParca AdiParca NoAdetTipApplied Date
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-509-6 01 1 0310-0806
2 BELT; SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-803-0 01 1 0807-
3 BELT; SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-779-0 01 1 0310-
5 BELT; CENTER SEAT,BUCKLE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-739-0 01 1 0310-
6 BELT; CENTER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75618-737-5 01 1 0310-
55 GUIDE; SEAT BELT
EXC. FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-513-0 02 1 0310-
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		1-75617-514-6 01 1 0310-0806
170 BELT; PASSENGER SEAT,TONGUE SIDE
FRT SEAT & SHOULDER BELT W/RETRACTOR<AK3> 		8-98120-801-0 01 1 0807-
171 CLIP; SEAT BELT GUIDE 1-09987-239-0 02 1 0310-
