7-50 — FRONT SEAT (#61677) — 141 parça

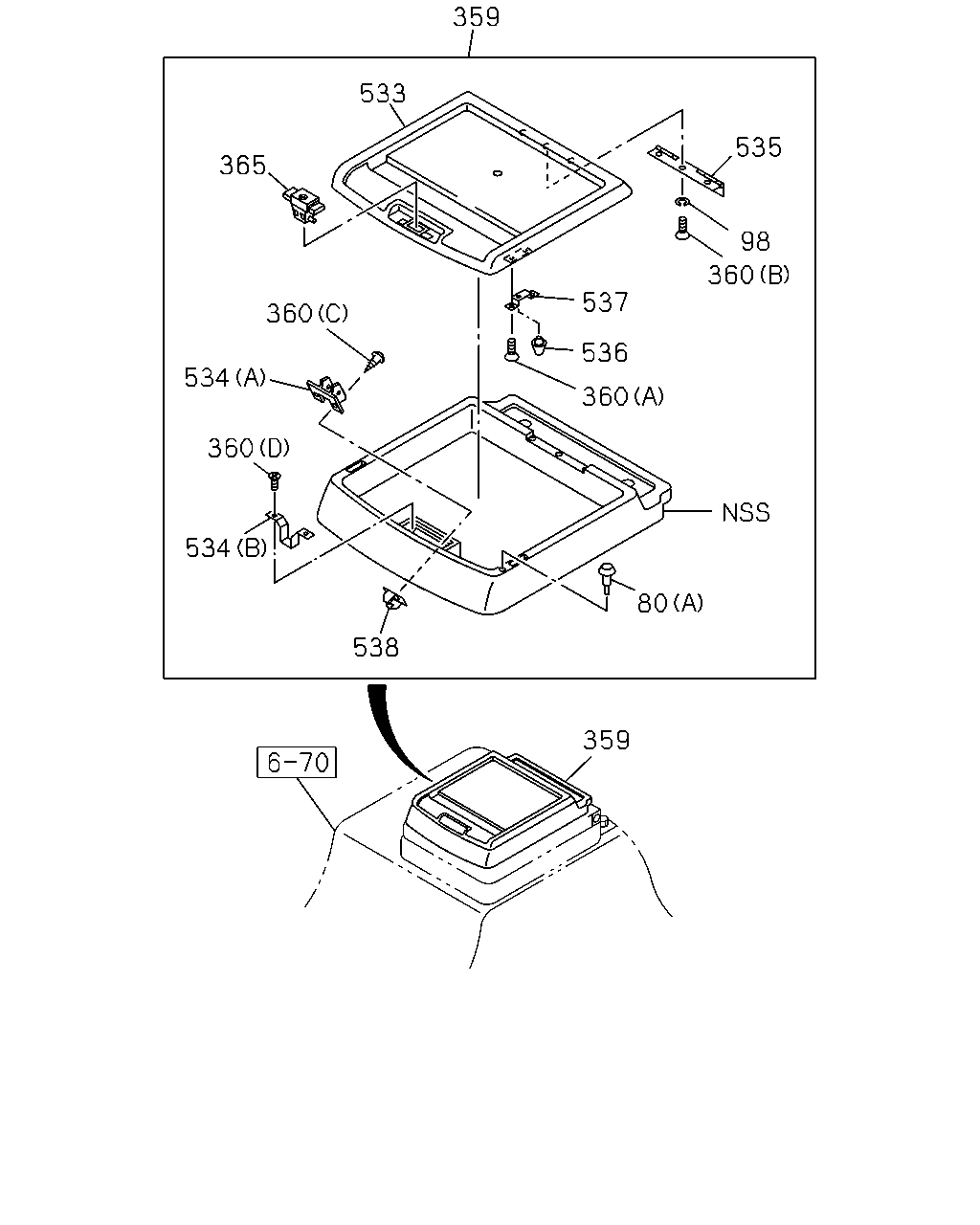

359 533 535 365 98 360 537 360 536 534 360 360 534 80 538 359

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	RUBBER; STOPPER (B)	1-09987-123-0	01	1	0310-
80	RUBBER; STOPPER (A)	1-72538-187-0	02	1	1010-
98	WASHER; HINGE ID=4.3 TOOTH LK COUNTERSUNK	9-09152-704-0	06	1	0310-
359	BOX; PARCEL	1-72538-157-5	01	1	0310-1009
359	BOX; PARCEL	8-98145-115-0	01	1	1010-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0310-0612
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1009
360	SCREW; PARCEL (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0310-0612
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0310-1009
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1010-
365	LOCK ASM; SEAT	1-72538-180-0	01	1	0310-
533	LID; PARCEL BOX	1-72538-194-2	01	1	0310-1009
533	LID; PARCEL BOX	8-98145-119-0	01	1	1010-
534	STRIKER; PARCEL BOX (A)	1-72538-181-0	01	1	0310-1009
534	STRIKER; PARCEL BOX (B)	1-72538-190-0	01	1	1010-
535	HINGE; PARCEL BOX	1-72447-391-1	01	1	0310-
536	RUBBER; CUSHION	5-09983-002-1	02	1	0310-1009
537	BRACKET; RUBBER	1-72548-057-1	02	1	0310-1009
538	GROMMET; SCREW	1-09983-165-0	02	1	0310-1009

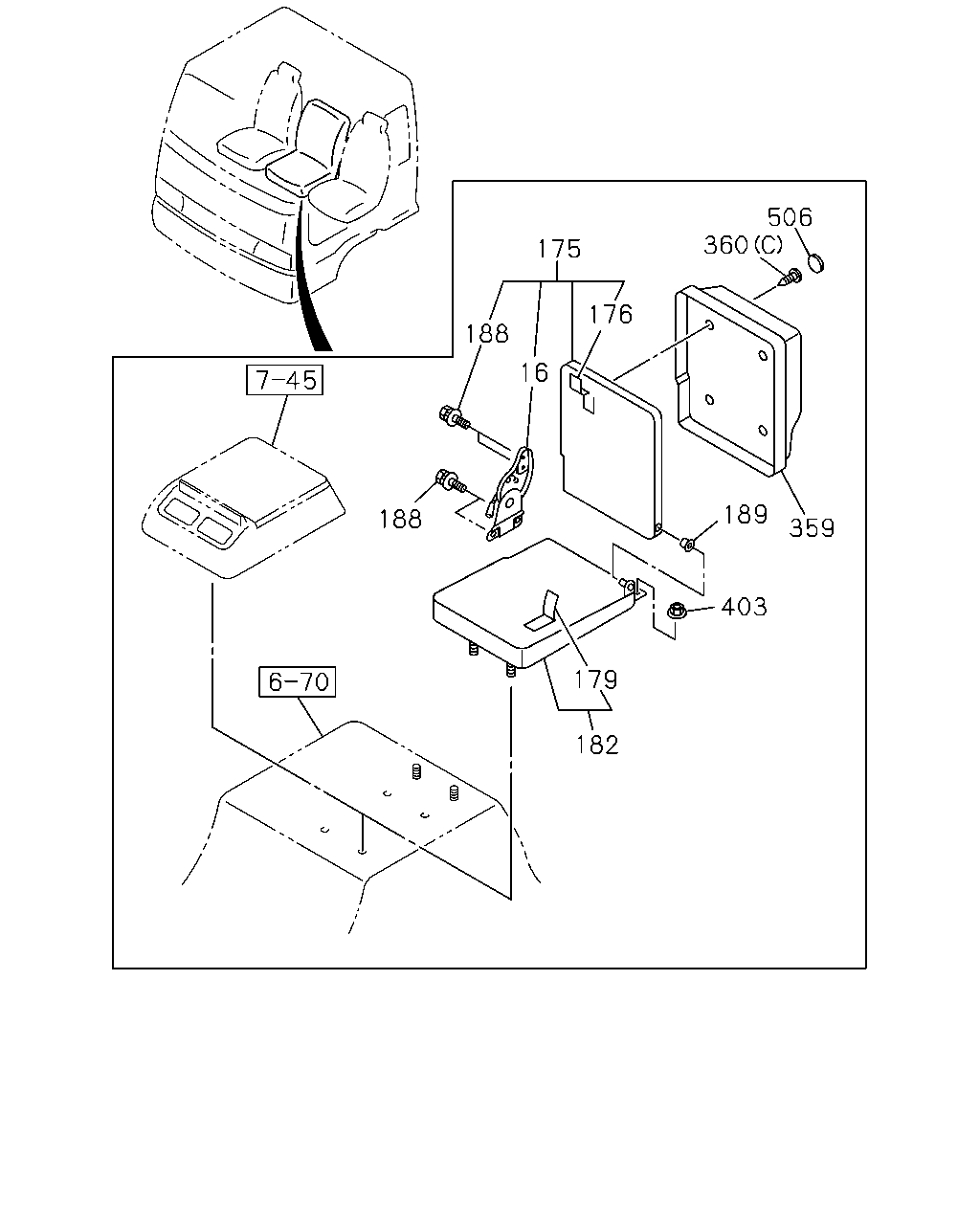

506 360 175 176 188 16 189 188 359 403 179 182

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING	1-75418-062-1	01	1	0310-
175	BACK ASM; PASSENGER CENTER SEAT	1-75207-254-3	01	1	0310-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK	1-75116-642-1	01	1	0310-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH	1-75116-625-1	01	1	0310-
182	CUSHION ASM; CENTER SEAT	1-75026-827-4	01	1	0310-
188	BOLT; BACK TO CUSHION M10X16 FLANGE	1-75198-053-0	04	1	0310-
189	BUSHING; HINGE,CENTER SEAT BACK MAL	8-97854-900-0	01	1	0310-
359	BOX; PARCEL	1-72538-157-5	01	1	0310-1009
359	BOX; PARCEL	8-98145-115-0	01	1	1010-
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70080-310-0	04	1	0310-0612
360	SCREW; PARCEL (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	0701-1009
360	SCREW; PARCEL (D) M5X14 TAPPING CK-HEAD	0-70040-514-0	02	1	1010-
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	0310-0612
360	SCREW; PARCEL (B) M4X16	0-70040-416-0	06	1	0701-1104
360	SCREW; PARCEL (B) M4X16	0-70080-416-0	06	1	1105-
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	06	1	0310-1009
360	SCREW; PARCEL (C) M5X16 TAPPING W/PL WASHER	0-74310-516-0	04	1	1010-
403	NUT; CENTER SEAT M8 FLANGE MAL	8-94279-518-0	04	1	0310-0312
403	NUT; CENTER SEAT M8 FLANGE	1-75538-207-0	04	1	0401-0703
403	NUT; CENTER SEAT M8 FLANGE MAL	0-91180-108-0	04	1	0704-
506	CAP; PARCEL BOX	1-09983-164-2	04	1	0310-1009
506	CAP; PARCEL BOX	1-09983-164-3	02	1	1010-

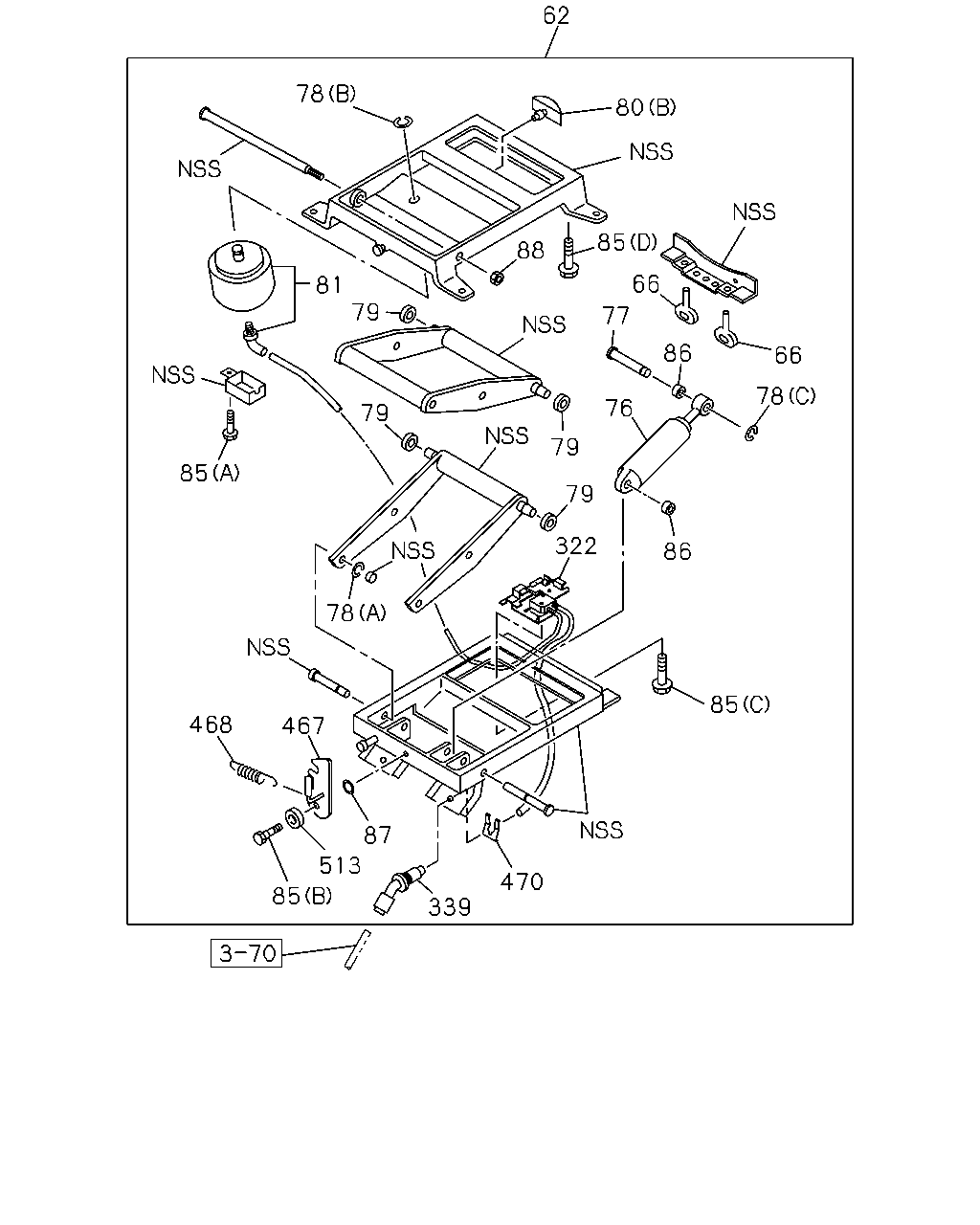

62 80 85 88 66 77 76 86 66 78 86 322 79 79 79 79 81 78 85 468 467 87 513 85 339 85 470 78

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP	1-75538-183-6	01	1	0310-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-
66	RUBBER; LWR STOPPER	1-75538-145-0	02	1	0310-
76	DAMPER; AIR SUSP	1-75538-139-0	01	1	0310-
77	PIN; DAMPER	1-75538-138-2	01	1	0310-
78	RING; SNAP (C) ID=8	9-09185-408-0	01	1	0310-
78	RING; SNAP (A) ID=10	9-09185-410-0	02	1	0310-0406
78	RING; SNAP (B) ID=15	9-09185-415-0	01	1	0310-
79	ROLLER ASM; AIR SUSP	1-75538-159-0	04	1	0310-1403
79	ROLLER ASM; AIR SUSP	8-98261-489-0	04	1	1404-
80	RUBBER; STOPPER (B)	1-09987-123-0	01	1	0310-
80	RUBBER; STOPPER (A)	1-72538-187-0	02	1	1010-
81	SPRING; AIR	1-75538-151-2	01	1	0310-1403
81	SPRING; AIR	8-98242-816-0	01	1	1404-
85	BOLT; AIR SUSP (A) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1404-
85	BOLT; AIR SUSP (B)	1-09980-577-1	01	1	0310-
85	BOLT; AIR SUSP (C) M6X12	1-75538-208-1	02	1	0310-
85	BOLT; AIR SUSP (D) M8X22 W/LK&PL WASHER	1-75538-209-0	03	1	0310-1403
85	BOLT; AIR SUSP (D) M8X22 W/LK&PL WASHER	1-75538-209-0	02	1	1404-
86	BUSHING; GUIDE OD=6.2 LIGHT GRAY	1-09983-173-1	02	1	0310-
87	WASHER; AIR SUSP ID=8.2	9-09150-508-0	01	1	0310-1403
87	WASHER; AIR SUSP ID=8.2	0-91510-508-0	01	1	1404-
88	NUT; AIR SUSP M10	1-75537-273-1	01	1	0310-
322	VALVE; AIR SPRING	1-75538-186-3	01	1	0310-
339	UNION; DRIVER SEAT	1-75538-131-3	01	1	0310-
467	LEVER; LOCK	1-75538-134-0	01	1	0310-
468	SPRING; RETURN	1-75538-132-0	01	1	0310-
470	CLIP; HOSE	1-75538-137-0	01	1	0310-
513	SPACER; LEVER	1-75538-133-0	01	1	0310-

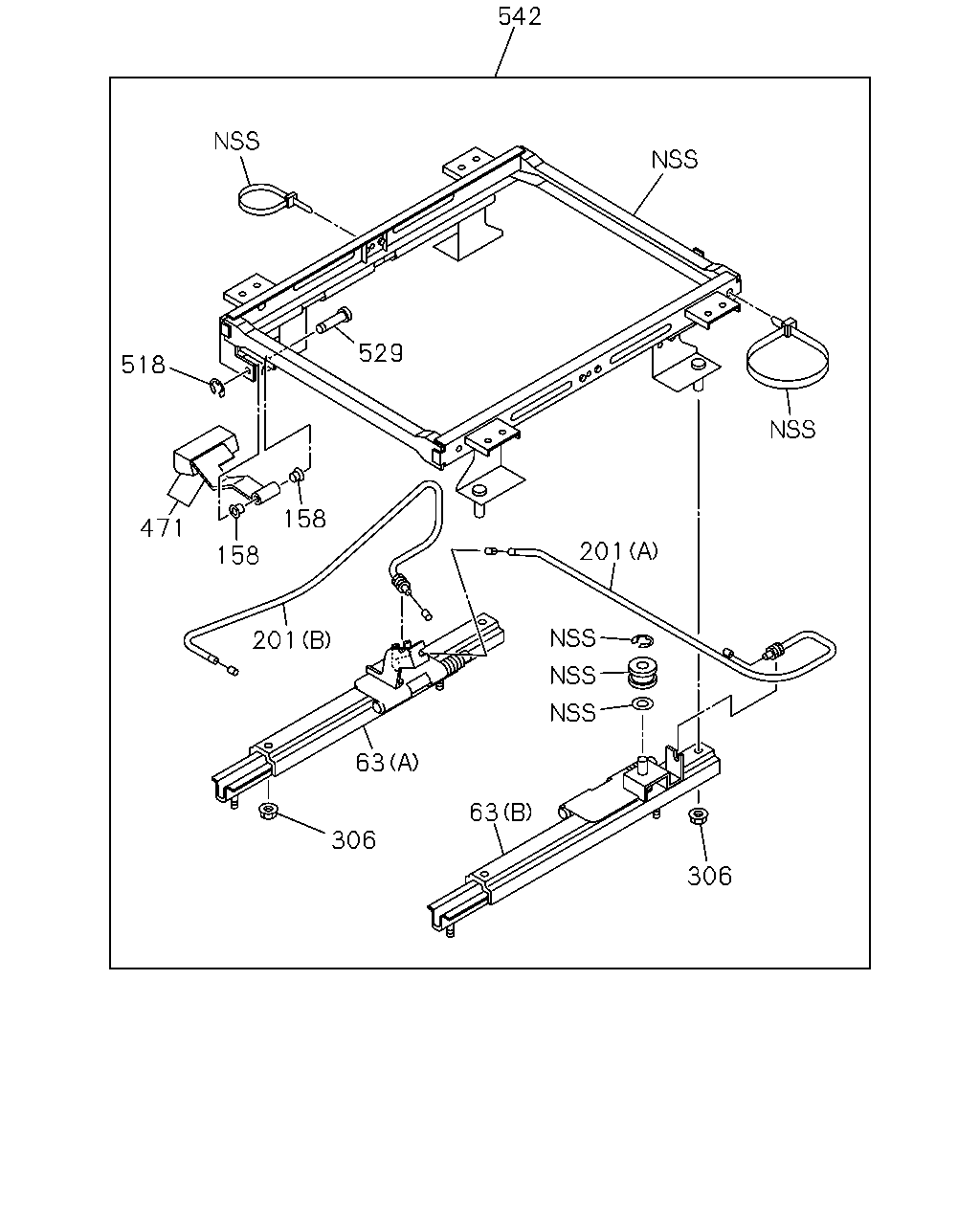

542 529 518 158 471 201 158 201 63 63 306 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
63	ADJUSTER; SEAT SLIDE (B)	1-75518-199-1	01	1	0310-
63	ADJUSTER; SEAT SLIDE (A)	1-75518-294-1	01	1	0310-
158	BUSHING; LINK ARM	1-75518-209-0	02	1	0310-
201	CABLE; ADJ (A) L=667	1-75518-288-0	01	1	0310-
201	CABLE; ADJ (B) L=605	1-75518-289-1	01	1	0310-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0310-0501
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	12	1	0502-
471	LEVER; SEAT ADJ	1-75518-291-0	01	1	0310-1403
471	LEVER; SEAT ADJ	8-98107-869-0	01	1	1404-
518	NUT; TILT ADJ	1-75518-263-0	01	1	0310-
529	PIN; LINK	1-75518-262-0	01	1	0310-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-284-3	01	1	0310-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-657-0	01	1	1503-

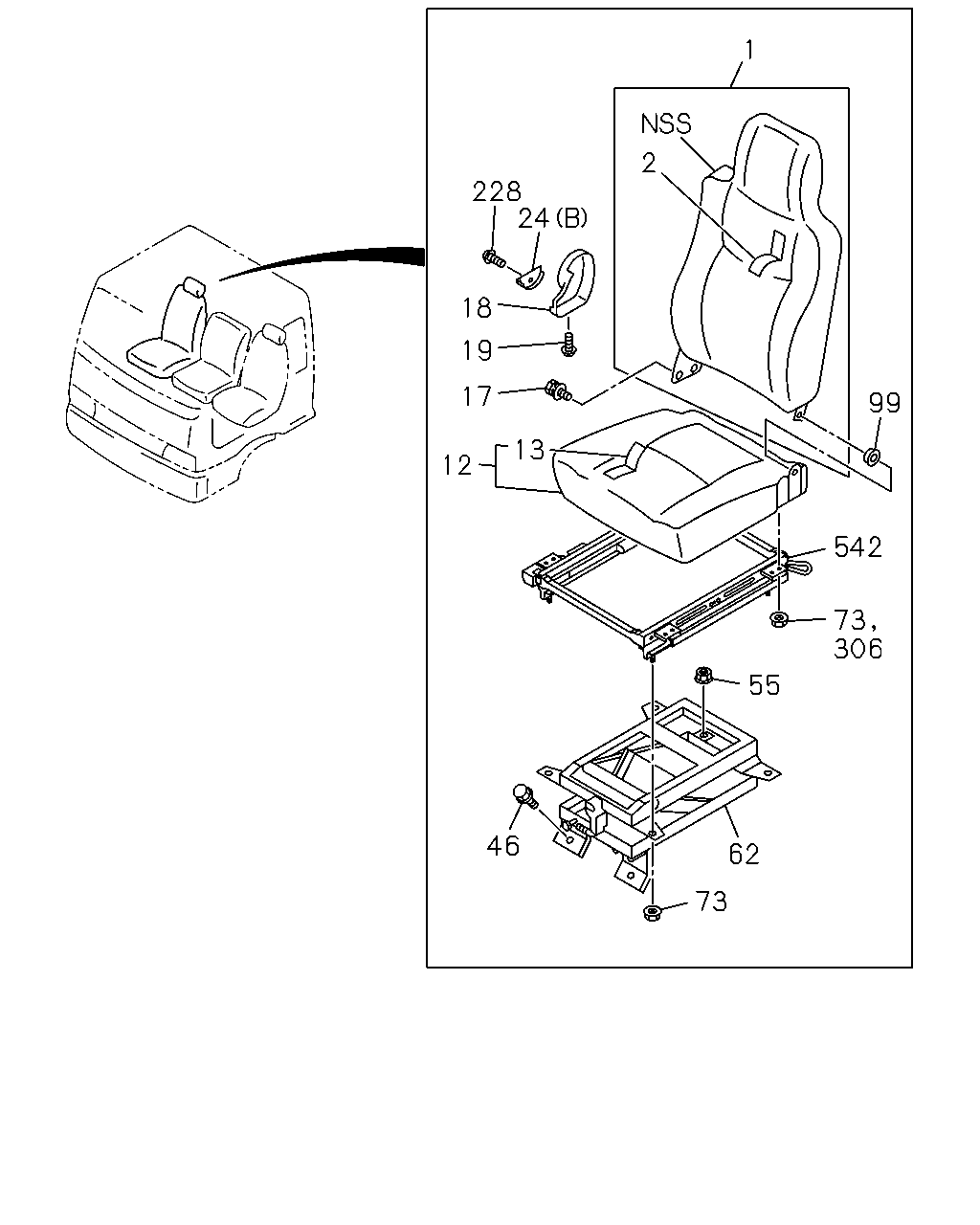

1 2 228 24 18 19 17 99 13 12 542 73 306 55 46 62 73

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT	1-75208-048-1	01	1	0310-
2	COVER; TRIM,FRT SEAT,BACK	1-75116-560-0	01	1	0310-
12	CUSHION; SEAT,FRT	1-75207-146-1	01	1	0310-
13	COVER; TRIM,FRT SEAT,CUSHION	1-75127-096-0	01	1	0310-
17	BOLT; RECLINING M8X20 MAL	8-97255-906-0	02	1	0310-
18	COVER; RECLINING	1-75418-050-0	01	1	0310-
19	SCREW; COVER M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0310-
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-056-0	01	1	0310-
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-059-0	01	1	0310-
46	BOLT; STAND TO FLOOR M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0310-0703
46	BOLT; STAND TO FLOOR M10X20 FLANGE	0-28451-020-0	02	1	0704-
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE	1-09984-153-0	02	1	0310-0703
55	NUT; DRIVER SEAT STAND TO FLOOR PANEL M10 FLANGE MAL	0-91180-110-0	02	1	0704-
62	DAMPER ASM; SEAT SUSP	1-75538-183-6	01	1	0310-1403
62	DAMPER ASM; SEAT SUSP	8-98261-448-0	01	1	1404-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0310-0501
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0310-
99	BUSHING; SEAT BACK MAL	8-97854-087-0	01	1	0310-
228	SCREW; KNOB DRIVER M4 MAL	8-98062-662-0	01	1	1404-
228	SCREW; KNOB M4X6 MAL	8-97042-273-0	01	1	0310-1403
228	SCREW; KNOB PASSENGER M4X6 MAL	8-97042-273-0	01	1	1404-
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	04	1	0310-0501
306	NUT; SEAT ADJ M8 FLANGE	1-75538-207-0	12	1	0502-
542	ADJUSTER ASM; SEAT SLIDE	1-75518-284-3	01	1	0310-1502
542	ADJUSTER ASM; SEAT SLIDE	8-98291-657-0	01	1	1503-

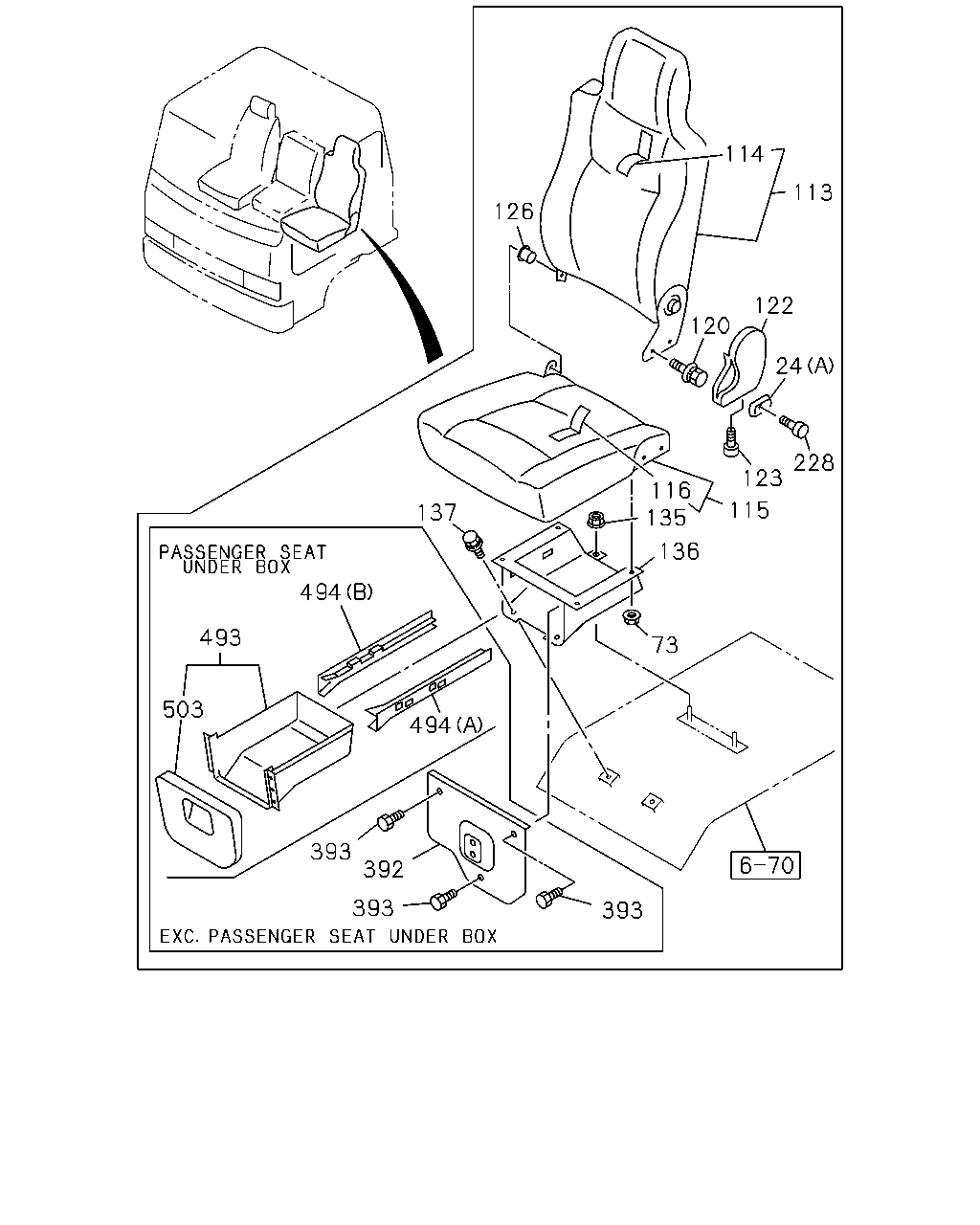

114 113 126 122 120 24 228 123 116 135 115 137 136 494 493 73 494 503 393 392 393 393

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	KNOB; RECLINING,FRT,SEAT (A)	1-75418-056-0	01	1	0310-
24	KNOB; RECLINING,FRT,SEAT (B)	1-75418-059-0	01	1	0310-
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	08	1	0310-0501
73	NUT; ADJ,HEIGHT CONT M8 FLANGE	1-75538-207-0	04	1	0310-
113	BACK ASM; SEAT	1-75208-186-3	01	1	0310-
114	COVER; TRIM,PASSENGER SEAT,BACK	1-75116-614-1	01	1	0310-
115	CUSHION ASM; PASSENGER SEAT	1-75026-772-1	01	1	0310-
116	COVER; TRIM,PASSENGER SEAT,CUSHION	1-75116-576-1	01	1	0310-
120	BOLT; RECLINING ADJ M8X20 MAL	8-97255-906-0	02	1	0310-
122	COVER; ADJ,RECLINING	1-75418-052-0	01	1	0310-
123	SCREW; COVER,RECLINING M5X16 TAPPING W/PL WASHER	0-74310-516-0	01	1	0310-
126	BUSHING; HINGE,RECLINING MAL	8-97854-087-0	01	1	0310-
135	NUT; SEAT STAND M10 FLANGE	1-09984-153-0	02	1	0310-0703
135	NUT; SEAT STAND M10 FLANGE MAL	0-91180-110-0	02	1	0704-
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	1-75558-547-6	01	1	0310-1305
136	STAND; PASSENGER SEAT PASSENGER SEAT UNDER BOX<TDN>	8-98242-291-0	01	1	1306-
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-550-7	01	1	0310-1305
136	STAND; PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	8-98242-292-0	01	1	1306-
137	BOLT; STAND M10X20 W/LK&PL WASHER	8-94279-211-0	02	1	0310-0703
137	BOLT; STAND M10X20 FLANGE	0-28451-020-0	02	1	0704-
228	SCREW; KNOB DRIVER M4 MAL	8-98062-662-0	01	1	1404-
228	SCREW; KNOB M4X6 MAL	8-97042-273-0	01	1	0310-1403
228	SCREW; KNOB PASSENGER M4X6 MAL	8-97042-273-0	01	1	1404-
392	COVER; STAND,PASSENGER SEAT EXC. PASSENGER SEAT UNDER BOX<TDN>	1-75558-556-1	01	1	0310-
393	BOLT; COVER,SEAT STAND EXC. PASSENGER SEAT UNDER BOX<TDN> M6X19.5 W/LK&PL WASHER MAL	8-94279-201-0	03	1	0310-0703
393	BOLT; COVER,SEAT STAND EXC. PASSENGER SEAT UNDER BOX<TDN> M6X16	0-52000-616-0	03	1	0704-
493	BOX; SEAT STAND PASSENGER SEAT UNDER BOX<TDN>	1-72537-130-1	01	1	0310-
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (A)	1-72537-149-0	01	1	0310-
494	RAIL; GUIDE PASSENGER SEAT UNDER BOX<TDN> (B)	1-72537-150-0	01	1	0310-
503	COVER; BOX PASSENGER SEAT UNDER BOX<TDN>	1-72537-136-0	01	1	0310-
