◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11366 - FTR(MALAYSIA)W/B4600 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#61674) — 105 parça

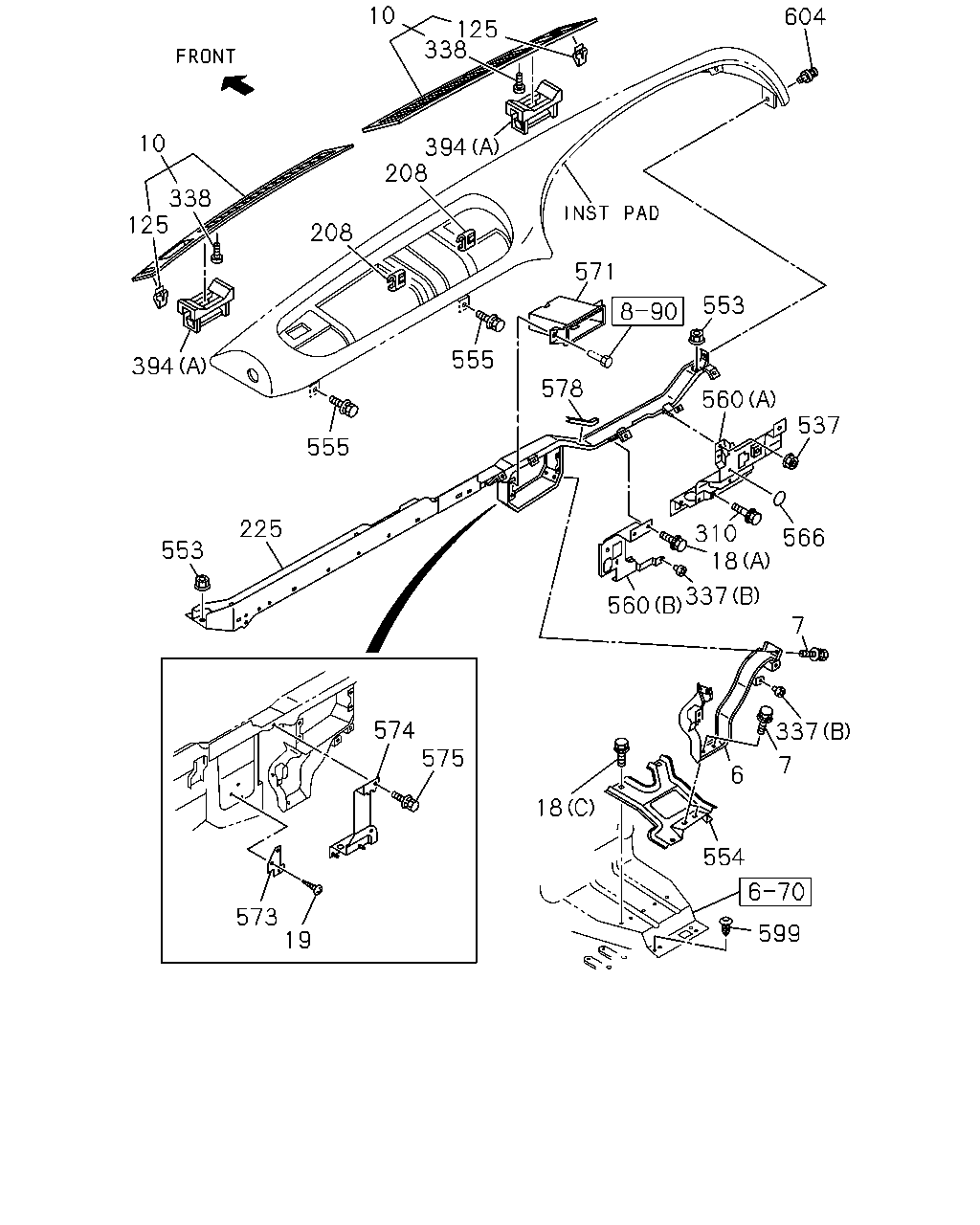

çizim 174297
10 604 125 338 10 394 208 338 125 208 571 553 555 394 578 560 537 555 225 310 18 566 553 337 560 7 574 575 337 7 6 18 554 573 19 599
BalonParca AdiParca NoAdetTipApplied Date
6 SUPPORT; INST PANEL 1-65681-165-2 01 1 0310-
7 BOLT; SUPPORT,INST PNL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 06 1 0310-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-601-6 01 1 0310-
10 PANEL ASM; GARNISH
W/SPEAKER NET 		1-72437-600-7 01 1 0310-
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0310-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0310-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 05 1 0310-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0310-
19 SCREW; BRKT
M5X14 MAL 		8-94279-325-0 02 1 0310-
19 SCREW; BRKT
M5X14 MAL 		8-94279-325-0 02 1 0310-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 01 1 0310-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 08 1 0310-
208 HOLDER; BOX,DASH SIDE 1-72558-027-2 02 1 0310-
225 FRAME; FACIA 1-65681-096-2 01 1 0310-1002
225 FRAME; FACIA 8-98142-102-0 01 1 1003-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 05 1 0310-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0310-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0310-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0310-
338 SCREW; COVER
M5X14 		8-94148-576-1 10 1 0310-0310
338 SCREW; COVER
M5X14 MAL 		8-94279-325-0 20 1 0310-0405
338 SCREW; COVER
M5X14 MAL 		8-94279-325-0 10 1 0406-0801
338 SCREW; COVER
M5X14 MAL 		8-94279-325-0 15 1 0802-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0310-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0310-
537 NUT; BRKT
M6 FLANGE 		0-91150-106-0 01 1 0310-0602
537 NUT; BRKT
M6 FLANGE MAL 		0-91180-106-0 01 1 0603-
553 NUT; FRAME
M8 FLANGE 		0-91150-108-0 04 1 0310-0602
553 NUT; FRAME
M8 FLANGE MAL 		0-91180-108-0 04 1 0603-
554 BRACKET; CENTER BEZEL 1-65680-963-2 01 1 0310-
555 BOLT; PAD
M10X25 FLANGE 		0-28281-025-0 07 1 0310-0512
555 BOLT; PAD
M10X25 FLANGE 		0-28251-025-0 07 1 0601-0604
555 BOLT; PAD
M10X25 FLANGE 		8-98041-453-0 07 1 0605-
555 BOLT; PAD
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 03 1 0310-
560 BRACKET
(B) 		1-65680-976-3 01 1 0310-
560 BRACKET
(A) 		1-65681-078-7 01 1 0310-
566 PLUG; HOLE
OD=20 T=0.05 BLACK MAL 		5-76777-036-0 01 1 0310-
571 BEZEL; POCKET
EXC. RADIO CLARION(SK2),RADIO AM/FM STEREO & TAPE PLAYER(UN3) 		1-72438-151-3 01 1 0310-
571 BEZEL; POCKET 1-72438-151-3 01 1 0310-
573 BRACKET; PANEL,RELAY BOX 1-73908-023-2 01 1 0310-
574 PANEL; RELAY BOX 1-73908-252-3 01 1 0310-
575 BOLT; PANEL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0310-
578 SEAL; PROTECTOR,HARNESS
100X40 		1-72498-022-1 01 1 0310-
599 PLUG; BRKT
D4.7X11 		1-76378-154-0 01 1 0310-
604 CLIP; INST PAD 1-09983-123-0 01 1 0310-
çizim 174310
597
BalonParca AdiParca NoAdetTipApplied Date
597 SEAL; HOLE,DASH
OD=16 BLACK 		1-76798-037-0 02 1 0310-

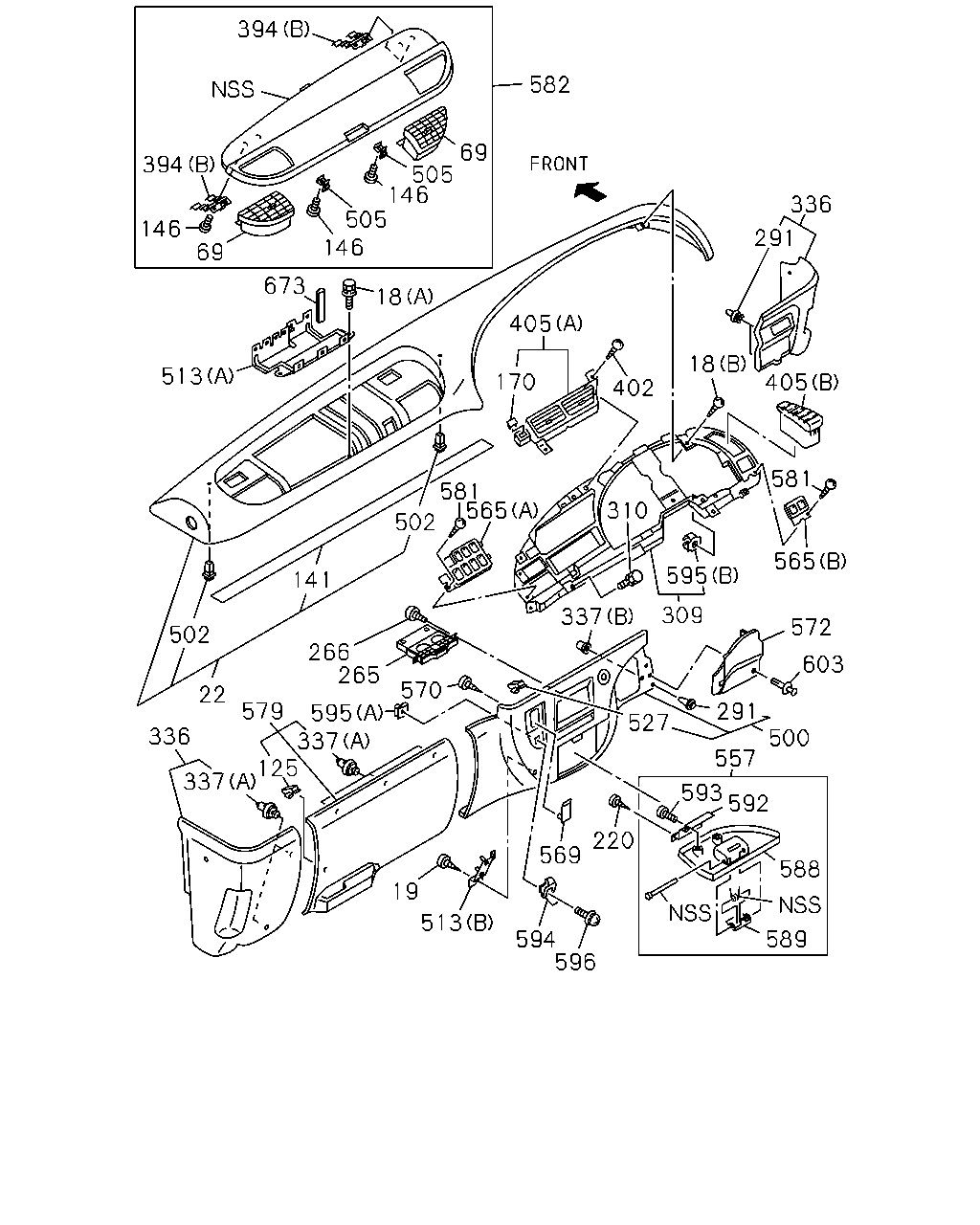

çizim 174469
394 582 69 505 146 505 146 394 336 146 291 69 673 18 405 18 513 170 405 402 581 581 565 310 502 565 595 141 309 337 572 502 266 265 603 570 22 579 291 595 337 125 527 336 500 557 337 593 592 220 569 588 19 513 589 594 596
BalonParca AdiParca NoAdetTipApplied Date
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28680-840-0 03 1 0310-0512
18 BOLT; BRKT
(C) M8X40 FLANGE 		0-28650-840-0 03 1 0601-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0310-
18 BOLT; BRKT
(A) M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 05 1 0310-
18 BOLT; BRKT
(B) M6X20 W/LK&PL WASHER 		8-94279-203-0 03 1 0310-
19 SCREW; BRKT
M5X14 MAL 		8-94279-325-0 02 1 0310-
19 SCREW; BRKT
M5X14 MAL 		8-94279-325-0 02 1 0310-
22 PAD; INST 1-72318-421-6 01 1 0310-
69 GRILLE; SIDE,AIR OUTLET 1-76368-028-5 01 1 0310-
69 GRILLE; SIDE,AIR OUTLET 1-76368-029-5 01 1 0310-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 01 1 0310-
125 CLIP; INST PANEL
MAL 		8-97217-066-0 08 1 0310-
141 PROTECTOR; EDGE 1-72318-430-0 01 1 0310-
146 SCREW; TAP
M5X14 MAL 		8-94279-325-0 10 1 0310-
170 COVER; HOLE 1-76367-068-0 01 1 0310-
220 SCREW; LID TO STOPPER
M5X14 MAL 		8-94279-325-0 02 1 0310-
265 HOLDER; CUP
MAL 		8-97853-172-8 01 1 0310-
266 SCREW; CUP STAND
M5X14 MAL 		8-94279-325-0 02 1 0310-
291 FASTENER; INST CLUSTER 1-72438-137-0 06 1 0310-
309 PANEL; SW,INST 1-72418-009-6 01 1 0310-
310 BOLT; SW PNL
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 05 1 0310-
336 COVER; INST PANEL SIDE 1-72438-111-4 01 1 0310-
336 COVER; INST PANEL SIDE 1-72438-109-6 01 1 0310-
337 FASTENER; COVER
(A) 		1-72438-124-2 06 1 0310-
337 FASTENER; COVER
(B) 		1-72438-138-0 06 1 0310-
337 FASTENER; COVER
(A) 		1-72438-124-2 02 1 0310-
394 HOLDER; PANEL
(A) 		1-72438-066-0 06 1 0310-
394 HOLDER; PANEL
(B) 		1-72558-026-5 02 1 0310-
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0310-0604
402 SCREW; VENT GRILLE,INST
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
405 GRILLE ASM; METER VENT
(A) 		1-76367-062-2 01 1 0310-
405 GRILLE ASM; METER VENT
(B) 		1-76367-059-3 01 1 0310-
500 CLUSTER; INST CENTER 1-72438-117-9 01 1 0310-
502 GROMMET; SCREW,CENTER,CLUSTER
D=7.8X7.8 L 13 M6 NATURAL 		8-94279-084-2 04 1 0310-
505 LOCK; LID 1-72558-024-2 02 1 0310-
513 BRACKET; RELAY
(B) 		1-73908-043-1 01 1 0310-
513 BRACKET; RELAY
(A) 		1-73908-425-0 01 1 0310-
527 CLIP; INST CLUSTER
MAL 		8-97217-066-0 04 1 0310-
557 LID; BOX,COOL & HOT 1-72548-142-1 01 1 0310-
565 BEZEL; SW PANEL
(A) 		1-72418-010-2 01 1 0310-
565 BEZEL; SW PANEL
(B) 		1-72418-011-3 01 1 0310-
569 HOLDER; CARD 1-72498-015-2 01 1 0310-
570 SCREW; HOLDER
M5X14 MAL 		8-94279-325-0 01 1 0310-
572 COVER; INSPECTION 1-72438-054-3 01 1 0310-
579 COVER; INST PNL 1-72438-113-4 01 1 0310-
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74110-620-0 02 1 0310-0604
581 SCREW
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 02 1 0605-
582 LID; FUSE & RELAY 1-72548-127-8 01 1 0310-
588 LID; BOX 1-72548-135-3 01 1 0310-
589 KNOB; LID 1-72548-143-0 01 1 0310-
592 HINGE; LID 1-72548-133-3 01 1 0310-
593 SCREW; HINGE
M5X14 MAL 		8-94279-325-0 02 1 0310-
594 HOOK; COAT 1-72498-013-0 01 1 0310-
595 NUT; HOOK
(A) M5 		1-09984-162-0 01 1 0310-
595 NUT; HOOK
(B) 		1-72418-013-0 11 1 0310-
596 SCREW; HOOK
M5X16 W/LK&PL WASHER MAL 		8-94279-400-0 01 1 0310-
603 CLIP; COVER 1-09987-245-1 01 1 0310-
673 FINISHER; BRKT,RELAY
L=50 		8-94270-377-1 01 1 0310-
