◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11366 - FTR(MALAYSIA)W/B4600 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#61671) — 18 parça
çizim 174321
51 51 49 60
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX
CAUTIONS ARABIAN<WJ7> 		1-85888-558-0 01 1 0310-
49 PLATE; CAUTION,FUSE BOX
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85888-554-2 01 1 0310-
49 PLATE; CAUTION,FUSE BOX
CAUTIONS FRENCH<WJ8> 		1-85888-557-0 01 1 0310-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7> (A) 		1-85880-709-1 01 1 0310-
51 PLATE; CAUTION,WARNING
CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-560-2 01 1 0310-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-85880-707-1 01 1 0310-
51 PLATE; CAUTION,WARNING
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		1-85888-559-2 01 1 0310-
51 PLATE; CAUTION,WARNING
CAUTIONS FRENCH<WJ8> (A) 		1-85880-710-1 01 1 0310-
60 PLATE; CAUTION,CAB TILT
CAUTIONS ARABIAN<WJ7> 		1-85883-172-0 01 1 0310-
60 PLATE; CAUTION,CAB TILT
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> 		1-85883-169-0 01 1 0310-
60 PLATE; CAUTION,CAB TILT
CAUTIONS FRENCH<WJ8> 		1-85883-173-0 01 1 0310-

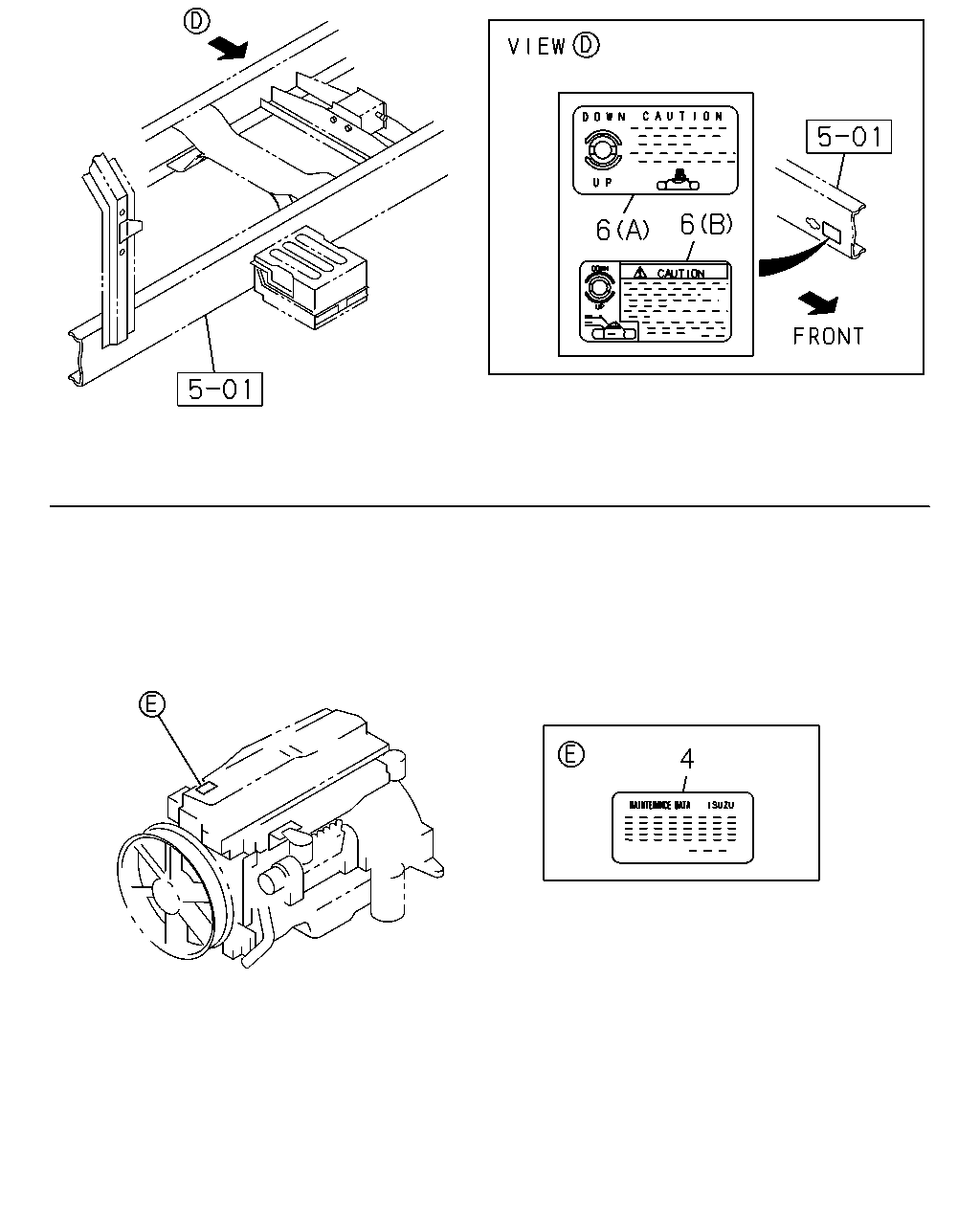

çizim 174461
6 6 4
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE 8-94390-593-0 01 1 0310-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS ARABIAN<WJ7> (A) 		1-85883-114-0 01 1 0310-0708
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS ARABIAN<WJ7> (B) 		8-98082-441-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (A) 		1-53639-004-0 01 1 0310-0708
6 PLATE; CAUTION,SPARE TIRE
EXC. CAUTIONS ARABIAN<WJ7>,CAUTIONS FRENCH<WJ8> (B) 		8-98082-437-0 01 1 0709-
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS FRENCH<WJ8> (A) 		1-85883-108-0 01 1 0310-0708
6 PLATE; CAUTION,SPARE TIRE
CAUTIONS FRENCH<WJ8> (B) 		8-98082-440-0 01 1 0709-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
