6-05 — FRONT PANEL (#6167) — 282 parça

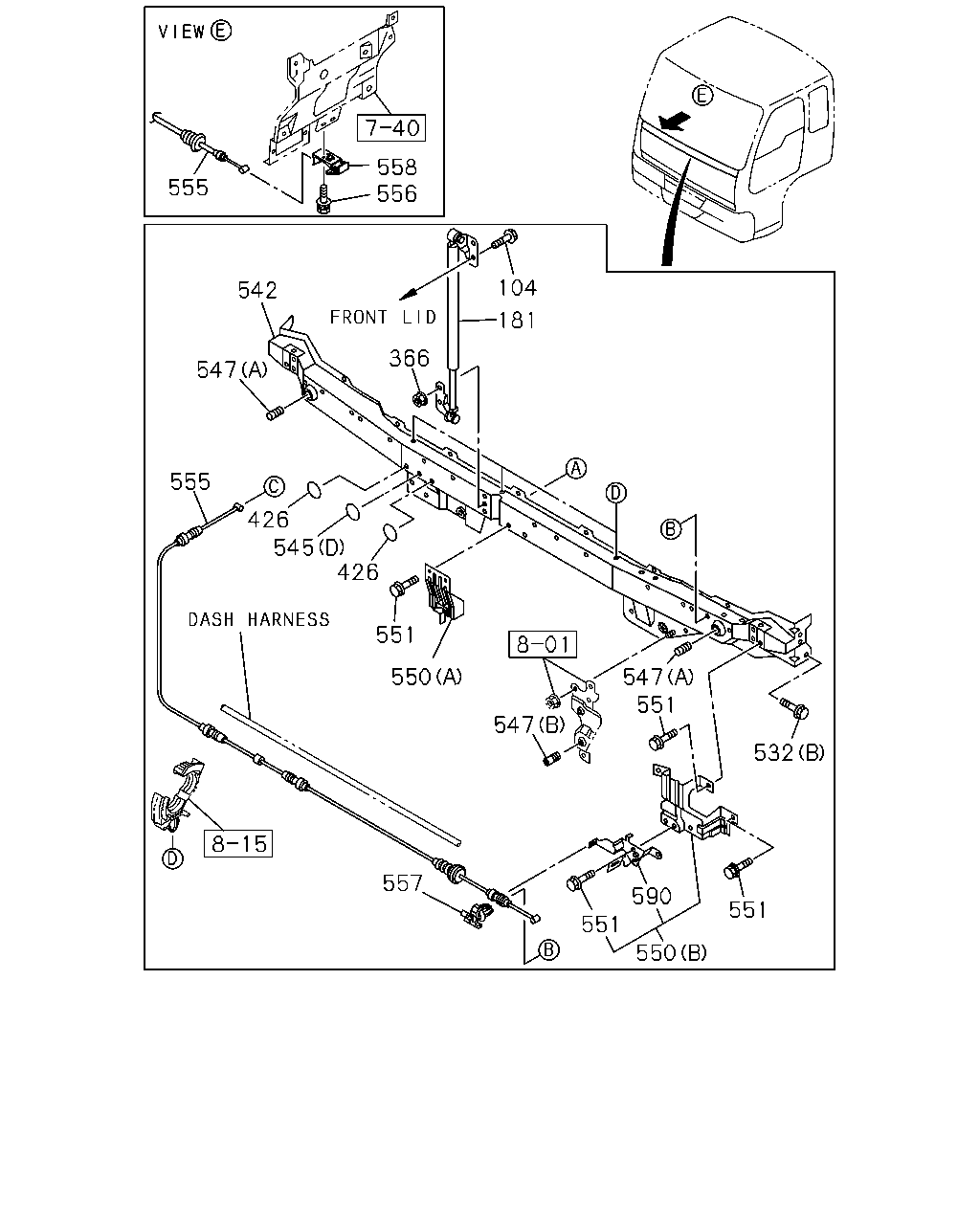

çizim 37698
558 556 555 104 542 181 366 547 555 426 545 426 551 550 547 551 547 532 557 590 551 551 550
BalonParca AdiParca NoAdetTipApplied Date
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 9905-0602
104 BOLT; SUPPORT BAR
M6X20 W/LK&PL WASHER 		8-94279-203-0 02 1 0603-
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-261-0 01 1 9905-0412
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0501-0602
181 SUPPORT ASM; DOOR CHECK,FRT 1-71107-864-0 01 1 0603-
366 NUT; SUPPORT
M8 CUTTING NUT W/FLANGE 		1-09985-340-0 02 1 9905-
426 GASKET
OD=25 BLACK 		1-76798-019-0 01 1 9905-0104
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 9905-0104
426 GASKET
EXC. AIR CONDITIONER MANUAL CONTROL(C60) OD=25 BLACK 		1-76798-019-0 01 1 0105-
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0103-0104
426 GASKET
OD=25 BLACK 		1-76798-019-0 03 1 0105-0111
426 GASKET
OD=25 BLACK 		1-76798-019-0 02 1 0112-
532 BOLT; FRT PANEL
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-0104
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-0602
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0603-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9905-
542 RAIL; FRT MOUNTING 1-61470-705-4 01 1 9905-0505
542 RAIL; FRT MOUNTING 1-61470-721-1 01 1 0506-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-0104
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-1 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-0104
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0105-
545 SEAL; FRT LID
(E) 		1-71907-578-0 02 1 0105-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) L=502 		1-71907-471-0 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-0104
545 SEAL; FRT LID
(F) 		1-71907-472-0 02 1 0105-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9905-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9905-
547 RUBBER; CUSHION
CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) L=2065 		1-71907-297-3 01 1 9905-0004
547 RUBBER; CUSHION
(C) L=2065 		1-71907-297-3 01 1 0005-0104
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0105-
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-79317-002-1 01 1 9905-0104
550 LOCK ASM; FRT LID
(A) 		1-79317-013-1 01 1 0105-
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-010-1 01 1 9905-0104
550 LOCK ASM; FRT LID
(B) 		1-79317-012-1 01 1 0105-
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-79318-009-3 01 1 9905-0104
550 LOCK ASM; FRT LID
(B) 		1-79317-011-1 01 1 0105-
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) 		1-79317-006-1 01 1 9905-0104
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-008-0 01 1 9905-0104
550 LOCK ASM; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-79317-007-1 01 1 9905-0104
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 9905-0104
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 02 1 0105-0301
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0302-0602
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 10 1 0603-
551 BOLT; LOCK
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 02 1 9905-0104
551 BOLT; LOCK
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 9905-0104
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0105-0301
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 04 1 0105-0301
551 BOLT; LOCK
M8X20.5 W/LK&PL WASHER 		8-94279-207-0 06 1 0302-0602
555 CABLE; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> L=2442 		1-79347-003-3 01 1 9905-0104
555 CABLE; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=2682 		1-79347-005-1 01 1 9905-0104
555 CABLE; FRT LID
L=2512 		1-79347-007-3 01 1 0105-
556 BOLT; CABLE
M6X12 W/LK&PL WASHER 		8-94279-200-0 01 1 9905-
557 CLIP; CABLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> ID=4.8 		8-94128-483-0 02 1 9905-0104
557 CLIP; CABLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> ID=4.8 		8-94128-483-0 01 1 9905-0104
557 CLIP; CABLE
ID=4.8 		8-94128-483-0 01 1 0105-
558 LEVER; FRT LID 1-79338-003-1 01 1 9905-0212
558 LEVER; FRT LID 1-79338-007-1 01 1 0301-
590 LOCK; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-010-1 01 1 9905-0104
590 LOCK; FRT LID 1-79318-010-2 01 1 0105-
590 LOCK; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> 		1-79318-009-3 01 1 9905-0104
590 LOCK; FRT LID 1-79318-009-4 01 1 0105-

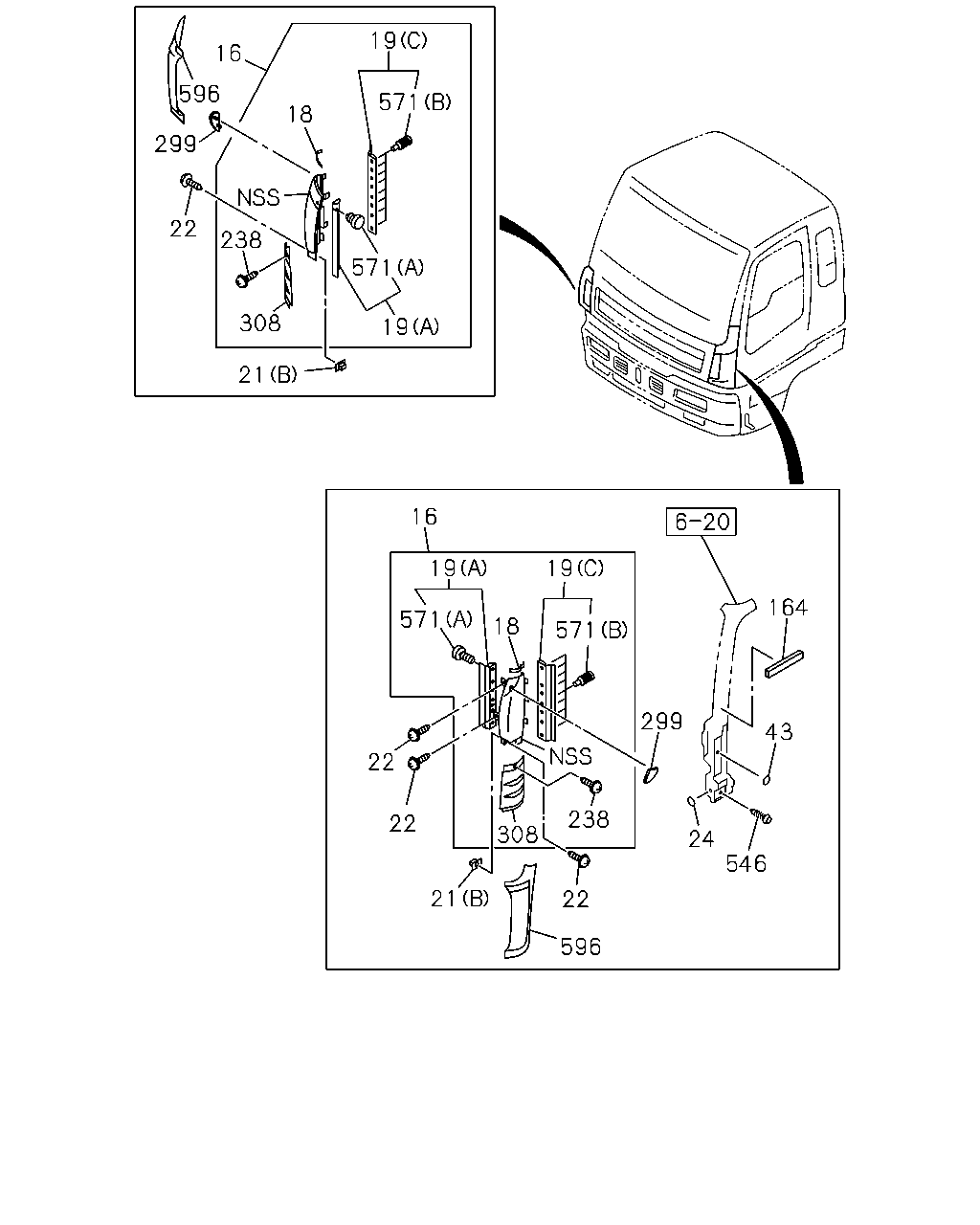

çizim 37744
19 16 596 571 18 299 22 238 571 308 19 21 16 19 19 164 571 18 571 299 43 22 238 22 308 24 546 21 22 596
BalonParca AdiParca NoAdetTipApplied Date
16 PANEL; FRONT,SIDE 1-65471-899-0 01 1 9905-0104
16 PANEL; FRONT,SIDE
WHITE 		1-65472-649-3 01 1 0105-
16 PANEL; FRONT,SIDE 1-65471-898-0 01 1 9905-0104
16 PANEL; FRONT,SIDE
WHITE 		1-65472-648-3 01 1 0105-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-899-2 01 1 9905-
18 SEAL; A-POST UPR,FRT SIDE PANEL 1-71998-898-2 01 1 9905-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-165-4 01 1 9905-0104
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0105-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-164-4 01 1 9905-0104
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0105-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9905-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9905-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905-0104
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0105-
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 12 1 9905-0003
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 12 1 0004-0104
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 0105-0810
22 SCREW; FRT PANEL SIDE
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 14 1 0811-1010
22 SCREW; FRT PANEL SIDE
M5X20 W/PL WASHER TAPPING 		8-97893-344-0 14 1 1011-
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 06 1 9905-0305
24 SEAL; FRT PANEL LWR
OD=25 BLACK 		1-76798-019-0 05 1 0306-
43 GROMMET; LOCATION HOLE,A-POST
OD=45 BLACK 		1-76798-017-0 02 1 9905-
164 SEAL; FRT PILLAR 1-71907-414-0 02 1 9905-
238 SCREW
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 06 1 0105-
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 9905-0301
299 COVER; FRT PANEL SIDE 1-71998-996-1 01 1 0302-
299 COVER; FRT PANEL SIDE 1-71998-995-1 01 1 9905-
308 PLATE; FRT PANEL 1-65472-569-1 01 1 0105-
308 PLATE; FRT PANEL 1-65472-568-1 01 1 0105-
546 PLUG; DUMMY HOLE
OD=16 L=11 		1-76378-155-0 02 1 9905-
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 9905-9905
571 CLIP; SEAL
(A) 		1-09987-228-0 14 1 9905-9912
571 CLIP; SEAL
BODY COLOR ARC WHITE(729) (A) 		1-09987-228-0 14 1 0001-0104
571 CLIP; SEAL
(A) 		1-09987-228-0 16 1 0105-
571 CLIP; SEAL
(B) PINK 		1-09987-256-0 08 1 9905-
571 CLIP; SEAL
(B) NATURAL 		1-09987-257-0 08 1 9905-
571 CLIP; SEAL
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR MARINE BLUE(890),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLORFIRE RED(915) (A) 		1-09987-228-0 16 1 0001-0104
596 VANE; FRONT SIDE 1-65472-407-3 01 1 9905-0104
596 VANE; FRONT SIDE 1-65472-406-3 01 1 9905-0104

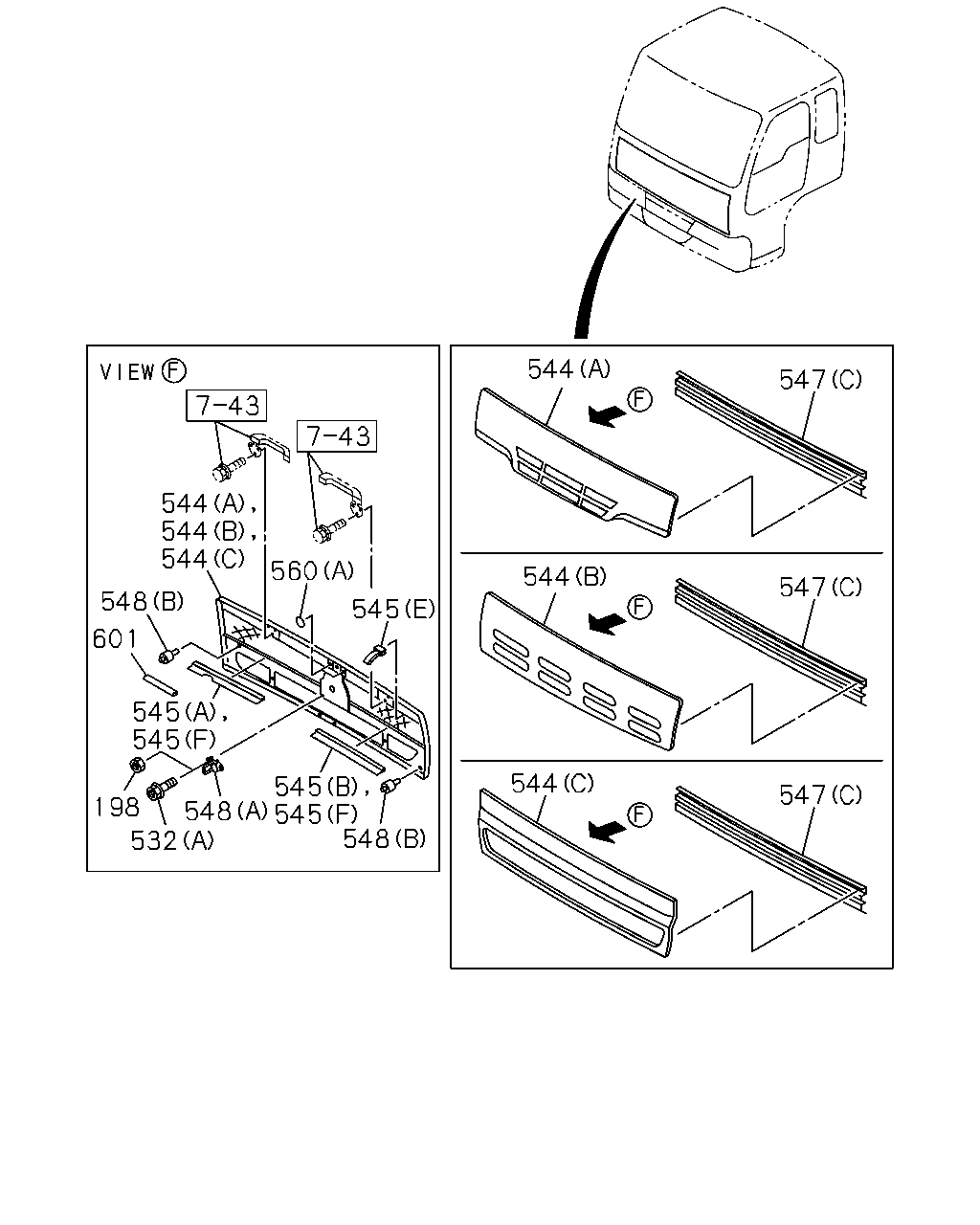

çizim 37963
544 547 544 544 544 560 544 547 548 545 601 545 545 544 545 545 548 547 198 548 532
BalonParca AdiParca NoAdetTipApplied Date
198 NUT; PANEL
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M6 FLANGE 		8-94197-199-0 02 1 9905-0104
532 BOLT; FRT PANEL
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-0104
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-0602
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0603-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9905-
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71107-237-2 01 1 9905-0104
544 LID; FRT
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) 		1-71107-218-3 01 1 9905-0104
544 LID; FRT
(C) WHITE 		1-71107-367-2 01 1 0105-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-0104
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-1 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-0104
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0105-
545 SEAL; FRT LID
(E) 		1-71907-578-0 02 1 0105-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) L=502 		1-71907-471-0 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-0104
545 SEAL; FRT LID
(F) 		1-71907-472-0 02 1 0105-
547 RUBBER; CUSHION
(A) OD=22 L=29 		8-94324-556-2 02 1 9905-
547 RUBBER; CUSHION
(B) OD=22 L=39 		1-71907-419-0 02 1 9905-
547 RUBBER; CUSHION
CAB FRT PANEL CARGO FACE VAR 1<NBH> (C) L=2065 		1-71907-297-3 01 1 9905-0004
547 RUBBER; CUSHION
(C) L=2065 		1-71907-297-3 01 1 0005-0104
547 RUBBER; CUSHION
(C) L=1825 		1-71907-581-1 01 1 0105-
548 STRIKER; FRT LID PANEL
(A) 		1-79317-003-1 01 1 9905-
548 STRIKER; FRT LID PANEL
(B) 		1-79318-008-1 02 1 9905-
560 SEAL; COVER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-0104
560 SEAL; COVER
(A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0105-1105
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9905-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9905-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9905-9907
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-0602
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-0602
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0603-1105
601 FINISHER; LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> L=120 SERVICED BY L=190 		1-71998-300-0 01 1 9905-0104

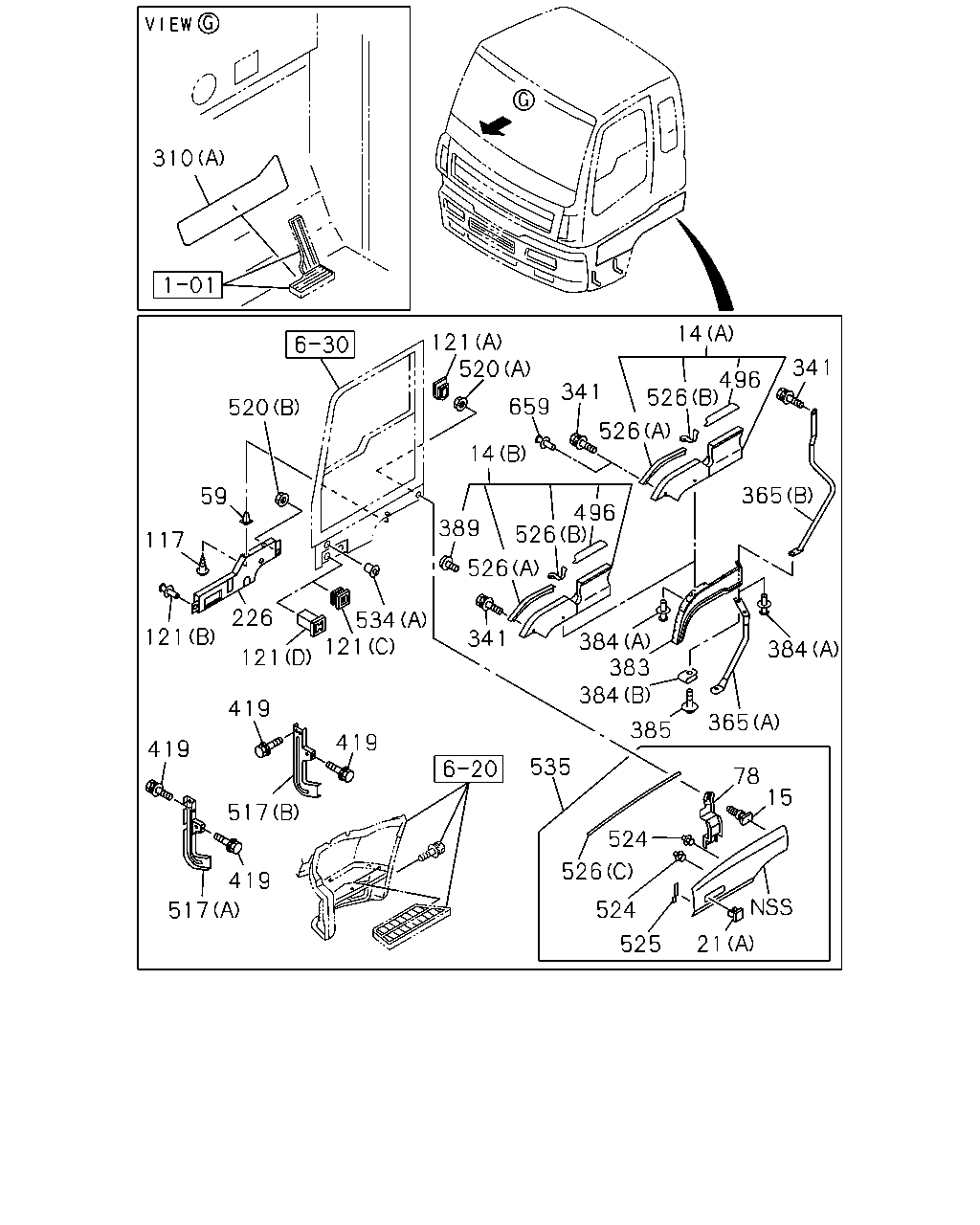

çizim 100079
310 14 121 520 341 496 526 341 659 520 526 14 365 59 496 526 389 117 526 534 121 226 121 341 384 383 384 384 121 419 365 385 419 419 535 78 15 517 524 526 419 524 517 21 525
BalonParca AdiParca NoAdetTipApplied Date
14 FENDER; FRT
(A) WHITE 		1-65472-453-3 01 1 9905-0503
14 FENDER; FRT
(A) WHITE 		1-65472-452-3 01 1 9905-0503
14 FENDER; FRT
(B) 		1-65472-875-9 01 1 0504-0901
14 FENDER; FRT
(B) 		8-98137-384-0 01 1 0902-0910
14 FENDER; FRT
(B) 		8-98154-745-1 01 1 0911-
14 FENDER; FRT
(B) 		1-65472-874-9 01 1 0504-0901
14 FENDER; FRT
(B) 		8-98137-383-0 01 1 0902-0910
14 FENDER; FRT
(B) 		8-98154-744-1 01 1 0911-
15 BOLT; FENDER
M6X7 		1-71268-294-0 04 1 9905-
21 GROMMET; SCREW,FRT SIDE PANEL
(A) D=8.6X7.7 L=7.5 		8-94279-078-0 02 1 9905-
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 12 1 9905-0104
21 GROMMET; SCREW,FRT SIDE PANEL
(B) D=10.5X7 L=10.5 M5 		1-09983-160-3 14 1 0105-
59 GROMMET; SCREW
D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 10 1 9905-
78 BRACKET; FENDER 1-71267-215-0 01 1 9905-
78 BRACKET; FENDER 1-71267-214-0 01 1 9905-
117 SCREW; COVER
M5X16 W/PL WASHER TAPPING 		8-94279-123-0 10 1 9905-
121 GROMMET; FENDER
(A) 		1-09983-162-0 02 1 9905-0602
121 GROMMET; FENDER
(B) D8X13.5 		1-09987-248-1 08 1 9905-
121 GROMMET; FENDER
(C) 14.5X14.5 BLACK 		8-94279-714-0 02 1 9905-0304
121 GROMMET; FENDER
(D) D=7.8X7.8 L=18 NATURAL 		8-94279-043-0 02 1 0305-
226 PROTECTOR; FRT 1-71267-269-1 01 1 9905-
226 PROTECTOR; FRT 1-71267-268-1 01 1 9905-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9905-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9905-
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 18 1 9905-0503
341 BOLT; FENDER TO COWL
M6X16 W/LK&PL WASHER 		1-09980-492-0 16 1 0504-0810
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 16 1 0811-0910
341 BOLT; FENDER TO COWL
M6X20 W/LK&PL WASHER 		1-09980-495-0 14 1 0911-
365 SUPPORT; FENDER
(A) 		1-71907-418-1 01 1 9905-0810
365 SUPPORT; FENDER
(B) 		8-98120-232-0 01 1 0811-
365 SUPPORT; FENDER
(A) 		1-71907-417-1 01 1 9905-0810
365 SUPPORT; FENDER
(B) 		8-98120-231-0 01 1 0811-
383 GUARD; MUD,FENDER LWR 1-71907-457-2 01 1 9905-
383 GUARD; MUD,FENDER LWR 1-71907-456-2 01 1 9905-
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 09 1 9905-0810
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 02 1 0811-
384 CLIP; FENDER LWR
(B) ID=6 		1-09987-266-0 04 1 9905-0810
384 CLIP; FENDER LWR
(A) D8X13.5 		1-09987-248-1 11 1 0811-
385 SCREW; FENDER LWR
M6X25 		1-65481-736-0 04 1 9905-0810
389 SCREW; STAND,FENDER
M6X22 		1-65481-386-0 06 1 0504-
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-94279-208-0 10 1 9905-0904
419 BOLT; STEP
M8X24.5 W/LK&PL WASHER 		8-98059-720-0 10 1 0905-
496 RUBBER; STEP 1-71998-862-2 01 1 9905-
496 RUBBER; STEP 1-71998-861-2 01 1 9905-
517 SUPPORT; STEP PANEL
(A) 		1-65671-767-1 01 1 9905-0208
517 SUPPORT; STEP PANEL
(A) 		1-65671-781-0 01 1 0209-
517 SUPPORT; STEP PANEL
(A) 		1-65671-766-1 01 1 9905-
517 SUPPORT; STEP PANEL
(B) 		1-65671-531-1 01 1 9905-
517 SUPPORT; STEP PANEL
(B) 		1-65671-530-1 01 1 9905-
520 NUT; FENDER
(A) M6 FLANGE W/RUBBER 		1-09984-180-0 02 1 9905-
520 NUT; FENDER
(B) M6 		8-94343-366-1 02 1 9905-
524 CLIP; FENDER COVER
D5.4X8 		1-09983-154-0 08 1 9905-
525 SEAL; FENDER
10X145 		1-71268-281-1 02 1 9905-0409
525 SEAL; FENDER
10X145 		1-71267-342-0 02 1 0410-
526 FINISHER; FENDER
(A) 		1-71998-900-3 02 1 9905-0211
526 FINISHER; FENDER
(A) 		1-71907-641-0 02 1 0212-
526 FINISHER; FENDER
(B) 		1-71907-181-4 01 1 9905-0211
526 FINISHER; FENDER
(B) 		1-71907-643-0 01 1 0212-
526 FINISHER; FENDER
(B) 		1-71907-180-4 01 1 9905-0211
526 FINISHER; FENDER
(B) 		1-71907-642-0 01 1 0212-
526 FINISHER; FENDER
(C) 		1-71268-275-1 02 1 9905-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9905-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9905-
535 FENDER; BLISTER 1-71267-186-2 01 1 9905-0210
535 FENDER; BLISTER 1-71267-294-1 01 1 0211-
535 FENDER; BLISTER 1-71267-185-2 01 1 9905-0210
535 FENDER; BLISTER 1-71267-293-1 01 1 0211-
659 CLIP; FENDER
D8X13.5 		1-09987-248-1 02 1 0911-

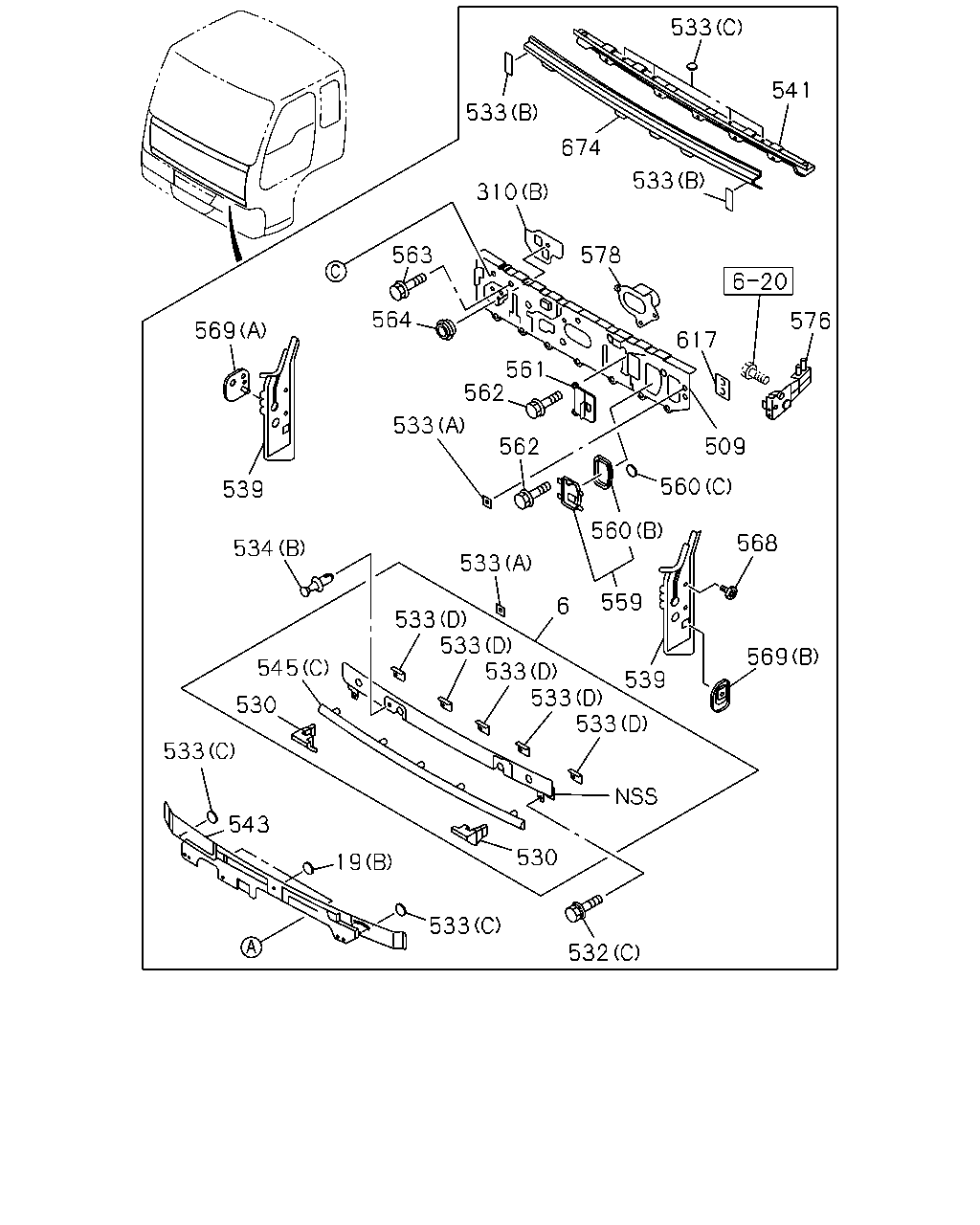

çizim 100131
533 541 533 674 533 310 563 578 564 576 569 617 561 562 533 509 562 560 539 560 568 534 533 559 6 533 533 533 533 533 569 545 539 530 533 543 530 19 533 532
BalonParca AdiParca NoAdetTipApplied Date
6 PANEL; FRONT 1-65472-549-4 01 1 9905-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-165-4 01 1 9905-0104
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-580-1 01 1 0105-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-434-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-164-4 01 1 9905-0104
19 SEAL; FRT SIDE PANEL
(A) 		1-71907-579-1 01 1 0105-1111
19 SEAL; FRT SIDE PANEL
(A) 		8-98208-433-0 01 1 1112-
19 SEAL; FRT SIDE PANEL
(B) OD=45 BLACK 		1-76798-017-0 03 1 9905-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-411-0 01 1 9905-
19 SEAL; FRT SIDE PANEL
(C) 		1-71907-410-0 01 1 9905-
310 SILENCER; FRT PANEL
(A) 		1-72377-007-1 01 1 9905-
310 SILENCER; FRT PANEL
(B) 		1-72377-008-1 01 1 9905-
509 PANEL; DASH 1-62270-478-6 01 1 9905-
530 STOPPER; FRT PANEL,SIDE 1-71907-487-0 01 1 9905-
530 STOPPER; FRT PANEL,SIDE 1-71907-482-1 01 1 9905-
532 BOLT; FRT PANEL
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 9905-0104
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0105-0602
532 BOLT; FRT PANEL
(A) M6X12 W/LK&PL WASHER 		8-94279-200-0 02 1 0603-
532 BOLT; FRT PANEL
(B) M8X29.5 W/LK+PL WASHER 		8-94279-209-0 08 1 9905-
532 BOLT; FRT PANEL
(C) M8X20 		1-79198-002-0 02 1 9905-
533 SEAL; FRT PANEL
(D) L=30 		1-71996-079-2 07 1 0603-
533 SEAL; FRT PANEL
(A) 25X25 		8-94272-533-0 02 1 9905-
533 SEAL; FRT PANEL
(B) 20X65 		1-76778-046-3 02 1 9905-
533 SEAL; FRT PANEL
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 12 1 9905-
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-020-1 08 1 9905-0001
534 FASTENER
(A) ID=5.4 OD=6.8 		1-09989-021-0 08 1 0002-1302
534 FASTENER
(A) ID=5.4 OD=6.8 		8-98241-984-0 08 1 1303-
534 FASTENER
(B) D6X12.5 		8-94146-425-0 02 1 9905-
539 CLOSING; PILLAR 1-61480-674-6 01 1 9905-
539 CLOSING; PILLAR 1-61480-673-6 01 1 9905-
541 PANEL; FRONT,INNER 1-61470-690-0 01 1 9905-
543 CLOSING; FRT MTG RAIL 1-61470-680-4 01 1 9905-0208
543 CLOSING; FRT MTG RAIL 1-61470-716-1 01 1 0209-0505
543 CLOSING; FRT MTG RAIL 1-61470-727-0 01 1 0506-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (A) 		1-71907-154-4 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 1<NBH> (B) 		1-71907-153-3 01 1 9905-0104
545 SEAL; FRT LID
(C) L=2038 		1-71907-481-1 01 1 9905-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (D) OD=25 BLACK 		1-76798-019-0 01 1 9905-0104
545 SEAL; FRT LID
(D) OD=25 BLACK 		1-76798-019-0 01 1 0105-
545 SEAL; FRT LID
(E) 		1-71907-578-0 02 1 0105-
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (E) L=63 		1-71998-963-2 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) L=502 		1-71907-471-0 01 1 9905-0104
545 SEAL; FRT LID
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) L=502 		1-71907-470-0 01 1 9905-0104
545 SEAL; FRT LID
(F) 		1-71907-472-0 02 1 0105-
559 COVER; EVAPOLATOR 1-71996-194-1 01 1 9905-
560 SEAL; COVER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 9905-0104
560 SEAL; COVER
(A) OD=20 T=0.05 BLACK 		5-76777-036-0 02 1 0105-1105
560 SEAL; COVER
(B) 		1-71998-827-1 01 1 9905-
560 SEAL; COVER
EXC. AIR CONDITIONER MANUAL CONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 01 1 9905-
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9905-9907
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-0602
560 SEAL; COVER
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60) (C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 9908-0602
560 SEAL; COVER
(C) OD=36 T=0.05 BLACK 		5-76777-035-0 02 1 0603-1105
561 COVER; HEATER CORE 1-71998-829-1 01 1 9905-
562 BOLT; COVER
M6X19.5 W/LK&PL WASHER 		8-94279-201-0 08 1 9905-
562 BOLT; COVER
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER 		8-94279-201-0 03 1 9905-0104
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 18 1 9905-0202
563 BOLT; DASH PANEL
M8X20 		1-79198-002-0 16 1 0203-
563 BOLT; DASH PANEL
M8X29.5 W/LK+PL WASHER 		8-94279-209-0 02 1 0203-
564 GROMMET; DASH PANEL
OD=23.5 		1-09983-101-0 02 1 9905-
568 PATCH; INST REINF 1-61480-675-2 02 1 9905-
569 PATCH; LWR GRIP
(A) 		1-61480-689-2 01 1 9905-
569 PATCH; LWR GRIP
(B) 		1-61480-736-2 01 1 9905-
576 FRAME; INST SIDE 1-62280-177-7 01 1 9905-
576 FRAME; INST SIDE 1-62280-176-6 01 1 9905-
578 COVER; WIPER MOTOR 1-62280-185-3 01 1 9905-0009
578 COVER; WIPER MOTOR 1-62280-254-1 01 1 0010-
617 SEAL; DASH 1-61281-497-1 02 1 9905-
674 PANEL; UPR 1-61470-688-2 01 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
