Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-60 - ROOF PANEL
▶

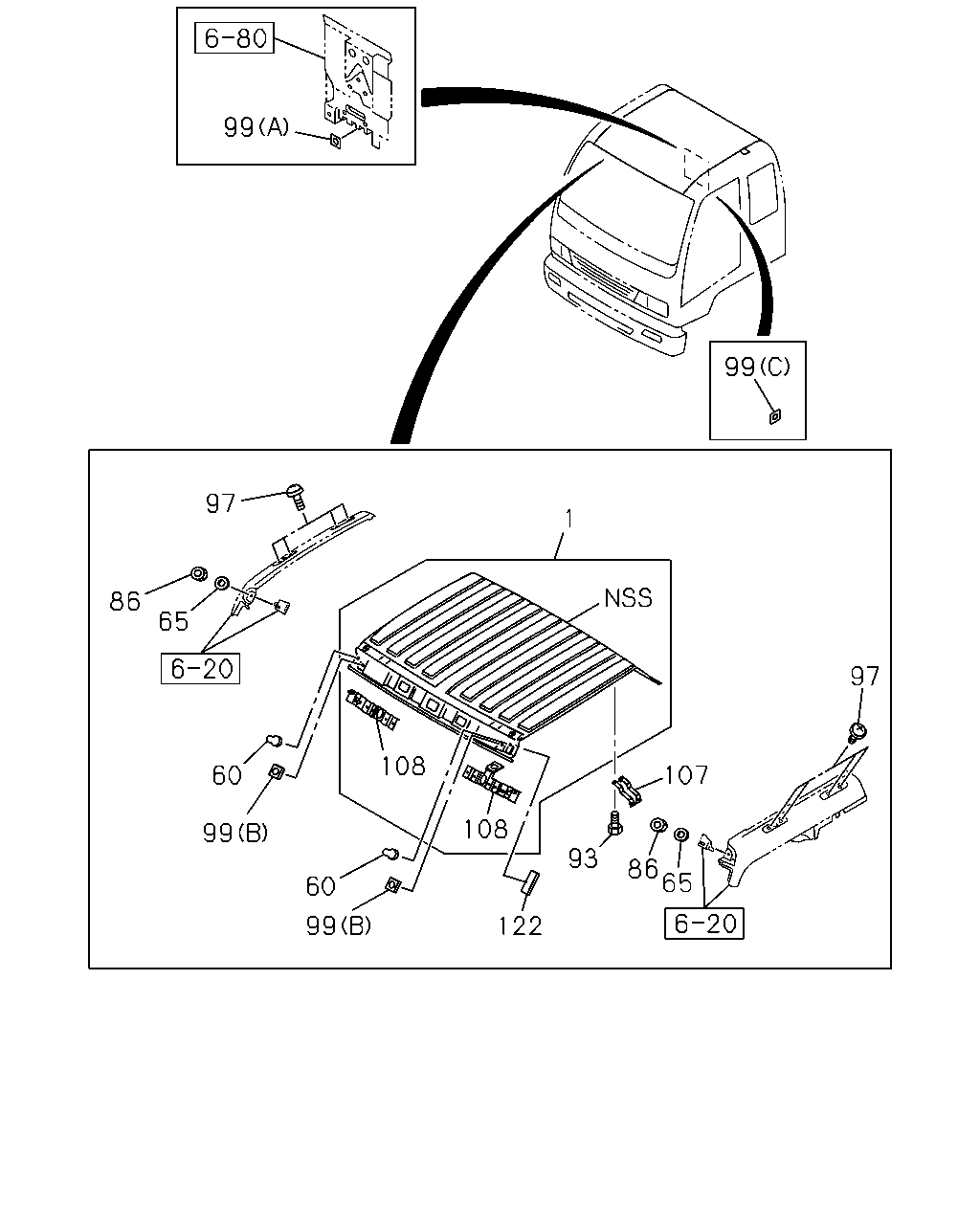

6-60 — ROOF PANEL
(#61660) — 20 parça
99
99
97
1
86
65
97
108
107
60
108
99
93
86
65
60
99
122
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PANEL; ROOF
MAL
1-61181-070-1
01
1
0310-
60
COVER; ROOF
1-79998-922-3
02
1
0310-
65
WASHER; PL
ID=8 T=2.3
8-94368-403-1
01
1
0310-0701
65
WASHER; PL
ID=8 T=2.3
8-98073-399-0
01
1
0702-
86
NUT; ROOF
M8 LOCK NUT
9-09131-508-0
01
1
0310-0603
86
NUT; ROOF
M8 LOCK NUT
0-91370-008-0
01
1
0604-
93
BOLT; SUPPORT
M6X12 W/LK&PL WASHER MAL
8-94279-200-0
10
1
0310-
97
BOLT; AIR DEFLECTOR
M8X15 W/PL WASHER
1-79198-003-2
08
1
0310-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
08
1
0310-
99
SEAL; BODY,METAL
(A) 30X30 ID=20 T=0.7
1-61281-380-2
17
1
0310-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 MAL
1-61281-427-1
08
1
0310-
99
SEAL; BODY,METAL
(B) 30X30 ID=9 T=0.7
1-61281-444-1
02
1
0310-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 MAL
1-61281-427-0
02
1
0310-0403
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 MAL
1-61281-427-1
02
1
0404-
99
SEAL; BODY,METAL
(C) 14X14 ID=10 T=0.7 MAL
1-61281-427-0
04
1
0310-0403
107
SUPPORT; ROOF,RR
1-73318-493-4
02
1
0310-
108
PATCH; MIRROR
MAL
1-61180-956-4
01
1
0310-
108
PATCH; MIRROR
MAL
1-61180-979-4
01
1
0310-
122
SEAL; FRT UPR
1-61270-919-0
02
1
0310-0809
122
SEAL; FRT UPR
1-61270-973-0
02
1
0810-
