Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-03 - RADIATOR GRILLE
▶
6-03 — RADIATOR GRILLE
(#6166) — 22 parça
◀

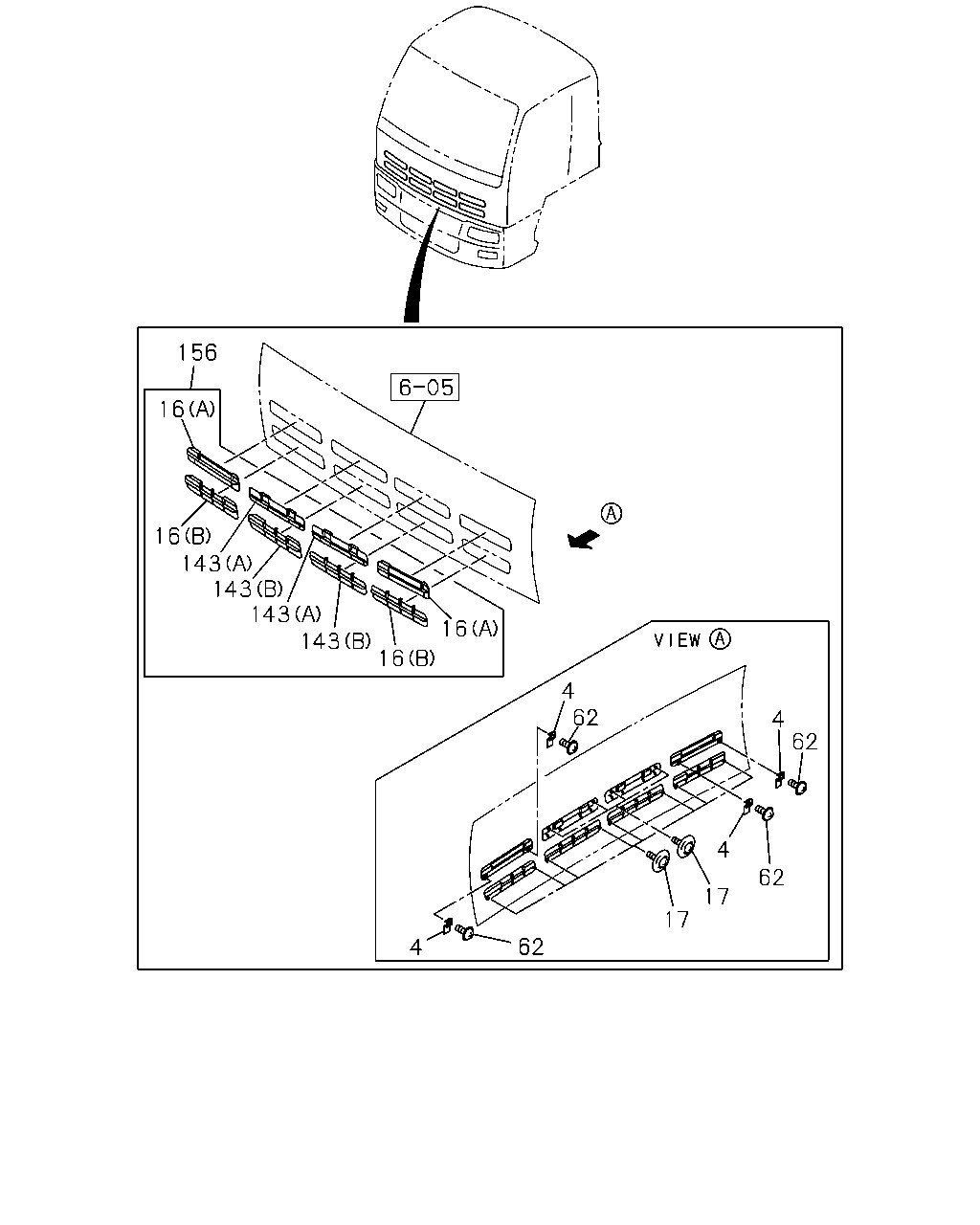

[603A] -'01/4;CAB FRT PANEL CARGO FACE VAR 2 (11 parça)
[603A] '01/5- (7 parça)
[603A] -'01/4;CAB FRT PANEL CARGO FACE VAR 1 (4 parça)
▶
156
16
16
143
143
143
143
16
16
4
62
4
62
4
62
17
17
62
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
BRACKET; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ>
1-71117-239-1
04
1
9905-0104
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER
1-71117-232-5
01
1
9905-0104
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER
1-71117-231-5
01
1
9905-0104
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER
1-71117-234-4
01
1
9905-0104
16
GRILLE; RAD,SIDE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER
1-71117-233-4
01
1
9905-0104
17
SCREW; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5
1-71117-238-1
12
1
9905-0104
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12
1-09981-539-0
04
1
9905-0104
62
SCREW; BRKT,RAD GRILLE
M5X12
1-09981-539-0
02
1
0105-
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (A) UPPER
1-71117-229-3
02
1
9905-0104
143
GRILLE; RAD,CENTER
CAB FRT PANEL CARGO FACE VAR 2<NBJ> (B) LOWER
1-71117-230-4
02
1
9905-0104
156
GRILLE KIT; RAD
CAB FRT PANEL CARGO FACE VAR 2<NBJ>
1-71117-246-2
01
1
9905-0104
1
62
140
140
3
140
140
140
140
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
CAB FRT PANEL CARGO FACE VAR 1<NBH>
1-71117-244-0
01
1
9905-0104
1
GRILLE; RAD
1-71117-252-6
01
1
0105-
3
CLIP; GRILLE
1-71117-251-0
14
1
0105-
62
SCREW; BRKT,RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 2<NBJ> M5X12
1-09981-539-0
04
1
9905-0104
62
SCREW; BRKT,RAD GRILLE
M5X12
1-09981-539-0
02
1
0105-
140
SEAL; RAD GRILLE
(A)
1-71117-254-2
02
1
0105-
140
SEAL; RAD GRILLE
(B)
1-71117-255-0
04
1
0105-
90
50
90
1
90
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
GRILLE; RAD
CAB FRT PANEL CARGO FACE VAR 1<NBH>
1-71117-244-0
01
1
9905-0104
1
GRILLE; RAD
1-71117-252-6
01
1
0105-
50
BOLT; GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6X19.5 W/LK&PL WASHER
8-94279-201-0
02
1
9905-0104
90
NUT; RAD GRILLE
CAB FRT PANEL CARGO FACE VAR 1<NBH> M6 CAP NUT FLANGE
1-65471-734-0
13
1
9905-0104
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
