◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-01 - FRONT BUMPER ▶
6-01 — FRONT BUMPER (#6165) — 243 parça

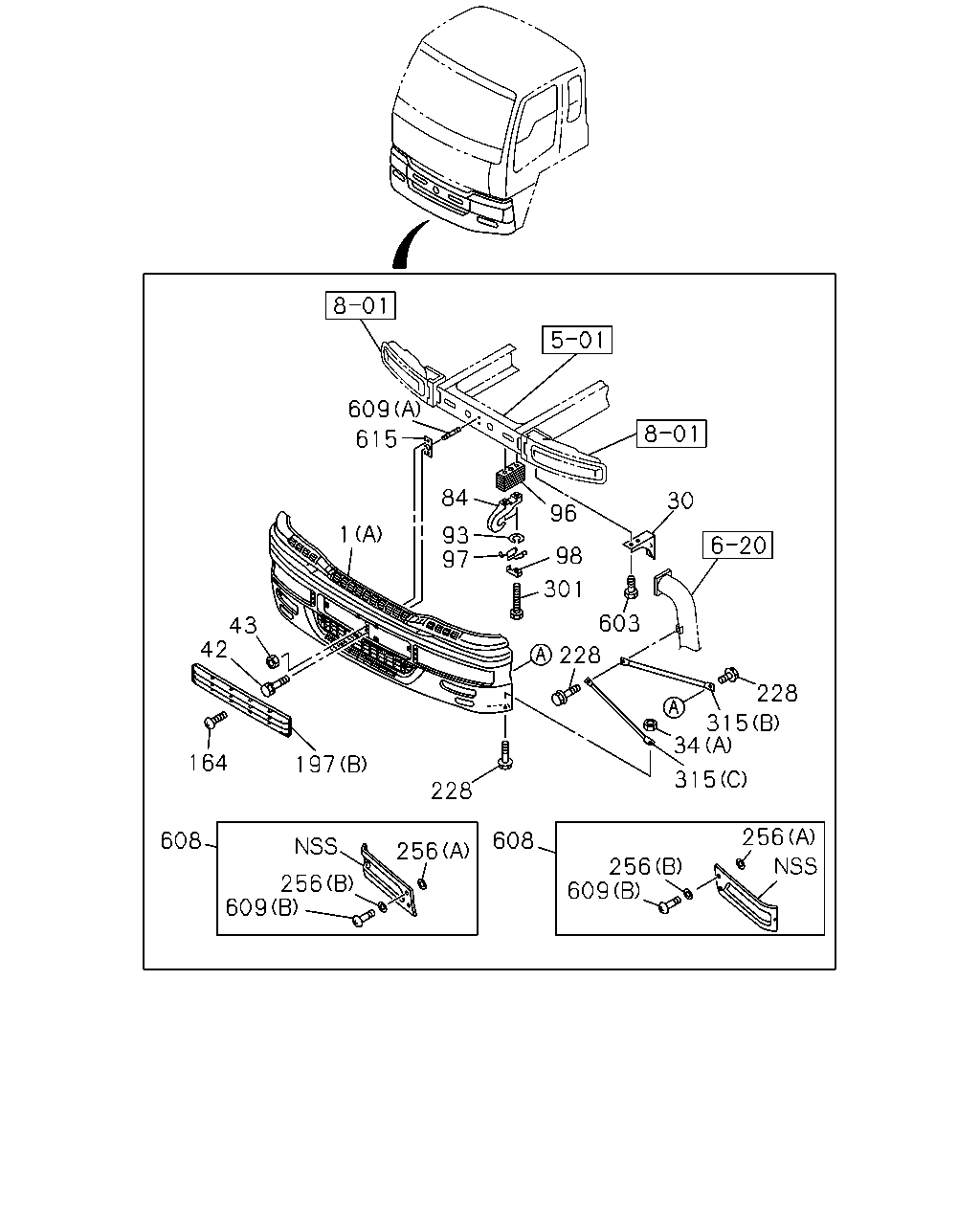

çizim 37598
609 615 84 30 96 1 93 97 98 301 603 43 42 228 228 315 34 164 197 315 228 256 608 608 256 256 609 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
(A) 		1-71210-870-3 01 1 9905-0004
1 BUMPER ASM; FRT
FOG LAMP<T96> (A) 		1-71210-870-4 01 1 0005-0301
1 BUMPER ASM; FRT
EXC. FOG LAMP<T96> (A) WHITE 		1-71210-746-4 01 1 0005-0301
1 BUMPER ASM; FRT
(A) 		1-71210-870-4 01 1 0302-0410
1 BUMPER ASM; FRT
(A) 		1-71210-870-5 01 1 0411-0602
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-419-2 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-430-0 01 1 9905-0602
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-431-0 01 1 9905-0602
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0603-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 9905-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 07 1 9905-0512
42 BOLT; BUMPER
M10X25 FLANGE 		0-28651-025-0 07 1 0601-0602
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0603-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 9905-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0603-0603
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603-
84 HOOK 1-57181-027-1 01 1 9905-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9905-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-560-0 01 1 9905-0602
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0603-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9905-0602
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0603-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9905-0602
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0603-
164 SCREW; AIR INT GRILLE
M6X20 		1-71260-141-0 06 1 9905-0602
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0603-0610
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611-
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0603-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0603-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 9905-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-0602
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 9905-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 9905-
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 9905-0512
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 0601-0602
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0603-
301 BOLT; HOOK TO FRAME
M16X80 		0-10811-680-0 01 1 9905-0512
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 0601-0602
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0603-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 9905-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 9905-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 9905-0602
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		1-71230-382-0 02 1 9905-0004
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0005-0602
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0602
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0603-
608 LID; BUMPER 1-71210-753-4 01 1 9905-
608 LID; BUMPER 1-71210-752-4 01 1 9905-
609 STUD; BUMPER
(A) M10X28,M10X15 L=50 		5-09300-050-0 01 1 9905-
609 STUD; BUMPER
(B) 		1-71260-175-0 06 1 9905-
615 BRACKET; BUMPER CENTER 1-71230-407-0 01 1 9905-0602

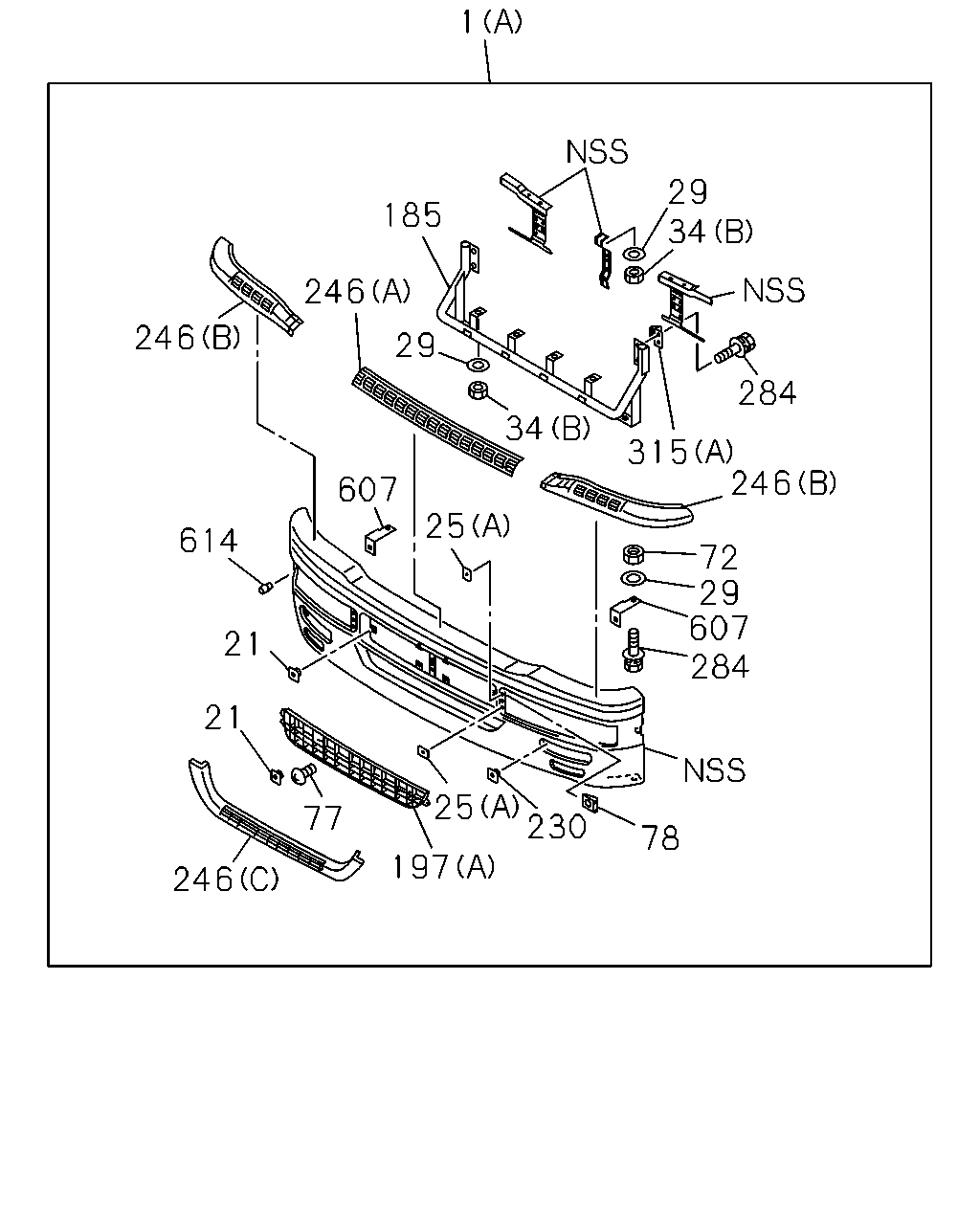

çizim 37878
1 29 34 185 246 246 29 34 284 315 246 607 25 614 72 29 607 284 21 21 25 230 77 78 197 246
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
(A) 		1-71210-870-3 01 1 9905-0004
1 BUMPER ASM; FRT
FOG LAMP<T96> (A) 		1-71210-870-4 01 1 0005-0301
1 BUMPER ASM; FRT
EXC. FOG LAMP<T96> (A) WHITE 		1-71210-746-4 01 1 0005-0301
1 BUMPER ASM; FRT
(A) 		1-71210-870-4 01 1 0302-0410
1 BUMPER ASM; FRT
(A) 		1-71210-870-5 01 1 0411-0602
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-419-2 01 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 24 1 9905-0211
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 10 1 0212-0602
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 14 1 0212-0602
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 22 1 0603-
25 SPACER; PLATFORM
(A) 		1-71260-162-0 06 1 9905-0602
25 SPACER; PLATFORM
(B) 		1-71230-640-0 01 1 0603-
29 WASHER; FRT BUMPER
ID=8.4 		9-09160-508-0 21 1 9905-0211
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0212-0602
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0603-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 9905-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
72 NUT; BRKT
M8 		9-09110-508-0 04 1 9905-0211
72 NUT; BRKT
M8 		9-09110-508-0 02 1 0212-0512
72 NUT; BRKT
M8 		0-91110-508-0 02 1 0601-0602
77 SCREW; BRKT
M5X12 		9-93490-512-0 16 1 9905-0211
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 14 1 0212-0602
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 22 1 0603-0603
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0604-
78 NUT; SPIRE 1-71260-152-0 04 1 9905-0211
78 NUT; SPIRE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) FOG LAMP<T96> 		1-71260-152-0 06 1 0212-0301
78 NUT; SPIRE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-71260-152-0 06 1 0302-0410
78 NUT; SPIRE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		1-71260-174-0 06 1 0212-0301
78 NUT; SPIRE
EXC. FOG LAMP<T96> 		1-71260-174-0 06 1 0212-0301
78 NUT; SPIRE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71260-174-0 06 1 0302-0410
78 NUT; SPIRE 1-71260-174-0 06 1 0411-0610
185 BRACKET; BUMPER,INNER 1-71230-406-0 01 1 9905-0211
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0603-0610
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611-
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0603-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0603-
230 NUT; BRK,HD LAMP,LWR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 9905-0602
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0603-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 9905-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 9905-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 9905-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 9905-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9905-0211
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0212-0512
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-0602
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9905-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 9905-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 9905-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 9905-0602
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		1-71230-382-0 02 1 9905-0004
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0005-0602
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
607 BRACKET 1-71230-454-0 02 1 9905-0602
614 STOPPER; LID 1-71260-163-0 12 1 9905-

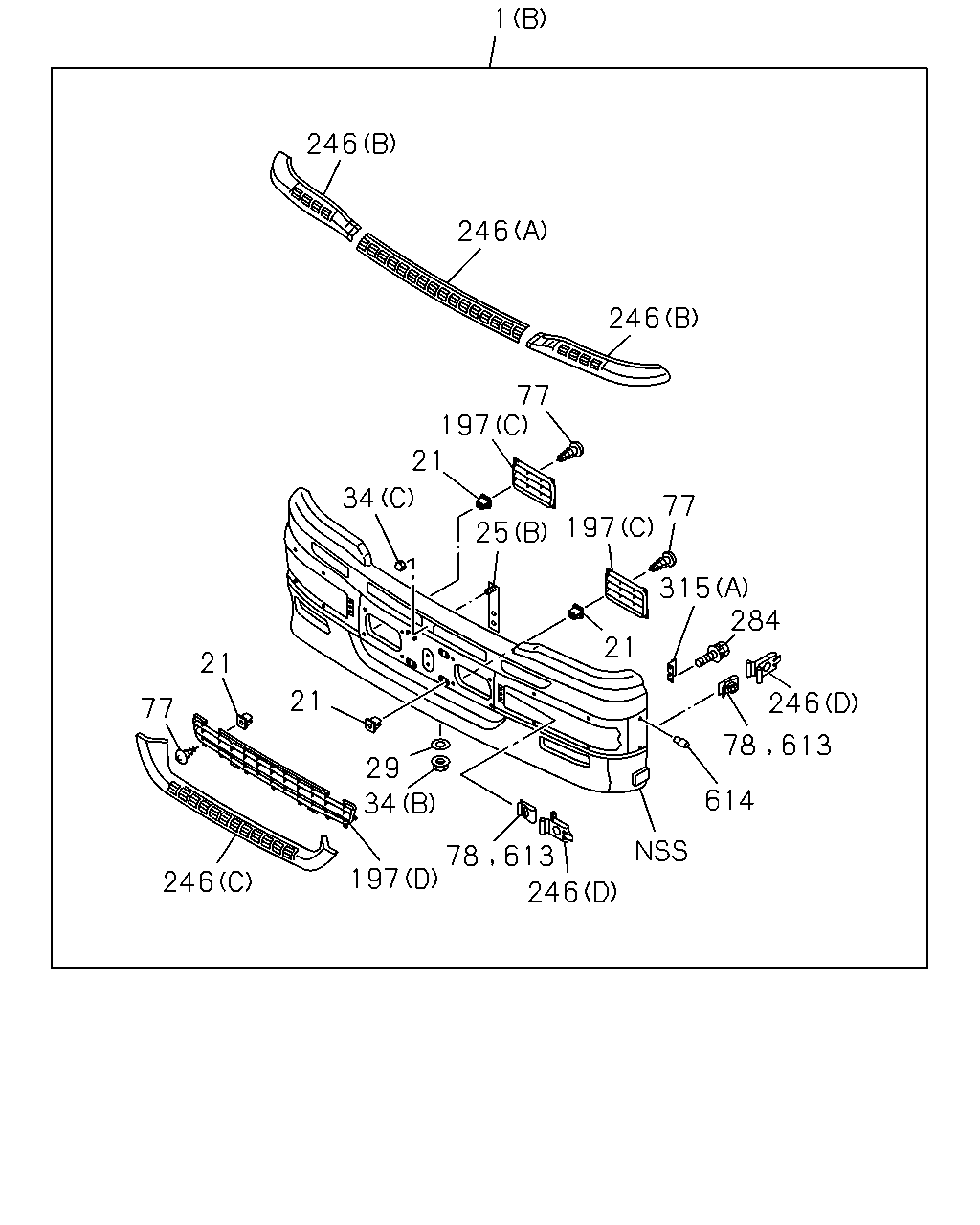

çizim 37895
1 246 246 246 77 197 21 34 77 197 25 315 284 21 21 21 246 77 29 614 34 197 246 246 78 613 78 613
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
(A) 		1-71210-870-3 01 1 9905-0004
1 BUMPER ASM; FRT
FOG LAMP<T96> (A) 		1-71210-870-4 01 1 0005-0301
1 BUMPER ASM; FRT
EXC. FOG LAMP<T96> (A) WHITE 		1-71210-746-4 01 1 0005-0301
1 BUMPER ASM; FRT
(A) 		1-71210-870-4 01 1 0302-0410
1 BUMPER ASM; FRT
(A) 		1-71210-870-5 01 1 0411-0602
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-419-2 01 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 24 1 9905-0211
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 10 1 0212-0602
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9.7X9.7 L=8 		8-94222-314-0 04 1 0603-
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 14 1 0212-0602
21 GROMMET; SCREW,BUMPER PROTECTOR
D=9X9 L=7 M5 		8-94163-979-0 22 1 0603-
25 SPACER; PLATFORM
(A) 		1-71260-162-0 06 1 9905-0602
25 SPACER; PLATFORM
(B) 		1-71230-640-0 01 1 0603-
29 WASHER; FRT BUMPER
ID=8.4 		9-09160-508-0 21 1 9905-0211
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 19 1 0212-0602
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		9-09160-708-0 17 1 0603-0605
29 WASHER; FRT BUMPER
ID=8.4 OD=22 		0-91610-708-0 17 1 0606-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 9905-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
77 SCREW; BRKT
M5X12 		9-93490-512-0 16 1 9905-0211
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 14 1 0212-0602
77 SCREW; BRKT
M5X16 TAPPING 		9-07076-516-0 22 1 0603-0603
77 SCREW; BRKT
M5X16 TAPPING 		0-71240-516-0 22 1 0604-
78 NUT; SPIRE 1-71260-152-0 04 1 9905-0211
78 NUT; SPIRE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) FOG LAMP<T96> 		1-71260-152-0 06 1 0212-0301
78 NUT; SPIRE
BODY COLOR CARDINAL RED(736),BODY COLOR SAHARA BEIGE(829),BODY COLOR GOLDEN YELLOW(904),BODY COLOR LIME GREEN(911),BODY COLOR FIRE RED(915) 		1-71260-152-0 06 1 0302-0410
78 NUT; SPIRE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) FOG LAMP<T96> 		1-71260-174-0 06 1 0212-0301
78 NUT; SPIRE
EXC. FOG LAMP<T96> 		1-71260-174-0 06 1 0212-0301
78 NUT; SPIRE
BODY COLOR ARC WHITE(729),BODY COLOR MARINE BLUE(890) 		1-71260-174-0 06 1 0302-0410
78 NUT; SPIRE 1-71260-174-0 06 1 0411-0610
197 GRILLE; BUMPER
(D) 		1-71260-210-1 01 1 0603-0610
197 GRILLE; BUMPER
(D) 		8-97617-998-0 01 1 0611-
197 GRILLE; BUMPER
(A) 		1-71260-117-0 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-115-1 01 1 0603-
197 GRILLE; BUMPER
(B) 		1-71260-157-2 01 1 9905-0602
197 GRILLE; BUMPER
(C) 		1-71260-116-1 01 1 0603-
246 PROTECTOR; BUMPER
(D) 		1-71260-162-0 06 1 0603-
246 PROTECTOR; BUMPER
(A) 		1-71260-155-1 01 1 9905-
246 PROTECTOR; BUMPER
(B) 		1-71260-095-2 01 1 9905-
246 PROTECTOR; BUMPER
(B) 		1-71260-094-2 01 1 9905-
246 PROTECTOR; BUMPER
(C) 		1-71260-156-1 01 1 9905-
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 04 1 9905-0211
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50140-820-0 02 1 0212-0512
284 BOLT; BRKT
M8X20 W/LK&PL WASHER 		0-50640-820-0 02 1 0601-0602
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50140-825-0 04 1 9905-0512
284 BOLT; BRKT
M8X25 W/LK&PL WASHER 		0-50640-825-0 04 1 0601-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 9905-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 9905-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 9905-0602
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		1-71230-382-0 02 1 9905-0004
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0005-0602
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
613 CLIP 1-71260-174-0 06 1 0611-
614 STOPPER; LID 1-71260-163-0 12 1 9905-

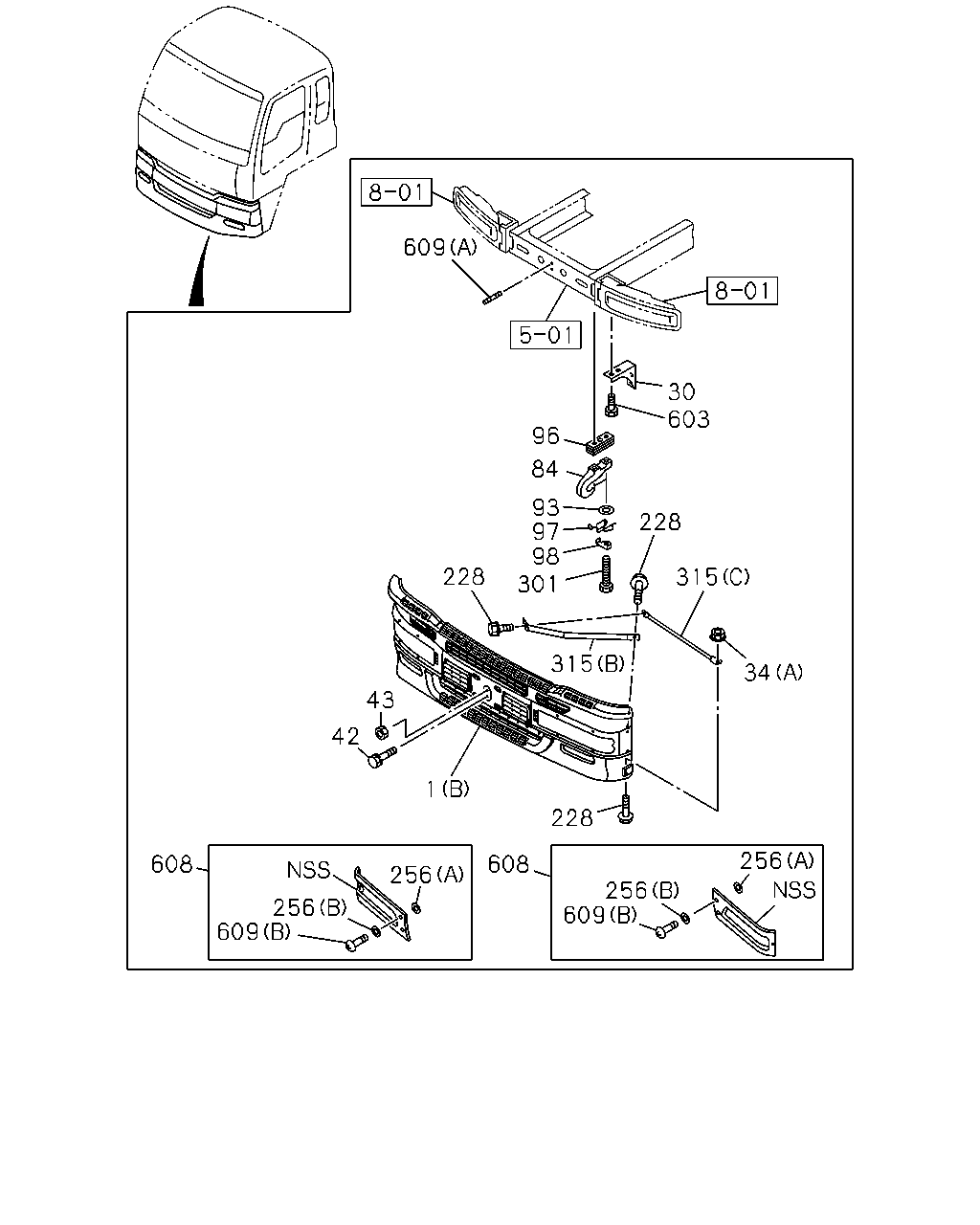

çizim 38595
609 30 603 96 84 93 97 98 301 228 228 315 315 34 43 42 1 228 256 608 608 256 256 609 256 609
BalonParca AdiParca NoAdetTipApplied Date
1 BUMPER ASM; FRT
(A) 		1-71210-870-3 01 1 9905-0004
1 BUMPER ASM; FRT
FOG LAMP<T96> (A) 		1-71210-870-4 01 1 0005-0301
1 BUMPER ASM; FRT
EXC. FOG LAMP<T96> (A) WHITE 		1-71210-746-4 01 1 0005-0301
1 BUMPER ASM; FRT
(A) 		1-71210-870-4 01 1 0302-0410
1 BUMPER ASM; FRT
(A) 		1-71210-870-5 01 1 0411-0602
1 BUMPER ASM; FRT
(B) WHITE 		1-71211-419-2 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-430-0 01 1 9905-0602
30 BRACKET; FRT BUMPER 1-71230-428-0 01 1 0603-
30 BRACKET; FRT BUMPER 1-71230-431-0 01 1 9905-0602
30 BRACKET; FRT BUMPER 1-71230-429-0 01 1 0603-
34 NUT; BRKT,BUMPER
(C) M10 CAP NUT 		1-09650-480-0 01 1 0603-
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 02 1 9905-0602
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91150-108-0 04 1 0603-0603
34 NUT; BRKT,BUMPER
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91150-108-0 17 1 9905-0602
34 NUT; BRKT,BUMPER
(B) M8 FLANGE 		0-91180-108-0 17 1 0603-
42 BOLT; BUMPER
M10X25 FLANGE 		0-28681-025-0 07 1 9905-0512
42 BOLT; BUMPER
M10X25 FLANGE 		0-28651-025-0 07 1 0601-0602
42 BOLT; BUMPER
M10X30 W/LK&PL WASHER 		8-94279-213-0 09 1 0603-
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 02 1 9905-0602
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91150-210-0 01 1 0603-0603
43 NUT; BRKT TO BUMPER
M10 FLANGE 		0-91180-210-0 01 1 0603-
84 HOOK 1-57181-027-1 01 1 9905-
93 WASHER; LK,HOOK
ID=16.2 		9-09150-516-0 02 1 9905-0603
93 WASHER; LK,HOOK
ID=16.2 		0-91510-516-0 02 1 0604-
96 PLATE; DIST,HOOK 1-53497-560-0 01 1 9905-0602
96 PLATE; DIST,HOOK 1-53497-473-0 01 1 0603-
97 SPRING; FRT HOOK 9-53519-003-0 01 1 9905-0602
97 SPRING; FRT HOOK 9-53519-003-0 01 1 0603-
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 9905-0602
98 STOPPER; SPR,FRT HOOK 9-53519-006-0 01 1 0603-
228 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 06 1 9905-0512
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0601-0602
228 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 06 1 0603-
256 WASHER; PL
(A) 		1-71260-173-0 06 1 9905-
256 WASHER; PL
(B) ID=6.5 OD=14 T=1.2 NYLON 		5-09985-028-0 06 1 9905-
301 BOLT; HOOK TO FRAME
M16X70 		0-10811-670-0 01 1 9905-0512
301 BOLT; HOOK TO FRAME
M16X70 		0-10861-670-0 01 1 0601-0602
301 BOLT; HOOK TO FRAME
M16X95 		0-10811-695-0 01 1 0603-
301 BOLT; HOOK TO FRAME
M16X80 		0-10811-680-0 01 1 9905-0512
301 BOLT; HOOK TO FRAME
M16X80 		0-10861-680-0 01 1 0601-0602
301 BOLT; HOOK TO FRAME
M16X90 		0-10861-690-0 01 1 0603-
315 STAY; BUMPER
(A) 		1-71230-346-2 01 1 9905-
315 STAY; BUMPER
(A) 		1-71230-347-2 01 1 9905-
315 STAY; BUMPER
(B) 		1-71230-408-0 02 1 9905-0602
315 STAY; BUMPER
(B) 		1-71230-435-0 02 1 0603-
315 STAY; BUMPER
(C) 		1-71230-382-0 02 1 9905-0004
315 STAY; BUMPER
(C) 		1-71230-501-0 02 1 0005-0602
315 STAY; BUMPER
(C) 		8-97608-941-0 02 1 0603-
603 BOLT; BRKT
M8X25 FLANGE 		0-28680-825-0 04 1 9905-0512
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0601-0602
603 BOLT; BRKT
M8X25 FLANGE 		0-28650-825-0 04 1 0603-
608 LID; BUMPER 1-71210-753-4 01 1 9905-
608 LID; BUMPER 1-71210-752-4 01 1 9905-
609 STUD; BUMPER
(A) M10X28,M10X15 L=50 		5-09300-050-0 01 1 9905-
609 STUD; BUMPER
(B) 		1-71260-175-0 06 1 9905-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
