Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

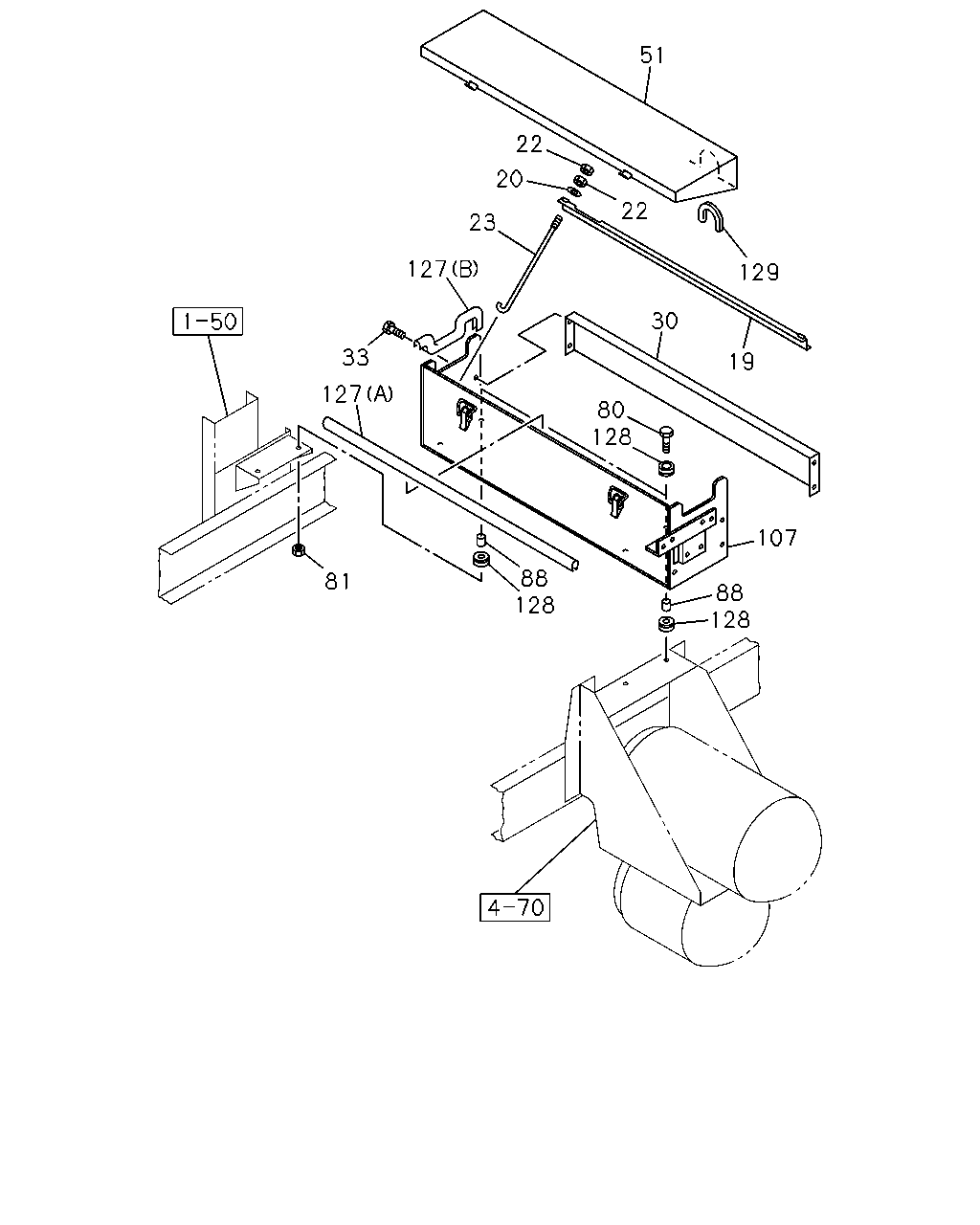

5-20 — BATTERY CARRIER
(#6164) — 23 parça
51
22
20
22
23
127
129
30
33
19
127
80
128
107
88
128
81
88
128
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
19
STAY; BATTERY
1-53618-050-0
01
1
9905-
20
WASHER; PL,STAY
ID=8.4 OD=22
9-09164-708-0
02
1
9905-0605
20
WASHER; PL,STAY
ID=8.4 OD=22
0-91614-708-0
02
1
0606-
22
NUT; STAY
M8
9-09110-408-0
04
1
9905-0512
22
NUT; STAY
M8
0-91110-508-0
04
1
0601-
23
BOLT; STAY
L=260
1-53616-109-0
02
1
9905-
30
PLATE; BATTERY
1-53619-104-0
01
1
9905-
33
BOLT; PLATE TO BRKT
M8X20 FLANGE
0-28680-820-0
04
1
9905-0203
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28080-816-0
04
1
0204-0512
33
BOLT; PLATE TO BRKT
M8X16 FLANGE
0-28050-816-0
04
1
0601-
51
COVER; BATTERY
1-53612-055-0
01
1
9905-
80
BOLT; BATTERY
M10X50 FLANGE
0-28081-050-0
04
1
9905-0512
80
BOLT; BATTERY
M10X50 FLANGE
0-28051-050-0
04
1
0601-
81
NUT; BATTERY
M8 FLANGE
0-91150-108-0
02
1
9905-0602
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
0603-
88
TUBE; BATTERY
L=22
9-22159-024-0
04
1
9905-
107
BOX; BATTERY
1-53610-141-1
01
1
9905-
127
FINISHER; BATTERY BOX
(A) L=985
1-79937-721-2
01
1
9905-
127
FINISHER; BATTERY BOX
(B)
8-94271-640-0
02
1
9905-0602
127
FINISHER; BATTERY BOX
(B) SERVICED BY L=500
1-79937-746-0
02
1
0603-
128
RUBBER; SUPPORT
OD=40
1-22159-094-0
08
1
9905-
129
FINISHER; COVER
L=2040
1-71997-513-1
02
1
9905-0602
129
FINISHER; COVER
L=250 SERVICED BY L=500
1-79937-746-0
02
1
0603-
