2 |

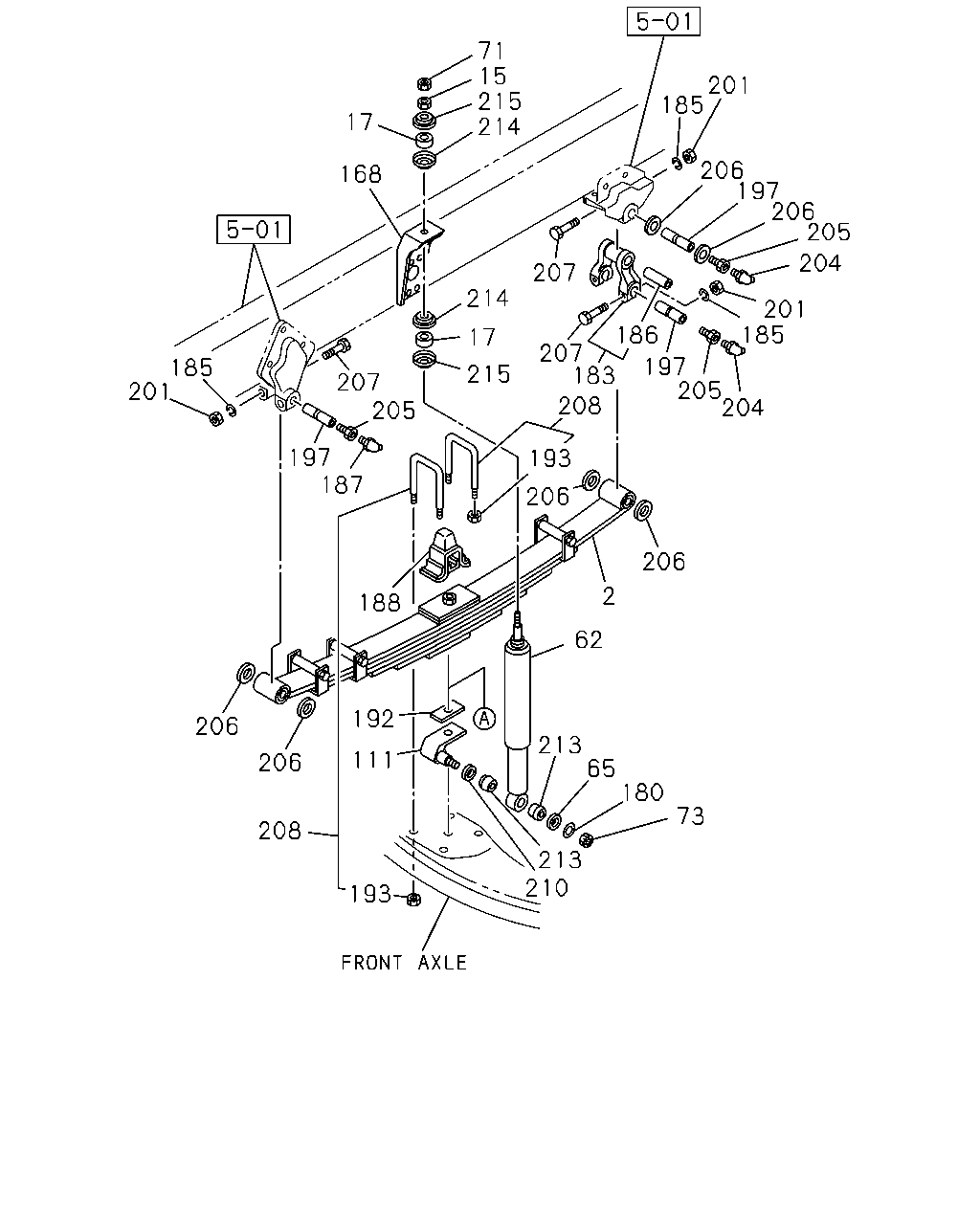

SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
7-LEAF
|
1-51130-345-0 |
01 |
1 |
0310-0310 |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
FRONT STABILIZER SHAFT<F59>
7-LEAF
|
1-51130-475-0 |
01 |
1 |
0310-0310 |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
EXC. FRONT STABILIZER SHAFT<F59>
8-LEAF
MAL
|
1-51130-343-0 |
02 |
1 |
0310-0310 |
| |
2 |
SPRING ASM; LEAF,FRT
SEE FIG-NO 4-55 FOR COMPONENT.
8-LEAF
MAL
|
1-51130-343-0 |
02 |
1 |
0311- |
| |
15 |
NUT; S/ABS,UPR
M12
|
1-09400-006-0 |
02 |
1 |
0310-0910 |
| |
15 |
NUT; S/ABS,UPR
M12
|
8-98010-412-0 |
02 |
1 |
0911- |
| |
17 |
BUSHING; RUBBER,S/ABS
MAL
|
9-51631-050-0 |
04 |
1 |
0310- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
MAL
|
1-51630-180-4 |
02 |
1 |
0310- |
| |
62 |
ABSORBER ASM; SHOCK,FRT
BEST VALUE PARTS
MAL
|
1-87610-153-0 |
02 |
1 |
0310-1412 |
| |
65 |
WASHER; S/ABS
ID=23
|
1-51631-019-0 |
02 |
1 |
0310- |
| |
71 |
NUT; LK,S/ABS,UPR
M12
|
1-09400-006-0 |
02 |
1 |
0310-0910 |
| |
71 |
NUT; LK,S/ABS,UPR
M12
|
8-98010-412-0 |
02 |
1 |
0911- |
| |
73 |
NUT; BRKT,SHOCK
M16
|
9-99110-416-0 |
02 |
1 |
0310-0512 |
| |
73 |
NUT; BRKT,SHOCK
M16
|
0-91110-516-0 |
02 |
1 |
0601- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
1-51681-721-1 |
01 |
1 |
0310-1004 |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
8-98153-482-0 |
01 |
1 |
1005- |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
1-51681-720-1 |
01 |
1 |
0310-1004 |
| |
111 |
SUPPORTER; S/ABS,FRT SUSP
EXC. FRONT STABILIZER SHAFT<F59>
|
8-98153-481-0 |
01 |
1 |
1005- |
| |
168 |
BRACKET; S/ABS,FRT SUSP
|
1-51681-306-0 |
02 |
1 |
0310- |
| |
180 |
WASHER; PL,PIN
ID=17
|
9-09160-516-0 |
02 |
1 |
0310-0605 |
| |
180 |
WASHER; PL,PIN
ID=17 OD=30
|
0-91610-516-0 |
02 |
1 |
0606- |
| |
183 |
SHACKLE; FRT SUSP
|
1-51162-029-5 |
02 |
1 |
0310- |
| |
185 |
WASHER; LK,PIN
ID=12.2
MAL
|
9-09150-612-0 |
12 |
1 |
0310-0603 |
| |
185 |
WASHER; LK,PIN
ID=12.2
MAL
|
0-91510-612-0 |
12 |
1 |
0604- |
| |
186 |
BUSHING; SHACKLE
OD=38
MAL
|
1-51351-009-0 |
02 |
1 |
0310-0902 |
| |
186 |
BUSHING; SHACKLE
OD=38
|
8-98081-829-0 |
02 |
1 |
0903- |
| |
187 |
NIPPLE; GREASE,FRT
PT1/8 ELBOW
|
9-09031-210-0 |
02 |
1 |
0310-0512 |
| |
187 |
NIPPLE; GREASE,FRT
PT1/8 ELBOW
|
0-90301-610-0 |
02 |
1 |
0601- |
| |
188 |
RUBBER; CLAMP,U-BOLT,FRT SPR
|
1-51172-088-1 |
02 |
1 |
0310- |
| |
192 |
PIECE; DIST
EXC. FRONT STABILIZER SHAFT<F59>
80X144 ID=17.5
|
1-51177-284-1 |
01 |
1 |
0310- |
| |
193 |
NUT; U BOLT
M22
|
9-09112-822-0 |
08 |
1 |
0310-0512 |
| |
193 |
NUT; U BOLT
M22
|
0-91112-822-0 |
08 |
1 |
0601-1206 |
| |
193 |
NUT; U BOLT
M22
|
8-98179-318-0 |
08 |
1 |
1207- |
| |
197 |
PIN; FRT SPR,FRT
MAL
|
1-51161-031-0 |
06 |
1 |
0310- |
| |
201 |
NUT; PIN LK
M12
|
9-99110-512-0 |
12 |
1 |
0310-0512 |
| |
201 |
NUT; PIN LK
M12
MAL
|
0-91110-512-0 |
12 |
1 |
0601- |
| |
204 |
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
0310-0512 |
| |
204 |
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
0310-0512 |
| |
204 |
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
| |
204 |
NIPPLE; GREASE,RR
PT1/8 STRAIGHT
|
0-90301-410-0 |
02 |
1 |
0601- |
| |
205 |
ATTACHMENT; GREASE NIPPLE
|
9-43165-001-0 |
06 |
1 |
0310- |
| |
206 |
WASHER; LK,SPRING PIN
ID=32.4
|
1-51169-018-0 |
12 |
1 |
0310- |
| |
207 |
BOLT; SPR TO SHACKLE
M12X80
MAL
|
0-10806-280-0 |
12 |
1 |
0310-0512 |
| |
207 |
BOLT; SPR TO SHACKLE
M12X80
MAL
|
0-10856-280-0 |
12 |
1 |
0601- |
| |
208 |
U-BOLT SET; FRT SPRING
L=210
|
1-87870-380-2 |
04 |
1 |
0310- |
| |
210 |
WASHER; S/ABS,OUTER
ID=17
|
1-51631-020-0 |
02 |
1 |
0310- |
| |
213 |
BUSHING; RUBBER,LWR
MAL
|
1-51631-009-1 |
04 |
1 |
0310- |
| |
214 |
WASHER; S/ABS,UPR,INNER
ID=16.8
|
1-51631-022-0 |
04 |
1 |
0310- |
| |
215 |
WASHER; S/ABS,UPR,OUTER
ID=14.5
|
9-51631-051-0 |
04 |
1 |
0310- |
