◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11366 - FTR(MALAYSIA)W/B4600 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-40 - STEERING UNIT ▶
4-40 — STEERING UNIT (#61636) — 63 parça
çizim 174286
2 73 47 44 46 48 47 46 47 46 47 46 47 47 132 7 46 11 12 12 11 27
BalonParca AdiParca NoAdetTipApplied Date
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-834-4 		1-85574-030-0 01 1 -1003
2 REPAIR KIT; STRG UNIT,2 YEAR
2 YEAR ASM PART: A = 1-44000-834-4 		8-98176-079-0 01 1 1004-
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98159-116-0 01 1 1003-
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-226-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44269-035-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-262-0 01 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98166-307-0 01 1 1004-
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-227-0 01 1 -

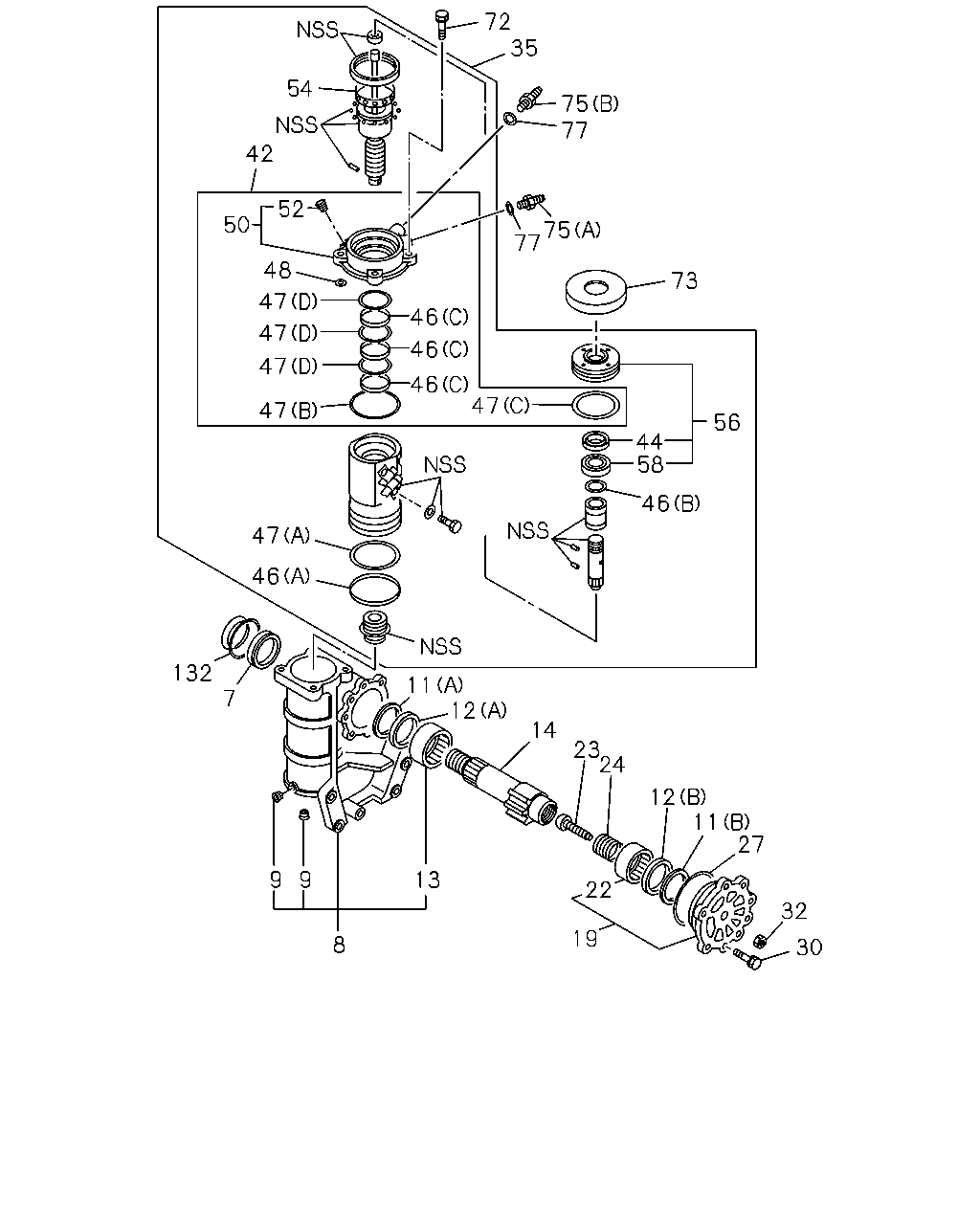

çizim 174287
72 35 54 75 77 42 52 50 75 77 48 73 47 46 47 46 47 46 47 47 56 44 58 46 47 46 132 11 12 7 14 23 24 12 11 27 9 9 13 22 32 19 8 30
BalonParca AdiParca NoAdetTipApplied Date
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-041-0 01 1 -1002
7 SEAL; SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98159-116-0 01 1 1003-
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44240-110-0 01 1 -1002
8 BOX ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98159-754-0 01 1 1003-
9 PLUG; FILLER,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-071-0 02 1 -
11 RING; BACKUP,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44249-075-0 01 1 -
11 RING; BACKUP,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-103-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44249-076-0 01 1 -
12 GASKET; SHAFT,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-226-0 01 1 -
13 BEARING; SHAFT,BOX SIDE,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44249-038-0 01 1 -1002
14 SHAFT; SECTOR,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44321-022-0 01 1 -
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44260-019-0 01 1 -1002
19 COVER; SIDE STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98159-763-0 01 1 1003-
22 BEARING; SHAFT,COVER SIDE,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-105-0 01 1 -1002
23 SCREW; ADJ,SECTOR SHAFT,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44277-003-1 01 1 -
24 RETAINER; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44279-011-0 01 1 -
27 GASKET; SIDE COVER,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44269-035-0 01 1 -
30 BOLT; COVER STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44279-012-0 08 1 -
32 NUT; ADJ SCREW,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44269-007-0 01 1 -
35 HOUSING & SCREW ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44150-065-1 01 1 -
42 HOUSING & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44560-073-0 01 1 -
44 SEAL; OIL,SHAFT STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44259-036-1 01 1 -
46 SEAL; RING,HSG STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44159-037-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-096-0 01 1 -
46 SEAL; RING,HSG STRG UNIT
(C) ASM PART: A = 1-44000-834-4 		1-44519-255-0 03 1 -
47 GASKET; HSG,STRG UNIT
(A) ASM PART: A = 1-44000-834-4 		1-44159-036-0 01 1 -
47 GASKET; HSG,STRG UNIT
(D) ASM PART: A = 1-44000-834-4 		1-44519-101-0 03 1 -
47 GASKET; HSG,STRG UNIT
(B) ASM PART: A = 1-44000-834-4 		1-44519-116-0 01 1 -
47 GASKET; HSG,STRG UNIT
(C) ASM PART: A = 1-44000-834-4 		1-44519-260-0 01 1 -
48 GASKET; HSG,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-262-0 01 1 -
50 HOUSING ASM; VALVE STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44560-072-0 01 1 -
52 PLUG; HSG STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-071-0 01 1 -
54 CASE; BEARING STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44241-088-0 01 1 -
56 PLUG & SEAL ASM; STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44250-006-1 01 1 -
58 BEARING; HSG STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44259-029-0 01 1 -
72 BOLT; HSG FIX STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44259-017-0 04 1 -
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-114-0 01 1 -1003
73 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		8-98166-307-0 01 1 1004-
75 CONNECTOR; HSG STRG UNIT
(A), M20X1.5 ASM PART: A = 1-44000-834-4 		1-44259-034-1 01 1 -
75 CONNECTOR; HSG STRG UNIT
(B), M22X1.5 ASM PART: A = 1-44000-834-4 		1-44259-035-1 01 1 -
77 GASKET; CONNECTOR,STRG UNIT
ASM PART: A = 1-44000-834-4 		9-89970-787-0 02 1 -
132 COVER; DUST,STRG UNIT
ASM PART: A = 1-44000-834-4 		1-44519-227-0 01 1 -
