◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTR ▶ 11366 - FTR(MALAYSIA)W/B4600 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-35 - POWER STEERING CONTROL; CHASSIS SIDE ▶
4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#61634) — 51 parça

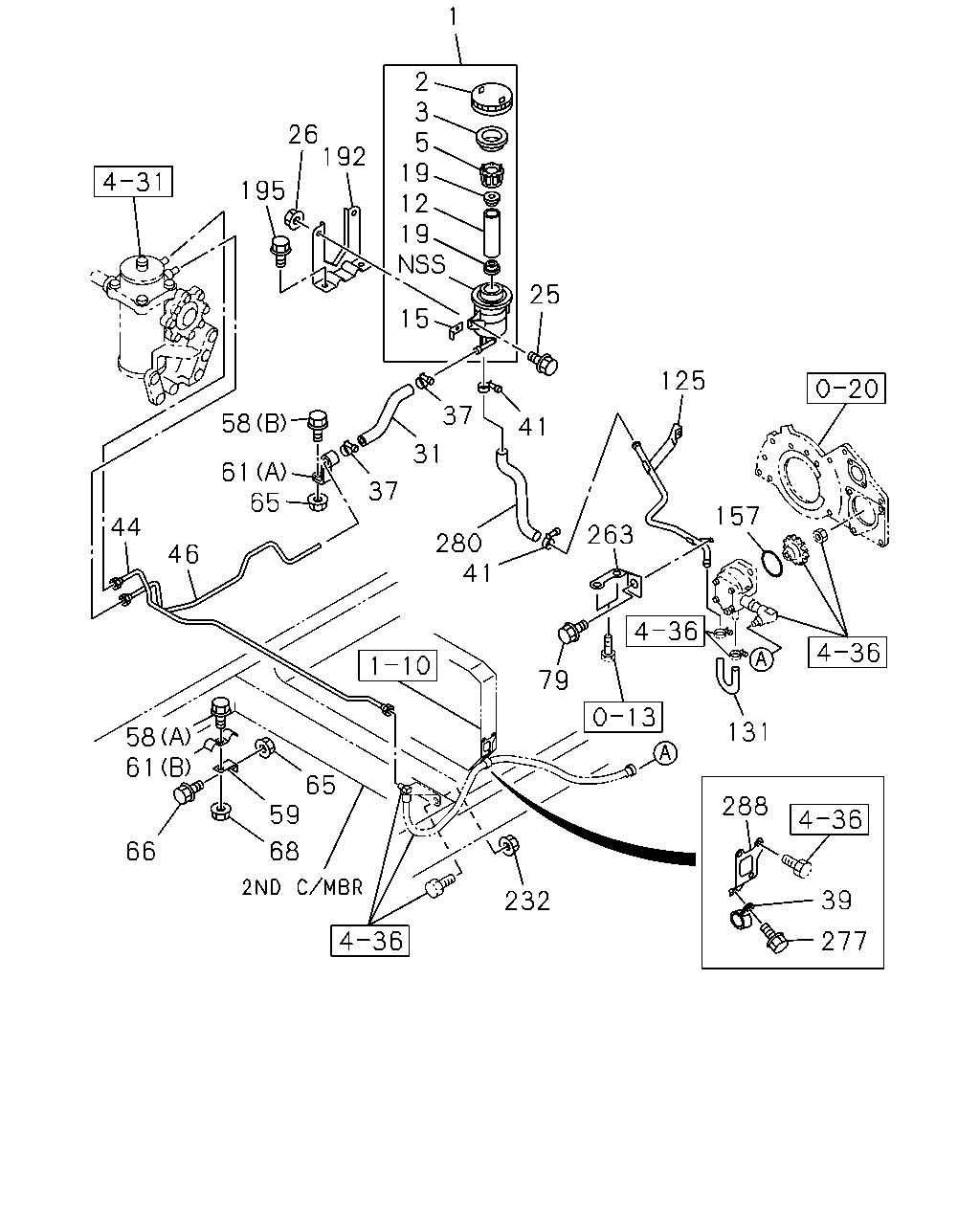

çizim 174248
1 2 3 5 19 12 19 26 192 195 25 15 125 37 58 41 31 61 65 37 157 44 263 280 41 46 79 131 58 61 65 59 288 66 68 39 232 277
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; OIL,P/S 1-21210-205-0 01 1 0310-0508
1 TANK ASM; OIL,P/S 1-21210-238-1 01 1 0509-1006
1 TANK ASM; OIL,P/S 8-98166-928-0 01 1 1007-
2 CAP; OIL TANK,P/S 1-21241-004-4 01 1 0310-1006
2 CAP; OIL TANK,P/S 8-98166-876-0 01 1 1007-
3 GASKET; OIL TANK,P/S 1-21249-003-1 01 1 0310-
5 STRAINER; OIL TANK,P/S 1-21235-007-1 01 1 0310-
12 FILTER; MICROBON,OIL TANK,P/S 1-21235-011-0 01 1 0310-
15 PLATE; FILTER,OIL TANK 1-21249-007-1 02 1 0310-0508
15 PLATE; FILTER,OIL TANK 1-21249-016-0 02 1 0509-
19 SEAT; OIL TANK 1-21249-004-0 02 1 0310-
25 BOLT; OIL TANK BRKT
M8X25 FLANGE MAL 		0-28680-825-0 02 1 0310-0512
25 BOLT; OIL TANK BRKT
M8X25 FLANGE MAL 		0-28650-825-0 02 1 0601-
26 NUT; OIL TANK TO BRKT
M8 FLANGE 		0-91150-108-0 02 1 0310-0602
26 NUT; OIL TANK TO BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
31 HOSE; P/S OIL TANK,INL 1-21113-591-1 01 1 0310-
37 CLIP; HOSE,P/S
ID=26 		1-09704-082-0 02 1 0310-
39 CLIP; FLEX HOSE
ID=40 		8-94226-553-0 01 1 0310-
41 CLIP; HOSE,P/S
ID=32 		1-09704-085-0 02 1 0310-
44 PIPE; OIL,P/S UNIT TO NIPPLE
L=1024 		1-21115-263-0 01 1 0310-
46 PIPE; OIL,P/S UNIT TO OIL TANK
L=731 		1-21115-265-0 01 1 0310-
58 BOLT; CLIP
(A) M8X20 FLANGE MAL 		0-28680-820-0 01 1 0310-0512
58 BOLT; CLIP
(A) M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28680-830-0 01 1 0310-0512
58 BOLT; CLIP
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0601-
59 BRACKET; CLIP,OIL PIPE
L=60 		1-47475-455-0 01 1 0310-
61 CLIP; OIL PIPE
(A) ID=15 H=24 L=20 		1-09700-606-0 01 1 0310-
61 CLIP; OIL PIPE
(B) ID=16 & 13 L=18 & 17 		1-09700-658-0 01 1 0310-
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0310-0602
65 NUT; BRKT
M8 FLANGE 		0-91150-108-0 01 1 0310-0602
65 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
65 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE MAL 		0-28680-820-0 01 1 0310-0512
66 BOLT; BRKT,OIL PIPE
M8X20 FLANGE MAL 		0-28650-820-0 01 1 0601-
68 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91150-108-0 01 1 0310-0602
68 NUT; CLIP,OIL PIPE
M8 FLANGE MAL 		0-91180-108-0 01 1 0603-
79 BOLT; BRKT
M8X12 FLANGE 		0-28080-812-0 02 1 0310-0512
79 BOLT; BRKT
M8X12 FLANGE 		0-28050-812-0 02 1 0601-
125 CONNECTOR; P/S PUMP 8-97600-115-0 01 1 0310-
131 HOSE; RUBBER,P/S 8-94396-331-1 01 1 0310-
157 GASKET; P/S PUMP
ALSO INCLUDED IN GASKET SET(ENGINE). ID=96.4 		1-09623-178-0 01 1 0310-
192 BRACKET; P/S OIL TANK 1-21119-129-0 01 1 0310-
195 BOLT; BRKT
M10X30 FLANGE 		0-28681-030-0 02 1 0310-0512
195 BOLT; BRKT
M10X30 FLANGE 		0-28651-030-0 02 1 0601-
232 NUT; BRKT
M8 FLANGE 		0-91150-108-0 02 1 0310-0602
232 NUT; BRKT
M8 FLANGE MAL 		0-91180-108-0 02 1 0603-
263 BRACKET; P/S PIPE 8-97600-117-0 01 1 0310-
277 BOLT; HOSE CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0310-0512
277 BOLT; HOSE CLIP
M8X16 FLANGE MAL 		0-28050-816-0 01 1 0601-
280 HOSE; P/S OIL PUMP,INL 1-21115-230-1 01 1 0310-
288 BRACKET; CLIP,P/S 1-82659-149-0 01 1 0310-
