Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-33 - STEERING LINKAGE
▶

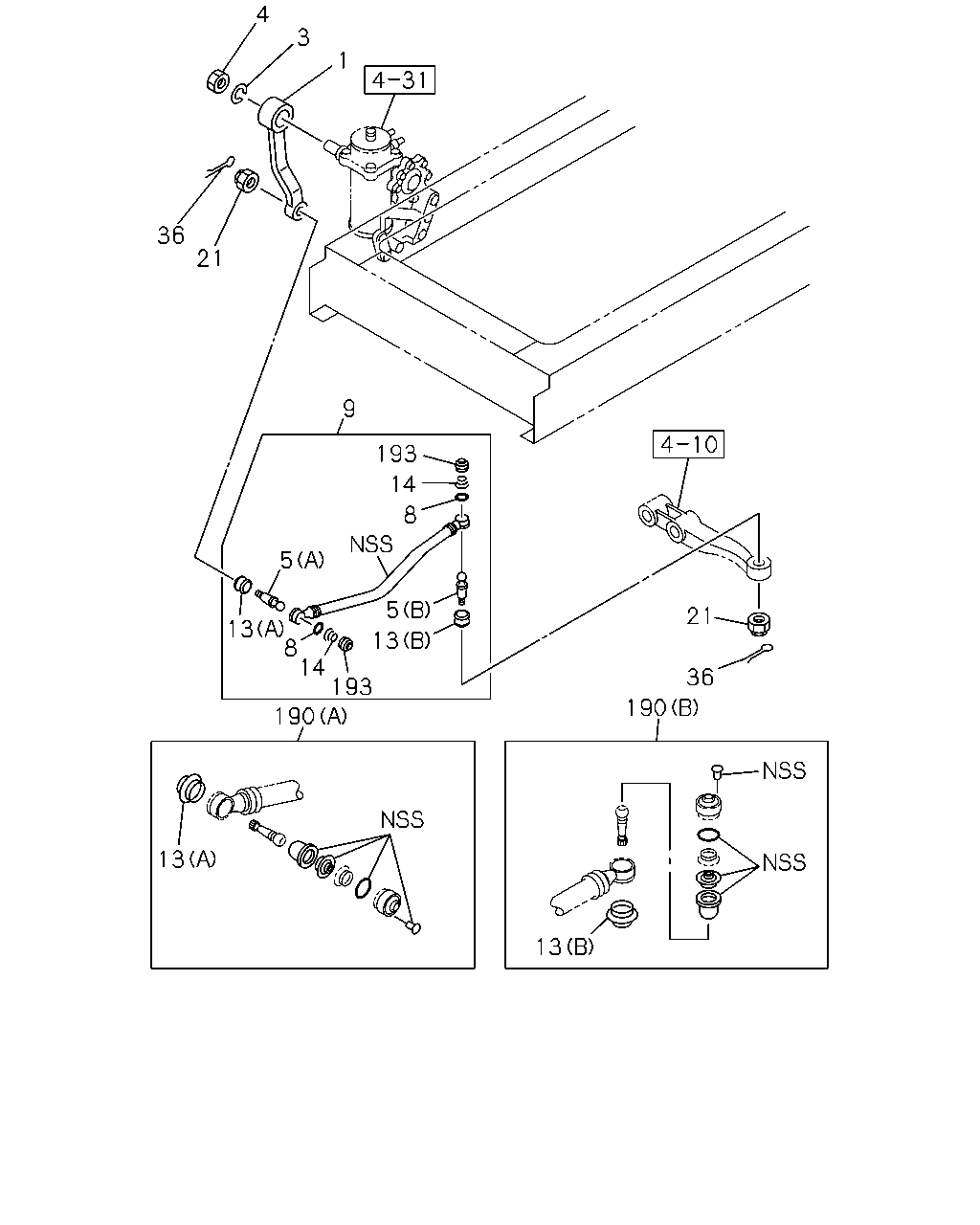

4-33 — STEERING LINKAGE
(#61633) — 18 parça
4
3
1
36
21
9
193
14
8
5
5
21
13
8
14
193
13
36
190
190
13
13
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
ARM; PITMAN,STRG
1-44341-389-1
01
1
0310-
3
WASHER; LK,PITMAN ARM
ID=36.5
1-09500-021-0
01
1
0310-
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-013-0
01
1
0310-0805
4
NUT; PITMAN ARM
M36 FLANGE
1-09440-098-0
01
1
0806-
5
BALL; JOINT,DRAG LINK
(A)
1-44361-098-0
01
1
0310-
5
BALL; JOINT,DRAG LINK
(B)
1-44361-105-1
01
1
0310-
8
SEAT; SPR,ROD END
1-43159-075-0
02
1
0310-
9
LINK; DRAG
1-44380-073-2
01
1
0310-
13
BOOT; DRAG LINK
(A)
1-43159-078-0
01
1
0310-
13
BOOT; DRAG LINK
(B)
1-43159-081-0
01
1
0310-
14
SPRING; COIL,DRAG LINK
1-43159-074-0
02
1
0310-
21
NUT; LK,JOINT BALL
M24 SLOTTED
1-09442-020-0
02
1
0310-0805
21
NUT; LK,JOINT BALL
M24
1-09442-032-0
02
1
0806-
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
9-08115-035-0
02
1
0310-0606
36
PIN; SPLIT,DRAG LINK
OD=4.6 L=35
0-81125-035-0
02
1
0607-
190
REPAIR KIT; DRAG LINK
(B)
1-85574-040-0
01
1
0310-
190
REPAIR KIT; DRAG LINK
(A)
1-85574-041-0
01
1
0310-
193
PLUG; END,DRAG LINK
1-43159-093-0
02
1
0310-
