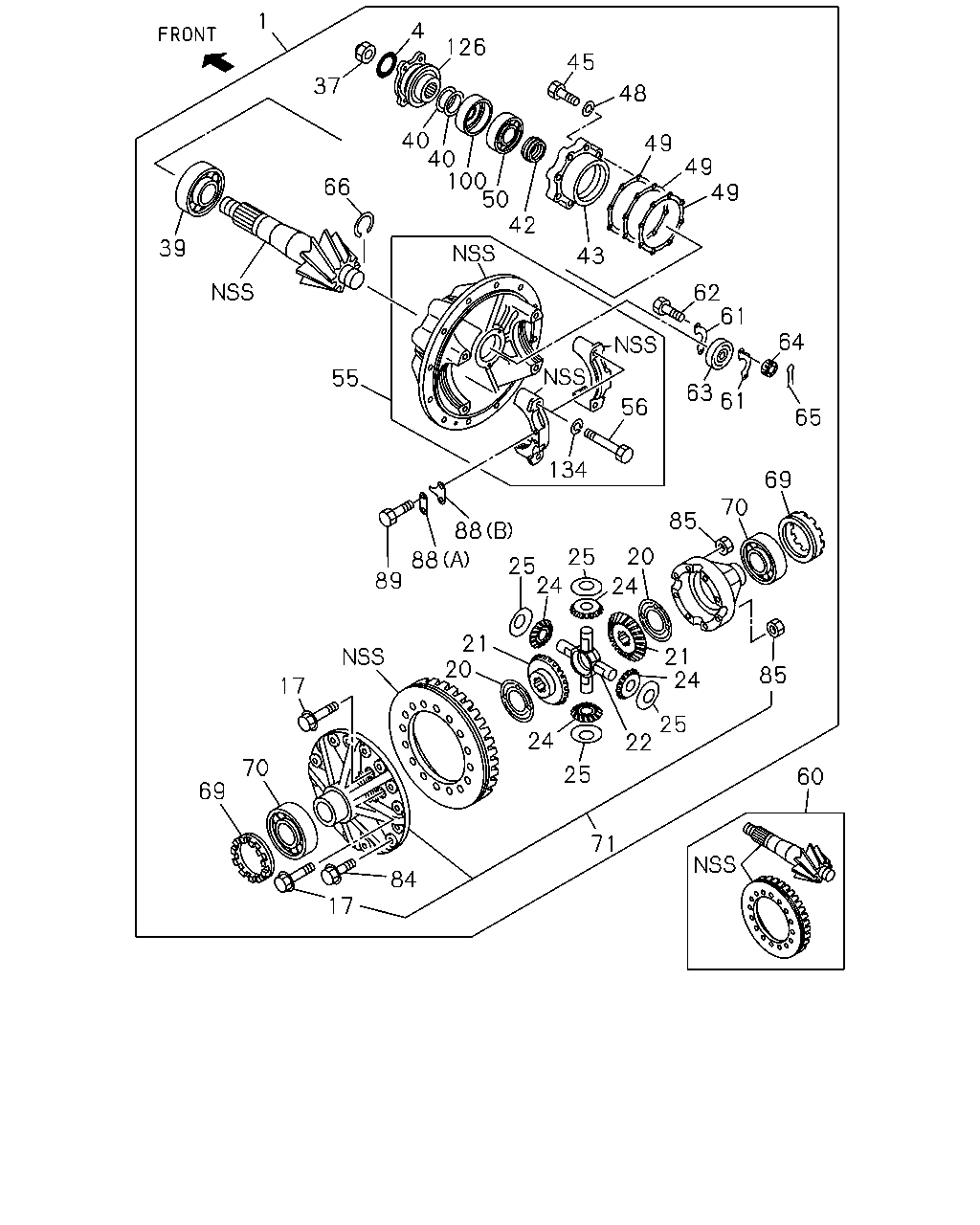

4-25 — REAR FINAL DRIVE (#61630) — 154 parça

1 4 126 45 37 48 40 40 100 50 42 49 49 49 66 39 43 62 61 64 55 63 61 56 65 134 69 70 85 88 20 25 88 89 25 24 24 21 20 21 24 85 17 25 22 24 70 25 60 69 71 84 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	0310-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	0310-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0310-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.75	1-41562-139-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.80	1-41562-140-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.85	1-41562-141-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.90	1-41562-142-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=2.95	1-41562-143-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.00	1-41562-144-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.05	1-41562-145-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.10	1-41562-146-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.15	1-41562-147-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.20	1-41562-148-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.25	1-41562-149-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.30	1-41562-150-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.35	1-41562-151-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.40	1-41562-152-0	AR	1	0310-
20	WASHER; THRUST,SIDE GEAR EXC. LIMITED SLIP DIFF(G86) T=3.45	1-41562-153-0	AR	1	0310-
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-075-0	02	1	0310-0407
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-127-0	02	1	0408-0903
21	GEAR; SIDE,DIFF EXC. LIMITED SLIP DIFF(G86) Z=16	1-41561-160-0	02	1	0904-
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86) OD=30	1-41521-014-1	01	1	0310-0408
22	SPIDER; DIFF PINION EXC. LIMITED SLIP DIFF(G86)	1-41521-061-0	01	1	0409-
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-010-2	04	1	0310-0407
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-041-0	04	1	0408-0903
24	GEAR; PINION,DIFF EXC. LIMITED SLIP DIFF(G86) Z=10	1-41551-051-0	04	1	0904-
25	WASHER; THRUST,PINION EXC. LIMITED SLIP DIFF(G86)	1-41552-012-0	04	1	0310-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0310-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	0310-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0310-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0310-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0310-
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0310-0603
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0310-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0310-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-
55	CARRIER; DIFF	1-41110-052-0	01	1	0310-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0310-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0310-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0310-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0310-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0310-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0310-
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0310-0512
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0310-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0310-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0310-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0310-
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0310-0911
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0310-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0310-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0310-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0310-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0310-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0310-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0310-
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0310-0512
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0310-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0310-
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	0310-0603
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-

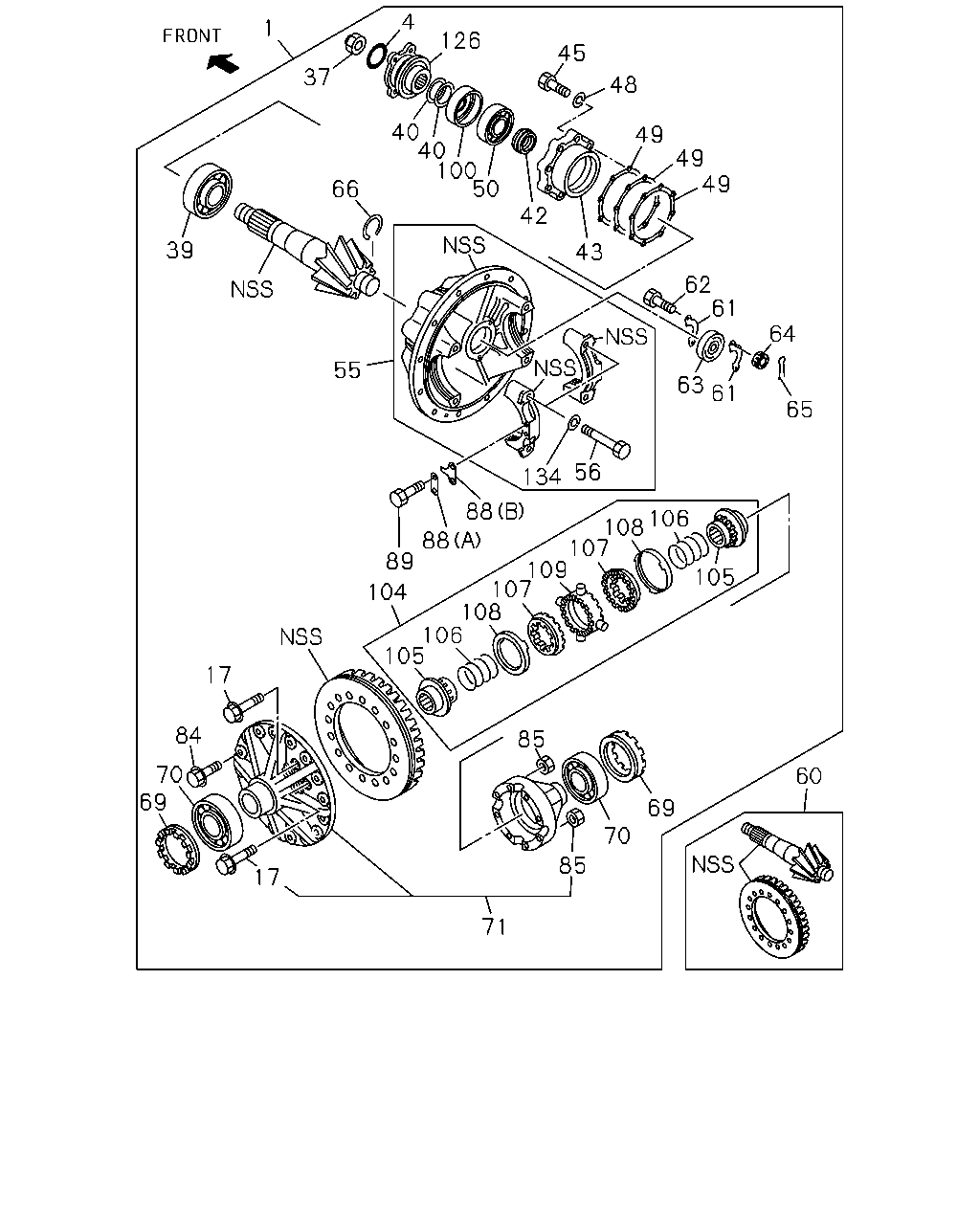

4 1 126 45 37 48 40 40 100 50 49 49 49 66 42 39 43 62 61 64 55 63 61 65 56 134 88 106 108 107 109 107 108 106 105 88 89 105 104 17 84 85 70 69 60 69 70 85 17 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRIVE ASM; FINAL,RR LIMITED SLIP DIFF(G86) 39/7	1-41001-338-0	01	1	0310-
1	DRIVE ASM; FINAL,RR EXC. LIMITED SLIP DIFF(G86) 39/7	1-41001-276-0	01	1	0310-
4	GASKET; FLANGE,FINAL PINION ID=42	9-09921-116-0	01	1	0310-
17	BOLT; DIFF CAGE SETTING M14X95 FLANGE	1-09044-007-0	12	1	0310-
37	NUT; DRIVING PINION M36 FLANGE	1-09449-067-0	01	1	0310-
39	BEARING; FINAL PINION JTEKT	1-09812-218-0	01	1	0310-
40	SHIM; FINAL PINION T=3.50	1-41229-256-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.51	1-41229-257-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.52	1-41229-258-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.53	1-41229-259-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.54	1-41229-260-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.55	1-41229-261-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.56	1-41229-262-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.57	1-41229-263-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.58	1-41229-264-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.59	1-41229-265-0	AR	1	0310-
40	SHIM; FINAL PINION T=3.60	1-41229-266-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.40	1-41229-267-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.60	1-41229-268-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=7.80	1-41229-269-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=8.00	1-41229-270-0	AR	1	0310-
42	COLLAR; DIST,COLLAPSIBLE T=8.20	1-41229-271-0	AR	1	0310-
43	CAGE; FINAL PINION	1-41151-028-1	01	1	0310-
45	BOLT; FINAL PINION CAGE M14X50	0-16806-450-0	08	1	0310-
48	WASHER; LK,FINAL PINION ID=14.2	9-09150-514-0	08	1	0310-0603
48	WASHER; LK,FINAL PINION ID=14.2	0-91510-514-0	08	1	0604-
49	SHIM; FINAL PINION CAGE T=0.30	1-41154-063-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=0.40	1-41154-064-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=1.00	9-41154-013-0	AR	1	0310-
49	SHIM; FINAL PINION CAGE T=0.50	9-41154-014-0	AR	1	0310-
50	BEARING; FINAL PINION NSK	1-09812-041-2	01	1	0310-
50	BEARING; FINAL PINION JTEKT	1-09812-042-1	01	1	0612-
55	CARRIER; DIFF	1-41110-052-0	01	1	0310-
56	BOLT; BRG CAP M18X107	1-09050-002-1	04	1	0310-
60	GEAR SET; FINAL DRIVE,RR 39/7	1-41210-280-3	01	1	0310-
61	RETAINER; PILOT BRG,PINION T=2.3	1-41227-006-0	02	1	0310-
62	BOLT; RET M8X36 W/PIN HOLE	1-09042-035-0	02	1	0310-
63	BEARING; PINION PILOT JTEKT	1-09810-229-2	01	1	0310-
63	BEARING; PINION PILOT NSK	1-09810-230-1	01	1	0310-
64	NUT; RET M8 SLOTTED	9-09117-508-0	02	1	0310-0512
64	NUT; RET M8 SLOTTED	0-91117-508-0	02	1	0601-
65	PIN; SPLIT,RET	9-08112-012-0	02	1	0310-0805
65	PIN; SPLIT,RET	0-81122-012-0	02	1	0806-
66	RING; SNAP,PILOT BRG OD=42	9-09950-179-0	01	1	0310-
69	NUT; ADJ,DIFF CAGE M143 H=24	1-41121-005-0	01	1	0310-
69	NUT; ADJ,DIFF CAGE M143 H=29	1-41121-006-0	01	1	0310-
70	BEARING; DIFF CAGE NACHI ID=80 OD=140 T=35.3	1-09812-144-0	02	1	0310-0911
70	BEARING; DIFF CAGE JTEKT ID=80 OD=140 T=35.3	1-09812-145-0	02	1	0310-0911
70	BEARING; DIFF CAGE NACHI	1-09812-151-0	02	1	0912-
70	BEARING; DIFF CAGE NSK ID=80 OD=140 T=35.3	1-09812-146-0	02	1	0310-1002
70	BEARING; DIFF CAGE NSK	1-09812-150-0	02	1	1003-
71	CAGE ASM; DIFF,FINAL DRIVE	1-41510-127-0	01	1	0310-
84	BOLT; FINAL DRIVE GEAR M16X37.5 FLANGE	1-09020-167-0	16	1	0310-
85	NUT; DIFF CAGE SETTING M14	1-09400-077-1	12	1	0310-
88	PLATE; LK,ADJ NUT (B) T=2.3	1-41124-002-0	02	1	0310-
88	PLATE; LK,ADJ NUT (A) T=1.0	9-41124-005-0	02	1	0310-
89	BOLT; LK PLATE M8X16	0-20800-816-0	04	1	0310-0512
89	BOLT; LK PLATE M8X16	0-20850-816-0	04	1	0601-
100	SEAL; OIL,FINAL PINION NOK	1-09625-017-0	01	1	0310-
104	DIFF ASM; NO SPIN LIMITED SLIP DIFF(G86)	1-41530-032-0	01	1	0310-
105	GEAR; SIDE LIMITED SLIP DIFF(G86)	1-41561-083-0	02	1	0310-
106	SPRING; NO SPIN DIFF LIMITED SLIP DIFF(G86)	1-09580-314-0	02	1	0310-
107	CLUTCH; DRIVEN LIMITED SLIP DIFF(G86)	1-41532-003-0	02	1	0310-
108	RING; HOLD OUT LIMITED SLIP DIFF(G86)	1-41539-032-0	02	1	0310-
109	SPIDER; DIFF LIMITED SLIP DIFF(G86)	1-41521-034-0	01	1	0310-
126	COUPLING; DRIVING PINION	1-37245-388-0	01	1	0310-
134	WASHER; LK,BRG CAP ID=18.2	9-09150-518-0	04	1	0310-0603
134	WASHER; LK,BRG CAP ID=18.2	0-91510-518-0	04	1	0604-
