Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

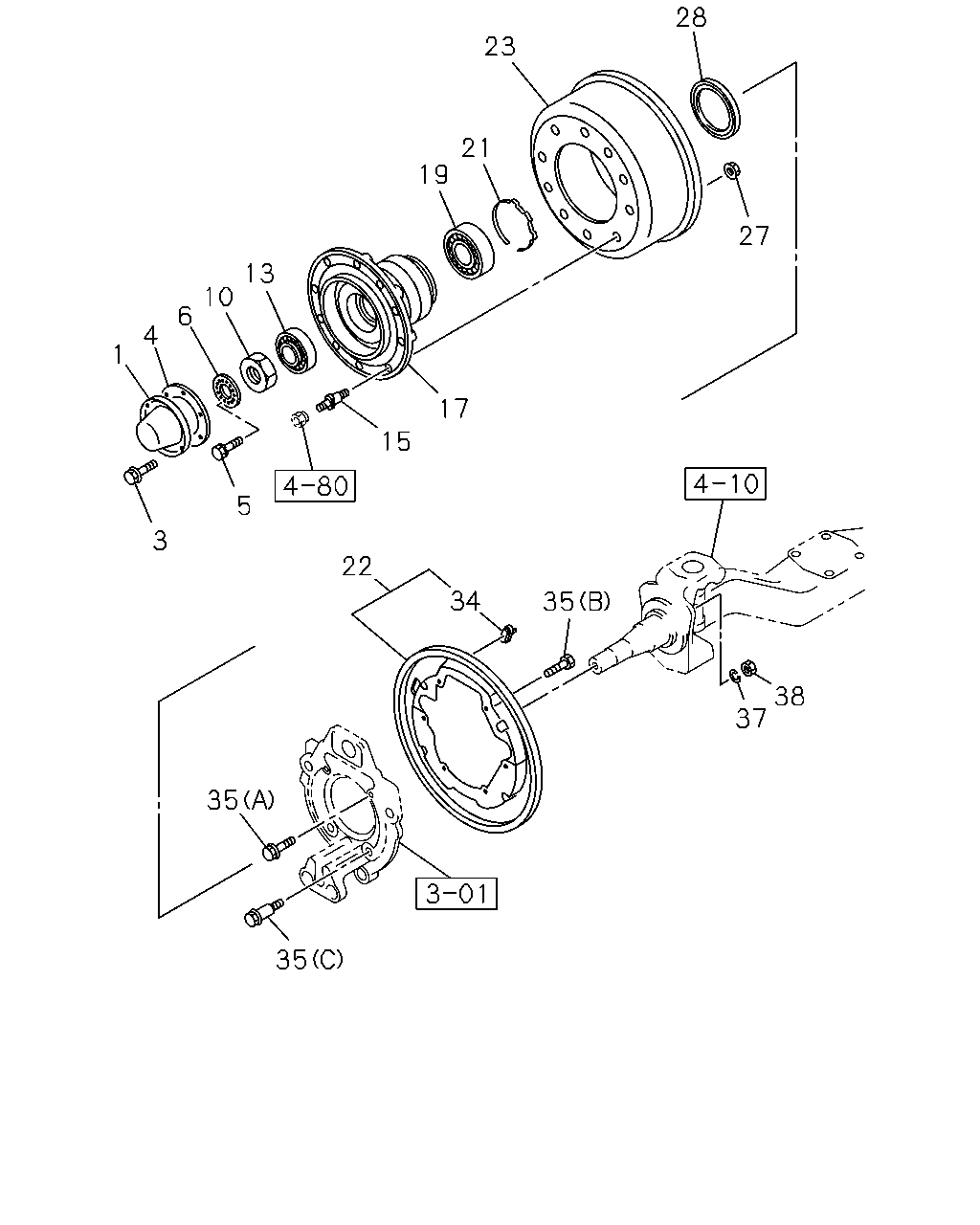

4-11 - FRONT HUB AND DRUM OR ROTOR
▶
4-11 — FRONT HUB AND DRUM OR ROTOR
(#61628) — 32 parça
28
23
21
19
27
13
10
6
4
1
17
15
5
3
22
34
35
38
37
35
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=136
1-42313-007-1
02
1
0310-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28080-812-0
12
1
0310-0512
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
0601-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-028-0
02
1
0310-
5
BOLT; LK WASHER
M6X16 FLANGE MAL
0-28680-616-0
04
1
0310-0512
5
BOLT; LK WASHER
M6X16 FLANGE MAL
0-28650-616-0
04
1
0601-0707
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98084-271-0
04
1
0708-1201
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1202-
6
WASHER; LK,FRT HUB
ID=39
1-09841-003-0
02
1
0310-0707
6
WASHER; LK,FRT HUB
ID=39
8-98086-313-0
02
1
0708-
10
NUT; FRT HUB BRG
M39
1-09840-019-1
02
1
0310-
13
BEARING; HUB OUTER,FRT AXLE
NSK
9-00093-146-0
02
1
0310-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
9-00093-147-1
02
1
0310-
15
PIN; WHEEL,FRT AXLE
M22X42.8,M22X61.5 RH THREAD
1-42337-039-1
20
1
0310-
17
HUB; FRT AXLE
1-42312-053-1
02
1
0310-
19
BEARING; HUB INNER,FRT AXLE
JTEKT
9-00093-114-0
02
1
0310-
19
BEARING; HUB INNER,FRT AXLE
NSK
8-98143-848-0
02
1
0907-
21
RING; SNAP,HUB
OD=132
9-09950-164-0
02
1
0310-
22
COVER SET; FRT BRK DRUM
1-47151-458-1
02
1
0310-
23
DRUM; BRK,FRT
1-42315-218-4
02
1
0310-
27
NUT; WHEEL PIN,FRT AXLE
M22
1-09400-071-0
20
1
0310-
28
SEAL; OIL,FRT HUB
OD=128
1-09625-129-0
02
1
0310-
34
COVER; CHECK HOLE,DRUM COVER
1-09333-151-0
04
1
0310-
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50041-016-0
12
1
0310-0906
35
BOLT; DRUM COVER
(B) M10X16 W/LK WASHER
0-50541-016-0
12
1
0907-
35
BOLT; DRUM COVER
(C) M16X61
1-09040-058-1
04
1
0310-
35
BOLT; DRUM COVER
(A) M16X52
1-09044-001-2
04
1
0310-0805
35
BOLT; DRUM COVER
(A) M16X52
1-09044-120-0
04
1
0806-
37
WASHER; LK,BACK PLATE
ID=16.2
9-09150-816-0
08
1
0310-0603
37
WASHER; LK,BACK PLATE
ID=16.2
0-91510-816-0
08
1
0604-
38
NUT; BACK PLATE
M16
9-99110-416-0
08
1
0310-0512
38
NUT; BACK PLATE
M16
0-91110-516-0
08
1
0601-
