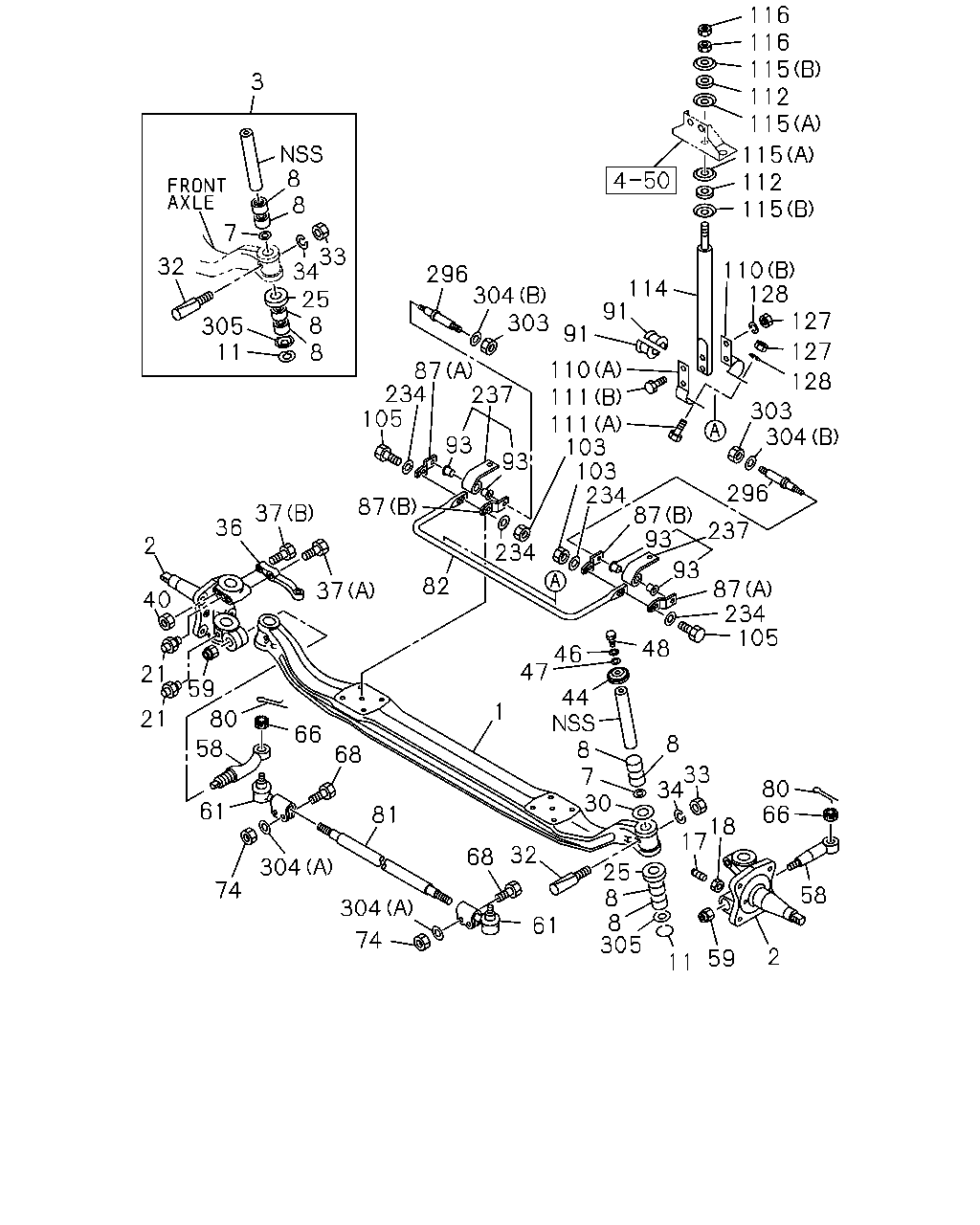

4-10 — FRONT AXLE (#61627) — 102 parça

116 116 115 112 115 3 8 8 115 112 115 7 3 34 25 8 8 32 110 128 127 296 304 303 114 91 305 11 91 127 237 110 111 111 103 103 234 87 93 87 234 105 128 303 304 93 93 296 237 87 37 36 2 93 82 87 234 105 37 40 48 46 47 2 59 44 8 7 30 1 21 80 66 8 58 68 33 34 25 8 8 305 80 66 61 81 18 17 32 68 304 74 58 304 61 74 2 59 11 234

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	AXLE; FRT	1-43111-133-0	01	1	0310-
2	KNUCKLE; FRT AXLE	1-43131-083-0	01	1	0310-
2	KNUCKLE; FRT AXLE	1-43132-083-0	01	1	0310-
3	KING PIN SET	1-87830-804-2	01	1	0310-0704
3	KING PIN SET	1-87831-389-1	01	1	0705-
3	KING PIN SET	1-87830-837-2	01	1	0310-0704
3	KING PIN SET	1-87831-390-1	01	1	0705-
7	SEAL; OIL,KING PIN NSK	1-09625-087-0	02	1	0310-
7	SEAL; OIL,KING PIN NTN	1-09625-089-0	02	1	0310-
8	BEARING; NEEDLE,KING PIN NTN	1-09811-071-0	08	1	0310-
8	BEARING; NEEDLE,KING PIN NSK	1-09811-072-0	08	1	0310-
11	RING; SNAP,KNUCKLE PLUG	9-09950-204-0	02	1	0310-
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-058-0	02	1	0310-0805
17	BOLT; STOPPER KNUCKLE M14X47	1-09009-191-0	02	1	0806-
18	NUT; STOPPER BOLT,KNUCKLE M14	9-99112-814-0	02	1	0310-0512
18	NUT; STOPPER BOLT,KNUCKLE M14	0-91112-814-0	02	1	0601-
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	04	1	0310-0512
21	NIPPLE; GREASE,KING PIN PT1/8 ELBOW 67.5 DEGREES	0-90301-510-0	04	1	0601-
25	BEARING; THRUST,KING PIN NTN	1-09829-026-0	01	1	0310-
25	BEARING; THRUST,KING PIN NSK	1-09829-028-0	01	1	0310-
25	BEARING; THRUST,KING PIN NSK	1-09829-040-0	01	1	0310-
30	WASHER; THRUST,KING PIN T=2.800	1-43171-229-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=2.850	1-43171-230-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=2.900	1-43171-231-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=2.950	1-43171-232-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.000	1-43171-233-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.050	1-43171-234-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.100	1-43171-235-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.150	1-43171-236-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.200	1-43171-237-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.250	1-43171-238-0	AR	1	0310-
30	WASHER; THRUST,KING PIN T=3.300	1-43171-239-0	AR	1	0310-
32	BOLT; KEY,KING PIN	1-43116-005-2	02	1	0310-
33	NUT; KEY BOLT M10	9-09110-410-0	02	1	0310-0512
33	NUT; KEY BOLT M10 MAL	0-91110-510-0	02	1	0601-
34	WASHER; LK,KEY BOLT ID=10.2	9-09150-510-0	02	1	0310-0603
34	WASHER; LK,KEY BOLT ID=10.2 MAL	0-91510-510-0	02	1	0604-
36	ARM; KNUCKLE	1-43133-068-2	01	1	0310-
37	BOLT; KNUCKLE ARM (A) M22X162	1-09000-107-1	01	1	0310-
37	BOLT; KNUCKLE ARM (B) M22X147	1-09000-108-1	01	1	0310-
40	NUT; KNUCKLE ARM M22	9-09844-670-1	02	1	0310-0704
40	NUT; KNUCKLE ARM M22	1-09449-084-0	02	1	0705-
44	COVER; KING PIN	1-43175-016-0	02	1	0310-
46	WASHER; LK,COVER ID=12.2	9-09150-512-0	02	1	0310-0603
46	WASHER; LK,COVER ID=12.2 MAL	0-91510-512-0	02	1	0604-
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	9-09164-712-0	02	1	0310-0605
47	WASHER; PL,COVER,KING PIN ID=12.5 OD=32	0-91614-712-0	02	1	0606-
48	BOLT; COVER M12X25	1-09009-081-0	02	1	0310-
58	ARM; TIE ROD	1-43134-015-1	01	1	0310-
58	ARM; TIE ROD	1-43135-015-1	01	1	0310-
59	NUT; TIE ROD ARM M27	1-09449-016-0	02	1	0310-0704
59	NUT; TIE ROD ARM M27 FLANGE	1-09449-082-0	02	1	0705-
61	ROD END; TIE ROD	1-43150-677-3	01	1	0310-
61	ROD END; TIE ROD	1-43150-678-3	01	1	0310-
66	NUT; TIE ROD END M24 SLOTTED	1-09442-020-0	02	1	0310-0805
66	NUT; TIE ROD END M24	1-09442-032-0	02	1	0806-
68	BOLT; TIE ROD END M12X55	9-91061-255-0	04	1	0310-
74	NUT; TIE ROD END M12	9-99110-512-0	04	1	0310-0512
74	NUT; TIE ROD END M12 MAL	0-91110-512-0	04	1	0601-
80	PIN; SPLIT,ROD END OD=4.6 L=35	9-08115-035-0	02	1	0310-0606
80	PIN; SPLIT,ROD END OD=4.6 L=35	0-81125-035-0	02	1	0607-
81	ROD; TIE	1-43151-129-0	01	1	0310-
82	BAR; STAB,FRT SUSP FRONT STABILIZER SHAFT<F59>	1-51771-113-0	01	1	0310-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	1-51781-083-1	02	1	0310-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (A)	8-98012-958-0	02	1	1001-
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	1-51781-084-1	02	1	0310-0912
87	BRACKET; STABILIZER FRONT STABILIZER SHAFT<F59> (B)	8-98012-959-0	02	1	1001-
91	BUSHING; RUBBER,STAB BAR FRONT STABILIZER SHAFT<F59>	1-51779-084-0	04	1	0310-
93	BUSHING; STABILIZER FRONT STABILIZER SHAFT<F59>	1-51689-015-3	04	1	0310-
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14	9-99110-514-0	04	1	0310-0512
103	NUT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14 MAL	0-91110-514-0	04	1	0601-
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	9-91066-470-0	04	1	0310-0910
105	BOLT; BRKT FIX FRONT STABILIZER SHAFT<F59> M14X70	0-10956-470-0	04	1	0911-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (A)	1-51789-027-2	02	1	0310-
110	CLAMP; STAB TO ROD FRONT STABILIZER SHAFT<F59> (B)	1-51789-028-1	02	1	0310-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30	0-20801-230-0	02	1	0310-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (A) M12X30 MAL	0-20851-230-0	02	1	0911-
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20801-250-0	04	1	0310-0910
111	BOLT; CLAMP TO ROD FRONT STABILIZER SHAFT<F59> (B) M12X50	0-20851-250-0	04	1	0911-
112	BUSHING; ROD FRONT STABILIZER SHAFT<F59> MAL	9-51631-050-0	04	1	0310-
114	ROD; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51773-084-0	02	1	0310-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (A) ID=16.8	1-51631-022-0	04	1	0310-
115	WASHER; CENTER,STAB TO FRAME FRONT STABILIZER SHAFT<F59> (B) ID=14.5	9-51631-051-0	04	1	0310-
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	9-99111-414-0	04	1	0310-0512
116	NUT; LK,STAB TO FRAME FRONT STABILIZER SHAFT<F59> M14	0-91111-514-0	04	1	0601-
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12	9-99110-412-0	06	1	0310-0512
127	NUT; CLAMP FRONT STABILIZER SHAFT<F59> M12 MAL	0-91110-512-0	06	1	0601-
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2	9-09150-512-0	06	1	0310-0603
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2 MAL	0-91510-512-0	06	1	0604-0912
128	WASHER; LK,CLAMP FRONT STABILIZER SHAFT<F59> ID=12.2 MAL	0-91510-812-0	06	1	1001-
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15 MAL	9-09651-069-0	08	1	0310-0910
234	WASHER; STAB FRONT STABILIZER SHAFT<F59> ID=15	8-98010-627-1	08	1	0911-
237	SUPPORT; STAB BAR FRONT STABILIZER SHAFT<F59>	1-51681-662-0	02	1	0310-
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	1-51682-150-0	02	1	0310-0907
296	PIN; STAB FRONT STABILIZER SHAFT<F59>	8-98013-020-1	02	1	0908-
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	9-99110-520-0	02	1	0310-0512
303	NUT; PIN FRONT STABILIZER SHAFT<F59> M20	0-91110-520-0	02	1	0601-
304	WASHER; PL (A) ID=12.5	9-09164-512-0	04	1	0310-
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	9-09164-520-0	02	1	0310-0907
304	WASHER; PL FRONT STABILIZER SHAFT<F59> (B) ID=21	0-91614-520-0	02	1	0908-
305	COVER; KNUCKLE	1-43175-021-0	02	1	0310-0704
305	COVER; KNUCKLE	8-98052-291-0	02	1	0705-
