3-77 — BRAKE PIPING; AIR,REAR (#61624) — 24 parça

118 59 87 101 91 37

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
37	UNION; AIR PIPE M16 ELBOW	9-09235-210-1	02	1	0310-0607
37	UNION; AIR PIPE M16 ELBOW	0-92135-210-0	02	1	0608-
59	PIPE; AIR,UNION TO FLEX HOSE L=3272 SERVICED BY L=3300	1-47426-426-0	01	1	0310-
87	PIPE; AIR,AIR TANK TO UNION	1-49116-276-0	01	1	0310-
91	NUT; PIPE UNION M16 MAL	9-99111-416-0	02	1	0310-0512
91	NUT; PIPE UNION M16 MAL	0-91111-516-0	02	1	0601-
101	PIPE; AIR,FLEX HOSE TO UNION L=3020 SERVICED BY L=3300	1-47426-426-0	01	1	0310-
118	PIPE; AIR,UNION TO AIR MASTER	1-49114-892-0	01	1	0310-

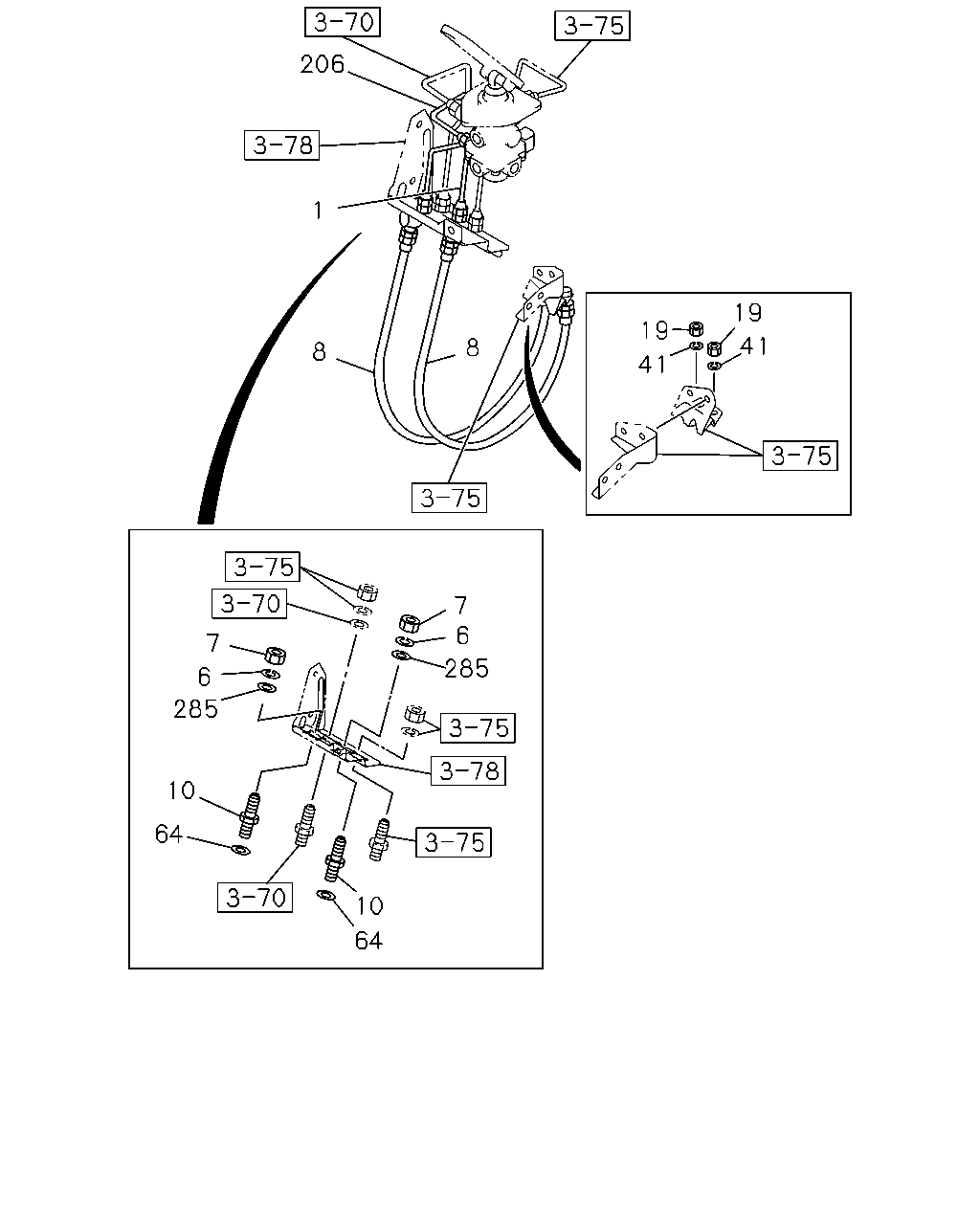

206 1 19 19 41 8 8 41 7 6 7 285 6 285 10 64 10 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PIPE; AIR,FLEX HOSE TO BRK VLV L=277	1-49121-487-0	01	1	0310-
6	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0310-0603
6	WASHER; LK,FLEX HOSE ID=16.2 MAL	0-91510-516-0	02	1	0604-
7	NUT; FLEX HOSE M16 MAL	9-99111-416-0	02	1	0310-0512
7	NUT; FLEX HOSE M16 MAL	0-91111-516-0	02	1	0601-
8	HOSE; FLEX,AIR,CAB SIDE L=520	0-07474-520-1	02	1	0310-
10	CONNECTOR; FLEX HOSE	1-09654-324-0	01	1	0310-
10	CONNECTOR; FLEX HOSE	1-09654-324-0	01	1	0310-
19	NUT; PIPE UNION M16 MAL	9-99111-416-0	02	1	0310-0512
19	NUT; PIPE UNION M16 MAL	0-91111-516-0	02	1	0601-
41	WASHER; LK,FLEX HOSE ID=16.2	9-09150-516-0	02	1	0310-0603
41	WASHER; LK,FLEX HOSE ID=16.2 MAL	0-91510-516-0	02	1	0604-
64	GASKET; FLEX HOSE ID=11 OD=18	9-09572-510-0	02	1	0310-
206	PIPE; AIR,BRK VLV TO FLEX HOSE L=406	1-47492-451-3	01	1	0310-
285	WASHER; PL,CONNECTOR ID=17	9-09160-516-0	02	1	0310-0605
285	WASHER; PL,CONNECTOR ID=17 OD=30	0-91610-516-0	02	1	0606-
