Isuzu WW
▶
TRUCKS
▶
FTR
▶
11366 - FTR(MALAYSIA)W/B4600
▶
3 - Brakes, Brake System
▶
3-75 - BRAKE PIPING; AIR,FRONT
▶
3-75 — BRAKE PIPING; AIR,FRONT
(#61623) — 34 parça
◀

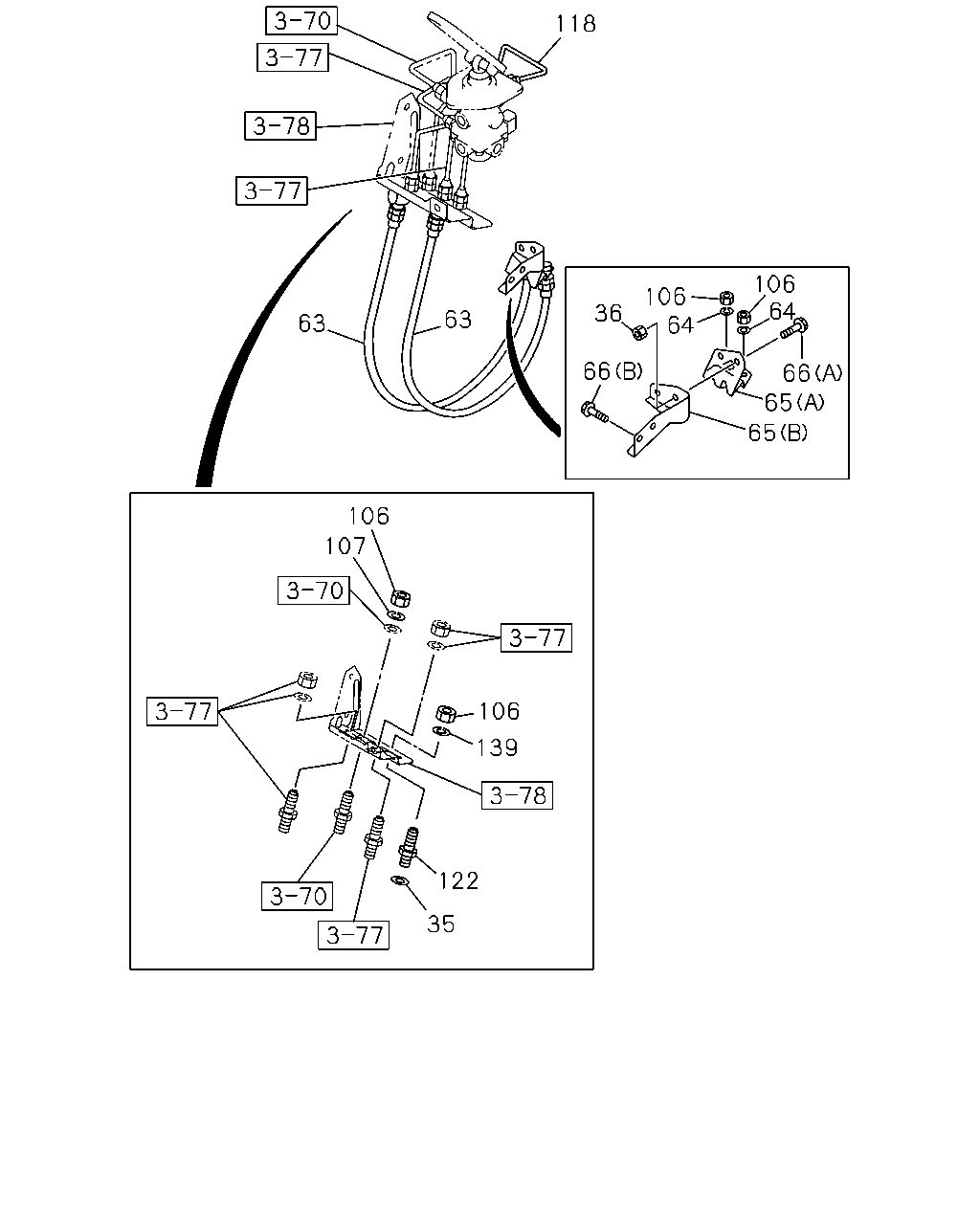

[375A] CAB SIDE (22 parça)
[375A] FRAME SIDE (12 parça)
▶
118
106
64
106
64
36
63
63
66
66
65
65
106
107
106
139
122
35
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
35
GASKET; FLEX HOSE
ID=11 OD=18
9-09572-510-0
02
1
0310-
36
NUT; HOSE BRKT
M8 FLANGE
0-91150-108-0
02
1
0310-0602
36
NUT; HOSE BRKT
M8 FLANGE MAL
0-91180-108-0
02
1
0603-
63
HOSE; FLEX,BRK LINE,CAB SIDE
L=710
0-07474-710-1
02
1
0310-
64
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0310-0603
64
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
65
BRACKET; FLEX HOSE
(A)
1-47476-761-1
01
1
0310-
65
BRACKET; FLEX HOSE
(B)
1-47477-485-0
01
1
0310-
66
BOLT; HOSE BRKT
(B) M10X16 FLANGE
0-28181-016-0
02
1
0310-0512
66
BOLT; HOSE BRKT
(B) M10X16 FLANGE
0-28151-016-0
02
1
0601-
66
BOLT; HOSE BRKT
(A) M8X25 FLANGE MAL
0-28680-825-0
02
1
0310-0512
66
BOLT; HOSE BRKT
(A) M8X25 FLANGE MAL
0-28650-825-0
02
1
0601-
106
NUT; FLEX HOSE
M16 MAL
9-99111-416-0
02
1
0310-0512
106
NUT; FLEX HOSE
M16 MAL
9-99111-416-0
02
1
0310-0512
106
NUT; FLEX HOSE
M16 MAL
0-91111-516-0
02
1
0601-
106
NUT; FLEX HOSE
M16 MAL
0-91111-516-0
02
1
0601-
107
WASHER; LK,FLEX HOSE
ID=16.2
9-09150-516-0
02
1
0310-0603
107
WASHER; LK,FLEX HOSE
ID=16.2 MAL
0-91510-516-0
02
1
0604-
118
PIPE; AIR,BRK VLV TO FLEX HOSE
L=419
1-49115-942-3
01
1
0310-
122
CONNECTOR; FLEX HOSE
1-09654-324-0
01
1
0310-
139
WASHER; PL,CONNECTOR
ID=17
9-09160-516-0
01
1
0310-0605
139
WASHER; PL,CONNECTOR
ID=17 OD=30
0-91610-516-0
01
1
0606-
65
87
70
1
62
3
77
2
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
PIPE; AIR,AIR TANK TO UNION
1-49114-887-0
01
1
0310-
2
UNION; AIR PIPE
M16 ELBOW
9-09235-210-1
02
1
0310-0607
2
UNION; AIR PIPE
M16 ELBOW
0-92135-210-0
02
1
0608-
3
NUT; PIPE UNION
M16 MAL
9-99111-416-0
01
1
0310-0512
3
NUT; PIPE UNION
M16 MAL
0-91111-516-0
01
1
0601-
62
PIPE; AIR,UNION TO FLEX HOSE
L=2838 SERVICED BY L=2900
1-47426-425-0
01
1
0310-
65
BRACKET; FLEX HOSE
(A)
1-47476-761-1
01
1
0310-
65
BRACKET; FLEX HOSE
(B)
1-47477-485-0
01
1
0310-
70
PIPE; AIR,FLEX HOSE TO UNION
L=2992 SERVICED BY L=3300
1-47426-426-0
01
1
0310-
77
NUT; PIPE UNION
M16 MAL
9-99111-416-0
01
1
0310-0512
77
NUT; PIPE UNION
M16 MAL
0-91111-516-0
01
1
0601-
87
PIPE; AIR,UNION TO AIR MASTER
L=1189 SERVICED BY L=1250
1-47426-416-0
01
1
0310-
