3-70 — BRAKE PIPING; AIR,AIR MASTER (#61622) — 55 parça

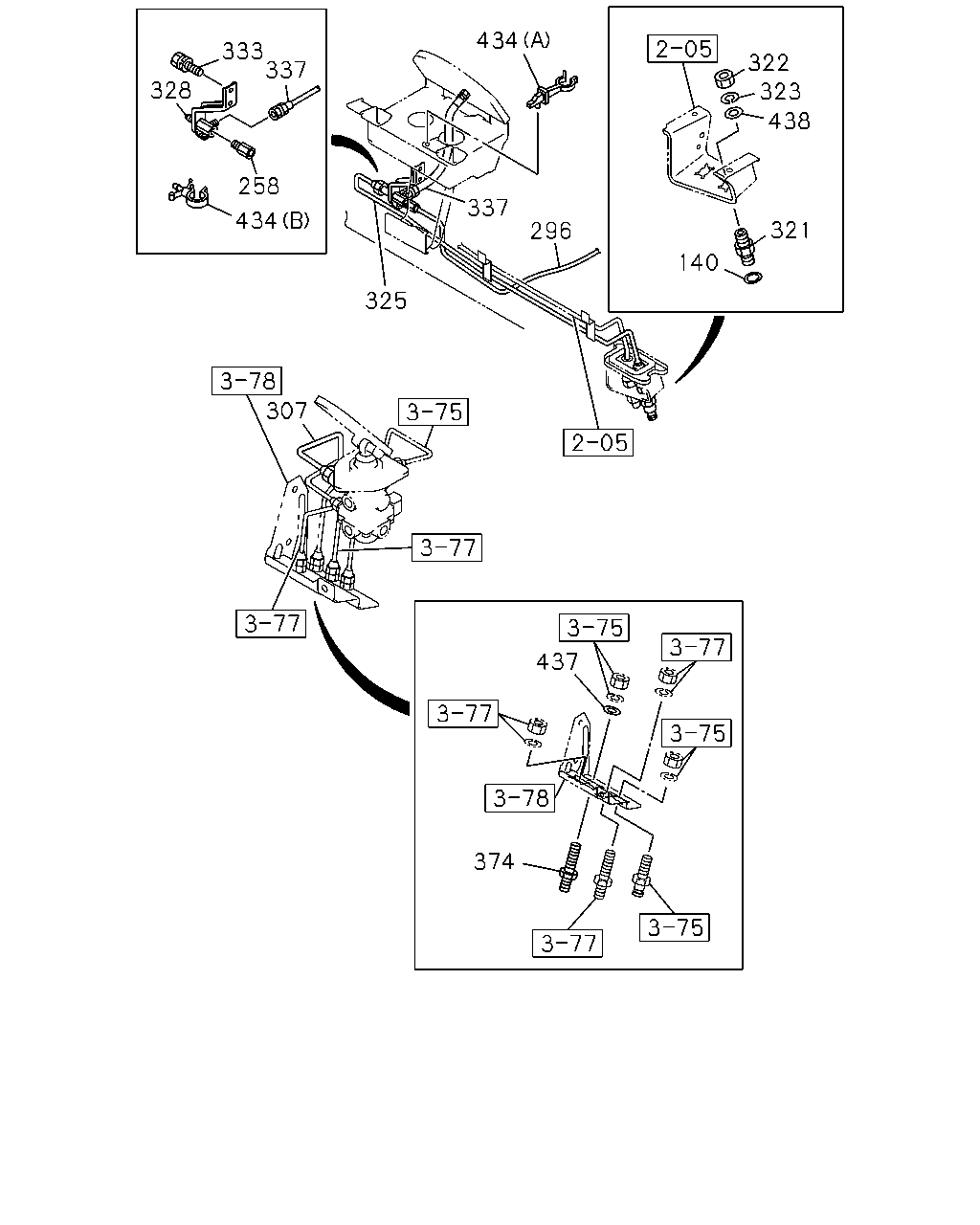

çizim 174424
434 333 337 322 323 328 438 258 337 434 321 296 140 325 307 437 374
BalonParca AdiParca NoAdetTipApplied Date
140 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0310-
258 CONNECTOR; NYLON TUBE
DIN6 R1/8 STRAIGHT 		1-09660-759-1 01 1 0310-
296 TUBE; NYLON
L=1200 OD=6 		1-09366-256-1 01 1 0310-
307 PIPE; AIR,FLEX HOSE TO BRK VLV
L=421 		1-49121-486-0 01 1 0310-
321 JOINT; FLEX HOSE 1-09654-362-1 01 1 0310-
322 NUT; JOINT,FLEX HOSE
M10 H=8 		1-09400-029-0 01 1 0310-
323 WASHER; LK,JOINT
ID=10.2 		9-09150-510-0 01 1 0310-0603
323 WASHER; LK,JOINT
ID=10.2 MAL 		0-91510-510-0 01 1 0604-
325 PIPE; AIR,FLEX HOSE TO UNION 1-47492-452-2 01 1 0310-
328 UNION; AIR PIPE 1-47470-362-2 01 1 0310-
333 BOLT; PIPE UNION
M6X19.5 W/LK&PL WASHER MAL 		8-94279-201-0 02 1 0310-
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-07210-810-0 01 1 0310-0605
337 HOSE; FLEX,UNION TO AIR PRESS GAGE
L=810 		0-57210-810-0 01 1 0606-
374 CONNECTOR 1-09654-324-0 01 1 0310-
434 CLIP
(A) ID=17 		1-09987-105-1 01 1 0310-
434 CLIP
(B) 		8-94297-486-0 02 1 0310-
437 WASHER; PL,CONNECTOR
ID=17 		9-09160-516-0 01 1 0310-0605
437 WASHER; PL,CONNECTOR
ID=17 OD=30 		0-91610-516-0 01 1 0606-
438 WASHER; PL,JOINT
ID=10.5 OD=26 T=2.6 		1-09985-184-0 01 1 0310-
çizim 174441
14 154 170 184 186 185 1 155 6 3 2 7 155
BalonParca AdiParca NoAdetTipApplied Date
1 HOSE; FLEX,AIR TANK
L=360 		1-09363-530-0 01 1 0310-
2 NUT; FLEX HOSE,AIR TANK
M22 		9-09111-422-0 01 1 0310-0512
2 NUT; FLEX HOSE,AIR TANK
M22 		0-91111-522-0 01 1 0601-
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		9-09150-522-0 01 1 0310-0603
3 WASHER; LK,FLEX HOSE,AIR TANK
ID=22.5 		0-91510-522-0 01 1 0604-
6 BRACKET; FLEX HOSE,AIR TANK 1-47478-864-0 01 1 0310-
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28680-830-0 02 1 0310-0512
7 BOLT; BRKT,FLEX HOSE,AIR TANK
M8X30 FLANGE 		0-28650-830-0 02 1 0601-
14 PIPE; AIR,FLEX HOSE TO AIR TANK 1-49114-877-0 01 1 0310-
154 PIPE; AIR,AIR TANK TO AIR GOV 1-49114-881-0 01 1 0310-
155 GASKET; AIR PIPE
ID=11 OD=18 		9-09572-510-0 02 1 0310-
170 PIPE; AIR,AIR GOV TO FLEX HOSE 1-49114-883-0 01 1 0310-
184 HOSE; FLEX,AIR GOV
L=350 		1-09363-651-0 01 1 0310-
185 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0310-
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0310-0603
186 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
çizim 174442
242 251 222 217 272 250 244 243 243 244 243 140 138 139 137
BalonParca AdiParca NoAdetTipApplied Date
137 HOSE; FLEX,AIR PRESSURE GAGE
L=450 		0-07120-450-0 01 1 0310-
138 NUT; FLEX HOSE,AIR GOV
M12 		9-09840-280-0 01 1 0310-
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 		9-09150-512-0 01 1 0310-0603
139 WASHER; LK,FLEX HOSE,AIR GOV
ID=12.2 MAL 		0-91510-512-0 01 1 0604-
140 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 0310-
217 PIPE; VAC,UNION TO MAG VLV 1-49114-886-0 01 1 0310-
222 PIPE; AIR,MAG VLV TO FLEX HOSE
L=1078 SERVICED BY L=1100 		1-47434-387-0 01 1 0310-
242 PIPE; AIR,AIR TANK TO UNION 1-49114-895-0 01 1 0310-
243 UNION; AIR PIPE
(A) M12 		9-09228-306-1 01 1 0310-0607
243 UNION; AIR PIPE
(A) M12 		0-92138-306-0 01 1 0608-
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		9-09228-906-1 01 1 0310-0607
243 UNION; AIR PIPE
ASSISTOR SHIFT CONTROL<WX8> (B) M12 3WAY 		0-92138-906-0 01 1 0608-
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 ELBOW 		9-09225-206-1 01 1 0310-0607
243 UNION; AIR PIPE
EXC. ASSISTOR SHIFT CONTROL<WX8> (C) M12 ELBOW 		0-92125-206-0 01 1 0608-
244 NUT; UNION,AIR PIPE
(A) M12 		9-09840-280-0 01 1 0310-
244 NUT; UNION,AIR PIPE
(B) M12 		9-99111-412-0 01 1 0310-0512
244 NUT; UNION,AIR PIPE
(B) M12 		0-91111-512-0 01 1 0601-
250 PIPE; AIR,UNION TO FLEX HOSE
L=2471 SERVICED BY L=2500 		1-47426-362-0 01 1 0310-
251 PIPE; AIR,UNION TO MAG VLV 1-49114-905-0 01 1 0310-
272 PIPE; AIR,MAG VLV TO UNION 1-49114-906-0 01 1 0310-
