0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#616) — 56 parça

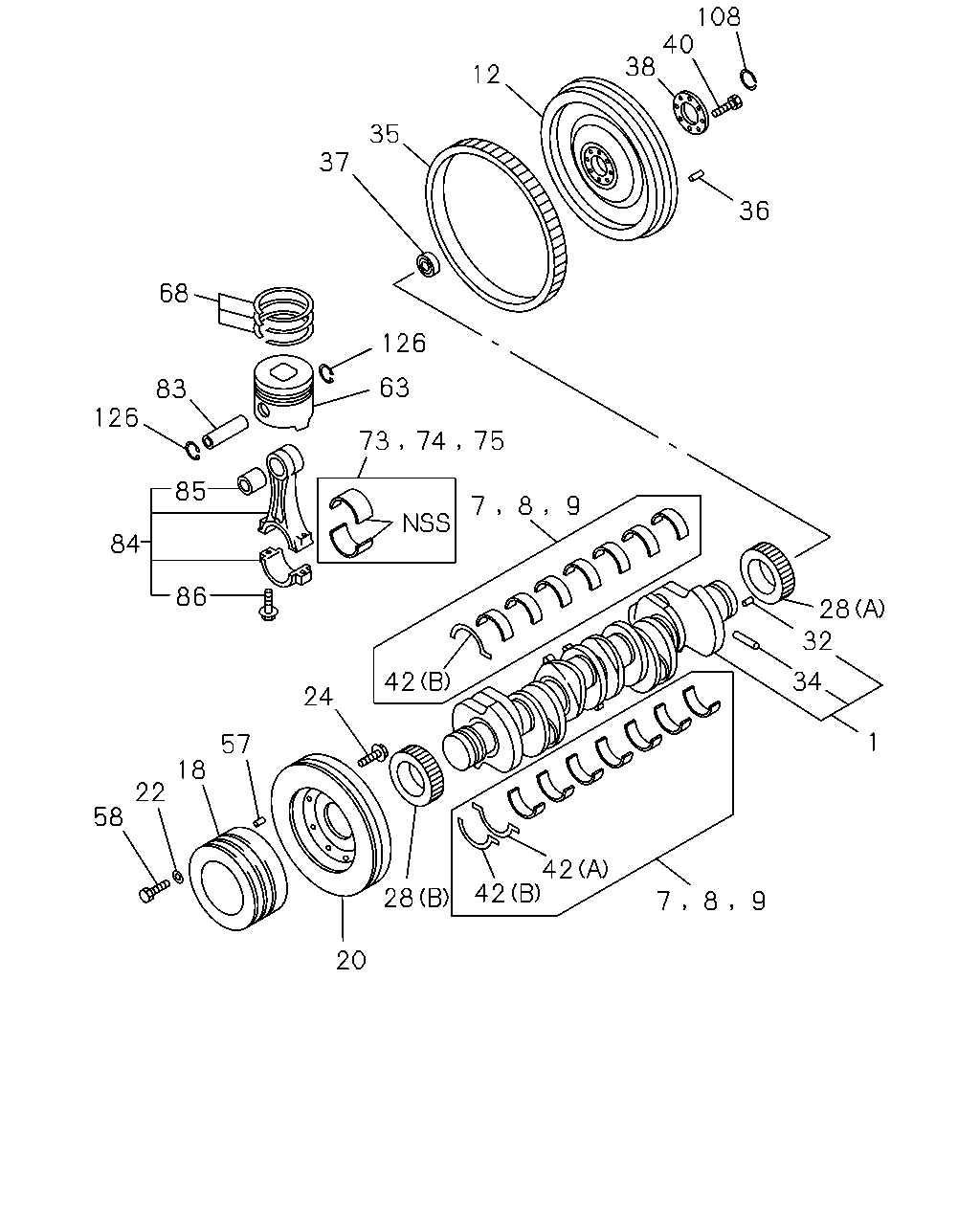

çizim 29452
108 40 38 12 35 37 36 68 126 63 83 126 73 74 75 85 7 8 9 84 86 28 32 34 42 24 1 57 18 22 58 42 42 28 9 8 7 20
BalonParca AdiParca NoAdetTipApplied Date A B
1 CRANKSHAFT 8-94396-392-3 01 1 9202-9306 ● ●
1 CRANKSHAFT 8-94395-025-0 01 1 9307- ● ●
7 METAL KIT; CRANKSHAFT,STANDARD 8-94393-327-0 01 1 9202- ● ●
8 METAL KIT; CRANKSHAFT,U/S=0.25 8-94396-987-0 01 1 9202- ● ●
9 METAL KIT; CRANKSHAFT,U/S=0.50 8-94396-988-0 01 1 9202- ● ●
12 FLYWHEEL
A/T<X9D> 		8-94397-007-2 01 1 9202- ●
12 FLYWHEEL
MBG5 M/T<X9W>,MBG6 M/T<X9X> 14"SPICER CLUTCH(SFF) 		8-94394-358-0 01 1 9202- ●
12 FLYWHEEL
MBG5 M/T<X9W>,MBG6 M/T<X9X> EXC. 14"SPICER CLUTCH(SFF) 		8-94399-903-2 01 1 9202- ●
12 FLYWHEEL
EXC. 13" CLUTCH(WD4) 		8-94399-903-2 01 1 9202- ●
12 FLYWHEEL
MLD6 M/T<X9Y> 14"SPICER CLUTCH(SFF) 		8-94393-268-2 01 1 9202- ●
12 FLYWHEEL
MLD6 M/T<X9Y> EXC. 14"SPICER CLUTCH(SFF) 		8-94399-067-1 01 1 9202- ●
12 FLYWHEEL
13" CLUTCH(WD4) 		8-94396-052-2 01 1 9202- ●
18 PULLEY; CR/SHF
A/T<X9D> 3-GROOVE 		8-94397-274-1 01 1 9202- ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> FLUID DRIVE FAN<KA3> ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94396-437-3 01 1 9202- ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> FLUID DRIVE FAN<KA3> EXC. ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94393-802-0 01 1 9202- ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> EXC. FLUID DRIVE FAN<KA3>,ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94399-961-2 01 1 9202-9412 ●
18 PULLEY; CR/SHF
EXC. 13" CLUTCH(WD4) 3-GROOVE 		8-94399-961-2 01 1 9202-9412 ●
18 PULLEY; CR/SHF
ISUZU M/T<X9A> EXC. FLUID DRIVE FAN<KA3>,ANTI NOISE EQUIPMENT ECE<SLK> 3-GROOVE 		8-94395-955-1 01 1 9501- ●
18 PULLEY; CR/SHF
EXC. 13" CLUTCH(WD4) 3-GROOVE 		8-94395-955-1 01 1 9501- ●
18 PULLEY; CR/SHF
13" CLUTCH(WD4) 3-GROOVE 		8-94397-158-1 01 1 9202- ●
20 DAMPER; CR/SHF
A/T<X9D> 		8-94397-386-2 01 1 9202- ●
20 DAMPER; CR/SHF
13" CLUTCH(WD4) 		8-94397-386-2 01 1 9202- ●
20 DAMPER; CR/SHF
ISUZU M/T<X9A> FLUID DRIVE FAN<KA3> 14"SPICER CLUTCH(SFF) 		8-94396-436-2 01 1 9202- ●
20 DAMPER; CR/SHF
ISUZU M/T<X9A> FLUID DRIVE FAN<KA3> EXC. 14"SPICER CLUTCH(SFF) 		8-94397-479-2 01 1 9202- ●
20 DAMPER; CR/SHF
ISUZU M/T<X9A> EXC. FLUID DRIVE FAN<KA3>,14"SPICER CLUTCH(SFF) 		8-94393-456-2 01 1 9202- ●
20 DAMPER; CR/SHF
EXC. 13" CLUTCH(WD4) 		8-94393-456-2 01 1 9202- ●
22 PLATE; PULLEY
ID=17 OD=30 		9-09851-935-0 04 1 9202- ● ●
24 BOLT; DAMPER
M10X16 FLANGE 		0-28181-016-0 06 1 9202- ● ●
28 GEAR; CR/SHF
(B) Z=42 		8-94396-962-0 01 1 9202-9404 ● ●
28 GEAR; CR/SHF
(B) Z=42 		8-94394-342-4 01 1 9405- ● ●
28 GEAR; CR/SHF
POWER STEERING(N40) (A) Z=41 		8-94396-954-2 01 1 9202- ● ●
32 PIN; FLYWHEEL
OD=8 L=16 		9-08150-816-0 02 1 9202- ● ●
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 9202- ● ●
35 GEAR; RING
MLD6 M/T<X9Y> Z=140 		8-94396-784-0 01 1 9202- ●
35 GEAR; RING
A/T<X9D>,MBG5 M/T<X9W>,MBG6 M/T<X9X> ID=361 Z=129 		8-94393-132-0 01 1 9202- ● ●
36 PIN; FLYWHEEL
14"SPICER CLUTCH(SFF) 		9-08150-825-0 03 1 9202-9405 ● ●
36 PIN; FLYWHEEL
14"SPICER CLUTCH(SFF) 		9-08150-825-0 02 1 9406- ● ●
36 PIN; FLYWHEEL
EXC. 14"SPICER CLUTCH(SFF) OD=10 L=22 		9-08151-022-0 02 1 9202- ● ●
37 BEARING; PILOT,TOP GEAR SHAFT
ISUZU M/T<X9A> 		1-09800-214-0 01 1 9202- ● ●
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 9202- ● ●
40 BOLT; FLYWHEEL
M16X62 		8-94393-070-0 08 1 9202- ● ●
42 WASHER; THRUST,CR/SHF
(A) 		8-94399-277-0 01 1 9202- ● ●
42 WASHER; THRUST,CR/SHF
(B) 		8-94399-283-0 02 1 9202- ● ●
57 PIN; PULLEY
OD=8 L=16 		9-08150-816-0 01 1 9202- ● ●
58 BOLT; CR/SHF PULLEY
M16X45 		9-92061-645-0 04 1 9202- ● ●
63 PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-837-0 06 1 9202- ● ●
68 RING SET; PISTON,STANDARD
ALSO INCLUDED IN LINER SET. 		8-94396-840-0 06 1 9202- ● ●
73 METAL SET; CONN ROD,STANDARD 8-94393-328-0 06 1 9202- ● ●
74 METAL SET; CONN ROD,U/S=0.25 8-94396-981-0 01 1 9202- ● ●
75 METAL SET; CONN ROD,U/S=0.50 8-94396-982-0 01 1 9202- ● ●
83 PIN; PISTON
ALSO INCLUDED IN LINER SET. 		8-94396-589-0 06 1 9202- ● ●
84 ROD ASM; CONN 8-94396-394-2 06 1 9202- ● ●
85 BUSHING; CONNROD
ALSO INCLUDED IN LINER SET. 		1-12251-036-0 06 1 9202- ● ●
86 BOLT; CONNROD
M13X57 FLANGE 		1-12235-035-0 12 1 9202- ● ●
108 RING; SNAP,BRG SET
ISUZU M/T<X9A> OD=59.2 		9-09180-155-0 01 1 9202- ● ●
126 RING; SNAP,PISTON PIN
ALSO INCLUDED IN LINER SET. 		8-94318-798-1 12 1 9202- ● ●
