Isuzu WW
▶
TRUCKS
▶
EXY
▶
10805 - EXY RHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶

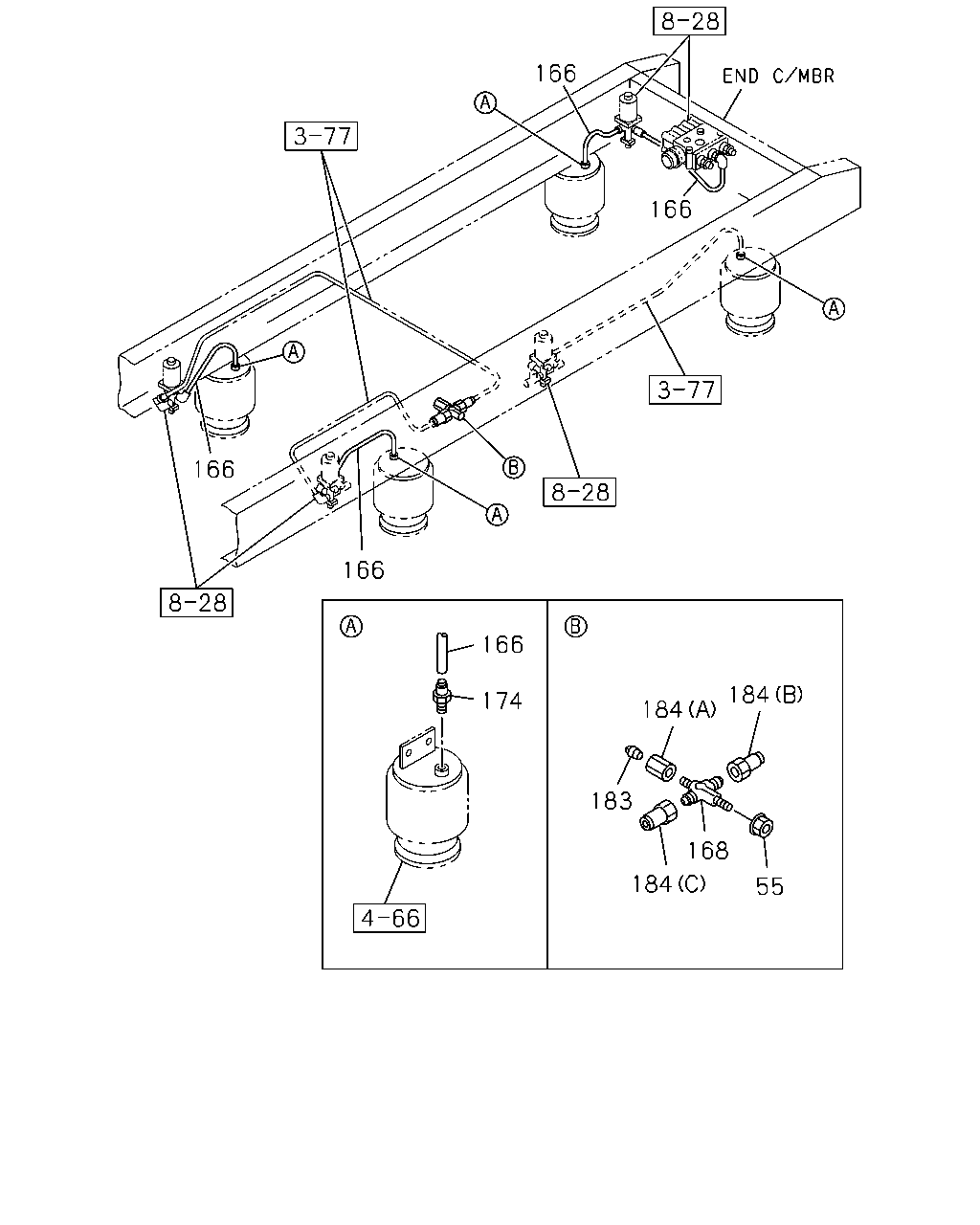

4-71 - AIR SUSPENSION PIPING
▶
4-71 — AIR SUSPENSION PIPING
(#6157) — 13 parça
166
166
166
166
166
184
174
184
183
168
184
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
NUT; UNION
M10 FLANGE
0-91150-210-0
01
1
9905-0602
55
NUT; UNION
M10 FLANGE
0-91180-210-0
01
1
0603-
166
TUBE; NYLON
SERVICED BY L=2000 OD=12
1-87411-011-0
05
1
0603-
166
TUBE; NYLON
L=500 SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
9905-
166
TUBE; NYLON
L=320 SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0302-
168
UNION; 3WAY
1-09656-714-0
01
1
9905-
174
UNION; AIR SPRING
DIN12 & R1/4 STRAIGHT
1-09661-214-0
04
1
9905-
183
ADAPTER
PT1/4
9-99204-513-0
01
1
9905-
184
PLUG
(A) M16 & RC1/4 STRAIGHT
1-09660-886-0
01
1
9905-
184
PLUG
(B) DIN8 & M16 STRAIGHT
1-09661-095-0
01
1
9905-0007
184
PLUG
(B) DIN8 & M16 STRAIGHT
1-09660-875-0
01
1
0008-
184
PLUG
(C) DIN12 & M16 STRAIGHT
1-09661-096-0
01
1
9905-0007
184
PLUG
(C) DIN12 & M16 STRAIGHT
1-09660-876-0
01
1
0008-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
