◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11321 - EXZ MIDDLE EAST WITH 2STEPS ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#61565) — 54 parça

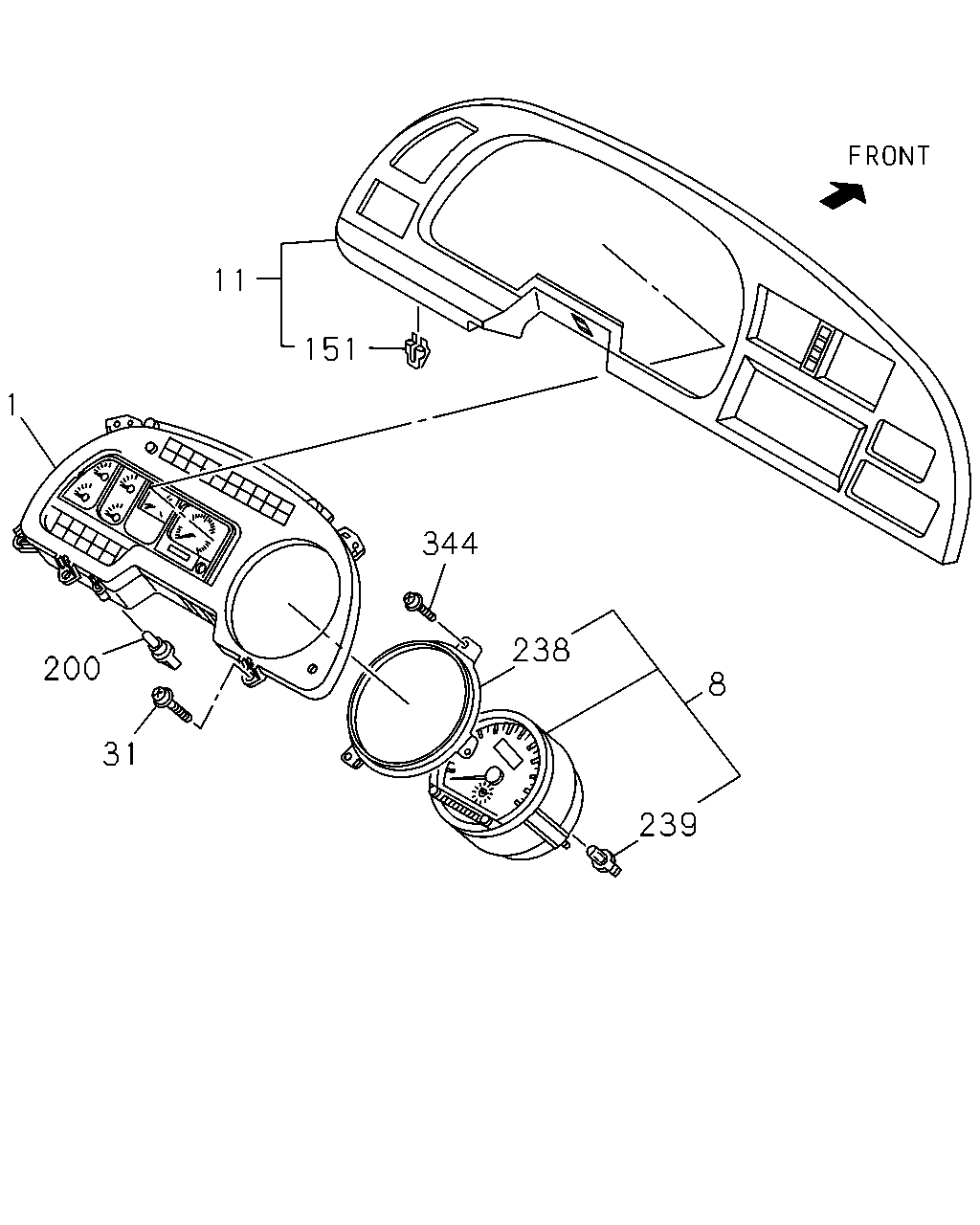

çizim 133856
11 151 1 344 238 200 8 31 239
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-82116-014-0 01 1 0811-0811
1 METER COMPL; CLUSTER 8-97623-995-0 01 1 0812-1103
1 METER COMPL; CLUSTER 8-97638-844-0 01 1 1104-1105
1 METER COMPL; CLUSTER 8-98195-537-0 01 1 1106-1205
1 METER COMPL; CLUSTER 8-98221-614-0 01 1 1206-
8 TACHOGRAPH; CLUSTER METER 1-83120-856-0 01 1 0811-
11 CLUSTER ASM; METER 1-72418-022-7 01 1 0811-
31 SCREW; METER,INST PANEL
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 04 1 0811-
151 CLIP; METER CLUSTER 8-97217-066-0 10 1 0811-
200 BULB; WARNING LAMP
24V 1.8W BROWN SOCKET 		1-82194-062-0 01 1 0811-
238 PANEL; TACHOGRAPH 1-83129-311-0 01 1 0811-
239 BULB; TACHOGRAPH
24V 1.4W 		5-82194-034-0 03 1 0811-
344 SCREW; SPEEDOMETER
M6X20 TAPPING W/PL WASHER 		0-74160-620-0 03 1 0811-

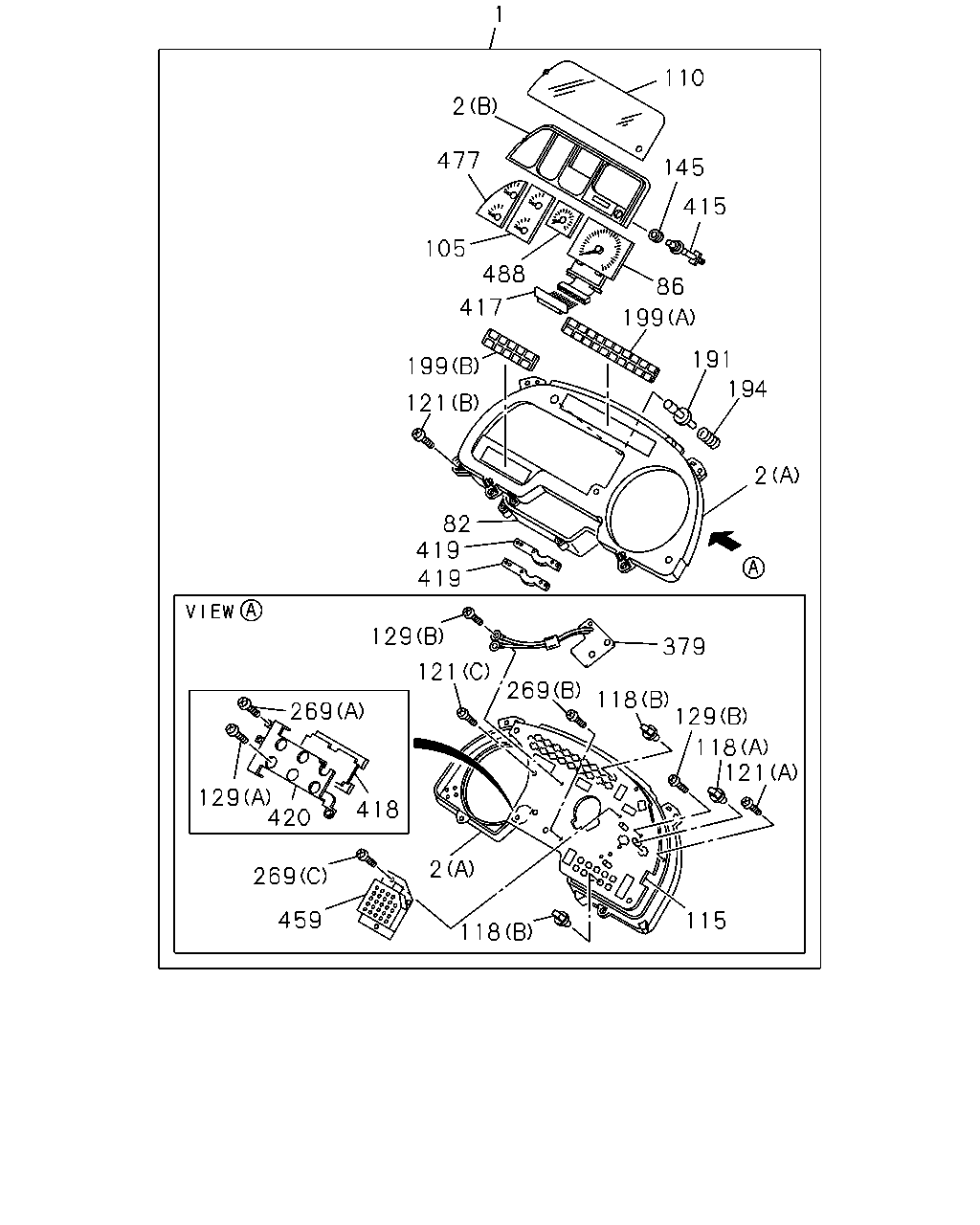

çizim 133860
1 110 2 477 145 415 105 488 86 417 199 191 199 194 121 2 82 419 419 129 379 121 269 118 129 269 118 121 129 420 418 2 269 459 115 118
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER 1-82116-014-0 01 1 0811-0811
1 METER COMPL; CLUSTER 8-97623-995-0 01 1 0812-1103
1 METER COMPL; CLUSTER 8-97638-844-0 01 1 1104-1105
1 METER COMPL; CLUSTER 8-98195-537-0 01 1 1106-1205
1 METER COMPL; CLUSTER 8-98221-614-0 01 1 1206-
2 PANEL; CLUSTER
(A) 		1-83119-644-0 01 1 0811-
2 PANEL; CLUSTER
(B) 		1-83119-682-0 01 1 0811-
82 CASE ASM; CLUSTER METER 1-83119-653-0 01 1 0811-
86 TACHOMETER; CLUSTER METER 1-83120-921-0 01 1 0811-
105 GAUGE; THERMO & FUEL,CLUSTER METER 1-83180-281-0 01 1 0811-1103
105 GAUGE; THERMO & FUEL,CLUSTER METER 8-98185-065-0 01 1 1104-
110 GLASS; CLUSTER METER 1-83119-646-0 01 1 0811-
115 CIRCUIT; PRINTED,CLUSTER METER 1-83189-475-0 01 1 0811-1105
115 CIRCUIT; PRINTED,CLUSTER METER 8-98194-994-0 01 1 1106-
118 BULB; CLUSTER METER
(A) 24V 3W GREEN SOCKET 		1-82194-061-0 04 1 0811-
118 BULB; CLUSTER METER
(B) 24V 1.8W BROWN SOCKET 		1-82194-062-0 26 1 0811-
121 SCREW; PANEL FIX,CLUSTER METER
(C) M3 TAPPING 		1-83119-084-0 01 1 0811-
121 SCREW; PANEL FIX,CLUSTER METER
(B) M4 TAPPING 		1-83119-442-0 05 1 0811-
121 SCREW; PANEL FIX,CLUSTER METER
(A) M3 TAPPING 		1-83119-676-0 02 1 0811-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(B) M3 TAPPING 		1-83119-657-0 09 1 0811-
129 SCREW; PRINTED CIRCUIT,CLUSTER METER
(A) M3 TAPPING 		1-83119-675-0 06 1 0811-
145 GROMMET; GLASS,KNOB HOLE,CLUSTER METER 1-83119-680-0 01 1 0811-
191 KNOB; BULB CHECK 1-83119-672-0 01 1 0811-
194 SPRING; BULB CHECK KNOB 1-83119-673-0 01 1 0811-
199 LENS; WARNING LAMP
(A) 		1-83119-883-1 01 1 0811-0811
199 LENS; WARNING LAMP
(A) 		8-97624-066-0 01 1 0812-
199 LENS; WARNING LAMP
(B) 		1-83119-912-0 01 1 0811-
269 SCREW; METER CLUSTER
(A) M3 		1-83119-273-0 02 1 0811-
269 SCREW; METER CLUSTER
(C) M3 TAPPING 		1-83119-657-0 03 1 0811-
269 SCREW; METER CLUSTER
(B) M3 TAPPING 		1-83119-677-0 08 1 0811-
379 CIRCUIT; DROP 1-83189-369-0 01 1 0811-
415 KNOB; TRIP,METER 1-83119-674-0 01 1 0811-
417 DISPLAY; ODO & TRIP,METER 1-83119-671-0 01 1 0811-1105
417 DISPLAY; ODO & TRIP,METER 8-98195-041-0 01 1 1106-
418 CIRCUIT; CONTROL,METER 1-83189-442-0 01 1 0811-
419 SPACER; CIRCUIT,METER 1-83119-678-0 02 1 0811-
420 HEAT SINK; METER 1-83119-679-0 01 1 0811-
459 POWER SUPPLY ASM 1-83119-925-0 01 1 0811-
477 GAUGE; AIR PRESS & VOLTAGE 1-83180-294-0 01 1 0811-
488 GAUGE; AIR PRESS & OIL PRESS 1-83150-268-0 01 1 0811-1205
488 GAUGE; AIR PRESS & OIL PRESS 8-98221-618-0 01 1 1206-
