◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXY ▶ 10805 - EXY RHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-70 - AIR SUSPENSION VALVE AND CONTROL ▶
4-70 — AIR SUSPENSION VALVE AND CONTROL (#6156) — 85 parça

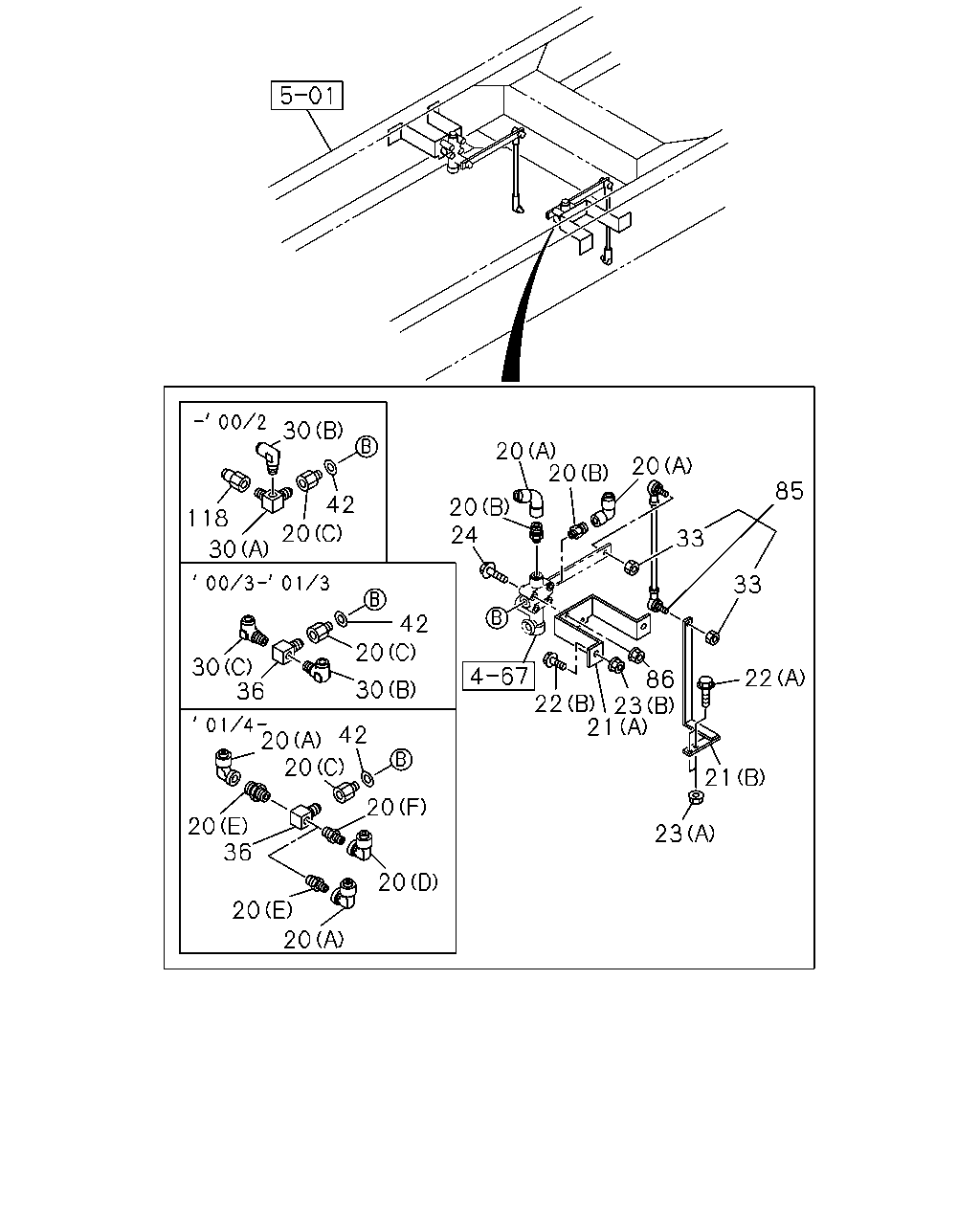

çizim 99843
30 20 20 20 85 20 24 42 20 118 33 30 33 42 20 86 21 30 36 22 30 20 20 42 21 20 20 36 23 20 20 20 22 23
BalonParca AdiParca NoAdetTipApplied Date
20 CONNECTOR; LEVELING VLV
(C) PT1/4 		1-09654-396-0 02 1 9905-
20 CONNECTOR; LEVELING VLV
(A) DIN12 ID=15.4 ELBOW 		1-09661-079-0 04 1 9905-0103
20 CONNECTOR; LEVELING VLV
(A) DIN12 ID=15.4 ELBOW 		1-09661-079-1 07 1 0104-
20 CONNECTOR; LEVELING VLV
(B) 		1-09661-084-0 04 1 9905-
20 CONNECTOR; LEVELING VLV
(D) DIN8 ELBOW 		1-09660-924-1 01 1 0104-
20 CONNECTOR; LEVELING VLV
(E) R1/4 OD=15.9 		1-09661-085-0 03 1 0104-
20 CONNECTOR; LEVELING VLV
(F) 		1-09661-090-0 01 1 0104-
21 BRACKET; LEVELING VLV
(A) 		1-53497-632-0 02 1 9905-
21 BRACKET; LEVELING VLV
(B) 		1-53497-634-0 01 1 9905-0002
21 BRACKET; LEVELING VLV
(B) 		1-53497-648-1 01 1 0003-0005
21 BRACKET; LEVELING VLV
(B) 		1-53497-664-0 01 1 0006-0006
21 BRACKET; LEVELING VLV
(B) 		1-53497-666-0 01 1 0007-0211
21 BRACKET; LEVELING VLV
(B) 		1-53497-706-0 01 1 0212-
21 BRACKET; LEVELING VLV
(B) 		1-53497-633-0 01 1 9905-0002
21 BRACKET; LEVELING VLV
(B) 		1-53497-647-1 01 1 0003-0005
21 BRACKET; LEVELING VLV
(B) 		1-53497-663-0 01 1 0006-0006
21 BRACKET; LEVELING VLV
(B) 		1-53497-665-0 01 1 0007-0211
21 BRACKET; LEVELING VLV
(B) 		1-53497-705-0 01 1 0212-
22 BOLT; BRKT
(A) M6X25 FLANGE 		0-28680-625-0 04 1 9905-0211
22 BOLT; BRKT
(A) M8X30 FLANGE 		0-28680-830-0 04 1 0212-0512
22 BOLT; BRKT
(A) M8X30 FLANGE 		0-28650-830-0 04 1 0601-
22 BOLT; BRKT
(B) M12X35 FLANGE 		0-28681-235-0 04 1 9905-0512
22 BOLT; BRKT
(B) M12X35 FLANGE 		0-28651-235-0 04 1 0601-
23 NUT; BRKT
(A) M6 FLANGE 		0-91150-206-0 04 1 9905-0211
23 NUT; BRKT
(A) M8 FLANGE 		0-91150-208-0 04 1 0212-0308
23 NUT; BRKT
(A) M8 FLANGE 		0-91150-108-0 04 1 0309-0602
23 NUT; BRKT
(A) M8 FLANGE 		0-91180-108-0 04 1 0603-
23 NUT; BRKT
(B) M12 FLANGE 		0-91150-212-0 04 1 9905-0602
23 NUT; BRKT
(B) M12 FLANGE 		0-91180-212-0 04 1 0603-
24 BOLT; LEVELING VLV
M8X60 FLANGE 		0-28080-860-0 04 1 9905-0512
24 BOLT; LEVELING VLV
M8X60 FLANGE 		0-28050-860-0 04 1 0601-
30 CONNECTOR; PIPE,LEVELING VALVE
(A) M16 & PT1/4X2 3WAY 		1-09656-669-0 02 1 9905-0002
30 CONNECTOR; PIPE,LEVELING VALVE
(C) DIN8 & R1/4 ELBOW 		1-09660-956-0 01 1 0003-0103
30 CONNECTOR; PIPE,LEVELING VALVE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 02 1 9905-0002
30 CONNECTOR; PIPE,LEVELING VALVE
(B) DIN12 & R1/4 ELBOW 		1-09660-958-0 03 1 0003-0103
33 NUT 1-52139-044-0 04 1 9905-
36 CONNECTOR; PIPE,LEVELING VALVE 1-09660-363-0 02 1 0003-
42 GASKET
ID=12.2 		1-09630-084-0 02 1 9905-0112
42 GASKET
ID=12.2 		1-09630-132-0 02 1 0201-
85 ROD; LEVELING VLV 1-52137-036-0 02 1 9905-
86 NUT; LEVELING VLV
M8 FLANGE 		0-91150-208-0 04 1 9905-0308
86 NUT; LEVELING VLV
M8 FLANGE 		0-91150-108-0 04 1 0309-0602
86 NUT; LEVELING VLV
M8 FLANGE 		0-91180-108-0 04 1 0603-
118 ADAPTER
DIN12 & M16 STRAIGHT 		1-09661-096-0 02 1 9905-0002

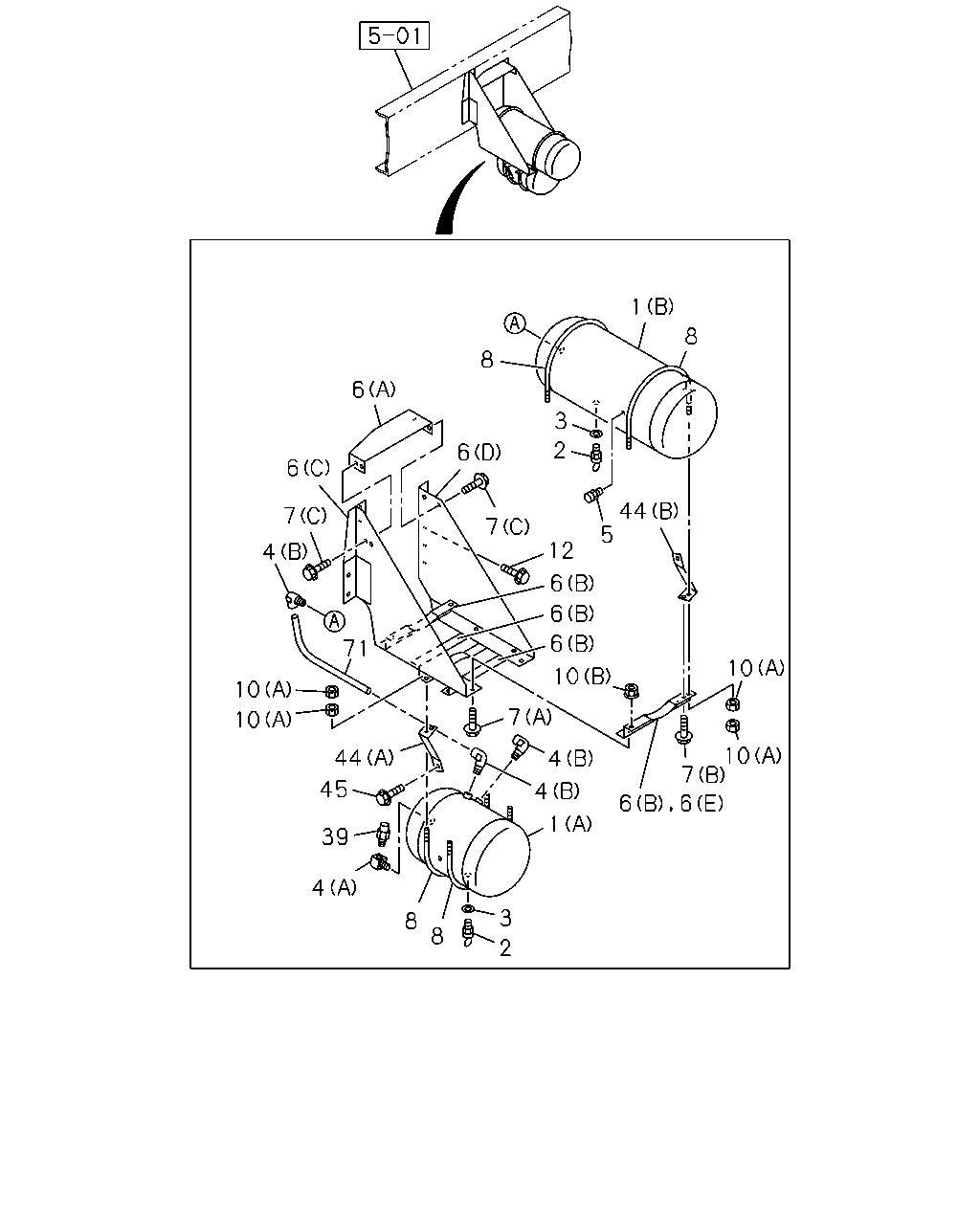

çizim 100023
1 8 8 6 3 2 6 6 44 5 7 7 12 4 6 6 6 71 10 10 10 7 10 10 7 44 4 45 4 1 39 4 3 8 8 2 6 6
BalonParca AdiParca NoAdetTipApplied Date
1 TANK ASM; AIR
(A) 		1-48370-632-2 01 1 9905-
1 TANK ASM; AIR
(B) 		1-48370-633-1 01 1 9905-0203
1 TANK ASM; AIR
(B) 		1-48371-199-0 01 1 0204-
2 COCK ASM; DRAIN 1-48312-015-0 02 1 9905-
3 GASKET; DRAIN COCK
ID=14 		1-09630-145-0 02 1 9905-
4 CONNECTOR; AIR TANK
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 9905-9907
4 CONNECTOR; AIR TANK
(A) DIN12 & M20 STRAIGHT 		1-09661-097-0 01 1 9908-0007
4 CONNECTOR; AIR TANK
(A) DIN12 & M20 STRAIGHT 		1-09660-877-0 01 1 0008-
4 CONNECTOR; AIR TANK
(B) DIN12 & R3/8 ELBOW 		1-09660-959-0 03 1 9905-
5 PLUG; AIR TANK
PT3/8 		9-09204-517-0 01 1 0204-
6 BRACKET; AIR TANK
(B) 		1-48317-731-0 04 1 9905-0301
6 BRACKET; AIR TANK
(B) 		1-48317-731-0 03 1 0302-
6 BRACKET; AIR TANK
(C) 		1-48317-814-2 01 1 9905-0003
6 BRACKET; AIR TANK
(C) 		1-48317-915-0 01 1 0004-0301
6 BRACKET; AIR TANK
(C) 		1-48316-018-0 01 1 0302-0602
6 BRACKET; AIR TANK
(C) 		1-48316-082-0 01 1 0603-
6 BRACKET; AIR TANK
(D) 		1-48317-815-2 01 1 9905-0301
6 BRACKET; AIR TANK
(D) 		1-48316-017-0 01 1 0302-
6 BRACKET; AIR TANK
(A) 		1-48317-816-1 01 1 9905-
6 BRACKET; AIR TANK
(E) 		1-48317-733-2 01 1 0302-
7 BOLT; BRKT,AIR TANK
(B) M8X25 FLANGE 		0-28680-825-0 01 1 9905-0002
7 BOLT; BRKT,AIR TANK
(C) M10X30 FLANGE 		0-28681-030-0 04 1 9905-0512
7 BOLT; BRKT,AIR TANK
(C) M10X30 FLANGE 		0-28651-030-0 04 1 0601-
7 BOLT; BRKT,AIR TANK
(A) M12X30 FLANGE 		0-28681-230-0 08 1 9905-0512
7 BOLT; BRKT,AIR TANK
(A) M12X30 FLANGE 		0-28651-230-0 08 1 0601-
8 U-BOLT; AIR TANK
L=303 		1-48317-087-2 04 1 9905-
10 NUT; U-BOLT
(A) M8 		9-09110-408-0 16 1 9905-0512
10 NUT; U-BOLT
(A) M8 		0-91110-508-0 16 1 0601-
10 NUT; U-BOLT
(B) M12 FLANGE 		0-91150-212-0 02 1 0302-0602
10 NUT; U-BOLT
(B) M12 FLANGE 		0-91180-212-0 02 1 0603-
12 BOLT; AIR TANK
M12X40 FLANGE 		0-28681-240-0 08 1 9905-0512
12 BOLT; AIR TANK
M12X40 FLANGE 		0-28651-240-0 08 1 0601-
39 VALVE; CHECK
M20 & PT3/4 ELBOW 		1-48410-412-0 01 1 9905-
44 STOPPER; AIR TANK
(A) 		1-48317-645-0 01 1 9905-
44 STOPPER; AIR TANK
(B) 		1-48317-714-0 01 1 9905-
45 BOLT
M8X25 FLANGE 		0-28680-825-0 01 1 9905-0002
45 BOLT
M8X25 FLANGE 		0-28680-825-0 02 1 0003-0512
45 BOLT
M8X25 FLANGE 		0-28650-825-0 02 1 0601-
71 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 9905-0212
71 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87410-069-0 01 1 0301-0301
71 TUBE; NYLON
SERVICED BY L=2000 OD=12 		1-87411-011-0 01 1 0302-
