7-43 — SUN VISOR AND ASSIST GRIP (#61554) — 102 parça

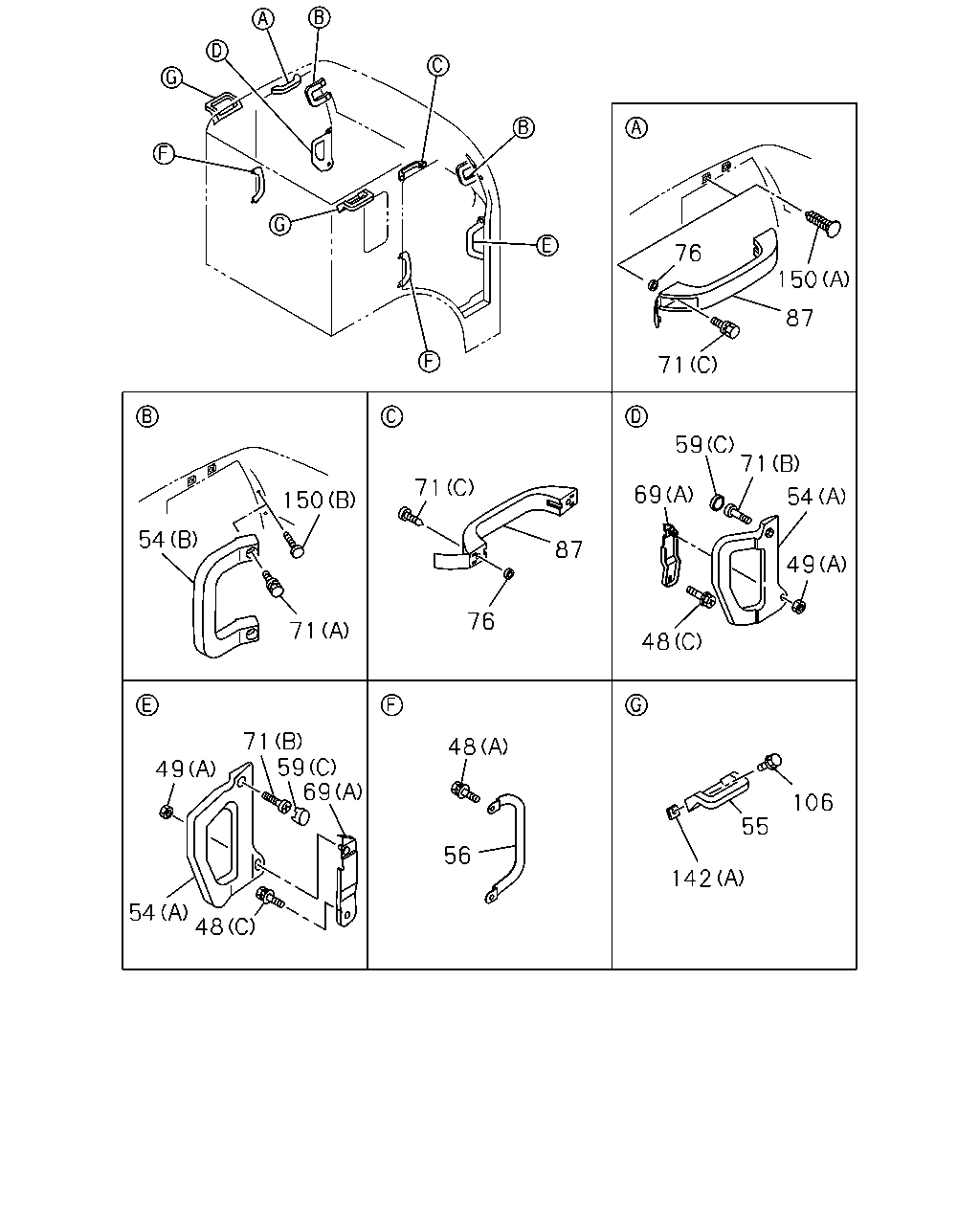

76 150 87 71 59 71 71 69 54 150 54 87 49 76 71 48 71 59 69 48 49 106 55 56 142 54 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0811-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0811-0811
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0811-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0811-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0811-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0811-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0811-
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0812-1006
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-564-1	01	1	0811-
54	GRIP; ASSIST,QUARTER SIDE (A)	1-73617-563-1	01	1	0811-
54	GRIP; ASSIST,QUARTER SIDE ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	02	1	0811-
54	GRIP; ASSIST,QUARTER SIDE EXC. ASSIST GRIP A POST<NBK> (B)	1-73618-185-1	01	1	0811-
55	GRIP; ASSIST,CAB SIDE UPR GRIP OUT SIDE<W52>	1-73618-169-1	02	1	0811-
55	GRIP; ASSIST,CAB SIDE UPR EXC. GRIP OUT SIDE<W52>	1-73618-169-1	01	1	0811-
56	GRIP; ASSIST,SIDE SILL	8-98081-700-0	02	1	0811-
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0811-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0811-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0811-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0811-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0811-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0811-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0811-
71	SCREW (B) M6X20 W/LK&PL WASHER	1-09981-073-0	02	1	0811-
71	SCREW ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	04	1	0811-
71	SCREW ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	04	1	0811-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (C) M6X30 W/LK WASHER	5-09981-064-0	02	1	0811-
71	SCREW EXC. ASSIST GRIP A POST<NBK> (A) M6X34 W/LK&PL WASHER	8-94279-411-0	02	1	0811-
76	SPACER; ASSIST GRIP ASSIST GRIP A POST<NBK> OD=13 T=4.5	8-94230-464-1	04	1	0811-
76	SPACER; ASSIST GRIP EXC. ASSIST GRIP A POST<NBK> OD=13 T=4.5	8-94230-464-1	02	1	0811-
87	GRIP; ASSIST,CANT RAIL SIDE ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	02	1	0811-
87	GRIP; ASSIST,CANT RAIL SIDE EXC. ASSIST GRIP A POST<NBK> DARK GRAY	8-97098-476-2	01	1	0811-
106	SCREW; ASSIST GRIP GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0811-
106	SCREW; ASSIST GRIP EXC. GRIP OUT SIDE<W52> M8X30 W/LK&PL WASHER	8-94279-210-0	02	1	0811-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0811-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	02	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0811-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (A) OD=6 L=17 LIGHT GRAY	1-73996-301-0	02	1	0811-
150	CLIP; ASSIST GRIP HOLE EXC. ASSIST GRIP A POST<NBK> (B) OD=6 L=17 DARK GRAY	1-73996-364-0	02	1	0811-

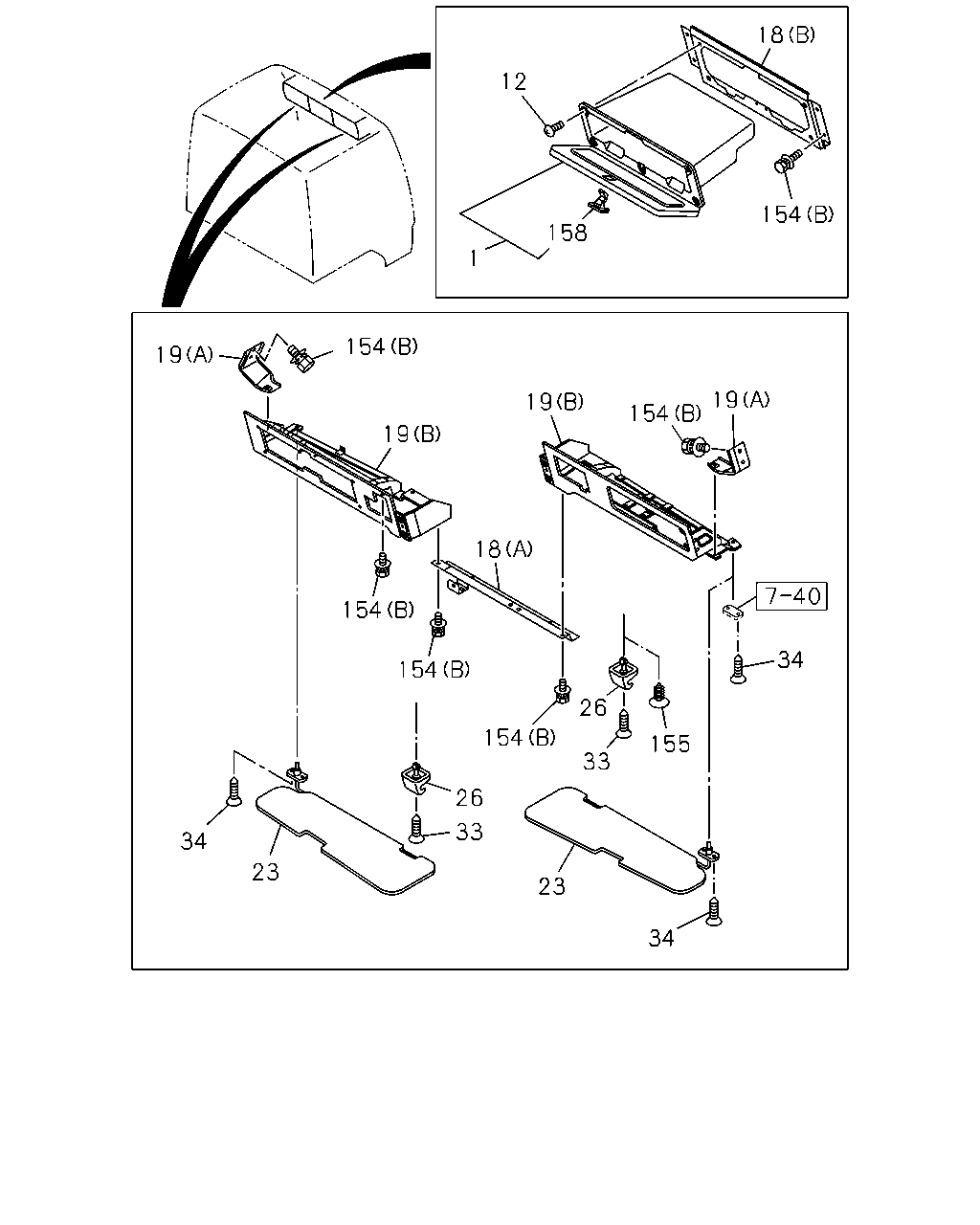

18 12 154 158 1 154 19 19 19 154 19 18 154 34 154 26 154 155 33 26 33 34 23 23 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BOARD; HEADER SHELF	1-72447-968-0	01	1	0811-
12	SCREW; HEADER SHELF M6X24 W/LK&PL WASHER	8-94279-404-0	04	1	0811-
18	SUPPORT; HEADER SHELF CENTER (B)	1-72447-824-2	01	1	0811-
18	SUPPORT; HEADER SHELF CENTER (A)	1-72447-937-0	01	1	0811-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-938-4	01	1	0811-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-324-1	01	1	0811-
19	SUPPORT ASM; HEADER SHELF (B)	1-72447-878-4	01	1	0811-
19	SUPPORT ASM; HEADER SHELF (A)	1-72448-323-1	01	1	0811-
23	SUN VISOR	1-73138-157-1	01	1	0811-
23	SUN VISOR SUN VISOR PASSENGER<D20>	1-73138-156-1	01	1	0811-
26	HOLDER; SUN VISOR SUN VISOR PASSENGER<D20>	1-73137-175-0	01	1	0811-
26	HOLDER; SUN VISOR	1-73137-175-0	01	1	0811-
33	SCREW; HOLDER,SUN VISOR SUN VISOR PASSENGER<D20> M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0811-
33	SCREW; HOLDER,SUN VISOR M4X20 TAPPING OVAL-HEAD	0-70540-420-0	01	1	0811-
34	SCREW; SUN VISOR M6X25	1-09981-441-0	04	1	0811-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0811-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0811-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0811-
155	FASTENER; HOLDER EXC. SUN VISOR PASSENGER<D20>	1-09983-181-0	01	1	0811-
158	LOCK; HEADER SHELF	1-72538-312-0	01	1	0811-

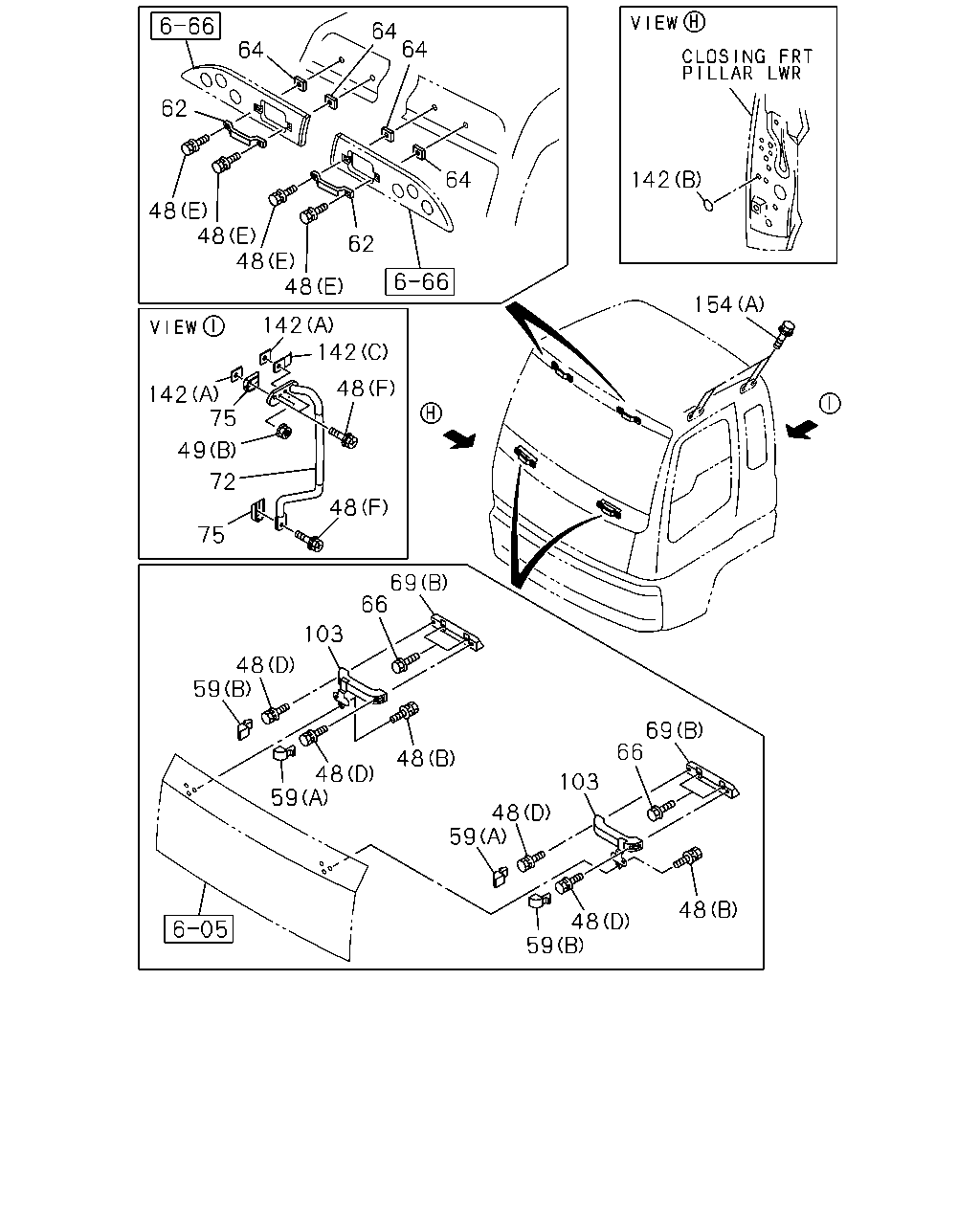

64 64 64 62 142 64 48 48 48 48 62 154 142 142 48 142 75 49 72 48 75 69 66 103 48 59 69 66 48 48 59 103 48 59 48 48 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
48	BOLT; ASSIST GRIP (A) M6X12 W/LK&PL WASHER	1-09980-611-0	04	1	0811-
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	02	1	0811-0811
48	BOLT; ASSIST GRIP (E) M6X33.5 W/LK&PL WASHER	1-09980-613-1	04	1	0812-
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-94279-208-0	02	1	0811-0904
48	BOLT; ASSIST GRIP (C) M8X24.5 W/LK&PL WASHER	8-98059-720-0	02	1	0905-
48	BOLT; ASSIST GRIP (D) M8X30 W/LK&PL WASHER	8-94279-210-0	04	1	0811-
48	BOLT; ASSIST GRIP (B) M6X20 W/LK&PL WASHER	8-94279-203-0	04	1	0811-
48	BOLT; ASSIST GRIP GRIP OUT SIDE<W52> (F) M8X29.5 W/LK+PL WASHER	8-94279-218-0	03	1	0811-
49	NUT; ASSIST GRIP (A) M6 FLANGE	0-91180-106-0	02	1	0811-
49	NUT; ASSIST GRIP GRIP OUT SIDE<W52> (B) M8 FLANGE	1-09984-126-0	01	1	0812-1006
59	COVER; ASSIST GRIP (B)	1-71998-789-2	02	1	0811-
59	COVER; ASSIST GRIP (A)	1-71998-790-2	02	1	0811-
59	COVER; ASSIST GRIP (C)	1-73617-565-0	02	1	0811-
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	01	1	0811-0811
62	GRIP; ASSIST,ROOF PANEL	1-71907-492-0	02	1	0812-0907
62	GRIP; ASSIST,ROOF PANEL	8-97630-819-0	02	1	0908-
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	02	1	0811-0811
64	SHEET; ASSIST GRIP 25X25	8-94272-533-0	04	1	0812-
66	BOLT; ASSIST GRIP BRKT M8X20.5 W/LK&PL WASHER	8-94279-207-0	04	1	0811-
69	BRACKET; ASSIST GRIP (B)	1-65570-243-0	01	1	0811-
69	BRACKET; ASSIST GRIP (A)	1-73618-178-2	01	1	0811-
69	BRACKET; ASSIST GRIP (B)	1-65570-242-0	01	1	0811-
69	BRACKET; ASSIST GRIP (A)	1-73618-181-1	01	1	0811-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	0811-0811
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-545-0	01	1	0812-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-543-0	01	1	1007-
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-544-0	01	1	0811-1006
72	GRIP; ASSIST,CAB ENTRY,BACK GRIP OUT SIDE<W52>	1-71907-540-0	01	1	1007-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	01	1	0811-
75	SHEET; ASSIST GRIP,CAB ENTRY GRIP OUT SIDE<W52>	1-71997-548-0	02	1	0811-
103	GRIP; ASSIST,FRT PNL	1-71998-939-3	01	1	0811-
103	GRIP; ASSIST,FRT PNL	1-71998-940-3	01	1	0811-
142	SEAL; ASSIST GRIP (A) 25X25	8-94272-533-0	02	1	0811-
142	SEAL; ASSIST GRIP (B) OD=25 BLACK	1-76798-019-0	01	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	01	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (C)	1-71997-691-1	02	1	0811-
142	SEAL; ASSIST GRIP GRIP OUT SIDE<W52> (A) 25X25	8-94272-533-0	04	1	0811-
154	BOLT; SUPPORT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	18	1	0811-
154	BOLT; SUPPORT GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	04	1	0811-
154	BOLT; SUPPORT EXC. GRIP OUT SIDE<W52> (A) M8X15 W/PL WASHER	1-79198-003-2	06	1	0811-
