◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXZ ▶ 11321 - EXZ MIDDLE EAST WITH 2STEPS ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#61550) — 22 parça
çizim 133801
181 181 162
BalonParca AdiParca NoAdetTipApplied Date
162 PLATE; CAUTION,FUEL 8-98083-160-0 01 1 0812-
181 PLATE; CAUTION,AIR CLEANER
(A) 		1-85886-796-1 01 1 0811-
181 PLATE; CAUTION,AIR CLEANER
(B) 		1-85886-813-1 01 1 0811-

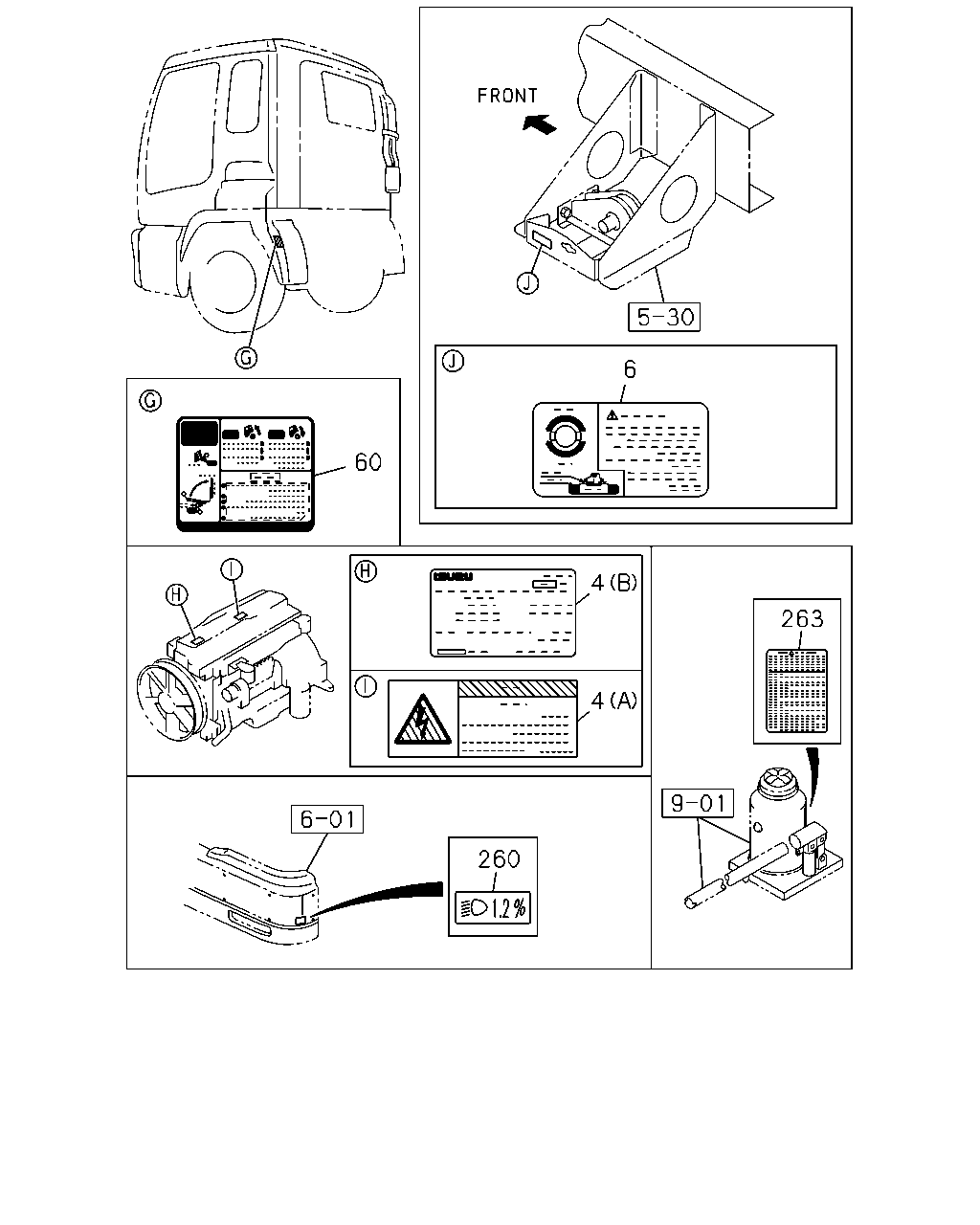

çizim 133802
6 60 4 263 4 260
BalonParca AdiParca NoAdetTipApplied Date
4 LABEL; ENG MAINTENANCE
(A) 		8-98088-627-0 01 1 0812-
4 LABEL; ENG MAINTENANCE
(B) 		8-98088-630-0 01 1 0812-
6 PLATE; CAUTION,SPARE TIRE
SPARE WHEEL CARRIER FRAME SIDE<P13> 		8-98082-441-0 01 1 0811-
60 PLATE; CAUTION,CAB TILT 1-85883-181-0 01 1 0811-
260 PLATE; CAUTION,HEAD LAMP LEVELING 1-85878-416-1 01 1 0811-
263 PLATE; CAUTION,JACK
TOOL B KIT<SL1> 		8-98094-561-0 01 1 0812-

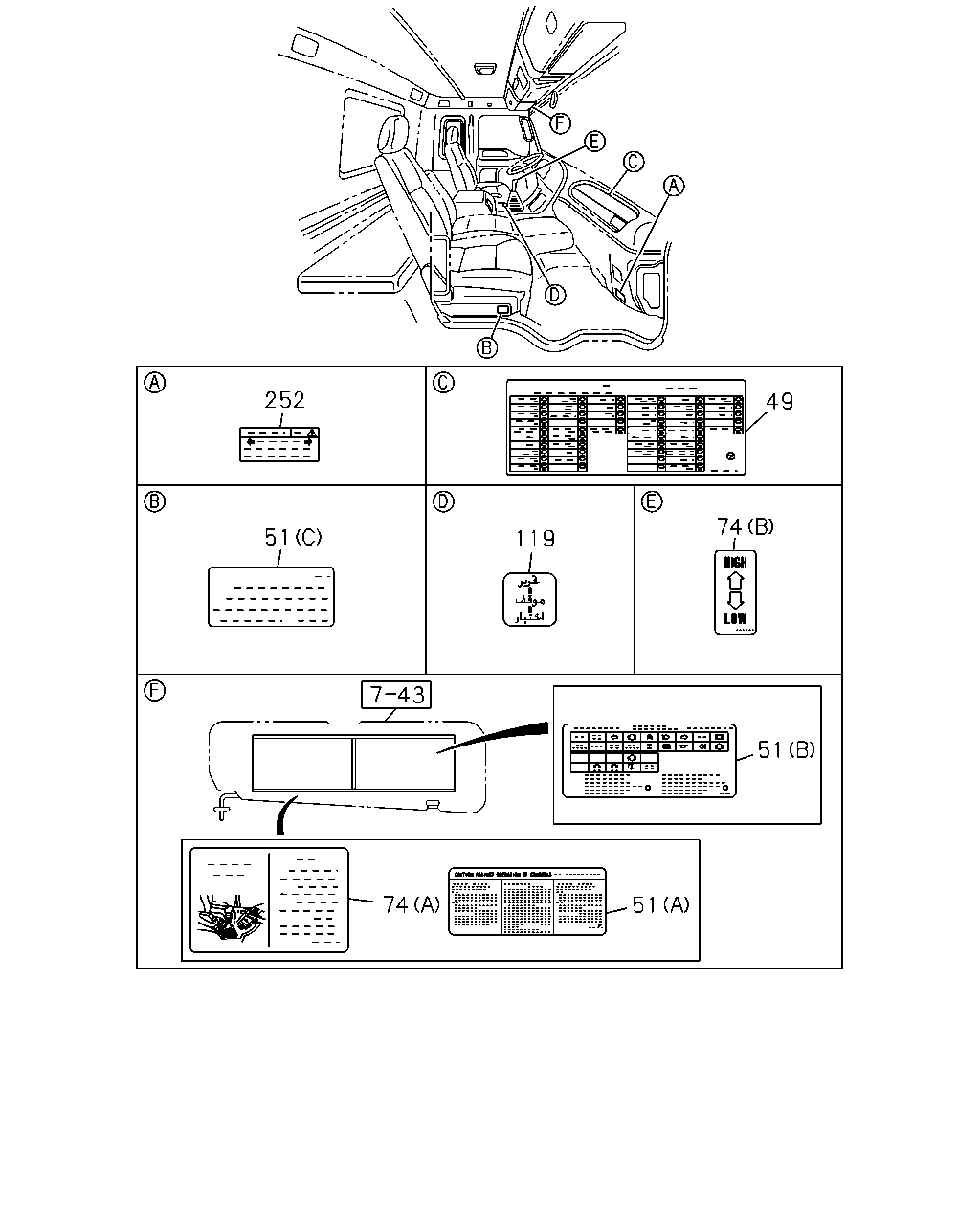

çizim 133803
252 49 74 51 119 51 74 51
BalonParca AdiParca NoAdetTipApplied Date
49 PLATE; CAUTION,FUSE BOX 1-85878-331-0 01 1 0811-0901
49 PLATE; CAUTION,FUSE BOX 8-97624-086-0 01 1 0812-
51 PLATE; CAUTION,WARNING
(B) 		1-85878-434-0 01 1 0811-0811
51 PLATE; CAUTION,WARNING
(A) 		1-85880-787-0 01 1 0812-
51 PLATE; CAUTION,WARNING
(C) 		8-97624-052-0 01 1 0812-
74 PLATE; CAUTION,CHANGE LEV
(A) 		1-85881-836-0 01 1 0811-0811
74 PLATE; CAUTION,CHANGE LEV
(A) 		8-98124-445-0 01 1 0812-
74 PLATE; CAUTION,CHANGE LEV
(B) 		8-98118-493-0 01 1 0811-
119 PLATE; CAUTION,HAND BRK LEVER 1-85881-980-0 01 1 0812-
252 PLATE; CAUTION,HARNESS 8-97623-996-0 01 1 0812-
çizim 133804
5 289 144
BalonParca AdiParca NoAdetTipApplied Date
5 LABEL; TIRE AIR PRESSURE 1-85880-778-0 01 1 0811-
144 PLATE; CAUTION,CLU 1-85878-345-0 01 1 0811-
289 PLATE; CAUTION,DRIVING 8-98093-472-0 01 1 0812-
